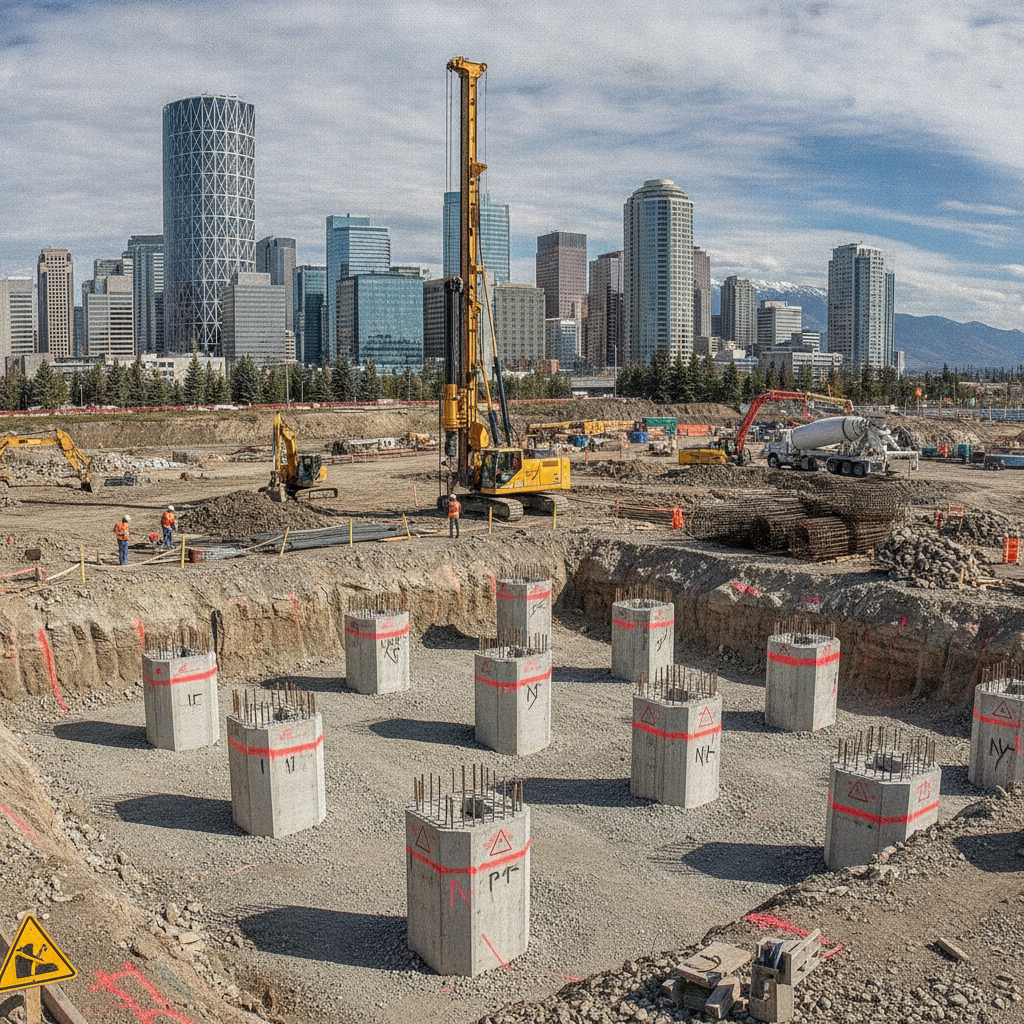

The structural stability of any building in Calgary depends not only on the strength of its materials and architectural brilliance but also, critically, on how precisely its deep foundation units are designed, aligned, and located. For homeowners, builders, and developers, understanding - and complying with - the requirements of the National Building Code of Canada (NBC) and local Calgary regulations is fundamental to project success, financial protection, and occupant safety.

Deep foundations - including piles, caissons, drilled shafts, and other subsurface supports - serve as the invisible backbone of residential, commercial, and infrastructure projects throughout Calgary. Their proper positioning is more than a technical necessity: it’s a legal and practical imperative that influences the lifespan, integrity, and value of any structure.

Understanding Deep Foundations: Purpose and Types

Before delving into alignment, tolerances, and code requirements, it is essential to appreciate what deep foundations are and why they matter in Calgary’s unique environment.

What Are Deep Foundations?

Deep foundations are structural elements designed to transfer building loads well below the ground surface, bypassing weaker near-surface soils and anchoring the structure within stronger, more stable strata. This approach is necessary where surface soils are insufficiently supportive - a frequent circumstance in areas of variable geotechnical conditions like Calgary.

  • Pile Foundations: Long, slender columns made from concrete, steel, or timber, driven or drilled deep into the ground.
  • Caissons (Drilled Shafts): Cast-in-place concrete shafts created by drilling a hole, placing reinforcement, and filling it with concrete.
  • Helical Piers: Mechanically screwed piles frequently used for retrofitting and residential applications.
  • Micropiles: Small-diameter piles capable of carrying significant loads, valuable for complex or restricted-access sites.

Regardless of type, every deep foundation unit’s alignment and final geometric placement must follow strict design and regulatory criteria.

Why Precise Alignment and Location Matter

Even minute deviations in the alignment or plan location of a pile or caisson top can have outsized effects on structural safety and code compliance. Misaligned foundation units can induce unexpected load paths, introduce settlement issues, reduce structural efficiency, or even trigger costly rework and litigation.

  • Load Distribution: Incorrectly positioned deep foundations can shift building loads away from designed load paths, overloading certain components and risking partial or total failure.
  • Settlement Risks: Misplacement can concentrate settlement in unexpected areas, resulting in uneven floors, cracks, and long-term serviceability problems.
  • Legal and Insurance Implications: Non-compliance with NBC and City of Calgary standards can result in stop-work orders, denied occupancy, higher insurance premiums, or refusal of claim coverage.
  • Cost Overruns: Rectifying misaligned foundation systems-involving underpinning or structural redesign-can derail budgets and project timelines.

The Regulatory Framework: NBC Sections 4.2.7.3 & 4.2.7.4

The National Building Code of Canada (NBC) establishes the ‘gold standard’ for building safety, resilience, and performance across the country. Sections 4.2.7.3 and 4.2.7.4 directly govern foundation alignment and corrective action criteria.

Section 4.2.7.3: Tolerance in Alignment and Location

Section 4.2.7.3 mandates that the allowable deviation - or tolerance - from the designed position and orientation of any deep foundation unit must be explicitly determined in the engineering design and shown on construction drawings. Tolerances relate both to:

  • Horizontal location: The X/Y (plan) position of the pile/shaft top.
  • Vertical alignment: Axial straightness (plumb) and orientation in three dimensions.

Key points for project teams:

  • Tolerances are not generic - they are specific to the project and must be justified by design analysis, considering soil behavior, structural requirements, and load paths.
  • All tolerances must be clearly shown on the construction documents submitted for permitting and construction.
  • Contractors and inspectors must be aware of these tolerances prior to, and throughout, installation.

Section 4.2.7.4: Incorrect Alignment and Location-Mandatory Procedures

Section 4.2.7.4 addresses what must happen if a deep foundation unit is installed outside the tolerances defined in Section 4.2.7.3:

  • The designer is required to assess and evaluate the non-conforming element to determine whether it is suitable in its as-installed condition.
  • If it is not suitable, modifications or remedial action are mandatory. This may include structural adjustment, underpinning, supplemental piles, or redesign.
  • All actions must be in accordance with Article 2.3.4.7 (dealing with defective work and its rectification), ensuring no unsafe condition remains.

Whether you are a homeowner building a custom residence, a contractor constructing multi-family dwellings, or a developer pursuing a new commercial site, integrating these code requirements into your planning and execution phases is essential to minimize risk and maximize success.

Calgary’s Local Regulatory Requirements

Compliance does not end with the NBC. The City of Calgary overlays additional procedural, permitting, and inspection requirements that every project must follow, regardless of size or sophistication.

Building Permits: Foundation Design Submission

  • Submission of Detailed Drawings: All deep foundation systems require engineer-sealed drawings indicating pile/caisson sizes, locations, alignment tolerances, reinforcement, and load capacity.
  • Permit Application: Building permits are compulsory for any new construction or significant structural work. Minor repairs or non-structural changes may be exempt, but anything involving deep foundations or excavation triggers the permitting process.
  • Lot Grading and Site Plans: Demonstrates conformity with drainage, zoning, and site-specific criteria that could influence foundation layout and depths.

Development Permits: Zoning and Land Use Bylaws

  • Certain types of developments - especially in new subdivisions or commercial areas - require additional review to verify compliance with the land use bylaw and area redevelopment plans.
  • Permit packets typically include architectural designs, foundation layouts, geotechnical reports, and engineering assessments.
  • Projects located within floodplains, near public infrastructure, or in environmentally sensitive areas encounter extra scrutiny and permitting steps.

Comprehensive Inspection Requirements

The construction of deep foundations in Calgary involves mandatory checkpoints:

  • Pre-excavation Inspections: Confirm locating of all utilities to prevent accidental damage and verify boundary markers.
  • Pre-pour or Pre-placement Inspections: Assess proper rebar, formwork, and foundation element positioning before concrete or piling installation.
  • Final Structural Inspections: Confirm as-built condition matches approved plans, including tolerances of alignment and location. Any deviations are examined for compliance with NBC 4.2.7.3-4.2.7.4.

As a result, every phase - from design to execution - must be well-documented. As-built survey data and daily field logs are frequently required as evidence in case of any disputes or claims.

Geotechnical Assessment: The Foundation of a Sound Foundation

Calgary sits upon a complex geological setting, with glacial tills, silty clays, occasional expansive soils, and pockets of gravels and sands. Understanding how these materials behave under loading - and how they may influence or be influenced by seasonal freeze/thaw cycles, groundwater levels, or urban infrastructure - is essential to deep foundation performance.

Why Geotechnical Investigation is Critical

Every foundation begins with knowledge of what lies beneath. A proper geotechnical site investigation achieves:

  • Soil Bearing Capacity Identification: Determines safe and economical foundation depths and types.
  • Frost Heave and Swelling Soil Risk Assessment: Identifies potential for heaving or shrinkage-induced movement, vital in Calgary’s climate.
  • Groundwater Table Identification: Informs dewatering, waterproofing, or specific construction methods, particularly for deep basements or buried structures.
  • Vibration and Settlement Risks: Prevents problems due to adjacent construction or future use of heavy machinery.

Failure to invest in adequate geotechnical work is a common source of foundation failure - and often grounds for denied insurance claims or legal disputes.

Integrating Geotechnical Data into Foundation Design and Alignment

  • Bearing Layer Selection: Exact elevation for foundation termination must be selected based on laboratory and field data, influencing pile/caisson lengths and locations.
  • Tolerance Setting: Soils with high variability may necessitate tighter tolerances or bespoke corrective options than those in uniform, predictable sites.
  • Risk Management: Awareness of active soils informs concrete mix design and reinforcing details to resist movement, limiting future misalignment after placement.

The Role of Engineering Professionals in Calgary Projects

Professional involvement is not an option - it is a necessity, mandated by both the NBC and City of Calgary bylaws. Qualified geotechnical and structural engineers function as stewards of safety, translating raw test data and architectural intent into safe, constructible, code-compliant deep foundation plans.

Responsibilities of Geotechnical Engineers

  • Conduct site investigations (test holes, borings, lab tests).
  • Recommend suitable foundation types, depths, and diameters based on specific soil and groundwater conditions.
  • Advise on tolerances for alignment and plan location, unique to site risks.
  • Provide periodic inspection and consulting throughout piling or caisson installation.

Responsibilities of Structural Engineers

  • Take geotechnical recommendations and develop detailed foundation layouts to safely distribute loads under all expected scenarios (live, dead, wind, seismic).
  • Specify reinforcement, pile/cap details, connections, and tolerances in drawings submitted for permit.
  • Review as-built information for conformance as construction proceeds.
  • Assess any deviations from design and recommend the legal path to correction per NBC 4.2.7.4.

On-site Construction Professionals and Qualified Inspectors

  • Set out deep foundation locations based on survey data and approved drawings.
  • Install piles or caissons using the correct methods, machinery, and materials.
  • Document installation data, including location, depth, concrete/steel volumes, and any encountered anomalies.
  • Call for required City inspections at each relevant stage before proceeding to the next phase.

Maintaining Alignment and Location: Tools, Methods, and Best Practices

To achieve the strict alignment/location tolerances required, and ensure long-term stability, builders and contractors must combine modern tools with disciplined procedures and a culture of quality.

Tools and Methods for Setting Out Foundations

  • Surveying Equipment: Total stations, GPS, and lasers are standard requirements. Manual methods are no longer sufficient for most projects.
  • Stakeout and Grid Systems: Robust physical markers and gridlines ensure the transfer of design coordinates from drawings to field with high accuracy.
  • Templates and Jigs: For clustered piles or caissons, custom templates hold steel casings or starter bars in place until concrete is placed and set.
  • Digital As-Built Logs: Immediate field documentation and digital records facilitate timely correction and enhance the inspection process.

On-Site Quality Control and Continuous Verification

  • Insist on “daily check-ins” with survey crews, confirming location data for each foundation unit before commit to concrete or steel.
  • Require signed-off checklists for each pile/caisson - including measured deviations, if any, and reasons for acceptance/rejection.
  • Engage third-party engineering inspectors as necessary, especially on larger or higher-risk projects.
  • Respond rapidly to any discrepancies with proactive dialogue between contractor, engineer, and City officials.

Common Causes of Deviation-and How to Avoid Them

  • Poor Surveying: Always engage a certified professional, and validate the benchmark/survey control network prior to foundation layout.
  • Ground Movement: Muddy, frozen, or waterlogged sites can shift or obscure markers. Monitor continuously and delay installation if conditions are unworkable.
  • Miscommunication: Align all trades, engineers, and site workers on the design tolerances at pre-construction meetings. Post allowable tolerances on-site visibly.
  • Inadequate Supervision: Constant site management presence reduces errors and enables immediate adjustment if a foundation unit “drifts” during placement.

Correcting Deviations: The Importance of Early Intervention

If a unit is installed outside the prescribed tolerance, rapid reporting and assessment are crucial. The NBC and City rules mandate that:

  • Any deviation detected must be reported to the project’s Engineer of Record immediately.
  • Further work may be paused pending review, and the City inspector must be notified if required by the permit conditions.
  • The engineer assesses whether a unit may remain “as is,” or whether mitigation measures - such as adding another pile, underpinning, or localized structural modification - are mandatory for safety.

This collaborative, proactive approach minimizes cost and delays while ensuring that no unsafe or non-compliant situation is left unaddressed.

Calgary Foundation Permitting: The Full Process

Securing a building permit for any deep foundation system in Calgary is a structured, step-by-step journey. Understanding it can save months of time and thousands of dollars in potential rework fees.

Step 1: Gather Site Intelligence and Assemble the Team

  • Order a land survey: Confirm legal property limits and above/below-grade features.
  • Engage geotechnical and structural engineers early: Early technical input avoids last-minute plan changes.
  • Conduct a geotechnical investigation: At minimum, this involves test drilling and laboratory analysis of soil/rock samples.
  • Map out demolition scope (if applicable): Old buildings require demolition permitting, utility disconnections, and potential environmental testing (asbestos/lead in pre-1990s properties).

Step 2: Complete Design and Documentation

  • Develop foundation design: Incorporate all data, select optimal system (piles, caissons, etc.), and state tolerances per NBC 4.2.7.3.
  • Prepare detailed construction drawings: These must be sealed by the respective engineers.
  • Compile supporting documents: Geotechnical reports, survey plans, lot grading certificates, and, if needed, landscaping plans.

Step 3: Submit for Building Permit

  • Electronic submission: Use the City’s online portal; hard copy submissions are usually no longer accepted as of 2024.
  • Include all design, permit, and supporting documents: Missing items or inconsistencies are the #1 cause of permit delays.
  • Pay Building Permit Fees: Calculated using construction value plus base rates and any applicable service fees (yard grading, water/sewer, etc.).

Step 4: Secure Development Permit (If Required)

  • Certain areas, large projects, or unique land use types require development permit review before issuing a building permit.
  • This additional layer checks for conformity with zoning, community plans, setbacks, and neighborhood character.
  • Processing times can extend several weeks to months for complex or contested projects.

Step 5: Start Construction-With Rigorous Inspection

  • Do not break ground until permits are issued: Unauthorized excavation is subject to “stop work” orders and fines.
  • Adhere strictly to demolition/utility disconnection, if part of the scope.
  • Proceed foundation construction, calling for each required City inspection as the project advances.
  • Pre-pour and pre-backfill inspections: These are required to confirm actual pile/caisson placement matches approved tolerances.

Step 6: Maintain Documentation until Occupancy

  • Retain all as-built documentation, inspection sign-offs, and final surveys.
  • Submit required closing documents for occupancy approval after the final inspection and any required engineering “letters of assurance.”

Timelines and Costs: What Calgary Owners and Developers Should Expect

Delays or surprise costs often arise from misunderstandings of the permit process, design requirements, or site complexities. Setting realistic expectations is crucial for smooth project delivery.

Permit Fees and Their Calculation

  • Building Permit Fees: Calculated by base fee + cost per $1,000 of construction value. For example, as of 2024, single-family detached may cost a $200 base plus $5.05/$1,000 construction value. Verify the exact schedule on the City’s website prior to submission.
  • Development Permit Fees: Assessed based on property type and complexity; may be a set amount or calculated by unit/area.
  • Other Surcharges: Such as lot grading, stormwater, and utility connection/disconnection fees, if applicable.

Typical Processing Timelines

  • New House (Single/Semi-Detached): Building permit review targets 3-6 weeks, assuming a complete application with no corrections or further information requested.
  • Development Permits: 4-8 weeks, but may extend if public engagement is required.
  • Larger Commercial/Institutional Projects: May require phased approvals and longer review cycles.
  • Inspections: Pre-booking is recommended; missed appointments or re-inspection for corrections cause the most delay.

Documentation gaps, design inconsistencies, or failure to submit required supporting reports are the top causes of processing delays.

Demolition Permit Requirements: Preparing the Way for Deep Foundations

Where an old building must be cleared, a demolition permit is mandatory. The process is more than simply “tearing down” the old:

  • Complete utility disconnections: Gas, water, sewer, electricity, and telecoms must all be safely terminated and confirmed by City/utility inspectors.
  • Environmental assessments: Properties built before the 1990s are at risk for asbestos and lead-based materials. Special abatement procedures and disposal documentation are required before demolition is authorized.
  • Public safety and debris management: Fencing, signage, and clean-up plans must be documented. The City reviews these as part of the demolition permit file.
  • Lot grading post-demolition: Site must be re-graded for drainage and clean fill, preparing for new construction and avoiding run-off problems for neighboring lots.

Inspection Regimen: Guaranteeing Code-Compliant Foundations

Calgary’s commitment to safe, resilient buildings manifests in its comprehensive inspection approach:

  • Pre-backfill Inspection: Confirming piles/caissons, basement walls, and drainage assemblies before soil is replaced.
  • Pre-board Inspection: Checks framing, insulation, vapor barriers, and rough-in mechanical/electrical prior to wall covering.
  • Final Inspection: Ensures total compliance and a safe structure prior to approving occupancy.

Failure to pass any inspection step results in correction notices and additional re-inspection fees; unaddressed violations can delay or void occupancy approval.

Deep Foundation Construction Challenges Unique to Calgary

Seasonal and Environmental Risks

  • Frost Penetration: Foundation elements must bypass not only weak soils but extend below local frost lines-often 1.2 m (4 ft) or more-to avoid frost heave.
  • Expansive Soils: Certain areas in Calgary, especially in southern and eastern sections, harbor soils prone to expansion upon wetting. Foundation specifications may require larger diameters, sleeved anchors, or longer piles.
  • Groundwater: Increasing frequency of elevated groundwater tables - especially near rivers or in reclaimed areas - demands waterproofing, dewatering, and additional design complexity.

Urban Redevelopment and Tight Sites

  • Access Constraints: Limited working space between adjacent buildings demands specialized equipment and close attention to vibration, settlement, and over-excavation risks.
  • Protection of Adjacent Properties: Legal liabilities arise quickly if adjacent structures are damaged due to foundation work. Monitoring and pre-construction surveys mitigate risk and provide documentation should disputes occur.

Community and Environmental Expectations

  • Noise, dust, and traffic management: Many permitting conditions now include community impact minimization plans-addressing everything from working hours to truck routing and on-site dust suppression methods.
  • Fill and waste hauling: Both excess excavated spoil and contaminated fill/old foundations must be disposed of per provincial law - supported by manifests and disposal tickets at regulated facilities.

Case Studies: Deep Foundation Challenges and Solutions in Calgary

Case Study 1: Pile Misalignment in a Multi-Unit Residential Project

A Calgary developer constructing a four-storey apartment building encountered pile misplacements following a winter storm. Deviations in some piles exceeding 100mm (more than four inches) from plan location were discovered during as-built surveying, violating the designer’s specified tolerance. The response:

  • Immediate notification of the design engineer and City building inspector.
  • Structural re-analysis determined three piles could be accepted as-built, but two required additional supplemental piles installed nearby for structural redundancy.
  • As-built plans and engineered remediation measures were submitted and approved, averting costly demolition or further delay.

Case Study 2: Demolition and Environmental Hazards on an Inner-City Infill

An infill project on a 1950s single-family home site required extensive demolition. Mandatory pre-demolition asbestos testing uncovered friable insulation and residual mastic under old flooring:

  • Licensed abatement contractors removed all hazardous materials and provided disposal certificates with permit closeout documentation.
  • All utilities were coordinated for cutting, with written confirmation from each provider submitted as part of the demolition permit finalization.
  • Lot grading certification was completed, enabling a smooth transition to new foundation excavations and permitting.

Case Study 3: Tight Tolerances in an Institutional Structure

An educational building near downtown required grouped caissons installed within 25mm (1 inch) of design location to accommodate dense column transfer structures for a large classroom wing. Using a combination of total station surveying and rigid steel templates, all caissons were placed within tolerance:

  • Extensive field survey checks at every installation step, backed by digital logs and photographic evidence.
  • Daily collaboration between contractor, geotechnical, and structural engineers.
  • Full compliance documentation enabled a seamless final inspection and occupancy approval.

Best Practices for Homeowners, Builders, and Developers

Projects of every scale benefit from disciplined adherence to codes and best practice. Highlights include:

  • Engage qualified professionals for geotechnical investigation and engineered design - never rely on “template” or generic plans.
  • Specify and communicate NBC alignment/location tolerances to every team member and contractor, with clear field signage.
  • Incorporate redundancy in layout/installation processes (multiple site checks, independent inspection, photographic as-builts).
  • Address deviations proactively - hiding or ignoring an out-of-tolerance pile or caisson always leads to greater problems.
  • Maintain thorough field records and documentation, from survey stakes to permit sign-offs, for the life of the project and occupancy.

Conclusion: Safety, Compliance, and Value Through Diligence

The real value of precise alignment and calibrated design for deep foundation units is measured not just in code compliance but in safety, durability, and financial resilience. For Calgary homeowners, builders, and developers, navigation of the intertwined NBC 4.2.7.3/4.2.7.4 requirements, coupled with local permit and inspection mandates, is more than regulatory “red tape”-it is the essential framework that protects long-term investments, occupants, and reputations in a city shaped by demanding soils and rapid urban change.

When in doubt, invest in experienced, qualified partners-geotechnical, structural, and construction specialists-who understand both the letter and the spirit of the code and local procedure. The costs of prevention and compliance are always less than the costs of remediation, claims, and lost project value.

For demolition, excavation, and site preparation projects of any size, Kingsway Demolition & Excavation stands ready to deliver reliable, code-compliant groundwork from day one.
