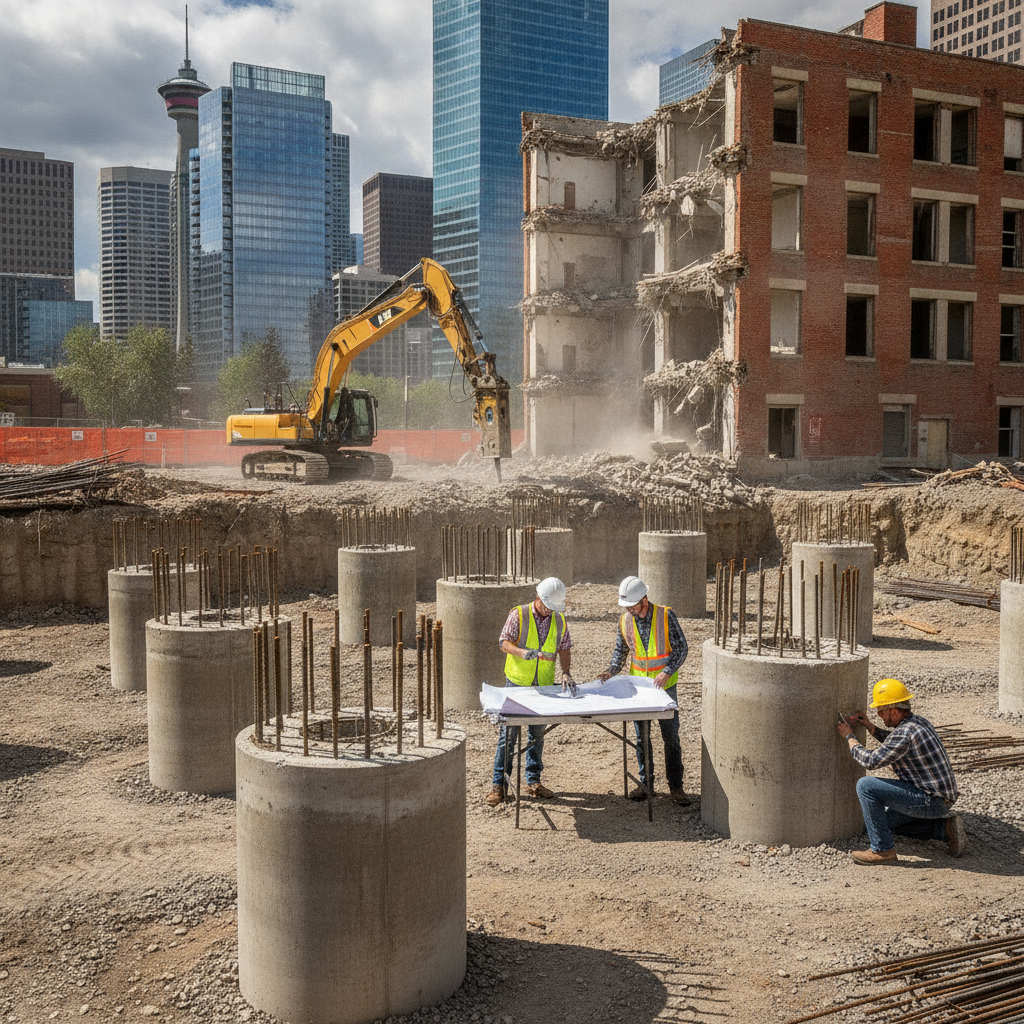

Deep foundation units are critical to the stability and safety of buildings in Calgary’s diverse geotechnical landscape, especially given structural loads, unique soil conditions, and strict regulatory requirements. For builders, homeowners, and developers, understanding the rigorous standards spelled out in the National Building Code (NBC) Section 4.2.7.1.(1) is fundamental to achieving not only code compliance, but also peace of mind knowing that their investment is constructed on a solid, lasting base. The execution of deep foundation units is an involved process that combines engineering principles, municipal permitting, detailed inspections, and methodical project management, all within the context of Calgary’s regulatory environment and variable ground conditions.

Understanding Deep Foundations: Definition, Purpose, and Application

Deep foundations serve as the invisible backbone for many residential and commercial projects throughout Calgary. Unlike shallow foundations, which transfer structural loads relatively close to the surface, deep foundations descend through weaker overlying soils to reach stronger, more stable material-either via end-bearing support on rock or a dense stratum, or by mobilizing friction or adhesion along the length of the foundation member.

Definition and Types of Deep Foundations

In broad construction and engineering practice, deep foundations typically refer to systems where the depth of the foundation is several times greater than its width. The most common forms of deep foundation units include:

  • Piles: Long, slender columns-usually constructed of concrete, steel, or wood-that are driven, bored, or cast in place to transfer loads to stable strata below.
  • Caissons (Drilled Shafts): Large diameter cylinders constructed by drilling deep into the soil and filling with reinforced concrete, often used where high loading is anticipated.
  • Piers: Often synonymous with caissons, but can be smaller in diameter; may be constructed using similar drilling and filling techniques.
  • Micropiles: Smaller diameter, high-capacity pile systems, particularly effective in restricted-access sites or where vibration is a concern.
  • Helical Piles: Steel shafts with helical plates, screwed into the ground; these are gaining popularity in residential and small commercial applications in Calgary.

When Are Deep Foundations Needed in Calgary?

The decision to deploy a deep foundation system in Calgary is governed by several key factors:

  • Poor Near-Surface Soil Conditions: When geotechnical investigations reveal fill, loose clay, organic soils, or expansive soils near the ground surface that are unable to safely bear loads.
  • High Structural Loads: Large buildings, multi-unit residential towers, and infrastructure projects often exceed the capacity of shallow footings alone.
  • Frost Penetration and Groundwater Challenges: Calgary’s freeze-thaw cycles and variable water tables may dictate deeper embedment for stability against heaving or buoyancy.
  • Basement Depths and Urban Infill: Redevelopment or additions on restrictive urban lots may necessitate deep foundations to avoid undermining neighboring structures or minimizing vibration/disturbance.

Navigating NBC 4.2.7.1.(1): The Legal Foundation for Safe Deep Foundations

Section 4.2.7.1.(1) of the National Building Code (NBC) outlines the fundamental performance requirements for any deep foundation system undertaken in Canada, including all projects in Calgary. The code identifies two main mechanisms by which deep foundation units can safely transfer structural load:

  • End-Bearing: Load is transmitted through the bottom of the foundation unit directly onto a layer capable of sustaining the imposed forces-commonly bedrock or dense, load-bearing soil.
  • Shaft Resistance (Friction or Adhesion): Here, the load is transferred along the sides of the deep foundation unit through friction with, or adhesion to, the surrounding soil or rock mass.

Ensuring that deep foundations deliver adequate support-as specified by NBC 4.2.7.1.(1)-means confirming, through professional design, that the loads imposed by the structure are safely resisted by either (or both) of these mechanisms and that they are appropriately engaged with competent underlying material.

Why Strict Compliance Matters

The significance of adhering to NBC 4.2.7.1.(1) cannot be overstated. These requirements are not merely red tape; they are backed by decades of structural failures, lessons-learned, and evolving engineering knowledge aimed at preventing catastrophic consequences-from uneven settling and structural cracking to outright collapse or legal liability for unsafe living and working conditions. Rigorous compliance underpins structural durability, longevity, and the long-term value of any property.

Geotechnical Investigation: The First Step Toward Foundation Certainty

All deep foundation design in Calgary must begin with a comprehensive site-specific geotechnical investigation, as necessitated by NBC 4.2.7.2. This investigation provides a scientific basis for:

  • Understanding the sequence, thickness, strength, and compressibility of soil and rock strata beneath the proposed building footprint.
  • Characterizing groundwater levels and potential for frost heave or adfreezing.
  • Identifying the need for special design provisions (for example, the presence of swelling or collapsing soils, buried debris, or contaminant plumes).
  • Advising on potential construction challenges such as dewatering, shoring, or excavation safety.

Geotechnical investigations in Calgary typically involve a combination of borehole drilling, sampling, laboratory soil testing, Standard Penetration Tests (SPT), Cone Penetration Testing (CPT), and sometimes geophysical surveys. The final report-signed, sealed, and interpreted by a qualified geotechnical engineer-becomes the cornerstone for subsequent design decisions and permit submissions.

Components of a Typical Geotechnical Report

For a deep foundation project compliant with NBC 4.2.7.1.(1), the geotechnical report will generally contain:

  • Site characterization and site plan with locations of all boreholes/test pits.
  • Soil and groundwater profiles, with laboratory test results (shear strength, Atterberg limits, consolidation).
  • Assessment of bearing capacity, settlement potential, and appropriate bearing strata depth.
  • Engineering recommendations for deep foundation type, required embedment depths, and installation methods.
  • Analysis of group effects if multiple units (piles, caissons) are planned closely together.

Role of the Geotechnical Engineer

A licensed, experienced geotechnical engineer must oversee the investigation, interpret the site data, and recommend parameters for the structural engineer to use in foundation design. The integrity of the entire foundation, and thus the building itself, ultimately rests on the technical expertise and thoroughness of this professional process.

Deep Foundation Design: Principles, Load Testing, and Engineering Judgment

Once the subsurface data are in hand, the next step involves transforming those findings into a deep foundation system that meets Calgary’s legal and safety standards. A combination of code guidance (NBC Section 4.2.7) and careful, context-sensitive engineering judgment is required.

Structural Design and Analysis

  • Selection of Foundation Type and Material: Engineers must choose between piles, caissons, piers, or hybrid solutions based on load requirements, soil profile, lateral load considerations, access restrictions, and anticipated settlement tolerances. Steel, concrete, and occasionally treated timber are chosen depending on structural needs and environmental conditions (e.g., corrosive groundwater).
  • Bearing Capacity Calculations: Using conservative estimates from soil tests, the engineer calculates the maximum load each deep foundation element can safely carry-including a margin of safety as prescribed by NBC and local Calgary engineering standards.
  • Settlement Estimation: Both immediate and long-term settlement must be predicted. For group foundations, differential settlement is a key consideration, especially in Calgary areas with variable geology or partially filled historic sites.
  • Group Effects and Spacing: If multiple foundation units are used (for example, a pile group), their combined behaviour, load sharing, and potential to disturb neighboring soils must be analyzed. The minimum spacing and configuration are dictated by both code and geotechnical advice.
  • Lateral Load and Seismic Considerations: For taller or more slender buildings, or in particular geographies of Calgary where seismic concerns are enhanced, the design must ensure deep foundations can resist horizontal as well as vertical forces.
  • Durability Considerations: Calgary’s variable climate and freeze-thaw cycles demand that chosen materials and corrosion protection schemes are adequate for long-term performance.

Load Testing: When and Why It’s Necessary

Although calculation and design are fundamental, NBC Subsection 4.2.7.2 specifies that for certain sites or foundation types, field load testing may be required to verify the predicted behaviour and capacity of the deep foundation units. Such testing includes:

  • Static load tests, where a test pile or caisson is loaded gradually to failure or to predetermined thresholds to monitor settlement and load transfer.
  • Dynamic load testing, using integration of strain gauges or pile driving analysis equipment to monitor resistance and confirm driving criteria.

Load testing must be interpreted by an engineer with specialized experience in deep foundations, to guarantee that results are realistic and that the final design remains code compliant and safe.

Material and Installation Considerations: Building for the Long Haul

Material specification and installation methods are as critical as the engineering calculations in ensuring a safe, durable deep foundation system, especially under Calgary’s climatic and soil conditions.

Material Selection

  • Concrete: Must be air-entrained for freeze-thaw resistance, with sulfate-resistant mixes if installed in aggressive soils or near contaminated groundwater. Reinforcing steel must be specified for corrosion resistance as appropriate.
  • Steel: Piles or casing must have adequate wall thickness for driving stresses, with corrosion protection such as galvanizing or coatings if required by the geotechnical report.
  • Timber: Occasionally used in temporary or light-duty installations, must be pressure-treated for rot resistance and considered in relation to subsurface water levels.

Installation Methods

The specific method for driving or placing deep foundation units determines not just their capacity, but also the level of site disturbance, noise, vibration, and risk to adjacent structures.

  • Driven Piles: Steel, concrete, or timber elements hammered or vibrated into the ground. This method is fast, but can cause significant noise and vibration-an important consideration for infill projects in Calgary’s established neighborhoods.
  • Bored Caissons/Drilled Shafts: Boreholes are drilled and then filled with reinforced concrete. These can be constructed with little vibration, are ideal for deep embedment, and can accommodate large loads-but are more complex (and costly) if groundwater control is required.
  • Helical Screw Piles: Mechanically “screwed” into the ground with minimal spoil, noise, or vibration. Often used for underpinning or tight-access sites, with immediate load-bearing capacity upon installation.
  • Micropiles: Installed with specialized drilling rigs, grouted, and reinforced with high-strength steel. These are particularly valuable for retrofits, tight access, or where subsurface obstructions exist.

The choice of installation technique should be guided not only by engineering criteria, but also by site logistics, local regulatory controls, and impacts on neighbors and utilities. In all cases, the NBC requires that installation and handling methods preserve the physical integrity of the foundation units throughout transport and placement.

Permitting Deep Foundations in Calgary: Regulatory Roadmap

Securing the right permits is not just a legal requirement; it is crucial for maintaining transparency, traceability, and public safety in the built environment. The City of Calgary administers a thorough development and building permit process for all major construction, with unique local emphasis on safety, environmental stewardship, and coordination with existing city infrastructure.

Building Permit: The Core Approval

Every deep foundation undertaking in Calgary-whether new construction, addition, or major underpinning-requires a valid building permit. The application itself must be supported by:

  • Engineered plans and specifications stamped by registered professionals.
  • Geotechnical investigation report meeting city and NBC guidelines.
  • Construction sequencing and shoring plans if excavation goes below neighboring foundations or public right of way.
  • Demonstration of code and zoning bylaw compliance.
  • Proof of insurance and, where applicable, professional liability coverage from key consultants.

Development Permit: Necessary for Some Project Types

In addition to the building permit, a development permit may be necessary if the project involves a change of land use, variance from zoning setbacks, new building footprints, or multi-family or commercial development. This permit ensures that deep foundation works comply with the City’s Land Use Bylaw and all area redevelopment or outline plans.

Trade Permits: Supporting Infrastructure Works

The addition of deep foundation elements can interact with essential services, triggering the need for additional trade permits (electrical, gas, plumbing, HVAC) when services are relocated or upgraded as part of the excavation, underpinning, or installation process.

Documentation, Fees, and City Review Timeline

Calgary’s permit application process is well documented, but thoroughness is essential to avoid costly rejection or resubmission:

  • Compile all required engineering drawings, geotechnical reports, site and context plans, and construction details.
  • Submit via the city’s online portal and pay associated permit and review fees (which scale with project size, valuation, and risk).
  • Allow for an initial review timeline of roughly 21 days for building permit applications-more for complex developments or if City staff require additional information or third-party reviews.

It is vital to build sufficient lead time into your project schedule for permit review and anticipated back-and-forth with City examiners, particularly for non-standard sites or new construction in challenging soil conditions.

Budgeting for Deep Foundations: Costs and Economic Strategies

The economic implications of deep foundation construction in Calgary extend beyond the price tag of piles, concrete, and steel. Smart project planning requires a granular understanding of both direct and indirect costs, as well as ways to optimize value without sacrificing safety or longevity.

Primary Cost Components

  • Site Investigation (Geotechnical): Borehole drilling and laboratory tests typically cost $5,000-$20,000 for a standard residential or small commercial site; significantly more for large, urban infill, or environmentally sensitive projects.
  • Foundation Installation: The supply and placement of piles, caissons, or other deep elements make up the major portion of costs. For Calgary projects, this work can range from $80,000-$140,000 for a fourplex, scaling up sharply for larger footprints or deeper founding depths.
  • Engineering and Load Testing: Structural and geotechnical design (including review, site visits, and mandatory load tests) can run $5,000-$30,000 or more, depending on complexity and any specialized testing needed.
  • Permit and Inspection Fees: City fees comprise application charges, inspection costs, and potentially off-site levy fees if the project impacts city infrastructure.
  • Contingency: Proactive developers build in a 10-20% contingency to cover unforeseen site conditions, delays, or material costs (which may fluctuate due to market and supply chain volatility).

Variables Affecting Cost

Unique site and project variables can dramatically influence deep foundation budgets:

  • Soil Variability: Sites with highly variable or problematic soils (deep fills, organics, groundwater, buried debris) often require longer or more robust foundation solutions, driving costs higher.
  • Access and Urban Constraints: Infill sites or properties bordered by other buildings may require special equipment, shoring, or phased operations that add to labor and time costs.
  • Environmental Considerations: Sites with contaminated soils or groundwater may need environmental remediation, treated materials, or additional engineering controls.
  • Volume Discounts and Project Scale: Larger projects can sometimes realize cost savings through economies of scale, but only to a point-as increased complexity or city oversight can offset efficiency gains.

Value Engineering Tips

  • Early Contractor Involvement: Engaging contractors with deep foundation expertise early in the design process means real-world constructability and material cost feedback before finalizing plans.
  • Competitive Bidding: For projects of significant scale, solicitation of competitive bids fosters transparency and may yield cost savings.
  • Alternative Foundation Approaches: On some sites, hybrid solutions (combining deep and shallow elements, or different pile types) can optimize performance for the least cost.
  • Staged or Phased Construction: In urban settings, scheduling foundation installation in phases may reduce the impact on neighbors and allow other site works to proceed concurrently, shortening total project timeline.

Design and Construction Timelines: Practical Planning for Success

A successful deep foundation project follows a carefully orchestrated schedule, integrating site investigation, engineering, permitting, procurement, and construction. For Calgary homeowners, builders, and developers, foresight and flexibility are key to managing both expected and unforeseen variables.

Typical Stages and Durations

  1. Geotechnical Investigation and Consulting (2-6 weeks): Scheduling boreholes, completing lab tests, and preparing the geotechnical report. Complicated by weather, site access, or permitting if endangered species or environmental concerns are present.
  2. Foundation Design (2-4 weeks): Structural and geotechnical engineers collaborate to finalize detailed plans, including pile sizing, layout, and connection details. Load testing (if needed) is planned and scheduled during this phase.
  3. Permit Application and Approval (3-6 weeks typical): City review of documents, possible requests for revision; allow extra time for complex, highly visible, or contentious developments.
  4. Mobilization and Procurement (1-2 weeks): Finalizing subcontracts, ordering long-lead materials (such as steel piles or specialty concrete), and mobilizing equipment to site. Climatic conditions may add scheduling risk, especially during freeze-up, breakup, or major precipitation events.
  5. Construction and Inspection (2-5 weeks): Actual installation of deep foundation elements, with on-site inspection and testing as required by city permit and NBC standards. Unforeseen subsurface conditions may add to duration.
  6. Post-Installation Review (1-2 weeks): Final inspections, documentation, submission of as-built drawings to the City, and certification by engineers/licensed professionals.

Depending on project scope, total timelines from initiation to completion of deep foundations typically range from two to four months for average Calgary low-rise or mid-rise buildings, and longer for larger or more technically challenging sites.

Key Scheduling Risks and Mitigation

  • Weather-Related Delays: Winter frost, spring melt, or summer rain can halt drilling or pile driving. Build seasonal adjustments and buffer time into the project schedule.
  • Permit Review Delays: Early, complete submission of all documents reduces risk of resubmission; pre-application meetings with the City can smooth approvals.
  • Supply Chain and Equipment Delays: Allocating longer lead times for specialty materials and maintaining strong supplier relationships can cushion against market fluctuation or sudden shortages.
  • Unforeseen Site Conditions: Early, thorough geotechnical work reduces the chance of hitting unknown obstructions; having a problem-solving contractor on board speeds up resolution of surprises.

The Value of Professional Collaboration

In Calgary, the most successful builders and developers begin working with experienced engineers, geotechnical consultants, and qualified foundation contractors from the earliest project stages. Continuous open communication, clear division of responsibilities, and shared understanding of municipal and NBC requirements ensure problems are prevented rather than simply solved after the fact.

Inspections and Documentation: Safeguarding Compliance and Quality

Inspection protocols for deep foundations in Calgary are among the most stringent in Canada, reflecting the City’s commitment to public safety, building longevity, and minimizing liability for property owners and professionals alike.

Mandatory Inspections

  • On-Site Verification of Subsurface Conditions: City authorities and/or geotechnical engineers may directly observe open boreholes or pile installations to verify subsurface soil conditions match the engineered assumptions.
  • Material and Reinforcement Checks: Inspections confirm that specified steel, concrete, or proprietary elements (and protective coatings) are used and properly handled on site.
  • Installation Observation: Engineers or inspectors may watch pile driving, drilling, or grouting to ensure specified techniques are followed and foundation units reach competent strata.
  • Load Testing Review: If load testing is specified, independent verification and documentation must be submitted, demonstrating that design capacity is achieved without excessive movement or damage.
  • As-Built Documentation: Post-construction, updated drawings and certification by professionals are supplied to the City, forming part of the permanent property file used for future renovations, sales, or re-development.

Role of the Homeowner, Builder, and Developer

Both code and municipal permit conditions make the building’s owner ultimately responsible for compliance but place daily responsibility for inspection, documentation, and quality assurance on the builder and the developer’s team. Satisfactory inspection outcomes are mandatory for advancing construction beyond critical milestones, such as pouring foundations, commencing framing, or occupying the premises.

Practical Considerations Unique to Calgary: Local Expertise Matters

Calgary’s geology, climate, and regulatory environment introduce unique challenges and opportunities for deep foundation projects. Familiarity with these local variables can save significant time, money, and stress for those committed to doing things right.

Geotechnical Challenges in Calgary

  • Varied Soil Conditions: Calgary’s urban landscape overlays glacial tills, lakebed silts and clays, sand and gravel lenses, and in some neighborhoods, historic infill or buried debris. This variability can mean two projects just blocks apart require dramatically different deep foundation designs.
  • Frost Heave and Adfreezing: Extended frost penetration may reach below 2 meters, especially in exposed or elevated sites. Design must account for frost heave or ice bonding to piles and caissons.
  • Expansive and Collapsible Soils: Certain neighborhoods-particularly those with clay-rich soils-face swelling, shrinkage, or collapse risks from moisture fluctuations and must be analyzed in detail before proceeding.
  • Groundwater Considerations: Variations in groundwater depth can impact both construction (drilling, dewatering) and long-term durability of buried foundation elements.

Urban, Legal, and Environmental Factors

  • Proximity to Adjacent Structures: Many Calgary infill or redevelopment projects must excavate or drive foundation elements within a few meters of neighbors-requiring precision design to prevent settlement, vibration, or undermining adjacent properties. Legal agreements or party wall/monitoring may also be required.
  • Contaminated Sites and Brownfields: Older or industrial-zoned areas may overlie contaminated soil necessitating environmental investigation, special worker safety protocols, and engineered remediation.
  • Heritage and Ecosensitive Districts: Projects in or near protected heritage buildings or the Bow and Elbow river valleys may involve additional permitting, monitoring, or constraints on construction timing and methods.

Weather and Construction Seasons

Calgary’s construction season is compressed compared to milder climates, with foundation work best conducted in drier, warmer months (typically April through October). Winter conditions may not prohibit work but add considerably to logistical and cost challenges-frozen ground, snow clearing, component heating, or specialized equipment is required.

Step-by-Step Guide: Deep Foundation Project from Start to Finish

Based on all the technical, legal, and practical factors detailed above, below is a step-by-step summary of a deep foundation project in Calgary, from conception to completion:

  1. Engage Qualified Professionals Early
    Begin by selecting a geotechnical engineer, structural engineer, and contractor specialized in deep foundations-ideally with established experience in Calgary’s unique soil and regulatory context.
  2. Conduct Site Investigation
    Perform the necessary boreholes, site surveys, and laboratory tests to characterize both the soil/rock beneath the building footprint and any groundwater or environmental hazards.
  3. Develop and Review Foundation Design
    Geotechnical and structural engineers collaborate to select optimal foundation type(s), calculate embedment depth, spacing, and layout, and forecast settlement or other performance issues. Load testing protocols (if necessary) are outlined during this phase.
  4. Prepare Permit Submittals
    Compile all engineered drawings, reports, site and context plans, and supporting documentation. Submit applications to the City of Calgary for building permit (and development permit, where needed), along with required fees.
  5. City Review and Approval
    Monitor application status, respond promptly to requests for revision or additional data, and schedule pre-construction meetings with city officials or inspectors as necessary.
  6. Order Materials and Schedule Trades
    With permits in hand, procure all foundation materials and secure specialized equipment, labor, and subcontractors required for installation.
  7. Mobilize and Construct Foundation Units
    On-site, follow engineered plans and city inspection requirements rigorously-monitoring every phase of pile driving, drilling, or other installation technique, with professional oversight and documentation at each step.
  8. Perform Load Testing (If Applicable)
    Carry out all required load or performance tests, submit results to engineers and city inspectors, and make adjustments if the field performance fails to meet design expectations.
  9. Final Inspections and Certification
    Complete all required city and professional inspections, submit final as-built drawings, and obtain engineer’s certification that foundations are compliant with NBC 4.2.7.1.(1) and all permit conditions.
  10. Advance to Superstructure or Next Construction Phase
    With foundations approved and certified, proceed confidently to above-grade building, knowing the structure rests on a verified and code-compliant base.

Common Pitfalls and How to Avoid Them

Even the best-planned projects can encounter challenges-yet many common pitfalls can be sidestepped through careful planning and adherence to best practice:

  • Inadequate Site Investigation: Rushing or underfunding subsurface testing increases risk of surprises and expensive redesign or remediation.
  • Incomplete or Ambiguous Design: Vague specifications leave contractors with too much leeway, risking non-compliance or underperformance.
  • Poor Documentation: Missing or inconsistent permit documents cause costly permit delays and might trigger “stop work” orders on site.
  • Ignoring Group Effects: Overlooking the influence of multiple closely spaced piles or caissons can lead to unpredictable settlement or lateral movement.
  • Overlooking Neighbourhood and Community Impact: Noise, vibration, and dust complaints from neighbors can halt work and trigger city enforcement-clear communication and site management are essential for urban projects.
  • Skipping Inspections: Attempting to circumvent official oversight is illegal and almost always results in rework, fines, or even demolition.

Future Trends: Innovation in Deep Foundation Solutions

Calgary’s engineering and construction community continues to explore innovative approaches to deep foundation challenges:

  • Use of helical screw piles for new homes and additions, providing quick installation, reduced site disturbance, and minimal vibration-favorable for infill and density projects.
  • Micropile retrofitting for stabilizing existing buildings on problematic soils or where new deep-load paths are required, often in conjunction with heritage or brownfield redevelopment.
  • Advanced soil testing and modelling to reduce uncertainty and optimize sizes/layouts, saving material and labor costs.
  • Monitoring systems embedded in foundation elements to provide real-time, long-term feedback on building stability, especially in critical infrastructure, healthcare, or multi-unit residential settings.
  • Green concrete and recycled materials for improved environmental performance and durability.

Staying abreast of technical advances, and working with progressive industry professionals, ensures resilient, cost-effective, and sustainable projects that do justice to Calgary’s dynamic real estate market.

Summary: Building on Solid Ground-The Path to Success in Calgary

Designing, permitting, and constructing deep foundations in Calgary is a process governed by national and local code but rooted in engineering science, practical experience, and a thorough understanding of the unique local environment. By adhering to the principles and requirements of NBC 4.2.7.1.(1)-and reinforcing them with robust engineering, careful documentation, and transparent project management-builders, homeowners, and developers secure the foundational elements essential to the long-term safety, functionality, and value of their properties.

Carefully crafted deep foundation solutions, tailored to actual site conditions and fully compliant with city and national regulations, are not an “add-on”-they are the very starting point for successful, resilient construction, and the best guarantee of peace of mind for everyone involved.

For expert consultation, reliable site preparation, and full-service demolition and excavation in Calgary, Kingsway Demolition & Excavation stands ready to help put your project on rock-solid ground.
