Expansive clay soils in Calgary pose one of the most significant risks to building stability due to their dramatic swelling and shrinking with changing moisture conditions. These soil movements can wreak havoc on inadequately designed foundations, leading to uneven settling, unsightly cracks, and ultimately, costly structural failures. To safeguard homes and commercial structures, the National Building Code (NBC) Section 4.2.4.11 lays out strict requirements for investigating and mitigating the hazards posed by swelling and shrinking soils when designing deep foundations.

For homeowners, builders, and developers embarking on projects in the Calgary region, understanding the interplay between local soil conditions, code requirements, design solutions, permitting steps, and project budgeting is crucial for long-term success. The investment of time and expertise at the outset is far less costly than repairs, legal disputes, or rebuilding later.

Understanding Swelling and Shrinking Soils in Calgary

The geology beneath Calgary’s surface is dominated by clay-rich soils known for their expansive properties. These clays undergo substantial volume change as their moisture content fluctuates. During wet seasons or following significant rainfall, the soil absorbs water and swells, exerting upward pressure on foundations. Conversely, during dry periods, the soil contracts as moisture is lost, creating voids and causing foundations to settle unevenly. This ongoing cycle of ground movement can lead to a host of structural problems if not anticipated and addressed during the design phase.

Homes and commercial buildings can show warning signs such as:

• Horizontal or stair-step cracks in foundation walls and floors
• Jammed or misaligned doors and windows
• Uneven or sloping floors
• Gaps or separation between walls and ceilings
• Cracked exterior brickwork or stucco

Such issues not only impact property value and habitability, but may also carry severe financial liability if they result from non-compliance with building regulations. The National Building Code, through Section 4.2.4.11, mandates robust procedural steps to address these risks, making careful geotechnical investigation and structural design non-negotiable in Calgary’s environment.

National Building Code Requirements (NBC 4.2.4.11)

The National Building Code (NBC) sets forth the principle that all structural elements "shall be designed and constructed to accommodate potential movements of swelling and shrinking soils as established from a detailed site investigation." Section 4.2.4.11 specifically addresses:

• The necessity for thorough subsurface investigation and classification of soil types
• Engineering assessment of anticipated ground movements and their structural impacts
• Implementation of appropriate foundation systems capable of withstanding soil-induced forces
• Documentation and submission of geotechnical and structural reports to regulatory authorities as part of the permit process

The code does not prescribe a "one-size-fits-all" solution, but insists that each site receives site-specific study and tailored design responses-an approach critical in varying Calgary neighbourhoods, from the river valleys to the upland plateaus.

Why NBC 4.2.4.11 Matters in Calgary

Due to the prevalence of problematic soils across the Calgary region, non-compliance with Section 4.2.4.11 can invalidate building warranties, void insurance, or lead to stop-work orders and fines. The regulatory emphasis on site-specific professional investigation ensures that foundation failures traceable to predictable soil movement are minimized or eliminated by design, not by chance.

Comprehensive Geotechnical Investigation: The Cornerstone of Sound Design

No foundation design should proceed in Calgary without a comprehensive geotechnical investigation. This is the single most crucial step in meeting both code and practical requirements for building on expansive soils. A qualified geotechnical engineer must assess:

• Soil type and distribution
• Natural moisture content and seasonal variations
• Soil density and bearing capacity
• Potential magnitude and depth of soil expansion or shrinkage
• Depth to stable, non-expansive strata suitable for deep foundation anchorage
• Groundwater table levels and seasonal fluctuations

The investigation typically includes drilling boreholes across the site, recovering soil samples for laboratory analysis, conducting in-situ field tests such as Standard Penetration Tests (SPT) or Cone Penetration Tests (CPT), and producing detailed logs and engineering recommendations.

Cost and Scope of Calgary Geotechnical Investigations

The cost of a geotechnical investigation in Calgary is often underestimated by homeowners and new developers. Depending on site complexity, accessibility, required depth of exploration, and project scale, expect fees ranging from $8,000 to $25,000. Large or challenging commercial developments, sites with difficult access or variable geology, or projects in sensitive neighbourhoods may push costs higher. However, the modest investment in professional subsurface investigation is nothing compared to the six-figure litigation and remediation costs commonly seen in cases of foundation failure.

The output of a competent investigation is a Geotechnical Report, forming the technical basis for foundation type selection, design parameters, and permit documentation.

Foundation Design Responses to Expansive Soils

Once the geotechnical investigation defines the magnitude of soil expansion and shrinkage potential, experienced structural engineers can select and design the most appropriate foundation solution. In Calgary’s challenging soil profile, three principal strategies are commonly employed:

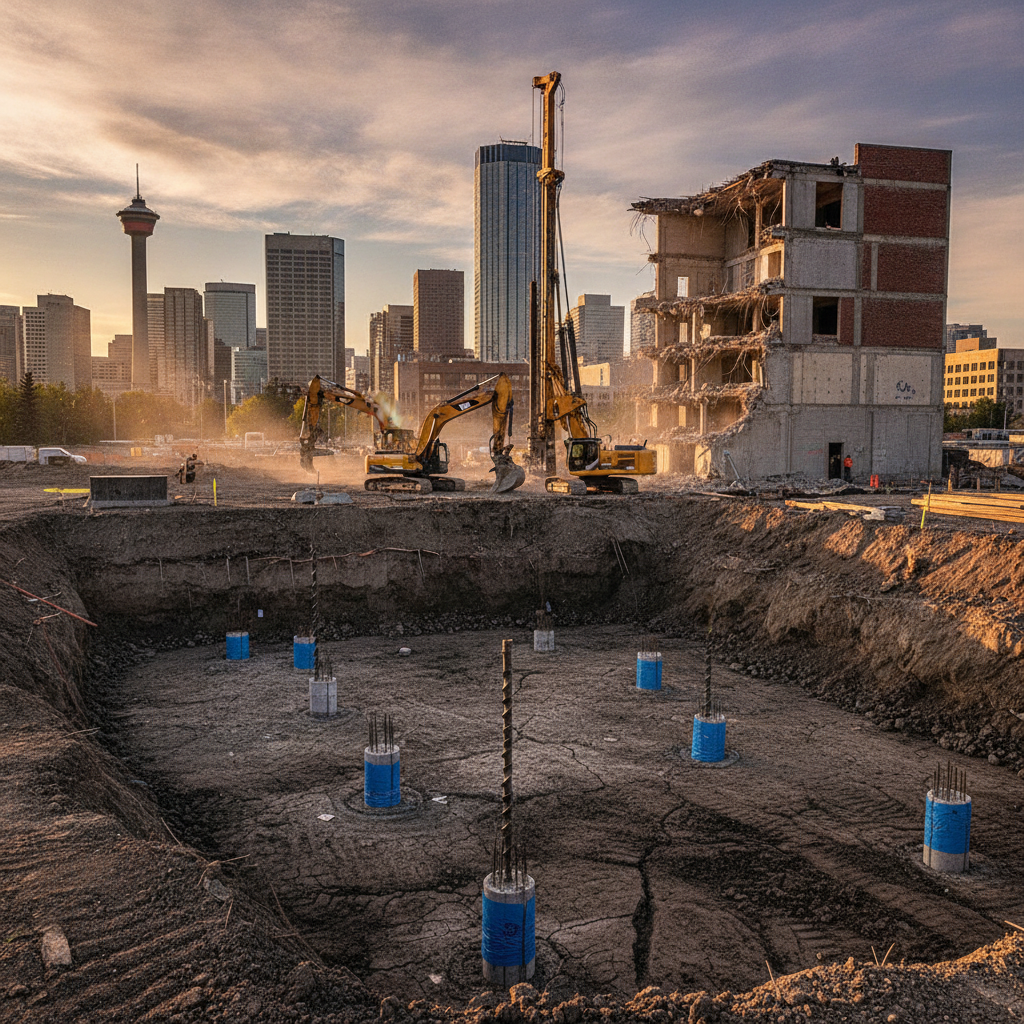

1. Deep Foundations (Piles and Drilled Shafts)

The most reliable way to bypass the unstable near-surface clays is to transfer structural loads down to deeper, more stable soil or rock layers using deep foundation elements. The primary options are:

• Piles: Steel, concrete, or timber shafts driven or drilled to a depth below the expansive soil, providing anchorage in competent ground.
• Drilled Shafts (Caissons or Piers): Large-diameter concrete shafts constructed by drilling and casting in place, ideal when minimal vibration or larger load capacity is needed.

For residential projects, a typical new home may require 20 to 40 shafts, each costing $1,500 to $6,000 (2024 estimates). For larger, more complex buildings or adverse soil conditions, the depth, diameter, and cost per shaft can increase significantly.

Key design considerations include:

• Selection of pile/shaft type based on site conditions, proximity to adjacent structures, and load requirements
• Depth to competent soil or bedrock – often 6 to 15 metres or more below grade in Calgary
• Protection of pile shafts from lateral soil heave during swelling cycles (e.g., use of void forms or sleeved piles)
• Quality assurance in installation-ensuring each element is placed to engineering specifications and verified by inspection/test logs

Deep foundations materially add to construction costs and timelines, but they represent the gold standard for reliability on the city’s expansive clays.

2. Post-Tensioned Slabs

Some residential and low-rise structures may employ a post-tensioned concrete slab system, where steel tendons are tensioned after concrete has cured. This technique enables the slab to flex with minor soil movement and resist uplift or settlement from soil expansion and contraction.

• Especially well-suited for lower-weight structures with broad plan footprints
• Slabs are often cast atop a granular base, sometimes with plastic sheeting or treated fill to limit moisture transmission
• Best applied where anticipated soil movement is moderate rather than extreme

While less common than deep piers for larger projects, post-tensioned slabs are a proven, cost-effective option in suitable conditions, but their success relies on detailed subsurface data and correct engineering.

3. Soil Stabilization Techniques

In select cases, engineers may recommend treating the clay itself to reduce its expansion potential. Soil stabilization can involve:

• Chemical Treatment: Lime, cement, or proprietary chemicals are mixed into expansive soils to alter their physical properties and reduce swelling.
• Mechanical Stabilization: Removal and replacement of problem soils with non-expansive material or installation of geotextile/gravel layers.

Soil remediation is highly site-specific, can be costly (often $50,000-$300,000 or more), and is not always practical for deeply rooted expansive layers. Its viability must be established by rigorous engineering and cost-benefit analysis.

Other Mitigation Measures

• Use of moisture barriers and proper site drainage to keep moisture content stable around foundations
• Design modifications to accommodate minor movement (flexible connections, slip joints, etc.)
• Inclusion of void forms or compressible fill beneath grade beams and structural slabs to absorb soil swelling without damaging the foundation

Foundation Design: From Concept to Engineering Drawings

Each of the above foundation strategies requires transformation from engineering concept to detailed plans suitable for construction and permitting. This phase involves:

• Preparation of detailed foundation plans and specifications by a Structural Engineer licensed in Alberta
• Design coordination with the Geotechnical Engineer’s recommendations
• Integration of site grading, drainage, and landscaping requirements to steer surface water away from structural elements
• Production of documentation for permit submission and contractor bidding

The requisite level of detail, accuracy, and collaboration among consultants is far higher for swelling/shrinking soils than for stable sites. It is not unusual for the design, re-design, and review process to take several weeks or even months, especially when unexpected subsurface conditions are encountered.

Permitting Requirements in Calgary

Building on deep foundations in Calgary goes beyond engineering and construction-getting the proper permits is essential for beginning work and ensuring legal compliance.

Development and Building Permits

• Development Permit (DP): Required whenever a new building or significant addition is not permitted "as-of-right" by local zoning (“Land Use Bylaw”). For unusual designs, deviations, or discretionary uses, the process is longer and more complex.
• Building Permit (BP): Once DP (if needed) is approved, a BP is mandatory for structural work, requiring submission of all design and geotechnical documentation. The city performs technical compliance and safety reviews before issuing a permit.

Permit applications must include the following at a minimum:

• All structural and architectural plans
• Certified Geotechnical Report detailing soil risks and recommended foundation solutions
• Stamped engineering drawing packages
• Lot grading and drainage plans
• Construction sequence, site access, and safety measures

Permit Fee Structure

For most new homes (single, duplex, semi-detached) the City of Calgary calculates permit fees based on the declared construction value. As of 2024:

• Base permit fee: $112 per application
• Supplementary fee: $10.14 per $1,000 of construction value
• Lot grading and water connection fees: Variable based on lot and service type

For example, a residential infill with a construction value of $1,000,000 would pay:

• Permit fee: $112 + (10.14 x 1,000) = $10,252
• Plus water, grading, and other fees (often $2,500-$12,000 extra)

Larger or multi-unit residential/commercial projects can see much higher fees, especially if discretionary reviews or variances are required.

Timelines: From Application to Construction

The permitting pathway has multiple stages, each with its own review and approval timeline. Overall, the journey can stretch from as few as 14 months to as many as 22 months, depending on project complexity, location, and zoning compliance.

1. Pre-Application/Design: 1-3 months for geotechnical investigation, design development, and preparation of submission packages.
2. Development Permit (DP): 4-8 weeks for standard review, but 3-6 months if discretionary, public consultation, or appeals are involved.
3. Building Permit (BP): Once DP is approved, the BP review/issuance period is 4-12 weeks, primarily dependent on technical documentation completeness.
4. Construction Phase: For deep foundation projects (including heavy excavations, pile installation, curing, and superstructure), 6-14 months or more may be required, with winter seasons and poor weather occasionally slowing down work.

Further extension can occur if additional studies, design revisions, or public objections are raised at any stage.

Budgeting and Economics of Deep Foundations in Expansive Soils

The financial implications of building on swelling and shrinking soils are substantial and often misunderstood. Many budgets at the pre-design phase fail to recognize the true cost drivers:

• Professional consulting fees (geotechnical, structural, architectural, civil, surveying)
• Extensive site preparation and grading needed to control drainage
• Deep foundation installation costs (materials, labor, concrete, reinforcement, equipment mobilization/demobilization)
• Rigorous inspections, material testing, and compliance documentation
• Soil remediation, if required-frequently a six-figure line item
• Permit, service connection, and municipal utility fees
• Construction delays due to weather, inspection scheduling, or unforeseen ground conditions

Drilled concrete piers for a single home can total $30,000 to $240,000 or more, depending on size, shaft depth/diameter, and installation complexity. Deep commercial or multi-family residential buildings with dozens or hundreds of large diameter shafts may see foundation costs exceed $500,000-$2,000,000.

Site-specific challenges such as shallow groundwater, difficult access, or buried debris/old foundations further increase risks and should be accounted for with a contingency budget line, commonly set at 10-20% of total excavation/foundation costs.

Common Unforeseen Costs

• Removal of undocumented fill, demolition debris, or boulders
• Remediation of contaminated soils
• Additional shaft/pile depth due to deeper than expected soft clay
• Temporary shoring or dewatering if groundwater inflows are high
• Repair or reinforcement of adjacent properties accidentally undermined during excavation
• Schedule overruns or material shortages (especially concrete and steel, which are sensitive to market volatility)

Practical Steps for Homeowners, Builders, and Developers

Calgary’s foundation success stories have several factors in common, regardless of project size. Following best practices not only minimizes the risk of costly errors but also helps ensure regulatory approval and lasting performance.

1. Engage Proven Geotechnical Expertise First

Always select a local geotechnical firm with an established track record of similar projects in Calgary. Their knowledge of subsurface conditions across neighbourhoods-from the Bow River valley to the city’s eastern clay plains-is invaluable. Confirm that all site investigations and laboratory tests will be conducted under the direct supervision of a professional engineer (P.Eng., APEGA-licensed).

2. Collaborate with Structural Engineers Specializing in Expansive Soils

Do not allow a generic or "off-the-shelf" foundation design to proceed. Only a registered Structural Engineer with specific experience in expansive/clay soils should design the system, referencing the geotechnical report. Insist on final stamped and reviewed drawings before submitting for permits.

3. Insist on Full Regulatory Compliance

Submit all required technical documentation (including stamped geotechnical and structural reports/drawings) so that the city’s permit reviewers can approve your application without costly holdbacks or additional requests. If in doubt, consult a developer or permitting specialist familiar with recent permit outcomes.

4. Allocate Realistic Budgets and Contingencies

Budget for the real costs, not the best-case scenario. Include all engineering, investigation, soil stabilization, foundation construction, inspection/testing, and contingency costs when planning project financing. Attempting to cut corners in early stages often leads to huge overruns later.

5. Plan Timelines Conservatively

Recognize that, even with the best preparation, Calgary’s permitting processes and weather introduce variables-especially for deep excavation and foundation construction. Build long lead times into project schedules, and communicate realistic occupancy or completion dates to all clients and stakeholders.

6. Prepare for the Unexpected

Despite best-laid plans and professional investigations, surprises happen in excavation and foundation work. Stay flexible: have a qualified team ready to respond to groundwater, unrecorded utility lines, heritage objects, or other site-specific surprises with safety and compliance as the top priorities.

Case Examples: What Can Go Wrong and How to Do It Right

The Perils of Inadequate Investigation

Recently, a Calgary developer constructed a row of townhouses based on shallow test pit data. Within two years, units experienced severe interior cracks and misaligned doors as the expansive clay shifted beneath inadequately designed strip footings. The resulting remediation cost over $350,000, required lifting and underpinning each unit, and led to protracted legal disputes with original engineers and contractors.

Deep Foundations, Done Right

Contrast that with a new infill in an established neighbourhood. The builder invested in a full-scope geotechnical assessment, drilled through almost 8 metres of swelling clay to reach till, and installed 35 reinforced concrete piers per engineering design. Over five years, the structure remains level and crack-free-an outcome that validates the up-front investment many times over.

Commonly Asked Foundation Design Questions

• Can “regular” strip footings be used in Calgary’s problem soils? Rarely. They are only possible with full geotechnical clearance showing low expansion potential and superb drainage control.
• Is soil stabilization always worth the cost? Only rigorous engineering and economic analysis can answer this, but it is often the “last resort.” Deep foundations are more tried-and-true for major structures.
• Can post-tensioned slabs replace piles for homes? Sometimes, if the soil’s expansion isn’t extreme and the design is engineered for local conditions. Never use without professional input.
• How long do deep foundations take to install? Depending on project size, anywhere from several weeks (for a small home) to 2-4 months for multi-unit or commercial sites. Curing and inspection must be factored in.
• What happens if I build without a permit or with an inadequate foundation? You risk stop-work orders, denial of occupancy, insurance and resale problems, and potential forced demolition. Rectifying deficient foundations is vastly more expensive than doing it right the first time.

Coordination: Demolition, Excavation, and Foundation Work Sequence

Successful deep foundation projects dovetail closely with proper site demolition and excavation sequence. Before foundation installation:

• Confirm all required utility disconnects and environmental/heritage assessments are complete.
• Demolish above- and below-ground structures/remnants using qualified demolition contractors familiar with Calgary soils and debris.
• Excavate to engineered depths, maintaining safe slopes or shoring where required.
• Perform field soil testing and confirm reported conditions match initial geotechnical findings (unexpected fill or debris may require revised design).
• Install over-excavation or undercutting to provide a clean, engineered base for foundation elements.
• Maintain robust site drainage to mitigate groundwater inflow during all stages; consider dewatering wells/pumps if required.

The knowledge and experience of the demolition and excavation team are crucial-cost overruns and delays frequently originate from discoverable but unaddressed problems at this phase.

Moisture Management: Control the Environment, Control the Soil

The most sophisticated foundation design can still be compromised if site water management is neglected. You cannot control rainfall or drought, but you can:

• Design slopes and exterior grading to direct surface runoff away from the structure
• Install roof gutters, downspouts, and subsurface drainage away from foundations
• Use moisture barriers, non-expansive backfill, and protective landscaping at foundation perimeters
• Maintain site drainage throughout construction-standing water at excavation base can destabilize soils rapidly

Long-term property care agreements often include annual inspection of drainage systems and foundation conditions-don’t neglect this after construction is complete.

Summary: Build on Sound Science, Not on Hope

Calgary’s swelling and shrinking soils require a level of technical due diligence and construction care far exceeding standard practice in most other regions. The National Building Code’s Section 4.2.4.11 is not just a “paper” requirement-it embodies decades of hard-won experience in what works, and what fails, in Alberta’s high-risk soils.

Whether you are a homeowner, builder, or developer, your best insurance for a safe, durable, and valuable property comes from the following roadmap:

• Never skip a full geotechnical investigation-let science, not guesswork, dictate your design
• Insist on engineering expertise with local soil understanding
• Prepare for meaningful permit and construction timelines
• Accept and budget for the real costs of building on problematic soils
• Coordinate site prep, demolition, excavation, and foundation work to the highest standards
• Keep soil moisture stable during and after construction

By acting with diligence and professionalism from the first step, you set your project up for decades of trouble-free performance-and protect yourself against the many financial and safety pitfalls that befall those who cut corners, ignore the Code, or underestimate Calgary’s “moving ground.”
