Every year in Calgary, thousands of homeowners and builders manage rainfall and snow melt runoff to protect homes, garages, and driveways from water damage. Wet basements, eroded foundations, slippery surfaces, and premature driveway failure can all result from poor drainage management. The National Building Code (NBC) section 9.14.6.4 targets this problem directly, taking into account Calgary’s unique climate challenges and urban development needs. Navigating, understanding, and complying with this code section is essential for anyone planning new construction, renovation, or redevelopment involving residential driveways in Calgary.

Understanding NBC 9.14.6.4: Catch Basins and Calgary’s Building Code

What Is NBC 9.14.6.4?

The National Building Code (NBC) of Canada provides clear guidance on drainage for driveways, specifically addressing situations where water runoff can accumulate or enter garages. NBC 9.14.6.4 explicitly states that when drainage from a driveway could contribute to water ingress into a garage or another vulnerable structure, a properly designed catch basin is a mandatory requirement. This measure is intended to prevent common problems such as concrete spalling, mold, ice formation, foundation erosion, and even slip-and-fall hazards during Calgary’s freeze-thaw cycles.

For Calgary specifically, the implications are clear: your project must include efficient surface water collection and redirection solutions if there is any chance runoff could flow toward your residential or commercial garage.

Key Objectives of NBC 9.14.6.4

• Prevent Water Intrusion: Stop surface water from flowing into garages and attached structures.
• Structural Integrity: Avoid premature deterioration of foundation walls and slabs caused by persistent moisture exposure.
• Health and Safety: Mitigate mold development, minimize slip hazards, and prevent hazardous ice formation in winter.
• Compliance with Local Bylaws: Meet municipal and provincial guidelines to avoid inspection failure or rejected building permit applications.

How NBC 9.14.6.4 Applies to Calgary Driveways

Calgary’s climate presents unique challenges: rapid snow melt, heavy storms, and cycles of freezing and thawing are all common. Driveways often slope toward buildings to maximize lawn space or due to lot size constraints, increasing the risk of water accumulation at garage entrances. In these contexts, the code obligates property owners, builders, and developers to design driveways with appropriate drainage facilities such as catch basins, trench drains, or integrated slope adjustments that direct water to safe discharge points, like the storm sewer system.

Non-compliance can have far-reaching consequences, including permit rejection, forced demolition of new work, insurance claim denials, and costly repairs. By following NBC 9.14.6.4, you protect your investment and Calgary’s infrastructure.

Catch Basins Explained: Function, Design, and Importance

What Is a Catch Basin?

A catch basin is a grated inlet structure installed within paved or landscaped surfaces to collect and redirect surface runoff efficiently. It serves as the first line of defense against unwanted water accumulating near driveways, garages, and homes. Commonly formed from concrete, high-density polyethylene (HDPE), or polypropylene, a catch basin is usually connected via underground piping to municipal storm drains or to a dry well, depending on property location and municipal requirements.

Anatomy of a Catch Basin

• Grate Cover: Durable metal or plastic mesh to allow water in and block debris.
• Sump Chamber: The main container that holds water and sediment temporarily.
• Outlet Pipe: Piping that conveys water safely away to appropriate destinations (storm sewer or soakaway pit).
• Overflow Features: Some designs include backups to direct excess water in heavy storms.
• Access Port: For maintenance and cleaning operations.

Why Catch Basins Are Essential at Calgary Driveways

• Protects the structure of garages and homes by draining excess water.
• Prevents foundation heaving and cracks caused by repeated freeze-thaw cycles.
• Reduces risk of mold growth and related health issues.
• Prevents icy patches at driveway entrances, improving safety.
• Meets insurance, code, and resale requirements for properly maintained property.

Common Catch Basin Types for Driveways

• Precast Concrete Basins: Extremely durable, ideal for high-traffic or heavy-load applications.
• Plastic/HDPE Basins: Lightweight, easier to install, and resistant to corrosion from road salts.
• Trench Drains: Used across the entire driveway width, especially suitable for wide or multi-car driveways.
• Custom Solutions: Large estates or unique property layouts may require engineered drainage plans and advanced catchment systems.

Assessing Your Property: When Is a Catch Basin Required?

Initial Site Assessment

Before any installation begins, a thorough assessment of the site is essential. This includes evaluating the topography, soil composition, lot layout, and the location of garages and adjacent structures. In Calgary, this assessment determines whether your project falls under NBC 9.14.6.4 and establishes the most appropriate drainage solutions for lasting effectiveness.

Indicators That a Catch Basin Is Needed

• Driveways sloping towards garages, especially where there’s minimal buffer or elevation change.
• Pooled water observed after rainfall or snow melt, particularly if it accumulates against the building.
• Historic water intrusion, visible staining, or spalling on garage flooring or foundation walls.
• Lack of existing perimeter drains or surface grading incapable of dispersing water safely.
• Municipal or neighborhood guidelines requiring engineered drainage for all new construction or major renovations.

Municipal and Community-Specific Considerations

Some Calgary neighborhoods have established local bylaws or architectural guidelines that are stricter than NBC 9.14.6.4. Always check with the City of Calgary and your Homeowners' Association (if applicable) during planning stages. Professional assessment is strongly recommended to avoid costly redesigns or enforcement actions.

Budgeting: Understanding the Costs of Catch Basin Installations

Breakdown of Typical Costs

Understanding the costs involved allows homeowners, builders, and developers to budget accurately and prioritize drainage in new construction or upgrades. Total project costs can range from a modest investment for a straightforward installation to significant expenses for complex sites requiring extensive infrastructure.

• Catch Basin Unit: $80 - $350 depending on size, material, and load rating.
• Materials & Supplies: $60 - $500 (pipe, gravel, sealants, backfill, connectors).
• Labor: $300 - $2,200 (higher for deep excavation, complex layouts, or traffic management needs).
• Permits: $0 - $600 (application cost varies by type and scope of work).
• Delivery/Disposal: $40 - $320 (includes delivery of units, dump fees for excavated material).
• Miscellaneous/Contingency: $50 - $400 (groundwater mitigation, rerouting utilities, unforeseen complications).

In total, most Calgary driveway catch basin installations land between $1,200 and $7,500. Smaller, standard residential driveways are at the low end, while more complex, large, or commercial projects skew higher. Multiple catch basins, long pipe runs, or utility conflicts may drive up costs.

Cost-Control Strategies

• Early Site Assessment: Identify the simplest, most effective drainage solution during the design phase.
• Professional Design: Avoid expensive changes and rework by engaging experienced drainage contractors from the start.
• Bundled Work: Combine catch basin installation with other driveway, grading, or landscaping projects for economies of scale.
• Regular Maintenance: Keep existing catch basins functioning optimally to delay replacement or major retrofits.

Permitting in Calgary: What You Need to Know

Types of Permits Required

Calgary has a robust permitting process designed to ensure drainage measures are effective, safe, and compliant with both municipal code and the NBC. Regular changes in city guidelines, ongoing urban densification, and the impact of extreme weather have all resulted in increasingly strict enforcement. The most relevant permits are:

• Development Permit: Required for building a new driveway, modifying an existing driveway, or extending/widening driveways. This ensures alignment with zoning, drainage, landscaping, and access regulations.
• Excavation Permit: Applicable whenever excavation work is performed within City of Calgary right-of-ways or on public property. This includes connections from private catch basins to city stormwater infrastructure.
• Building Permit (Case-dependent): While not always required for surface catch basins, significant site changes or multi-phase developments may trigger further review. Check with the City for guidance on your specific project.

Permit Fees and Processing Times

Planning for the correct permitting and sufficient lead times is vital. In 2024, approximate guidelines are:

• Development Permit Fee: Typically around $550 for residential jobs.
• Development Permit Processing: 10 to 12 weeks on average, depending on project volume and complexity.
• Excavation Permit Fee: Varies but often included as part of overall application bundle.
• Excavation Permit Processing: Up to two business days once documents are submitted.

Essential Permit Documentation

• Detailed site plans, including proposed grading, driveway layout, and exact location of catch basins.
• Drainage details showing how runoff will be intercepted, routed, and discharged in compliance with city and provincial standards.
• Proof of professional assessment or stamped drawings (sometimes required for larger projects).
• Any additional reports for sites with challenging soil, steep grades, or proximity to waterways.

Risks of Skipping Permit Processes

• City may order removal or redoing of non-compliant work, at the owner’s expense.
• Potential for fines or penalties.
• Delays at later stages if inspections reveal code violations.
• Insurance claims may be denied for damage linked to unpermitted drainage failures.
• Diminished property resale value and disclosure headaches.

Timelines: From Application to Installation

Understanding the Project Timeline

Every catch basin installation project in Calgary follows a predictable-but sometimes lengthy-process due to required municipal reviews, weather constraints, and contractor scheduling. Understanding the steps can help with project planning, occupancy timelines, and any temporary construction impacts.

Typical Timeline Breakdown

• Design and Planning: Site assessments, grading/drainage review, and generating stamped plans (1-3 weeks).
• Permit Application Submittal: Development permit application and supporting documentation (1 day to prepare).
• Development Permit Review: 10-12 weeks city review and approval window (longest lead time item).
• Excavation Permit Application: Submit after development approval or concurrently for fast-tracked jobs (processed in up to 2 business days).
• Contractor Booking and Mobilization: Scheduling excavation, materials delivery, and on-site start (1-2 weeks depending on contractor availability and season).
• Installation: Excavation, placement of catch basin, connection to pipes, backfilling, and surface restoration (1-3 days for most residential projects).
• Inspection and Final Approval: City or third-party inspection and signoff (1-3 days post-installation).

Factors That Affect Project Duration

• Permit processing backlogs, particularly during construction season peaks (spring/summer).
• Complex or large-scale projects requiring multiple approvals.
• Poor weather-rain, snow, or freeze events can delay excavation and concrete work.
• Unexpected site obstacles, such as utility conflicts or soil instability.
• Coordination with other trades (grading, paving, landscaping).

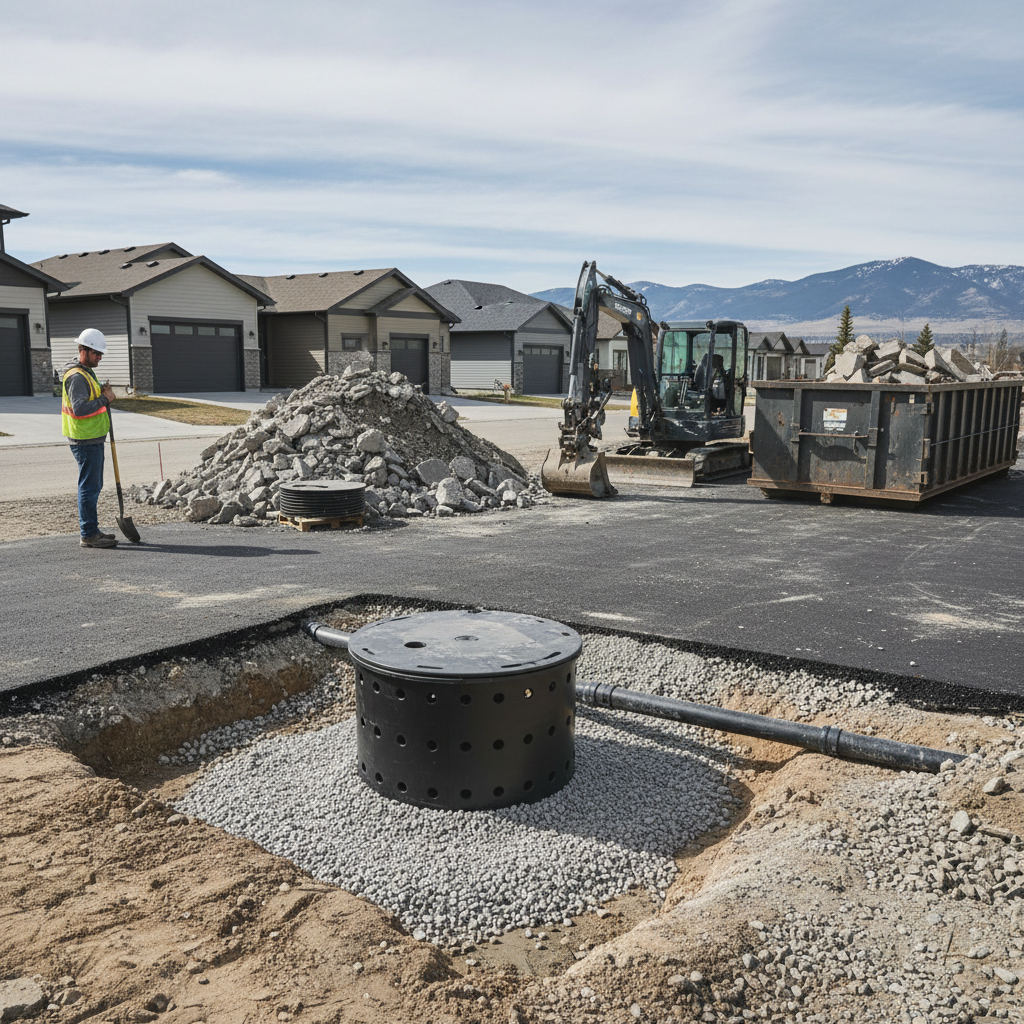

Installation: Steps, Best Practices, and Professional Guidance

Step-by-Step: Residential Catch Basin Installation

While each property and project is unique, most Calgary catch basin installations follow these phases:

1. Layout and Utility Locating: Mark the proposed catch basin location, and ensure Alberta One-Call utility locator services have cleared the area for safe excavation.
2. Excavation: Cut through the driveway or paved area, and excavate to the required depth and width based on catch basin size and frost depth (typically at least 1.2 meters or below the frost line for primary outlets).
3. Base Preparation: Compact clean gravel or crushed stone to provide a stable, free-draining base beneath the catch basin.
4. Catch Basin Placement: Set the basin, ensuring proper slope for both surface water flow and the outlet connection. Laser levels or builder’s transits are vital for accurate grading.
5. Pipe Installation: Install piping to connect the catch basin to the storm sewer or dry well. All joints should be watertight and sized for the anticipated water flow.
6. Backfill and Compaction: Place backfill carefully to minimize settlement around the catch basin and pipes.
7. Surface Restoration: Pour new concrete or asphalt to match the existing driveway; ensure the grate sits flush or slightly lower to capture surface water.
8. Testing and Inspection: Conduct flow and leak tests, schedule required municipal inspections, and review all work for completeness and safety.

Construction Best Practices

• Only use materials rated for Calgary’s freeze-thaw cycles and able to withstand typical residential/commercial traffic loads.
• Ensure grading directs all surface water to the basin; even minor errors in slope can result in pooling or overflow.
• Position the basin as close as possible to where water actually accumulates-usually at the lowest point on the driveway, adjacent to the garage slab.
• Maintain sufficient depth and frost protection on outlet pipes; shallow installations are prone to seasonal freeze-ups and clogs.
• Always double-check for conflicts with other utilities (gas, telecom, water lines), which are common in dense Calgary suburbs.
• Secure all required city approvals before backfilling or paving over drainage infrastructure.

Professional Guidance: Why It Matters

• Regulatory Expertise: Pros are familiar with both NBC 9.14.6.4 and evolving city-specific rules.
• Warranty Assurance: Most reputable contractors offer workmanship guarantees.
• Access to Tools: Specialized equipment for accurate excavation, grading, compaction, and safe utility work.
• Efficient Project Management: Downtime and mistakes are minimal when project management is handled professionally.
• Post-Installation Support: Support for inspections, maintenance guidance, and future upgrades.

Maintenance: Keeping Your Catch Basin Functional

The Importance of Regular Maintenance

Properly installed catch basins provide decades of reliable drainage-but only if they are maintained. Neglect can lead to clogs, backups, and surface flooding, defeating the original investment and putting your property and code compliance at risk. Calgary’s combination of wind-borne debris, autumn leaf fall, and winter sanding means regular maintenance is a must.

Routine Inspection Guidelines

• Inspect grates regularly, especially after storms or spring melt, for buildup of leaves, gravel, ice, or garbage.
• Flush out the sump chamber annually to remove accumulated sediment and debris.
• Confirm the outlet is not blocked by roots, mineral buildup, or animal nests.
• Check for settling or sinking that could affect water capture rates; adjust or re-pave if needed.
• Look for signs of erosion, undermining, or surface cracking around the basin’s perimeter.

Do-It-Yourself Maintenance vs. Professional Service

• DIY: Removing surface debris and basic visual inspections can be handled by most property owners.
• Professional: Annual or biannual professional cleaning (especially if the property sits below street level or in an older neighborhood with large trees).
• Advanced Troubleshooting: Persistent clogs, outlet blockages, or recurring overflows require a licensed drainage specialist’s intervention.

Consequences of Poor Maintenance

• Increased risk of surface flooding and water intrusion into the garage or foundation walls.
• Reduced catch basin service life; repairs or replacement may be necessary years sooner than expected.
• Building code or bylaw violations that trigger enforcement, fines, or permit rescindment.
• Hazards to pedestrians and vehicles-especially ice formation during winter months.

Common Installation Pitfalls and How to Avoid Them

Pitfall #1: Insufficient Grade or Improper Slope

If the surrounding pavement does not slope consistently toward the catch basin, water will pool or even bypass the drainage point entirely. Always use professional grading equipment, and verify with laser levels before pouring concrete or laying asphalt.

Pitfall #2: Improper Catch Basin Sizing

Undersized basins and narrow outlets will clog quickly and may not handle large Calgary storms. Always calculate drainage volumes based on the largest anticipated rain or melt event, factoring in upstream surface area.

Pitfall #3: Inadequate Frost Protection

Pipes and basins not set deep enough are susceptible to heaving, breakage, or freezing. Follow Calgary codes for frost depth-usually at least 1.2 meters for outlet pipes-to ensure uninterrupted flow even in extended cold snaps.

Pitfall #4: Overlooking Permit or Bylaw Compliance

Unpermitted work can result in tear-outs or expensive rework. Always confirm which permits are needed and ensure approved plans are followed exactly. Do not attempt schedule shortcuts at the cost of code compliance.

Pitfall #5: Sub-Grade Water Infiltration

Improper sealing or lack of waterproof slabs can allow water below the pavement, leading to voids or frost heaving. All joints and surfaces should be sealed and backfilled properly to shed water away from structures.

Upgrades, Retrofits, and Alternative Solutions

When to Consider an Upgrade or Retrofit

• Recurring flooding or ponding despite an existing catch basin.
• Evidence of settlement, subsidence, or misalignment of the basin or piping.
• Persistent blockages that cannot be cleared with regular maintenance.
• Expansion of the driveway or addition of new drainage areas (for example, an added garage or garden suite).
• Older homes built before modern NBC sections may not have a catch basin or have an undersized, malfunctioning unit.

Alternative and Complementary Solutions

• Trench Drains: For wide driveways or apron areas; captures runoff across the full entrance width.
• Channel Drains: For directing water to the sides of large driveways or parking pads; often used in multi-family or commercial projects.
• Permeable Paving: Modern pavers that allow surface water to percolate directly into the ground can supplement or, in some cases, replace traditional catch basins (though this requires detailed engineering and municipal approval).
• French Drains: For problem areas with both surface and sub-surface drainage needs, especially where existing infrastructure is hard to access or modify.

Case Studies: Real-Life Examples from Calgary

Renovation of a 1960s Bungalow, Haysboro

The homeowners noticed annual spring flooding in their attached garage, with water stains extending 0.5 meters up the foundation wall. After city recommendations, a professional assessment confirmed the driveway slope could not be altered without major regrading. Installation of a precast catch basin at the garage entrance and proper connection to the storm sewer resolved the issue. Total cost: $3,000, including permits and surface repair.

Luxury Infill Build, Altadore

A developer building two side-by-side infill homes needed both driveways to comply with current NBC and City of Calgary drainage requirements. A combination of custom-sized HDPE catch basins and deep-buried PVC outlet pipes allowed both lots to pass initial inspections, avoiding costly post-construction changes. Costs were higher-over $7,000 per home-but streamlined permit processing and high-quality installation ensured a smooth handover to buyers.

Retrofit for Older Duplex, Forest Lawn

Flooded garages and insurance claim denials prompted a full drainage retrofit on a sloped, shared-drive duplex lot. Working with city engineers, the contractor added a surface trench drain spanning both entrances, tied into the new catch basin, and re-paved the apron. Compliance with NBC 9.14.6.4 was strictly enforced, and future insurance claims were fully restored by proof of code-compliant improvements.

Frequently Asked Questions: Drainage, Permits, and Best Practices

Is a catch basin always required at the end of a Calgary driveway?

Not always-but any case where water runoff could pool against or enter a garage, a catch basin or equivalent system is required by NBC 9.14.6.4. A professional site assessment will clarify your specific requirements in line with local interpretations of the code.

What happens if I skip the catch basin and build anyway?

You risk failed inspections, potential bylaw enforcement, removal orders, or refusal of occupancy certificates. Insurance companies can also refuse to cover water damage on non-compliant properties. Selling a home without legal drainage certification is increasingly difficult.

Do permits apply for simple repairs or replacements?

Replacing a damaged catch basin with a like-for-like unit may qualify as maintenance-but expanding, relocating, or downgrading any drainage infrastructure usually requires permits. City guidelines should be consulted before starting any work.

What’s the lifespan of a typical driveway catch basin in Calgary?

With good materials and regular maintenance, most systems last 20-40 years. Upgrades may be necessary sooner if installation quality or maintenance falls short, or if the surrounding environment changes significantly (e.g., redevelopment, significant landscaping alterations).

Summary Checklist: Steps to Ensure Proper Catch Basin Drainage in Calgary

1. Conduct a professional site assessment, focusing on topography, anticipated runoff, and garage orientation.
2. Determine which municipal and building code standards apply-NBC 9.14.6.4 is the minimum, but local bylaws or HOA rules may be stricter.
3. Develop a detailed drainage plan, including catch basin type, location, pipe routing, and outlet solutions.
4. Apply for and secure all required permits-start early, as city review times can be significant.
5. Select qualified, licensed contractors with local Calgary experience.
6. Coordinate site work, excavation, installation, and all necessary inspections in the correct order.
7. Restore any affected surfaces to match or exceed pre-existing conditions.
8. Schedule and follow up on regular cleaning and inspections for proper ongoing catch basin operation.
9. Maintain documentation of all permits, approvals, and maintenance activities for insurance and resale purposes.

Conclusion: Protecting Your Investment through Proper Drainage

Properly designed, permitted, and maintained catch basins are not only a code requirement-they are your best defense against costly water damage in Calgary’s challenging environment. Navigating NBC 9.14.6.4, budgeting wisely, and hiring experienced professionals will save money, prevent headaches, and protect your garage, driveway, and home’s long-term value. Whether you are a homeowner, builder, or developer, prioritizing drainage systems from the start is a crucial step that pays dividends in durability, safety, and regulatory compliance-and ensures your project is ready to withstand all four Alberta seasons.

For advice, site assessment, or turnkey demolition and excavation services, contact Kingsway Demolition & Excavation-Calgary's trusted experts in code-compliant site solutions.
