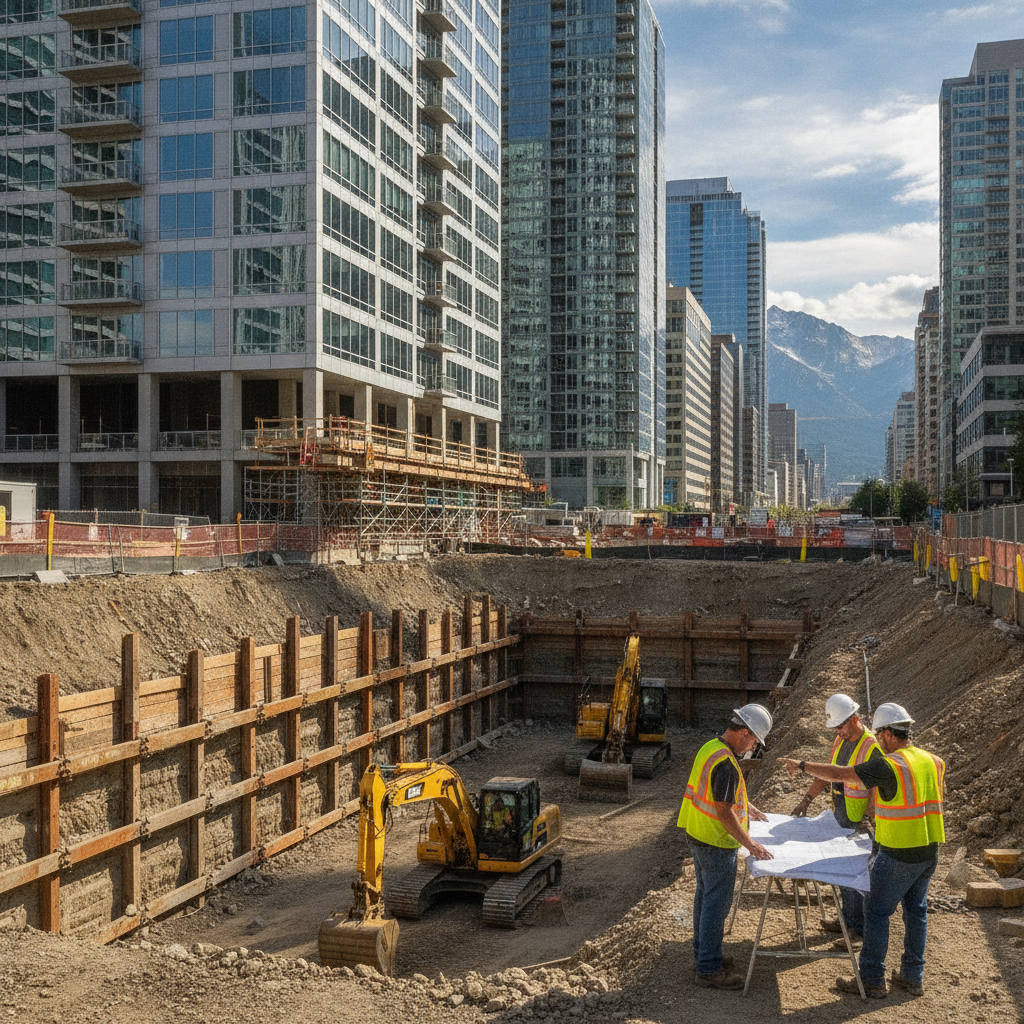

In Calgary’s dynamic construction landscape, ensuring that excavations are properly designed to prevent movement and damage to adjacent buildings is not just a best practice-it’s a strict requirement laid out in the National Building Code of Canada (NBC), specifically Section 4.2.5.1.(1)(a). For homeowners, builders, and developers, understanding the intersection between code, local regulations, geotechnical realities, and safe practice is essential to avoid costly setbacks, mitigate liability, and protect Calgary’s vibrant urban development.

Understanding NBC 4.2.5.1.(1)(a): The National Standard for Safe Excavation

Section 4.2.5.1.(1)(a) of the NBC 2015 (and incorporated in local bylaws) mandates: “Excavation shall be designed to prevent movement which could damage adjacent buildings or structures during all stages of construction.” This simple sentence imposes significant obligations on anyone excavating near existing structures, whether in dense inner-city communities or expanding suburban developments.

In practice, this means that before a shovel breaks ground, a comprehensive approach involving proper investigation, engineered design, appropriate permitting, and ongoing monitoring must be in place to address all potential risks to neighboring properties.

The Stakes: Risks of Improperly Designed Excavations

The consequences of overlooking proper excavation design go far beyond regulatory infractions:

  • Structural Damage: Movement of soil or shifting groundwater can undermine the foundations of adjacent buildings, leading to costly repairs or even condemnation.
  • Legal Liability: Damaging neighboring properties can result in lawsuits, insurance disruptions, and project funding issues.
  • Project Delays: Stop-work orders, remediation, and investigations can halt projects for months.
  • Reputational Harm: Trust with future clients and city officials can be eroded quickly by one poorly managed excavation incident.

Calgary’s variable geology-from glacial till and clay lenses to groundwater challenges-makes diligent preparation and oversight even more critical. The city’s diverse neighborhoods feature a wide range of building ages and foundation types, which further increases the risks if adjacent properties are not adequately protected.

Key Elements of Excavation Design to Protect Adjacent Buildings

Subsurface Investigation: The Foundation of Safe Excavation

Every successful excavation starts with a thorough understanding of what lies beneath the ground. In Calgary, subsurface investigations should be conducted under the direction of a professional engineer or geotechnical consultant with experience in local soils and hydrogeology. Key components include:

  • Borehole Drilling and Sampling: Extract cores at intervals and key locations to accurately determine stratigraphy and soil properties.
  • Laboratory Analysis: Test soil samples for shear strength, compressibility, moisture content, and grain size distribution.
  • Groundwater Assessment: Identify both the presence and seasonal behavior of groundwater, which can drastically affect excavation stability.
  • Historical Land Use Research: Understand previous structures, contamination, old services, or underground tanks that could cause surprises.
  • Adjacent Foundation Surveys: Document foundation types, depths, and current conditions of neighboring buildings.

The information gathered forms the baseline for all subsequent excavation design choices, identifying both risks to adjacent structures and optimal strategies for shoring, dewatering, and construction sequencing.

Excavation Design: Integrating Code and Engineering

Once comprehensive subsurface data is available, design can be tailored to both site-specific conditions and NBC 4.2.5.1.(1)(a) requirements. Major design considerations include:

  • Excavation Support Systems: In areas with adjacent buildings, temporary or permanent shoring is typically required. Common options in Calgary include:
    • Soldier Piles and Lagging: Vertical steel piles driven or drilled at intervals, filled between with timber or precast concrete panels. Effective for most soil conditions and moderate depths.
    • Secant or Tangent Pile Walls: Interlocking concrete or steel piles to form a near-watertight barrier; vital where groundwater or loose soils are present.
    • Soil Nailing: Inserting reinforcing steel rods into the soil face, often combined with sprayed concrete (shotcrete), providing stabilization for cuts or slopes.
    • Sheet Piling: Steel sheets are driven vertically to form a continuous wall, particularly effective in granular soils and for deeper excavations near property lines.
  • Settlement and Movement Control: The system must minimize lateral soil displacement and control both immediate and long-term settlement that may affect adjacent structures.
  • Structural Loading: Designs must consider the loads imposed by adjacent buildings, traffic, and construction equipment.
  • Temporary vs. Permanent Systems: For some deep excavations (such as for underground parkades), the excavation support system may be integrated into the permanent structure.
  • Construction Sequencing: The order in which excavation, shoring, and foundation placement occur can impact stability and risk. Phased excavations, tiebacks, or bracing may be needed.
  • Vibration and Noise Mitigation: Shoring methods should be selected to reduce transmitted vibrations, especially near heritage or fragile structures.

All design work must be sealed by a professional engineer registered in Alberta, with construction plans and drawings integrated into the permit application process.

Excavation Construction: Translating Design to Reality

Even the best designs require diligent execution. The excavation contractor must:

  • Always work under the oversight of the design engineer, maintaining clear lines of communication for site issues.
  • Install shoring or stabilization measures ahead of major earth movement, not after instability occurs.
  • Sequence work to avoid exposure of unsupported soil faces, especially after heavy rains or freeze-thaw cycles.
  • Monitor for signs of ground movement, such as cracking or shifting in adjacent structures; stop work and consult engineers immediately if detected.
  • Document every phase with photos, measurements, and logs, as this information will be vital for both quality assurance and possible dispute resolution.

Control of Water: Managing Groundwater and Surface Water

Water is the hidden enemy of excavation stability. Uncontrolled groundwater seepage can rapidly lead to soil erosion and even catastrophic collapse, while surface water infiltration through rain or snowmelt can exacerbate issues.

Strategies for Water Control Include:

  • Dewatering Wells or Wellpoints: Lowering the groundwater table prior to and during excavation keeps soils stable and reduces hydraulic uplift pressures.
  • Cutoff Barriers: Secant piles, slurry walls, or sheet piling can form a near-watertight barrier around the perimeter.
  • Surface Water Diversion: Proper grading, berms, and sump pumps prevent rain or runoff from entering the excavation.
  • Pumping and Treatment: Any water removed must be managed and treated in compliance with local environmental regulations before disposal.

Proper water management is a continuous effort, with adjustments made as site or weather conditions evolve throughout the project.

Permitting Requirements: Navigating the City of Calgary Process

No excavation in Calgary should begin before the appropriate permits have been submitted and approved. The City of Calgary has a robust permitting framework designed to ensure structural safety, land use compatibility, and community protection. Here is a detailed breakdown:

Development Permit: Meeting Land Use and Zoning

For all new buildings and additions, a Development Permit is required before proceeding to building or trade permits. This permit ensures the proposed work aligns with the area’s zoning, setbacks, height restrictions, and land use.

  • Submissions: Site plans, landscaping, building dimensions, and massing details.
  • Considerations: Compliance with Land Use Bylaws, heritage overlays, area redevelopment plans, and potential community impacts.
  • Processing Times: Can vary depending on the complexity of the project and the completeness of applications.

Without this permit, subsequent approvals cannot proceed, and unpermitted excavation may result in significant delays, fines, or even mandatory restoration.

Building Permit: Ensuring Code Compliance and Structural Safety

The Building Permit is focused on the technical aspects of construction, ensuring:

  • All structures conform to the NBC and Alberta Building Code (including NBC 4.2.5.1.(1)(a) for excavation).
  • Structural, mechanical, and health/safety requirements are met through stamped drawings and reports.
  • Project meets fire, access, egress, and energy efficiency requirements.
  • Structural calculations and shoring design reports from engineers are included in the permit submission, especially if nearby buildings are affected.
  • Inspections will be scheduled at required milestones.

Permits may be applied for online or in person. The review process typically takes approximately 21 days, but timelines can extend if applications are incomplete or significant engineering review is required.

Trade Permits: Moving Beyond the Structure

Depending on the nature of the project, additional trade permits may be required for:

  • Electrical systems
  • Plumbing and gas
  • HVAC systems

These permits often require coordination with excavation work, especially when services enter or pass beneath the excavation area or when temporary site services are installed.

Permit Fees and Sample Calculation

Building permit fees are based on the “prevailing market value” (PMV) of the project:

  • For example: PMV of $500,000 incurs a base permit fee of approximately $5,182.
  • Fee calculators are available through the City of Calgary.
  • Larger and more complex projects will carry proportionally higher fees and may require deposits for site servicing or damage deposits for city infrastructure.

Key Practical Details for a Safe and Compliant Excavation Project

Engagement of Professional Engineers and Consultants

Only a licensed engineer can assess subsurface conditions, prepare soil and groundwater reports, and design shoring and stabilization systems that satisfy both NBC and City of Calgary requirements. Their involvement should cover:

  • Preliminary site investigations
  • Geotechnical and structural design
  • Preparation and sealing of all drawings and calculations
  • Ongoing oversight and inspection throughout construction
  • Preparing as-built documentation for permit close-out

DIY excavations, or those where cost savings are attempted by skipping engineering input, not only invite code violations but greatly amplify the risk to project stakeholders and adjacent property owners.

Integrating Compliance with Bylaws and Community Expectations

Calgary’s Land Use Bylaw and other municipal rules must be respected for every phase of excavation work:

  • Property Line Setbacks: Adhere to required setbacks for excavations and shoring, or obtain the necessary variances if working to the property edge.
  • Heritage or Protected Structures: Additional reviews, public engagement, or alternate shoring methods may be mandated for buildings of historical significance.
  • Community Notification: Proactive communication with adjacent property owners can avoid conflicts and build goodwill-especially important for infill, commercial, or multi-family projects.
  • Noise and Working Hours: Must follow local noise bylaws and restrictions, with clear signage and barricades to ensure public safety.

Implementing Effective Site Safety Protocols

The safety of workers, the public, and nearby property is at the heart of NBC 4.2.5.1.(1)(a) compliance. Best practices include:

  • Site Fencing and Barricades: All excavations, regardless of size, must be securely fenced to prevent trespassing or accidental entry.
  • Warning Signage: Clear signage in multiple languages where appropriate, indicating dangers and restricted zones.
  • Worker Training: All site crews must be trained in excavation safety, emergency procedures, and the use of personal protective equipment.
  • Emergency Response Plan: Detailed plans for responder access, shoring failures, flooding, or ground movement should be in place and understood by every worker.
  • Monitoring and Inspection: Daily inspections for cracking, bulging, or water infiltration-issues must be immediately documented and escalated.

Managing the Construction Process: Before, During, and After Excavation

Pre-Construction Steps

  • Detailed Pre-Condition Surveys: Hire specialists to thoroughly inspect and document adjacent buildings-photographs, crack monitoring, and written reports are essential. This provides a reference should damage be alleged.
  • Service Locates: Contact Alberta One Call and coordinate with utility companies to precisely map all underground services running through or near the site. Unexpected encounters with water, sewer, gas, or power lines are disruptive and dangerous.
  • Permitting Coordination: Ensure all permit approvals are in hand, and conditions or variances are understood by the entire project team.
  • Vibration Monitoring Plan: For sites near heritage or sensitive structures, install vibration sensors to document and manage impact throughout excavation.

During Excavation

  • Adherence to Sequence: Follow the approved construction sequence exactly as engineered. Shortcuts or unplanned changes can undermine even the best designs.
  • Regular Engineer Inspections: Schedule frequent visits from the design engineer to confirm shoring and stabilization performance.
  • Survey Monitoring: Use survey monuments or laser scanning to monitor for ground or structural movement adjacent to the excavation.
  • Dewatering: Operate and maintain all groundwater control systems as designed, adjust for weather events and monitor water levels routinely.
  • Incident Response: Any evidence of damage, ground movement, or adjacent building distress must trigger an immediate pause and investigation by the engineering team.

Post-Excavation and Closeout

  • Backfilling and Compaction: Once foundations or below-grade structures are complete, backfill with specified materials and compact in lifts to minimize settlement risk.
  • Shoring Removal (If Temporary): Remove temporary shoring according to engineering recommendations; in some cases, all or part may remain in place for continued stability.
  • As-Built Documentation: Prepare as-built drawings and engineer-signed reports for final permit closeout.
  • Final Condition Survey: Conduct another independent survey of adjacent structures to confirm no adverse movement or damage has occurred. Document and address any issues immediately.

Special Challenges in Calgary: Soil, Climate, and Urban Complexity

Calgary’s geology and climate pose unique challenges for safe excavation design:

  • Clay and Silt Soils: Prone to swelling and shrinkage with changes in moisture content, leading to unexpected movement around excavations. Proper moisture control and careful shoring design are essential.
  • Glacial Till: Variable composition can include pockets of sand, gravel, or large boulders, complicating excavation strategies.
  • High Groundwater Zones: Especially prevalent along riverbanks and in low-lying areas; dewatering can be technically demanding and costly.
  • Frequent Freeze-Thaw Cycles: Can weaken soil strength and cause heaving, particularly for work started late in the season or extending into spring.
  • Urban Infill Context: Deep excavations for basements, parkades, or multi-story developments are often only feet away from older, less robust foundations.
  • Dense Underground Utilities: The city’s infrastructure means nearly every excavation runs the risk of encountering gas, telecom, or stormwater lines, which require precise planning and careful support.

Strategies for Urban Excavation Near Existing Structures

  • Zero Lot Line Shoring: Use secant or tangent pile walls to stabilize soil right to the property line, minimizing impact on neighboring buildings.
  • Tieback Anchors: When horizontal space is limited, tiebacks drilled into stable ground allow the use of thinner, more vertical shoring systems.
  • Bracing and Cross-Lot Support: Where tiebacks are restricted (due to underground utilities or neighboring property limitations), temporary internal bracing may be required to counteract soil and building loads.
  • Micro-Piles or Underpinning: If the adjacent foundation is vulnerable, micro-piles or underpinning may be required to support it during and after excavation.
  • Adjacent Building Agreements: Negotiate formal agreements with neighbors for access, monitoring, or, in rare cases, underpinning or remedial work.

In each scenario, every step must be guided, documented, and approved by a professional structural or geotechnical engineer with direct experience in urban excavation.

Case Studies: Lessons from Calgary and Beyond

Case Study 1: Infill Basement Excavation in Inner City Calgary

In an older neighborhood, a developer undertook a basement excavation for a new infill dwelling within one meter of an existing pre-war house. Subsurface investigation revealed clay-rich soils with a high seasonal water table. The following steps ensured no damage to the adjacent property:

  • Installed soldier piles and lagging shoring system immediately after excavation began.
  • Dewatering wellpoints lowered the groundwater table well below the foundation base.
  • Daily crack monitoring was conducted on the neighboring house.
  • Communication with the neighbor ensured immediate reporting and resolution of concerns.
  • The project was completed with zero claims, demonstrating the value of diligence and engineering oversight.

Case Study 2: Parkade Excavation Near Commercial Towers

A multi-level below-grade parkade excavation was required within six meters of high-rise office towers in downtown Calgary. The area’s deep, granular soils posed settlement risk:

  • Secant pile shoring walls provided continuous support and a watertight barrier.
  • Instrumentation installed on adjacent building footings offered real-time monitoring with alert thresholds.
  • Vibration limits for equipment were strictly enforced to protect sensitive structures.
  • Frequent engineer inspections adjusted dewatering as conditions changed.
  • The developer and adjacent building owners coordinated for emergency access at all times.

This close collaboration prevented even minor movement and preserved trust throughout the project.

Legal, Insurance, and Risk Mitigation Elements

Proper excavation design and execution are not just about engineering; they form a vital part of legal and financial risk management.

  • Insurance Requirements: Most policies mandate that engineered shoring or stabilization is in place before excavation begins, especially near adjacent structures, to avoid exclusions from coverage.
  • Contract Clauses: Carefully drafted contracts with excavation and shoring contractors should specify responsibility for any damage and require adherence to engineer-stamped designs.
  • Hold Harmless and Indemnification: Agreements with both contractors and adjacent property owners clarify responsibility and limit exposure to liability.
  • Documentation: Keep meticulous records of all inspections, correspondence, monitoring data, and site activities as critical evidence in the event of disputes.
  • City Inspections: City inspectors may order work to stop, issue fines, or require immediate corrective action if NBC 4.2.5.1.(1)(a) is not strictly followed.

The Financial Impact: Why Proper Design Saves Money

While engineered shoring, water control systems, and monitoring represent upfront costs, they pale in comparison to the potential repair bills, legal fees, and lost time resulting from damage to adjacent properties or regulatory violations. Investing in proper design and compliance from the start:

  • Reduces risk of substantial overages and cost escalation,
  • Protects project schedules and reputation,
  • Keeps insurance valid and claims-free,
  • Supports faster and smoother permit closeout.

In Calgary, failure to adequately protect adjacent buildings frequently leads to settlement and structural claims, some into the hundreds of thousands of dollars-or the halt of entire projects.

Summary: A Roadmap for Safe, Compliant Calgary Excavation

  • Understand the Soil: Never break ground without a detailed subsurface investigation by a qualified geotechnical engineer. Know your soils, water table, and adjacent foundations.
  • Design with Care: Employ engineering designs that conform to the NBC, incorporate proven excavation support systems, and plan for all eventualities-especially if working near fragile or historic buildings.
  • Control Water from the Start: Groundwater and surface water are persistent enemies. Implement well-designed dewatering and diversion measures before problems develop.
  • Permitting and Compliance: Secure proper development and building permits, ensuring all design work is documented and reviewed by City officials and professional engineers alike.
  • Monitor Relentlessly: Institute real-time monitoring (with instrumentation as needed) for ground movement, vibrations, and building settlement throughout construction.
  • Communicate: Keep neighbors, city inspectors, and your internal team informed and involved to avoid misunderstandings and build lasting relationships.
  • Document and Insure: Maintain thorough records for both engineering and legal protection.
  • Partner with Experts: Excavation is no place to experiment; always rely on knowledgeable engineers, specialty contractors, and experienced project managers.

By understanding and rigorously implementing the requirements of NBC 4.2.5.1.(1)(a), and combining them with local expertise and a proactive approach to risk, Calgary’s builders, developers, and homeowners can deliver successful projects that protect both their investment and the broader community.

Looking Forward: Building Responsibly in Calgary

As Calgary continues to grow and densify, the challenges facing safe excavation near existing buildings will only increase. Requirements may evolve, new construction technologies will emerge, and climate impacts may alter water tables and ground behavior. Staying current with NBC provisions, City of Calgary guidelines, and industry best practices remains the duty of every responsible builder and homeowner.

In every excavation project, from home basements to towering commercial complexes, incorporating proper investigation, robust engineering, vigilant monitoring, and rigorous compliance is the assurance of sustainable, safe, and successful development that protects those already invested in the city’s vibrant neighborhoods.
