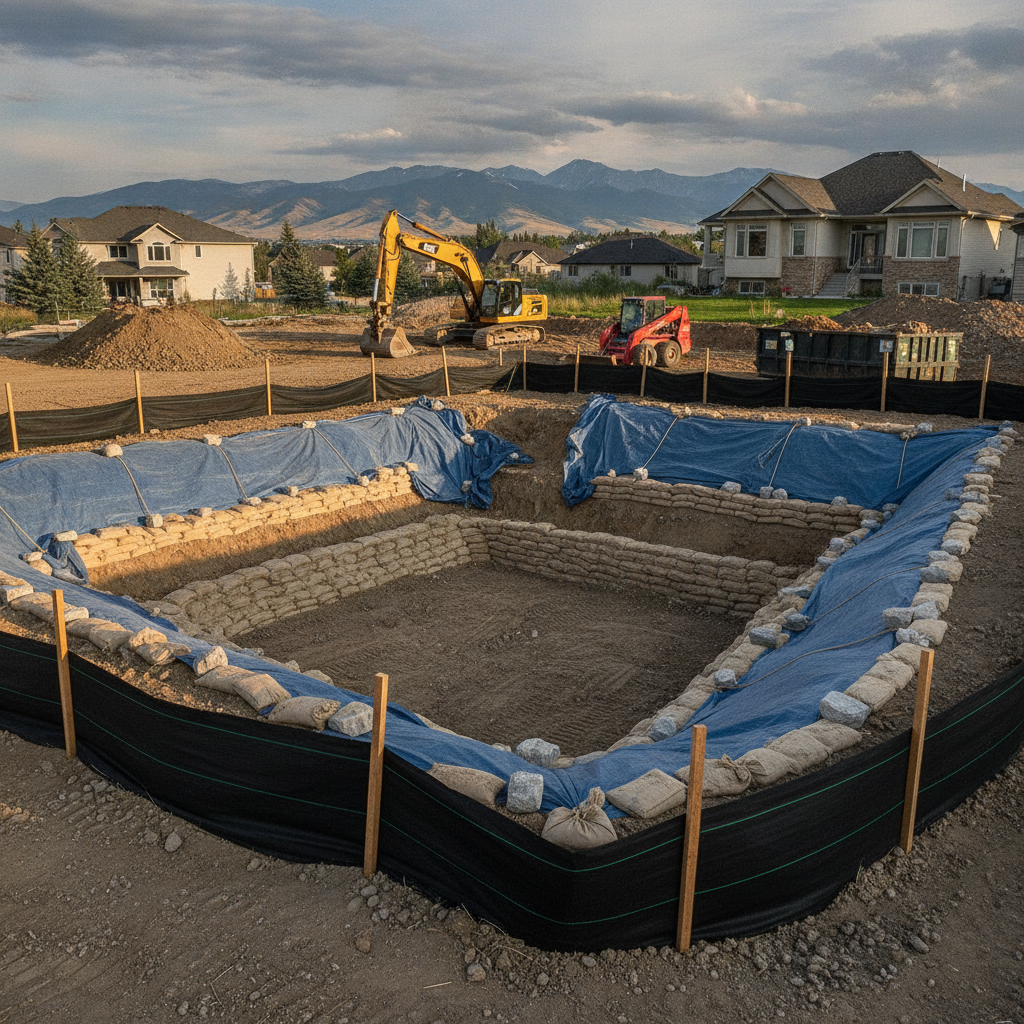

Unprotected excavations in Calgary not only jeopardize the stability of new structures but risk substantial environmental and financial consequences for homeowners, builders, and developers. The combination of unpredictable weather, unique local soil conditions, and evolving regulatory requirements demands comprehensive planning, robust erosion control strategies, and continuous vigilance throughout the construction process.

Understanding NBC 4.2.5.6 and Its Critical Role in Calgary Construction

At the heart of excavation and foundation work in Calgary lies Section 4.2.5.6 of the National Building Code (NBC), a regulation that specifically addresses the prevention of "loss of ground" for any reason, but especially as a result of water infiltration, erosion, or related causes. Loss of excavated ground destabilizes adjacent structures, introduces risk of collapse or settlement, and poses direct dangers to workers, property, and the public. This is particularly crucial in Calgary, where development routinely takes place on or near slopes, coarse glacial deposits, variable clay content, and regions susceptible to high water tables or intense precipitation events.

The Text and Intent of NBC 4.2.5.6

Section 4.2.5.6 of the NBC requires that all parties involved in excavation and construction prevent loss of ground by any means-often interpreted as a directive to implement best practices in erosion and sediment control as well as foundational shoring and support. This means that protective measures cannot be treated as optional or afterthoughts: they are central to compliance, worker safety, and the long-term durability of the project itself.

Who Must Comply?

Responsibility under NBC 4.2.5.6 falls on:

• Homeowners acting as their own generals or overseeing renovations and additions involving excavation
• Professional builders, custom home contractors, and developers
• Subcontractors performing excavation, grading, or site servicing

Regardless of project scale or intent, regulatory scrutiny applies to all excavation activities within Calgary city limits, especially since improper protection can lead to broader impacts on neighboring properties, city infrastructure, and the Bow River watershed.

Erosion and Sediment Control (ESC) Requirements in Calgary

The City of Calgary has established some of the most comprehensive municipal standards in Canada for erosion and sediment control (ESC), harmonized with the requirements of the NBC. These measures are not only intended to comply with national standards, but to protect municipal stormwater infrastructure, maintain water quality, and prevent off-site migration of sediments-a major consideration in a rapidly developing metropolitan area.

ESC Plans: When Are They Required?

For any site larger than 0.4 hectares, an ESC Plan must be developed and submitted for City approval prior to the commencement of construction activities, including grubbing, stripping, grading, or trenching. Failure to prepare or submit an approved ESC Plan can result in immediate work stoppages, fines, and, in some cases, costly remediation orders.

Key Components of an ESC Plan

• Site Assessment: Baseline understanding of topography, soil types, drainage patterns, weather considerations, and immediate environmental sensitivities.
• Erosion Prevention Measures: Strategies to stabilize exposed soils, such as seeding, mulching, turf reinforcing mats, or hydroseeding.
• Sediment Control Structures: Use of silt fences, check dams, sediment ponds, and inlet protection to intercept and contain migrating soils.
• Runoff Management: Grading and placement of swales, diversion ditches, and buffer zones to slow and direct stormwater flow appropriately.
• Inspection and Maintenance Protocols: Regular assessment, documentation, and repair schedules for all ESC measures, especially following precipitation events.

ESC Plans represent living documents: while initial designs provide guidance, active monitoring and adaptation are expected as site conditions and weather patterns evolve through the duration of the project.

Inspection and Maintenance: The Heart of Successful ESC

Calgary mandates that all active construction sites undergo formal ESC inspections at least every seven days and after significant or defined weather events (for example, rainfall exceeding 10mm in 24 hours). Qualified inspectors must document the condition of protective measures, note deficiencies, and ensure swift corrective action. These records provide proof of compliance in the event of a bylaw enforcement request or environmental investigation.

Permit Requirements: What’s Needed Before You Break Ground

Beyond NBC and ESC compliance, Calgary’s multi-agency permit system ensures that excavation activities are safely integrated with the city’s infrastructure and environmental objectives. Understanding which permits are required-and the process for obtaining them-is key for smooth project delivery.

Excavation Permits: When Are They Needed?

An Excavation Permit is mandatory for any proposed excavation in the City’s road right-of-way, including residential streets, major arterials, and alleys. This encompasses:

• Trenching for utility connections
• Access improvements or driveway modifications
• Sidewalk or curb-replacement projects involving excavation

Permit applications are managed online through the City’s ePermits system, streamlining review and document management for contractors and property owners alike.

ESC Authorization: Matching Permit Level to Site Size and Risk

The scale and risk level of your project determines which form of ESC Authorization is required:

• ESC Approval Letter: Required for sites greater than 2.0 hectares-typically subdivisions, large multifamily developments, or commercial projects.
• Notice to Proceed Letter: Required for projects between 0.4 and 2.0 hectares, such as smaller residential developments or infills.
• Good Housekeeping Letter: Required for small-scale sites with specific, low-risk conditions (less than 0.4 hectares, minimal exposed areas).

Regardless of category, authorization requests must be submitted digitally to ESC@calgary.ca, accompanied by comprehensive site drawings, calculations, and procedural notes.

Additional Considerations: Overlapping Permits and Utility Locate Requirements

In many cases, additional permits or clearances may be required in parallel with excavation or ESC authorizations:

• Development or Building Permits for new construction
• Alberta One-Call utility locates (utilitysafety.ca)
• Environmental Protection Orders for high-risk or waterfront-adjacent excavations

Permit applications can be delayed if required supporting documentation or clearances are missing. Early engagement with the City and qualified consultants is highly recommended.

Cost Breakdown: Understanding Fees Associated with Excavation and ESC Compliance

Project pricing for excavation and erosion control extends far beyond the shovel-in-ground costs. Homeowners and builders considering new development or site redevelopment in Calgary must account for:

Excavation Permit Fees (as of January 1, 2026)

• Application Fee: $53.20 per application
• Works Inspection Fee: $105.80 per permit
• Asphalt Degradation Fees: Calculated by road type and surface area, ranging from $42.55 to $52.10 per square meter
• Top Lift Paving: Required where the Visual Condition Index (VCI) of impacted roads is 7 or higher, at $52.10 per square meter

These fees ensure the City can restore public infrastructure to a high standard should roadways, sidewalks, or boulevards be impacted during construction.

ESC Plan Development Costs

Developing a compliant ESC Plan generally requires professional consultation, site surveying, and technical design. Depending on site size, complexity, and risk factors, budget $2,000 to $20,000 (or more for large, multi-phase sites) for plan preparation, review, and limited construction-phase support.

• Small single-family infills with relatively straightforward logistics may fall at the lower end
• Larger greenfield developments requiring advanced water management, monitoring instrumentation, or highly engineered stabilization measures will command higher costs

Note: Plan amendments and iterative reviews by the City can add additional professional fees, so it’s prudent to build contingency funds into early planning phases.

Ongoing ESC Maintenance and Inspection

Once construction commences, expect recurring costs for:

• Regular ESC inspections, mandated at minimum every 7 days and more frequently during heavy weather
• Repair, replacement, or upgrading of silt fencing, inlet protection, berms, and other measures as needed
• Documentation and record storage for regulatory compliance

Depending on the length and complexity of your project, ongoing ESC maintenance can total several thousand dollars. Failing to keep proper records or shortcutting maintenance can result in citations, stop-work orders, and liability for off-site damages.

Unforeseen Costs: Penalties and Remediation Orders

Non-compliance with NBC 4.2.5.6 or Calgary’s ESC bylaws can trigger fines starting at hundreds and escalating to thousands of dollars per infraction. In the event that unprotected excavations generate sediment runoff or water quality issues-directly or indirectly-property owners can be required to undertake extensive environmental remediation at their own expense.

Timelines: How Long Do Approvals Take?

Excavation Permit Reviews

• Simple excavation permits (not impacting freshly paved surfaces): processed within 2 business days
• Permit requests affecting pavement finished or restored within the past two years: review period can extend to 10 business days

These timelines begin only once a complete application, including all supporting plans and clearances, is submitted via the ePermits system.

ESC Plan and Authorization Approval

• ESC Plan review: Target of 14 business days for initial review
• Practical experience indicates up to two rounds of document revisions are typical; full approval often takes from 3 to 12+ weeks, especially during peak construction season

Advance planning is essential. Projects seeking to break ground during the April-October construction window should begin ESC plan development several months beforehand to minimize unnecessary delay.

Strategies for Success: Practical Guidance for Homeowners and Builders

As excavation and erosion control requirements become more detailed and rigorously enforced throughout Calgary, efficient project delivery and regulatory compliance hinge on a series of practical, well-proven strategies.

1. Early Planning and Consultant Engagement

Begin permit applications, site evaluations, and ESC planning at the earliest possible stage of project development. Engage professional engineers, environmental consultants, and experienced demolition/excavation contractors to:

• Identify unique site risks (proximity to slopes, water features, legacy contamination, urban infrastructure)
• Generate accurate cost estimates and schedules that account for regulatory review time
• Adapt ESC Plan templates to address seasonal challenges (spring melt, heavy rainfall, freeze-thaw cycles)

Early investment in expertise often saves money and hassle downstream.

2. Precision in Permit Application and Documentation

Incomplete or inaccurate permit submissions are the leading cause of project delays in Calgary. Double-check that all requirements are met and that supporting information (such as drawings, calculations, and consents) is clear, accurate, and professionally formatted. Consider:

• Setting internal deadlines to allow for reviews and signoffs before submission
• Tracking application status via the City’s ePermits portal
• Promptly responding to requests for more information or documentation

Documentation should be retained for at least two years post-construction, both as proof of compliance and as a reference for maintenance or warranty work.

3. Proactive ESC Inspection and Adaptation

Inspections must move beyond "box-ticking" to actively identify and remedy flaws before they escalate. Designate a qualified site ESC coordinator or contract with a third-party professional to:

• Maintain logs of weekly ESC inspections and storm-triggered reviews
• Photograph all ESC measures and repair events as evidence for regulators
• Adapt silt fencing locations or stabilization strategies as site conditions change through the construction cycle

Quick response to failed or overloaded controls, such as breached silt fences or overwhelmed sediment traps, prevents regulatory intervention and property damage.

4. Neighbour and Public Communication

Large-scale grading or deep foundation work often attracts concern or complaints from adjacent property owners or the public, especially if runoff, dust, or noise escapes the site. Transparent communication helps:

• Defuse neighbor anxiety over potential property impacts
• Support community goodwill throughout the project lifecycle
• Expedite resolution if minor runoff or dust issues arise

Post clear contact information at the site and establish a protocol for addressing and documenting complaints or incidents.

5. Seasonal and Weather-Driven Adjustments

Calgary’s climate requires ongoing vigilance, as freeze-thaw cycles and rapid temperature swings can destabilize even well-protected excavation sites. Timing ground-breaking and open excavation work to coincide with more predictable, dry periods minimizes risk. When work must happen during the "shoulder" seasons or periods of greater precipitation, strengthen controls by:

• Doubling up silt fences or using reinforced designs on exposed slopes
• Applying temporary or permanent hydroseeding immediately after excavation
• Ensuring all inlets and storm drains are protected from washout and sediment inflow

Making ESC a dynamic, all-season priority ensures compliance no matter the weather.

Erosion and Sediment Control Techniques: Best Practices for Calgary

Compliance with NBC 4.2.5.6 and local ESC bylaws means choosing the right tools and materials for Calgary’s specific conditions. Below are field-proven strategies for effective protection of excavations:

Surface Stabilization

• Mulching and Temporary Coverings: Spreading straw, wood chips, or compost over exposed soils reduces wind and water erosion. Geotextile blankets or erosion control mats provide enhanced protection, particularly on steeper slopes.
• Hydroseeding: The application of a mixture of seed, mulch, fertilizer, and tackifier forms a rapid-growing vegetative cover, stabilizing large open areas once initial grading and excavations are complete.
• Sod Installation: For smaller, high-traffic areas, sod can provide instant stabilization and is especially useful on boulevard edges.

Runoff Diversion and Conveyance

• Earth Berms and Excavated Swales: Re-routing surface water around excavations prevents infiltration and slope undercutting.
• Perimeter Ditches: Intercepts runoff before it can carry sediment into the City storm system.
• Check Dams: Simple stone or wood barriers in ditches slow water velocity and trap sediment en route.

Sediment Barriers

• Silt Fences: The classic solution for intercepting sheet flow from disturbed areas. Choose steel-posted or reinforced fences on larger or longer-duration sites.
• Gravel Inlet Filters: Prevent storm drain clogging-critical in urban neighborhoods with curb-and-gutter drainage.
• Settling Ponds: For sites with large disturbed footprints, temporary sediment ponds allow for settlement of particulate matter before water is released downstream.

Active Stabilization and Foundation Support

• Shoring and Soldier Piles: Deep or vertical excavations may require temporary structural supports to maintain slope integrity and reduce sloughing or erosion of sidewalls.
• Shotcrete Facing: Sprayed concrete applied to exposed clay or till offers both structural support and erosion resistance.

Access Control and Material Stockpiling

• Stabilized Construction Entrances: Rock pads at site egress prevent sediment "tracking" onto adjacent streets-a common source of citations in residential projects.
• Protected Soil Piles: Cover all stockpiles with tarps, seeded blankets, or straw mats, and ensure perimeter controls surround them.

Rapid Restoration

• Backfilling and Final Grading: Refill excavations at the earliest safe opportunity, grade for positive drainage, and return disturbed areas to their final design elevation.
• Permanent Landscaping: Topsoil placement, hydroseeding, shrub planting, or hardscaping lock in soil and reduce long-term maintenance needs.

A multifaceted approach tailored to site-specific risks and stages of work is key to lasting erosion control and regulatory approval.

The Environmental, Legal, and Financial Risks of Non-Compliance

Failing to protect excavations adequately under NBC 4.2.5.6 and Calgary’s ESC requirements carries real and immediate consequences. The risks extend beyond legal compliance into project financing, neighborhood relations, and broader environmental integrity.

Legal and Regulatory Exposure

• Bylaw enforcement officers have the authority to halt work, issue fines, and demand immediate remediation in the event of ESC violations
• Repeat or egregious infractions can escalate to court orders, liens, or loss of builder licensing

Project Delays and Additional Costs

• Unplanned remediation or re-grading necessitated by washouts or sloughing may halt adjacent trades and ripple through the schedule, causing delays and claims for damages
• ESC violations can trigger additional design and review cycles, raising engineering fees and extending timelines

Liability for Off-Site Damages

• Sediment or silt release into storm drains, city parks, or neighboring yards can result in claims, insurance rate increases, or long-term remediation obligations
• Environmental penalties for water quality impacts may reach into the tens or hundreds of thousands for significant events

Reputation and Future Work

• Builders or property owners cited for ESC violations may find it harder to secure future permits, financing, or subdivision approvals
• Communities with recurring erosion or runoff complaints often generate stricter future oversight, affecting all nearby projects

How to Choose Qualified Demolition and Excavation Partners

For most homeowners and small developers, the complexity of ESC and excavation compliance means relying on professional partners. Choosing the right demolition and excavation contractor is as important as finding a skilled engineer or architect. Look for:

• A strong local track record with City of Calgary permitting and inspection systems
• Experience in a wide range of site types, from flat infills to challenging slopes or water-adjacent parcels
• Ability to coordinate with engineers and ESC consultants throughout the project lifecycle
• Capacity to rapidly mobilize for repairs or enhancements to protective measures as conditions demand
• Transparent pricing that details permit, ESC, and contingency costs
• Provision of references and documentation from recent projects of similar scope

Frequently Asked Questions: Navigating Excavation and ESC Compliance in Calgary

Q: My house addition is small. Do I really need to worry about NBC 4.2.5.6 and ESC requirements?

Yes. Even modest excavations can destabilize adjacent ground or impact neighboring structures and stormwater systems. All excavation projects must comply with appropriate best practices for erosion and sediment control. For smaller sites, requirements may be streamlined (Good Housekeeping Letter instead of a full ESC Plan), but compliance is still mandatory.

Q: What if unanticipated weather causes soil loss or excavation collapse?

Prompt reporting and corrective action can often minimize regulatory penalties. However, failure to address losses or take preventative measures in advance may expose homeowners and builders to fines, legal claims, and costly repairs. Always incorporate “storm-readiness” into your ESC plan and ensure controls are robust enough for sudden weather changes.

Q: How do I know what level of ESC Authorization my project needs?

Review the City of Calgary’s ESC requirements at calgary.ca. For most infills and typical residential properties, your lot size will determine whether a Notice to Proceed or Good Housekeeping Letter is needed. Unusual hazards or adjacency to sensitive lands may prompt higher requirements; consulting with an ESC professional is recommended.

Q: Is professional ESC inspection required, or can I self-inspect?

The City strongly encourages use of qualified inspectors. For most professional builds or larger infill projects, an independent consultant will be expected to conduct and record mandatory inspections. For very small or owner-managed projects, homeowners may be permitted to self-inspect-but documentation detailing timing, weather, and remedial actions remains mandatory.

Q: What’s the most common mistake leading to fines or delays?

Failing to maintain or promptly repair ESC measures following heavy rain or high winds is the most frequent cause of non-compliance. Regular inspection and rapid correction of eroded or breached controls prevent infractions and long-term project delays.

Step-by-Step Checklist: Erosion-Controlled Excavation in Calgary

1. Assess site risks, including topography, drainage, and proximity to waterways or sensitive areas
2. Engage a qualified professional to prepare an ESC Plan, tailored to your project scale
3. Submit required permit applications (Excavation, ESC Authorization, other consents) well in advance
4. Install initial sediment controls before any soil disturbance or excavation begins
5. Implement surface stabilization methods (mulch, mats, hydroseeding) immediately following ground exposure
6. Document all controls with site photos and inspection logs from day one
7. Maintain regular ESC inspections and adapt controls as conditions evolve
8. Respond immediately to control failures, complaints, or adverse weather events
9. Backfill and restore permanent grading/landscaping promptly after excavation work is complete
10. Keep all records for at least two years, including ESC plans, inspection logs, permit documents, and maintenance tickets

Case Studies: Protecting Excavations in Calgary’s Distinct Environments

Case Study 1: Urban Infill on Mature Residential Lot (0.3 ha)

This homeowner undertook a basement addition and foundation underpinning in a mature neighborhood with limited rear access. Their ESC plan included redundant silt fences, a stabilized access lane, and stringent dust suppression. Regular inspections-especially after a July thunderstorm-found minor migration near a storm drain, which was quickly contained and reported to the City. The proactive approach avoided citations and allowed the project to continue on schedule, with final landscaping finished within two weeks of backfill.

Case Study 2: Large Greenfield Multifamily Project (5.1 ha)

On newly serviced land adjacent to a stormwater retention pond, the builder engaged a civil and ESC consultant from day one. The ESC plan outlined phased excavation, slope stabilization with hydroseed, riparian buffer preservation, and sediment pond installation. Consistent maintenance, detailed inspection records, and city coordination enabled smooth project progress-despite heavy spring rains-resulting in zero environmental releases and a positive relationship with neighbourhood stakeholders.

Case Study 3: Roadway Reconstruction in Inner-City Area

This road repair required open trenching through recently restored pavement and challenging clay soils. The crew worked to City standards for shoring, silt fencing, inlet protection, and rapid asphalt restoration. The project was subject to additional Works Inspection and Top Lift Paving fees due to the VCI of the road. Timeline ballooned due to plan revision cycles, but diligent documentation avoided penalties and resulted in a high-quality, multi-agency-approved outcome.

Future Trends: Evolving Regulation and New Technology in ESC

As Calgary expands and climate patterns intensify unpredictably, expect gradual tightening of ESC/erosion regulations. The City is increasingly turning to data-driven site monitoring, real-time rainfall sensors, and digital permit/inspection workflows. Some trends to watch for include:

• Greater requirement for permanent stormwater features in major new developments
• Mandatory ESC training for site supervisors and regular workforce
• Integration of hydrogeological models in ESC planning for sensitive sites
• Increasing preference for naturalized landscaping or bioengineering over traditional hard controls
• Financial security deposits and “pay for performance” compliance models for large sites

Homeowners and builders who stay abreast of changing regulations and technological advances will find it easier to remain compliant, avoid fines, and deliver successful, neighbor-friendly projects.

Conclusion: Protect Your Project, Your Property, and Calgary’s Environment

Ensuring proper protection of excavations from erosion is not merely a procedural requirement; it is a foundation for lasting structural integrity, environmental stewardship, and project success in a rapidly changing city. Navigating NBC 4.2.5.6 and the City of Calgary's ESC and permitting system demands a thoughtful, proactive, and partnership-driven approach. By planning early, engaging qualified professionals, rigorously documenting compliance, and remaining adaptive in the face of weather or regulatory shifts, homeowners and builders can embolden their projects-and the communities they help build-against erosion’s pervasive risks.

For expert demolition and excavation services-including robust erosion and sediment control planning-trust Kingsway Demolition & Excavation as Calgary's reliable partner in building safe, sustainable sites from the ground down.
