In Calgary's often unforgiving climate, even the briefest failure to prevent frost penetration into the bottom or sides of an excavation can have severe and costly consequences. The National Building Code of Canada (NBC) has responded by enacting clear requirements-specifically in Sections 4.2.5.7 and 9.12.1.3-which are designed to protect both the immediate construction phase and the long-term structural integrity of new builds. Whether you are a homeowner, a builder, or a developer, understanding and applying these codes is essential to avoid foundation failure, heaving, settlement, delays, ballooning costs, and potential legal complications. Proper protection of excavated sites isn’t merely best practice; it’s a legal and practical necessity that underpins the safety and future value of your investment.

Decoding NBC 4.2.5.7: Protection Against Deterioration and Freezing of Excavation Faces

The National Building Code’s Section 4.2.5.7 focuses on the critical requirement that all sides of any excavation must be guarded against deterioration that can arise from construction activities or exposure to environmental factors. This includes damage from frost, wind, rain, or direct impact from equipment and foot traffic. The code applies whether the excavation sides are supported (shored) or unsupported (open cut), making it universally relevant regardless of the method or scale of excavation employed. It compels everyone on site-contractors, supervisors, or property owners-to institute specific, continual measures throughout the duration of the project, from initial digging to final backfill or structural completion.

Key Provisions of NBC 4.2.5.7

  • Continuous Maintenance: Excavation faces must receive ongoing inspection and attention to prevent onset or progression of deterioration at all times.
  • Protection from Environmental Factors: Sources of deterioration, especially from frost and moisture, must be identified and controlled. Proper drainage, windbreaks, or coverings may be required as preventive strategies.
  • Responsibility: Both owners and those responsible for construction management can be held accountable under this section for any lapse in protection that leads to deterioration or resulting structural issues.

The logic behind these provisions is straightforward: destabilized excavation faces can collapse, slough, or transfer loads unpredictably, which not only endangers worker safety but also undermines the stability of foundations and adjacent structures. In Calgary, rapid freeze-thaw cycles can accelerate this damage far more quickly than in milder climates.

Dissecting NBC 9.12.1.3: Keeping Excavation Bottoms Warm Throughout Construction

While protecting excavation sides is critical, preventing the bottom of excavations from freezing is arguably the cornerstone of foundation success in Calgary. Section 9.12.1.3 of the NBC mandates that the bottom-the very base where footings and structural slabs will rest-must at all times be kept above freezing, from the initial dig right up to the point where the foundation or slab is poured and set. Even a single hard frost can create irreversible ground movement, affect soil bearing capacity, or lock in pockets of frozen water that will later thaw, leading to unexpected settling or heaving.

Rationale Behind NBC 9.12.1.3

  • Soil Stability: Freezing of the excavation base changes soil volume and strength characteristics. When ice forms, it expands, and when it melts, it contracts-both scenarios can damage foundations.
  • Frost Heave Prevention: Frost heave occurs when frozen soils lift the foundation upwards, resulting in cracks, tilting, and structural failure. Preventing freezing at the bottom eliminates this risk.
  • Ensuring Code Compliance: Any evidence of a frozen base may result in failed inspections, forced removals and redigging, and possible re-engineering of the foundation system.

By maintaining above-freezing conditions at the base, you guarantee not only code compliance but also long-lasting performance of the foundation systems, which is vital in Calgary’s widely variable and often harsh winter periods.

Practical Strategies for Compliance: What Calgary Homeowners & Builders Must Know

The challenge of keeping excavations warm and stable in Calgary is compounded by unexpected weather changes, tight project schedules, and fluctuating ground conditions. However, a combination of planning, protection methods, active monitoring, and procedural discipline can enable any project-regardless of size or complexity-to meet the NBC requirements and maintain safety, budget, and timelines.

1. Scheduling Your Project for Success

  • Timing is Crucial: Schedule the excavation and initial foundation work during warmer months (May through early October), and plan to have concrete poured and backfilled before the risk of ground frosts.
  • Weather Contingencies: Build flexibility into the schedule for unseasonal cold snaps, which can occur in Calgary as early as late September and as late as mid-May in rare years.
  • Fast-Track Procedures: For late fall or early spring projects, arrange all trades and materials to be on standby so that delays between excavation, forming, and pouring are minimized.

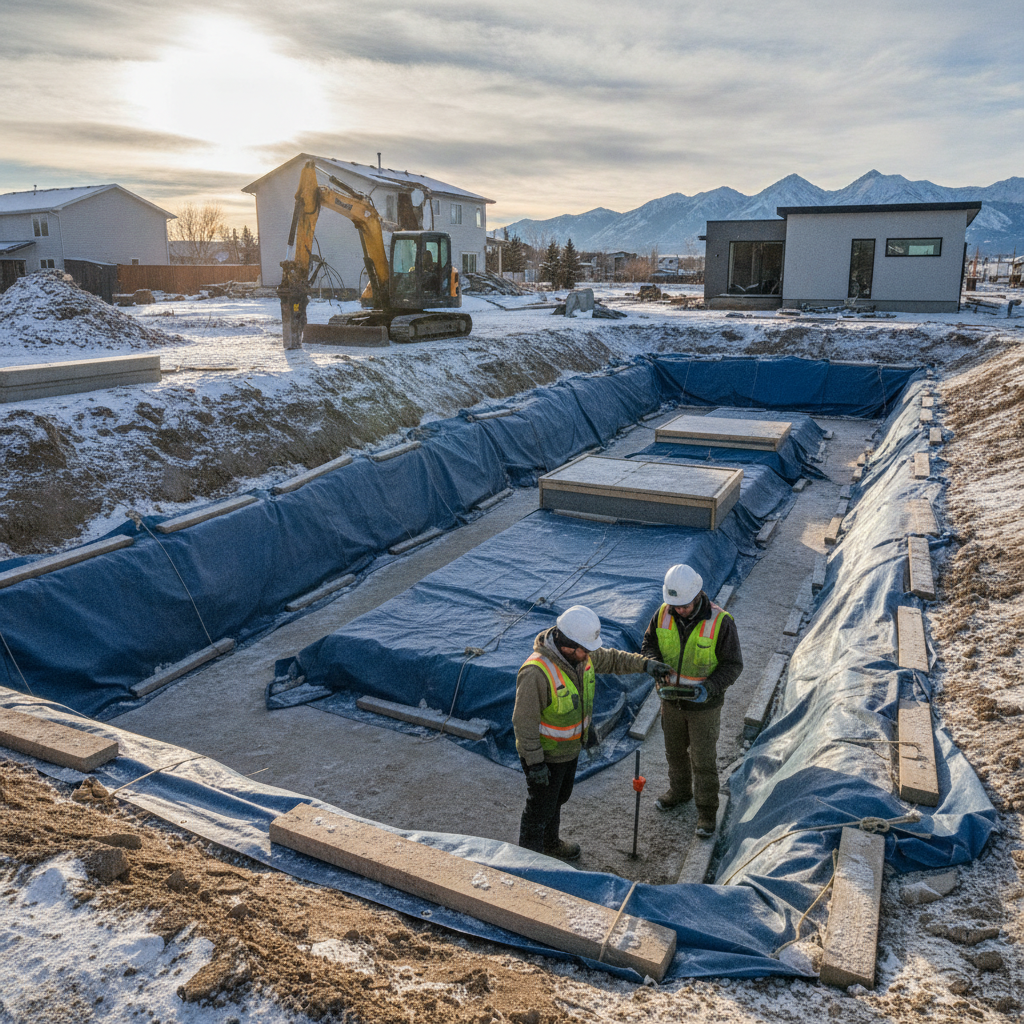

2. Insulating Excavations: Blanket and Board Solutions

  • Insulated Tarps/Blankets: Specialized insulated concrete curing blankets or frost blankets offer uniform coverage and effective thermal retention.
  • Rigid Foam Board: When used along trench edges or base, rigid insulation board provides an effective barrier and reduces the rate of ground heat loss.
  • Temporary Covers: Heavy-duty poly sheeting or reinforced tarps can shield against wind chill and precipitation when combined with insulation.
  • Installation Tips: Overlap blankets; anchor all edges to prevent wind uplift; and ensure full ground contact for maximum effect.

3. Heating Solutions: Actively Managing Subsurface Temperatures

  • Ground Thaw Heaters: Hydronic heaters pump heated glycol or water through hoses placed directly on the ground, efficiently raising and holding site temperatures in deep cold.
  • Electric Ground Heaters: Electric mats or cables may serve smaller areas or spot locations, such as corners or narrow runs.
  • Heated Enclosures: In large-scale or critical builds, constructing insulated temporary enclosures with portable heaters (indirect-fired, diesel, or propane) keeps the ground above freezing and enables continuous work.
  • Propane Salamanders or Forced Air Units: Effective in enclosed spaces but must be monitored for carbon monoxide and open flame safety.

4. Monitoring Ground Temperatures

  • Soil Thermometers: Install digital or analog soil temperature probes at the base and along problem areas to enable at-a-glance readings.
  • Regular Checks: Measure minimum and maximum temperatures at dawn and dusk (coldest periods), and after any significant weather events.
  • Record Keeping: Maintain a log of ground temperatures and protection measures for permit inspections and warranty evidence.

5. Moisture and Drainage Management

  • Surface Water Control: Seal excavation edges to divert rainfall/snowmelt away and prevent pooling, which freezes rapidly and undermines insulation.
  • Pump Out: Regularly pump or bail out accumulated water, especially following thaws or precipitation.
  • Gravel or Sand Bedding: A thin layer of gravel or coarse sand at excavation bottoms can improve drainage and reduce water retention risk before freezing.

Regulatory Requirements and Cost Considerations in Calgary

Complying with NBC sections 4.2.5.7 and 9.12.1.3 isn’t just about engineering best practices; in Calgary, it’s also a matter of municipal law and permitting. Every project that includes excavation or new construction will require one or more permits, each bringing specific obligations and costs. Failing to address the freezing risk can not only slow your project but also incur fines, forced corrections, and lost warranty coverage.

Calgary Building Permit Requirements

  • Building Permit: Required for any construction involving new homes, additions, or changes to the structure’s foundation. Application is mandatory before ground is broken.
  • Fee Structure: As of 2024, the permit fee is $112 plus $10.14 for every $1,000 of declared construction value. This applies to new single, semi-detached, and duplex dwellings and covers structural and site review.
  • Processing Timeline: Standard review times are approximately 21 days for house construction permits, but this can lengthen during peak season or if additional information is required.
  • Documentation: Site plans, engineered drawings, schedules (particularly for heating/insulation in cold weather), and detailed cost estimates may be requested to demonstrate compliance with freezing prevention mandates.

Excavation Permit Rules

  • When Required: An excavation permit is needed if digging impacts existing public infrastructure, crosses property lines, or risks interfering with utilities (gas, electric, water, telecom).
  • Fee Structure: The application fee is $75 as of January 1, 2026, with further charges based on the area and work type. For major projects, costs can grow rapidly if lane, sidewalk, or roadway closures are needed.
  • Timeline: Permit approval times depend on project complexity. Topics considered include traffic impacts and potential for environmental disruption (runoff, mud tracking, risk of freezing infrastructure).

Other Considerations

  • Inspections: City inspectors may visit to check not only for code compliance but also to verify effective freezing protection (active heaters, tarps in place, monitored temperatures, etc.).
  • Penalties for Non-Compliance: If freezing damage is discovered, mandatory stoppages and repairs are often ordered. The financial impact may include re-excavation, re-engineering, lost time, and possibly re-application of permits.
  • Insurance Coverage: Many builders' risk policies require full compliance with NBC and municipal code regarding freezing. If the insurer determines freezing damage is due to code breach or negligence, claims may be denied.

Cost Breakdown of Freeze Protection Methods

The choice of freezing protection strategy directly shapes project budgeting. Costs will vary by season, project size, complexity, and method employed. However, investing in effective protection almost always proves less expensive than remedial work after freezing has compromised the excavation or foundation. Here is a comparative breakdown of common methods:

Insulating Blankets and Temporary Covers

  • Insulated Concrete Curing Blankets: Purchase or rental cost is typically $1.50-$3.00 per square foot per week. For an average 1,500 sq ft excavation, expect $200-$450 per week.
  • Poly Tarps: $0.25-$0.50 per square foot. Tarps may need to be replaced frequently if subject to high winds or repeated snow/ice loading.
  • Labour for Installation and Removal: $200-$500, depending on site complexity and frequency of adjustment.

Heating Systems

  • Hydronic or Ground Thaw Heater Rental: $250-$500 per day, plus fuel (diesel or propane). A single heater generally covers 800-1200 sq ft.
  • Heated Enclosure (Materials & Labour): Construction of a temporary plywood and insulated wrap enclosure can cost $3000-$6000 for a typical residential foundation footprint.
  • Operational Cost: Heating costs vary by weather but can easily reach $1000-$2000 per week (fuel, maintenance, operator time) in cold spells.

Monitoring and Inspection

  • Soil Thermometers: $30-$80 each, with typical sites requiring 3-8 units for thorough coverage.
  • Hourly Labour: For regular checks and blanket adjustments, $30-$50/hour, generally 1-2 hours per day.

Potential Cost of Non-Compliance

  • Re-Excavation: $5,000-$20,000 depending on rework volume and disposal cost of contaminated/frozen spoil.
  • Delay Penalties: Carrying costs, lost rental, or resale value due to extended construction, typically $500-$2,000 per week.
  • Engineering & Inspection Fees: If re-engineering is necessary, engineers’ reports and additional municipal re-inspection can add $3,000-$10,000.

Timeline Planning: How Freeze Protection Affects Project Schedules in Calgary

Building in Calgary means weather always plays a major role in construction management. NBC compliance adds another layer that must be proactively managed-especially considering how fast a single cold front can freeze unprotected soil. Understanding how freeze protection integrates with city permit timelines is key to realistic scheduling.

  • Building permits typically require 3 weeks for approval. It’s wise to add contingency for questions, resubmissions, or city-requested modifications.
  • Excavation permits for complex sites or those near public infrastructure may take additional time-coordinate with city engineering and utilities departments early for the most accurate guidance.
  • Scheduling ground freezing protection-including blanket or heater rental, and time for enclosure assembly-should be included up-front in the construction timeline, not left as a “rainy day” or last-minute item.
  • NBC requirements mean that even on fast builds, if a cold snap is forecast before backfill or concrete curing, work must pause or be protected. This can mean overnight or even multi-day delays, but is necessary for structural safety.

Legal Ramifications and Risk Management

From a legal and risk management perspective, ignoring NBC freeze protection requirements exposes both homeowners and builders to substantial risk:

  • City Orders: Calgary inspectors can issue stop work orders and require removal and replacement of any foundation suspected of being affected by freezing. Such orders halt not only foundation work, but all subsequent trades and may void trades’ scheduling agreements.
  • Warranty Voids: New Home Warranty programs and insurance often deny claims if damage is attributable to unprotected frozen excavation.
  • Civil Liability: Future buyers can sue for latent defect if post-build investigation finds evidence of frozen or heaved foundation soils that could have been prevented with adequate protection.
  • Injury or Incident Liability: An excavation collapse or worker injury tied to freeze-induced soil movement can lead to OHS investigations, stoppages, or regulatory fines.

Case Studies: When Freeze Protection Saves the Day

To illustrate the importance of NBC freeze protection standards and best practices, consider these Calgary-based scenarios.

Case Study 1: New Detached Home, October Start

  • Project: 1,800 sq ft home in northwest Calgary. Excavation started mid-October due to delayed permitting.
  • Protection Used: Combination of heated tarps and rigid foam board, plus hydronic heater for forecasted extreme overnight low (-18C).
  • Outcome: Foundation forms and pour completed on schedule, with soil thermometers showing lowest temp at base at +2C throughout. Passed all city inspections and foundation warranty covered.
  • Takeaway: $2,800 additional expense for heating and insulation, but no delay or remedial cost-a fraction of what frost damage repair would have required.

Case Study 2: Custom Duplex, February Foundation

  • Project: Duplex with deep 6-foot basement, started late due to client financing; excavation coincided with coldest week of year.
  • Protection Used: Full temporary plywood enclosure around excavation, two direct-fired heaters cycling 24 hours, supported by four layers of insulated blankets at base and sides. Temperature logs with twice-daily checks.
  • Outcome: No ground freezing; poured on schedule. Required $6,000 in protection costs over a 10-day period but achieved compliance, eliminating risk of future warranty claims.
  • Takeaway: Builder leveraged logs to obtain city approval and insurance confirmation, securing project payment and freeing up schedule for subsequent trades.

Case Study 3: Inadequate Protection, Forced Redo

  • Project: Starter home where builder delayed insulation due to ‘brief’ warm spell. Unexpected deep freeze three days into excavation, followed by foot of snow.
  • Protection Used: Set of tarps applied four days late with no ground heater use.
  • Outcome: Soil at base dropped to -4C. City inspection failed; excavation ordered backfilled and redone. Delays stretched five weeks due to rework, lost trade availability, and re-permitting. Additional cost upwards of $12,000, not including lost time and reputation hit.
  • Takeaway: Attempting to “wing it” with inadequate protection directly led to severe financial and schedule penalties.

Seasonal Nuances: Calgary's Weather Patterns and Their Impact on Excavation

Understanding Calgary’s unique weather is instrumental in effective freeze protection planning:

  • Temperature Swings: The city is famous for rapid temperature shifts-Chinook winds can deliver a 20°C temperature increase in a few hours, quickly melting snow but also creating water infiltration risks if not managed with drainage and insulation.
  • Early and Late Frosts: It is not unusual to experience significant ground frost as early as mid-September and as late as June. Even brief night frosts can compromise an unprotected excavation.
  • Snow Loads: Significant snowfall, particularly between October and March, adds weight and moisture. If heavy snow is not cleared quickly, melting and refreezing cycles can create both moisture infiltration and additional cold at the base.
  • Wind Chill Factor: Strong gusts accelerate heat loss from uncovered excavations and can dislodge inadequately secured blankets or tarps.

Builders must prepare for at least three risk windows per year: late September-early November, mid-December-mid-March, and late April-early June. Cumulative risk means even a single day of neglect can lead to long-term problems.

Best Practices for Protecting Excavations from Freezing in Calgary

The following proven best practices are strongly recommended for all residential and commercial projects:

1. Early and Detailed Planning

  • Include Freeze Protection in Timeline and Budget: Account for blanket rental/purchase, ground heaters and fuel, enclosure materials, and extra labour in initial scope documents and contracts.
  • Plan Labour Resources: Designate responsible crew leaders for overnight and weekend monitoring during freeze risk periods.

2. Professional Consultation

  • Hire Engineers/Experienced Construction Managers: Particularly if excavating in winter or near structures/utility lines, have an engineer approve freeze protection strategies before commencing work.
  • City Liaison: Appoint a team member to coordinate with Calgary building officials to ensure all permit requirements and inspection documentation is in order.

3. Jobsite Organization and Safety

  • Clear Access and Storage: Store insulated blankets and heater fuel in a secure, dry area near the excavation for rapid deployment.
  • Mark and Monitor All Heating Equipment: Clearly label and place fire extinguishers when using any open flame or high-energy heater.

4. Day-to-Day Monitoring and Documentation

  • Twice-Daily Temperature Checks: At a minimum, check and record ground temperature at dawn and dusk. Photographic evidence is a valuable supplement for warranty and inspection reports.
  • Monitor Equipment Operation: Assign staff to check all heaters and banding on blankets. Ice build-up or blanket displacement should be addressed immediately to maintain coverage.

5. Continual Reporting and Adjustment

  • Adapt to Forecasts: Increase layers or boost heater output if dropping temperatures are anticipated; likewise, suspend or scale back heating during warm stretches, as melting can add unwanted moisture if drainage is insufficient.
  • Review After Events: After storms, sudden drops in temperature, or heavy wind, re-inspect all coverings and confirm no cold spots have formed at the base.

6. Detailed Handover Documentation

  • Logbooks: Provide a detailed record of freeze protection measures and temperature monitoring with project closeout documents. This is your defense against warranty claims, buyer concerns, and any potential municipal reviews.
  • Photographic Evidence: Regularly capture and store images of insulation and heating setups, along with visible temperature readings from thermometers in place.

Homeowner Guidance: What to Watch For, Questions to Ask

While professional builders and developers bear primary responsibility for freeze protection, engaged homeowners have an important role in safeguarding their investment. Here’s what to keep in mind:

  • Inquire During Bidding: Ask your builder specifically about their freeze protection protocols, particularly if construction will occur from September through May.
  • Check Permits & Inspections: Insist on a copy of all city permits and inspection sign-offs, with confirmation of freeze protection compliance.
  • Site Visits: If possible, visit during the excavation and early foundation phases to observe insulation in place, heater units operating, and temperature logs being recorded.
  • Seek Engineer’s Letter: For high-value or complex builds, an independent structural engineer’s confirmation of protection strategies and results is a valuable safeguard.
  • Document Everything: Get all assurances about freeze protection, soil conditions, and corrective work in writing. This can prove invaluable in the event of future warranty disputes or resale transactions.

Common Mistakes and How to Avoid Them

  • Underestimating Risk: “It’s only -1°C tonight” is deceptively dangerous. Freezing conditions and ground heat loss can occur at or just above 0°C, especially in clear, dry air.
  • Improvising with Unapproved Materials: Cheap tarps or spare plastic do not provide the necessary insulation value. Only approved, rated insulating materials should be used.
  • Neglecting Corners and Edges: The perimeter of the excavation, especially at corners, is most susceptible to air and heat loss-double check these areas for coverage.
  • Failing to Plan for Extended Cold: A brief ‘warm’ spell often gives way to several days of cold; plan to keep protection in place beyond the initial forecast risk window.
  • Skipping Night Checks: Most temperature drops occur at night-having staff check blankets and heaters after hours is essential on the coldest days.
  • Poor Drainage Management: Allowing meltwater or rain to pool in the bottom of the excavation accelerates ground heat loss and increases freezing potential. Install temporary pumps or trench drains where needed.

Summary Checklist: NBC 4.2.5.7 & 9.12.1.3 Compliance for Calgary Projects

This quick-reference checklist can help ensure all required protection measures are considered and in place:

  • ☑ All required city permits secured and posted on-site (building, excavation if needed)
  • ☑ Project schedule accounts for freeze protection installation days and possible weather delays
  • ☑ Insulating blankets, ground heaters, and enclosure materials ordered and on-site before excavation starts
  • ☑ At least 2-3 soil temperature probes deployed at different depths and locations
  • ☑ Designated freeze protection managers and night shift monitoring established
  • ☑ All site staff briefed on freeze protection plan and emergency response protocols
  • ☑ Daily/shiftly monitoring and log kept showing soil temperatures, heater status, and blanket placement
  • ☑ Drainage plan in place to avoid melt/freezing water buildup in excavation
  • ☑ Inspection schedule coordinated with city officials for all freeze-risk periods
  • ☑ Photographic documentation of freeze protection and monitoring retained with project files

Looking Forward: The Value of Diligence and Communication

Coping with Calgary’s climate and strict NBC codes for excavation protection can seem overwhelming, particularly when balancing permit requirements, trade schedules, and fluctuating costs. But the diligence required by these codes is a direct pathway to long-term savings, structural security, and homeowner confidence. By prioritizing advance planning, selecting proven freeze protection solutions, closely monitoring the jobsite, and fostering open communication between owners, builders, engineers, and municipal officials, projects can consistently achieve the highest standards-and avoid disasters that might otherwise jeopardize homes and investments.

For any property owner, builder, or developer operating in Calgary, early attention to NBC sections 4.2.5.7 and 9.12.1.3 requirements, combined with an aggressive approach to both passive and active freezing protection, is a professional duty and a smart business choice. The result is a dependable, sustainable foundation for the future.
