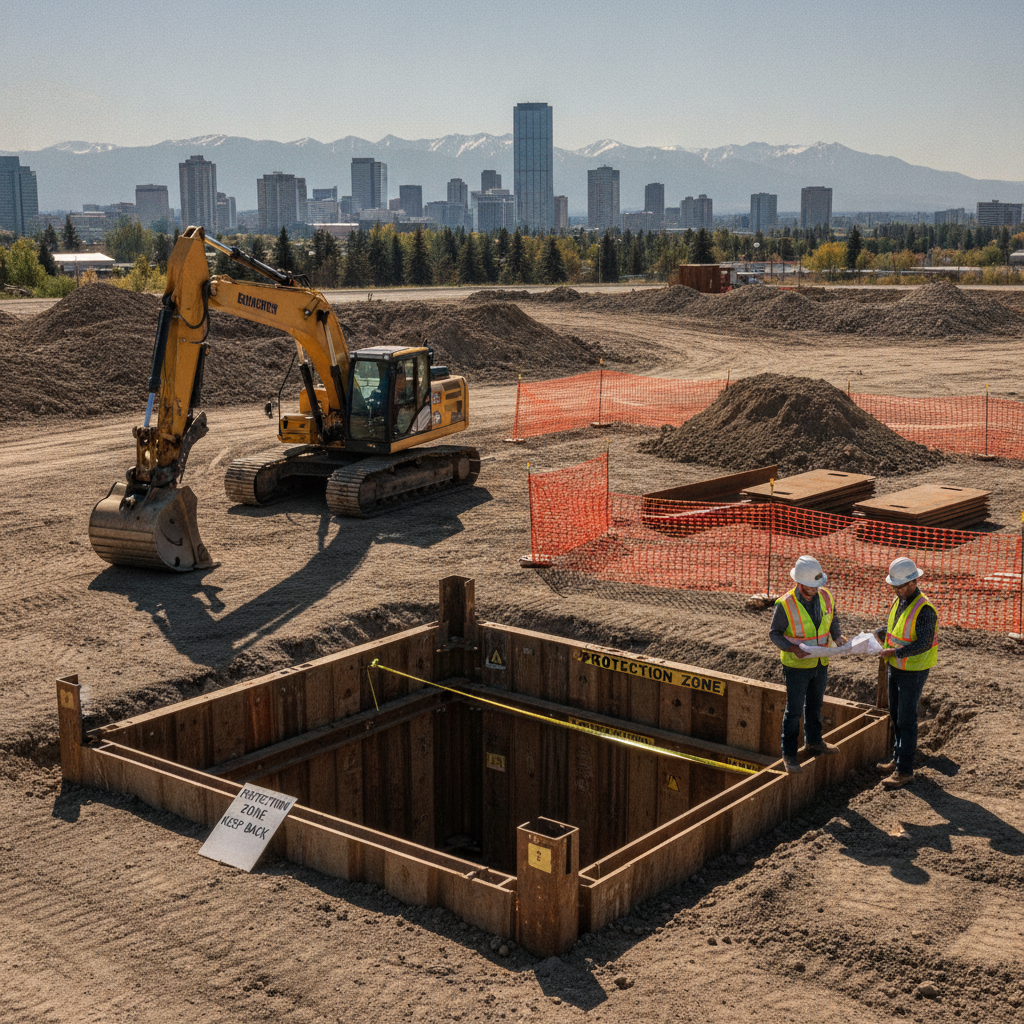

Improper placement of equipment or materials near Calgary excavation sites can lead to soil instability, endangering adjacent structures, workers, and the entire project timeline. Such risks reinforce the critical importance of adhering to both municipal and national regulations-most notably, the National Building Code (NBC) section 4.2.5.2.(2), which governs how excavations must be protected from the adverse effects of external loading and equipment operation. For Calgary homeowners, builders, and developers, understanding and complying with these rules is fundamental, not just for safety, but also for project approval, cost control, and legal compliance.

Understanding the Stakes of Excavation Stability

Excavation stability is one of the most consequential factors influencing safety, cost, and project timing in any construction or demolition effort. In a city like Calgary, with its variable soil conditions and significant urban infrastructure, the stakes are even higher. Excavations, whether shallow or deep, are subject to the forces exerted upon them by equipment and material storage, changes in weather, ground vibrations, and even traffic from nearby streets. Failing to manage these forces can provoke ground movement, wall collapse, or the undermining of adjacent buildings and roads, leading to catastrophic consequences ranging from serious injury to multi-million-dollar claims.

The NBC 4.2.5.2.(2) provision exists specifically to safeguard excavation sites from these dangers. Compliance is not optional; it is a requirement enforced by both the National Building Code and the City of Calgary, with clear expectations on how excavations are managed during the course of any demolition or site preparation project.

Detailed Requirements of NBC Section 4.2.5.2.(2)

The National Building Code Section 4.2.5.2.(2) provides straightforward but rigorous guidance: materials or equipment must never be placed or operated in or near an excavation in a manner that risks damaging the excavation face or any supporting system in place. More specifically, NBC expects project stakeholders to:

  • Maintain adequate setback distance for heavy machinery from the edge of any excavation;
  • Avoid locating stockpiles of soil, construction materials, or debris near excavation perimeters;
  • Employ shoring, backsloping, trench shields, or other support systems when stability cannot be assured by distance alone;
  • Monitor for vibration, load transfer, or slumping, especially near roads, utilities, or other sensitive infrastructure.

Non-compliance exposes all parties-property owners, builders, subcontractors, and developers-to the risk of regulatory action, civil suits, and remediation costs. Calgary bylaw enforcement officers, city engineers, and inspection services are empowered to shut down unsafe sites and withhold permits if evidence of risk or negligence emerges.

The Calgary Excavation Permit Process

Before any demolition or earthwork can commence in Calgary, obtaining the proper Excavation Permit is mandatory. Administered by the Calgary Roads division and supported by online application processes, the permit system ensures that the city can track, inspect, and regulate all excavation occurring on public and certain private properties.

Permit Application: What You Need to Know

The process starts with an online submission via the City of Calgary’s myID business account. Whether the applicant is a demolition contractor, builder, utility company, or property owner acting as their own general contractor, several key details are required:

  • Company or applicant information: Business number, full legal name, address, and contact details.
  • Project coordinator contact: A designated individual responsible for fielding questions and managing permit compliance.
  • Civic and worksite address: Exact location of excavation activity, including legal land description where applicable.
  • Related permit references: Numbers and documents tied to Utility Alignment Permits, Indemnification Agreements, or Street Use applications.
  • Scope of work: Area size, anticipated depth of excavation, and plans for support or restoration.

An applicant should be prepared to upload supporting documents, such as site plans, traffic management strategies, engineered shoring designs, and environmental impact assessments if applicable.

Processing Times and Critical Path

Standard excavation permit applications are usually processed within two business days. However, if the work involves surfaces paved within the last two years, the City applies extra scrutiny to protect its infrastructure investments. In these cases, reviews may take up to 10 business days, particularly if extensive road rehabilitation or complex shoring measures are expected. Applicants are encouraged to submit well ahead of their desired project start date to avoid costly mobilization delays.

Required Fees and Budgetary Considerations

Most permits involve a layered fee structure, reflecting the principle that those disturbing or risking damage to public infrastructure must bear the costs of restoration, monitoring, and administration. The following are the principal fees applied to excavation permits in Calgary:

  • Administration Fees: Non-refundable, per application. Covers processing, site review, and records management.
  • Works Inspection Fees: Applied to all excavation jobs, ensuring that City standards are maintained both during and after the work.
  • Asphalt Degradation Fees: Calculated by the area of impact and the road’s functional classification-arterial, collector, or local. These seek to offset the long-term effects of trenching and patching on road surfaces.
  • Top Lift Paving Fees: For streets with a Visual Condition Index (VCI) of 7 or higher, these charges require applicants to restore the road surface to its high pre-work standard. This ensures that newer or recently rehabilitated streets remain in top condition after construction disrupts them.
  • Rehabilitation Fees: General charges to cover the costs of restoring the road, sidewalk, curb, or green space to its original or better condition after excavation completes.

For a detailed breakdown, applicants should consult the City of Calgary’s current Excavation Permit and Service Rates document. Prudent budgeting for these costs from project inception is advisable, as missing or underestimated fees can trigger work stoppages or legal action.

Permit Validity, Expiry, and Extensions

Each Excavation Permit remains valid for two weeks from the approval date. Should unanticipated delays (such as weather, supply chain disruptions, or regulatory holds) extend beyond the permit window, the permit holder must request an extension before the existing permit lapses. Failing to do so can result in the need to restart the application and incur additional fees.

Following completion of work, the site is subject to an official inspection. Passing the inspection triggers the final invoicing phase. If deficiencies are found, corrections must be made and a re-inspection requested. Persistent violations or repeated deficiencies can have significant repercussions, including removal from City-approved vendors or a freeze on future permit approvals.

Engineering proper protection: The heart of NBC 4.2.5.2.(2) Compliance

At the center of NBC 4.2.5.2.(2) is the prevention of soil movement and collapse by controlling all external influences on an excavation. While adhering to permit requirements forms the administrative backbone of compliance, the real-world execution of "protecting the excavation" is an ongoing technical challenge. Every site is unique, shaped by soil composition, depth, weather, foundation requirements, and urban context. The following technical strategies and best practices should be fundamental to all Calgary excavation projects:

1. Respecting Setback Distances for Equipment Operation

The proximity of heavy machinery-such as excavators, dump trucks, concrete trucks, and cranes-to excavation edges has a direct impact on soil stability. The operation of these vehicles often imposes dynamic loads (from movement and vibration) and static loads (from the vehicle’s weight) onto the excavation walls. When those forces exceed the soil’s shear strength, collapse or slumping occurs.

  • The minimum recommended setback is often at least equal to the depth of excavation, but must be confirmed by site-specific engineering analysis.
  • Tracked machinery typically spreads its weight more evenly than wheeled vehicles. However, no equipment should operate immediately adjacent to unsupported excavation walls.
  • Temporary running pads, load distribution mats, or reinforced crossing points may be required for essential equipment access near excavation perimeters.
  • Flag personnel or dedicated spotters should oversee equipment movement around hazardous zones.

Ignoring these measures risks instant failure, worker injury, and damage to neighboring roads or properties-risks that are both preventable and heavily penalized under Calgary’s enforcement regime.

2. Safe Material Storage and Stockpiling

Excavation projects routinely generate large volumes of spoil (excavated earth) and require staging space for construction materials (timber, pipe, steel, concrete forms). Placement of these stockpiles must never encroach upon setback zones or overload the ground adjacent to an excavation. The following practices are essential:

  • Establish and mark setback limits on site plans and with visible flagging or barricades on the ground.
  • Stockpiling should occur on the side opposite the excavation, or, where space is limited, at a safe lateral distance verified by an engineer.
  • Account for weather-heavy rain or freeze/thaw cycles can reduce soil stability, requiring even greater setbacks.
  • Schedule regular spoil removal to external authorized fill sites to minimize on-site stockpile size.

Failure to control stockpile location and mass can lead to undercutting of excavation walls or catastrophic surge into the excavation itself, endangering workers and possibly flooding buried infrastructure.

3. Shoring, Trench Shields, and Backsloping: Passive Protection Systems

When excavation depth or soil conditions preclude safe operation without support, engineered protection systems come into play. They fall into several categories:

  • Shoring Systems: Timber, hydraulic (aluminum), or steel shoring can be used to physically resist earth pressure and prevent trench or pit collapse. These systems must be installed by qualified personnel under engineered designs.
  • Trench Shields/Boxes: For pipeline and utility work, trench shields provide rapid, mobile protection against cave-in and are especially useful in linear trenches of standard dimensions.
  • Backsloping: Where site space allows, excavating with angled sides rather than steep vertical walls reduces the risk of collapse. The safe slope angle varies by soil type; in some cases, a 1:1 (45 degree) angle is used, but this must always be confirmed via geotechnical analysis.

Failure to use protection systems when warranted is a principal cause of serious excavation accidents. Calgary’s safety inspectors issue "Stop Work" orders in such cases, and major infractions can result in criminal liability for those responsible.

4. Monitoring Vibration and Ground Movement

Urban excavation introduces risk to adjacent buildings, buried utilities, and even above-ground infrastructure like curbs, sidewalks, and pavement. The operation of heavy equipment or pile driving, traffic vibration, or the shifting weight of nearby stockpiles can all contribute to destabilizing forces.

  • Seismic and ground-movement monitoring may be required near sensitive structures or utilities; real-time sensors can detect early movement, allowing for rapid response.
  • Establishing baseline surveys of nearby assets (including crack monitoring on building facades) helps identify problem trends before they become critical.
  • Regular, documented inspections by qualified supervisors and geotechnical consultants are essential, especially during and after periods of active equipment movement or significant weather events.

By the time visible cracking or slumping occurs, significant (and expensive) damage may have already been done; proactive monitoring is an essential defense.

5. Managing Water Ingress and Drainage

Calgary’s broad range of precipitation and ground water conditions complicates excavation management. Accidental water accumulation can rapidly reduce soil shear strength and trigger collapse.

  • Always include properly designed dewatering systems, such as sumps, wellpoints, or perimeter drains, for all excavations deeper than 1 meter.
  • Divert surface runoff away from excavation edges and stockpiles; this maintains soil integrity and blunts erosion forces.
  • Monitor pump operation and water levels daily; failures due to pump breakdown or clogging are common triggers for rapid destabilization.

Calgary inspectors frequently cite poor site water management as a direct contributor to excavation-related incidents.

6. Integrating Safety Culture and Workforce Training

Even the most robust designs or plans can be compromised without a workforce that understands why protective measures are non-negotiable. All site personnel-from operators and laborers to supervisors and visiting trades-must be trained in recognizing and respecting excavation hazards. Strong safety culture prescribes:

  • Clear daily pre-work briefings ("toolbox talks") that highlight the excavation safety plan and anticipated changes;
  • Use of personal protective equipment (PPE) such as hi-vis gear, hard hats, and steel-toed boots near open excavations;
  • Stop-work authority for any worker observing unsafe proximity of equipment/materials to excavation edges;
  • Immediate reporting of ground movement, water ingress, or stockpile slumps to supervisors.

Building and sustaining this culture ensures not only regulatory compliance, but also long-term workforce loyalty and reduced project downtime due to incidents.

Coordination with Adjacent Properties and Stakeholders

In dense urban or suburban settings, excavation often occurs adjacent to existing structures, municipal roads, or utility corridors. Protecting the excavation in these contexts requires robust communication and sometimes negotiation:

  • Owners of adjacent structures may require vibration or movement monitoring, which can influence construction methods and timelines.
  • Utility companies have strict requirements about distance, protection, and notification when excavating near their assets.
  • Calgary’s public works may require additional permitting, indemnification, or review by City engineers for excavations adjacent to critical infrastructure-including bridges, signals, or main utility corridors.

These additional layers of review and oversight must be built into project schedules to avoid costly stand-downs or redesigns.

Integrating Additional Permitting Requirements

Excavation activities in Calgary rarely stand alone; typically, they are part of a suite of related operations requiring a combination of municipal permits and approvals. Some of the most relevant include:

  • Indemnification Agreement: If any part of the excavation impacts City property (sidewalks, boulevards, curbs, or rights-of-way), the City will require a signed indemnification. This protects public assets by shifting liability for damage back to the permit holder.
  • Utility Alignment Permit: For any activities affecting or coming near municipal or utility-owned assets, this permit ensures all affected providers are notified, the alignment of their assets is understood, and protections are put in place. Failure to obtain this permit can result in stop work orders and civil claims should damage occur.
  • Street Use Permit: When exclusive, or partial, use of any municipal roadway is required for staging equipment or materials, this permit is necessary. It also mandates the creation of traffic and pedestrian detour plans, which must comply with Calgary’s traffic bylaws and are subject to Police or Bylaw review on safety grounds.

As these permits frequently interact-requiring sequential approval or mutual cross-reference-early consultation with the City’s permit and infrastructure offices streamlines the process. Calgary’s Excavation Permit Terms and Conditions spell out these requirements in detail.

Case Scenarios: The Price of Inattention

While the City processes thousands of excavation permits annually without incident, failures of planning or adherence to NBC 4.2.5.2.(2) occasionally make headlines-and always incur costs. Consider the following scenarios:

Case 1: Heavy Equipment Too Close

A demolition crew, under schedule pressure, operates a tracked excavator within one meter of a six-foot-deep, unsupported trench. The sudden rotation and braking of the boom triggers a wall failure, causing significant soil movement under a neighboring garage slab. The result: not only is site remediation required (at the contractor’s expense), but the neighbor’s property owner sues, alleging negligence-drawing in the insurance company and delaying project completion by months.

Case 2: Improper Stockpiling

In a constrained urban lot, excavated material is set within one meter of the trench wall. Overnight rain turns the pile into slurry, which surges into the open trench and floods a city-owned stormwater main. The City charges both for clean-up and for the necessary repairs to the utility-costs well beyond the original budget, compounded by regulatory fines for “causing hazardous conditions.”

Case 3: Failure to Monitor Adjacent Structures

During a foundation excavation for a new infill, adjacent home owners report new cracks in their basement walls. An investigation reveals that vibration from nearby breaker attachments-operated too close to the excavation edge-has caused settlement under the older structure. The builder is on the hook for structural repairs, must pay for a forensic engineering assessment, and sees their worksite closed pending resolution, costing time and credibility.

In all these cases, careful adherence to NBC 4.2.5.2.(2), robust permit management, and a culture of proactive protection would have dramatically reduced risk and minimized financial impact.

Excavation Protection and Climate: Managing Calgary’s Conditions

Calgary’s weather and geological history create unique challenges for safe excavation:

  • Chinooks and Freeze/Thaw Cycles: Frequent temperature swings can rapidly undermine temporary excavation supports. A trench that was stable yesterday may slump today as soils turn from frozen to saturated.
  • Heaving Clays and Variable Subsoil: Calgary’s glacial till, alluvial deposits, and clay layers mean unanticipated soft spots, water tables, or expansive soils can manifest mid-project, requiring adaptive strategies.
  • Urban Runoff and Storm Events: Summer storms can dump several centimeters of rain in hours, overwhelming temporary drainage and causing sudden piping or washouts in poorly protected excavations.

All planning for excavation protection must take into account both the predictable (geotechnical reports, known infrastructure) and the unpredictable (weather events, groundwater spikes). This means building contingencies into shoring design, scheduling, and emergency response plans.

Practical Steps for Homeowners, Builders, and Developers

Whether overseeing a new build, a major renovation, or a demolition, property owners must not abdicate responsibility for ensuring that all parties on site comply with excavation protection requirements. In the eyes of both the City and the NBC, ultimate responsibility frequently lies with the property owner or the development’s prime contractor. Effective oversight involves:

  • Demanding Written Excavation Plans:
    • Contractors should present detailed staging plans showing setback zones, equipment pathways, and stockpile locations.
    • Engineered shoring or support designs should be reviewed prior to work.
    • Permitting documents and records of safety briefings should be available on site at all times.
  • Insisting on Qualified Contractors and Specialists:
    • All personnel working on excavation protection (shoring installation, monitoring, inspections) should have demonstrable training or certifications.
    • Contracting low-bid or unqualified firms increases risk and raises the chance of expensive failure.
  • Scheduling Regular Site Audits:
    • Independent site reviews during key excavation stages provide objective checks on compliance.
    • Involving geotechnical engineers or third-party inspectors can catch problems before the City’s inspectors do.
  • Building in Time for Permitting and Compliance:
    • Squeezing the project schedule encourages all parties to cut corners, skip protection measures, or take dangerous shortcuts.
    • Build at least a 10-15% time buffer into any excavation-centric critical path.
  • Budgeting for the Unexpected:
    • Contingency funds (often 5-10% of total excavation budget) can be key to responding rapidly if conditions change.
    • Unforeseen soil conditions, underground obstructions, or permit delays are routine-not rare-in Calgary’s diverse neighborhoods.

Essential Communication: Working with Your Project Team

Integrating the safety and stability requirements of NBC 4.2.5.2.(2) into your project is not a “set it and forget it” exercise. Ongoing, multi-party communication is vital. Strategies include:

  • Weekly coordination meetings between property owners, contractors, and any consultants monitoring excavation stability.
  • Visible site signage marking hazard zones, setback distances, and restricted access areas.
  • Daily logs maintained by on-site supervisors detailing all significant equipment or material movements, alongside weather and inspection notes.
  • Clear escalation paths for reporting potential or actual encroachment into protected setback areas, with authority assigned for corrective action.

This team-based approach multiplies the eyes and judgment brought to bear on potential problems, significantly enhancing the odds of a safe, on-schedule, and compliant excavation.

The Role of Insurance and Liability

Excavation failures can lead to claims that far exceed the value of the construction phase: from injury and wrongful death claims, to remediation and restoration costs for adjacent properties, to regulatory fines and permit suspension. Calgary property owners and contractors must:

  • Carry comprehensive insurance that specifically covers excavation-related losses and liabilities-including damage to third-party property.
  • Maintain clear documentation of compliance with all NBC and City permit requirements, as these are often central to any subsequent insurance defense.
  • In cases where third parties are working in proximity (utilities, other contractors), ensure cross-indemnification and hold harmless agreements clearly identify responsibility for excavation protection.

Relying on minimal or generic insurance or skipping paperwork can expose project owners to losses that jeopardize entire projects. Choose insurance partners familiar with Calgary’s regulatory environment and excavation-related risks.

Calgary’s Enforcement Practices: What to Expect

The City of Calgary’s approach to enforcement is cooperative, but decisive when required. Where inspection or complaints identify risks or violations of NBC 4.2.5.2.(2), the City acts in several stages:

  1. Inspection and Notation: City inspectors record hazards and issue immediate recommendations or warnings.
  2. Stop Work Orders: For egregious violations (undermined excavation, absent setbacks, unsafe stockpiling), work is immediately halted pending remediation-with all attendant costs to the site owner/contractor.
  3. Fines and Fees: Code violations carry substantial monetary penalties and can trigger re-inspection fees.
  4. Legal Recourse and Civil Claims: In severe or repeat cases, the City may pursue legal action, seek recovery of public repair costs, or ban contractors from bidding on future work.

Documented compliance and evidence of proactive protection are your first and best defense against enforcement action.

Building Future-Ready Excavation Sites

As Calgary continues to intensify urban development, especially in infill, mixed-use, and redevelopment zones, the pressures on safe, efficient, and code-compliant excavation will only increase. Future best practices are moving toward:

  • Use of digital sensors and remote monitoring for ground stability and load transfer during all phases of work.
  • Automated permit tracking and renewal systems, integrated with project management platforms.
  • Expanded use of 3D site modeling and simulation to identify risk zones for equipment and material placement even before site mobilization.
  • Greater collaboration between builders, engineers, municipal inspectors, and utility operators from early concept design through landscape restoration.
  • Training programs and certification schemes that make excavation protection a core part of apprenticeships for operators, laborers, and site supervisors alike.

Forward-thinking builders and project owners who invest in these strategies now will find themselves best positioned for the evolving regulatory landscape and the growing expectations of both the City of Calgary and the National Building Code.

Conclusion: Commitment to Protection Pays Dividends

The protection of excavations from movement caused by equipment or material placement is far more than a regulatory checkbox-it is the foundation upon which safe, successful, and profitable projects are built. The requirements of NBC 4.2.5.2.(2), as enforced and interpreted by the City of Calgary, demand that all stakeholders take proactive, engineered, and diligent steps to ensure excavation stability at every stage of construction or demolition.

By securing proper permits, budgeting for all associated costs, demanding and reviewing robust protection strategies, enforcing safe equipment and stockpile placement, integrating the latest monitoring technologies, and fostering a culture of constant vigilance on site, risk is reduced, project outcomes are improved, and Calgary’s built environment is safeguarded for the future.

For homeowners embarking on their first major project, for builders navigating tight urban sites, and for developers intent on safeguarding their investments, the message is clear: there is no substitute for a comprehensive approach to excavation protection.
