Calgary’s unique soil conditions mean that the majority of structural problems in homes and buildings can be traced back to differential movement in foundations-whether by settlement, heave, or lateral shift. Ensuring that foundations are properly designed to accommodate these movements is not optional; it is a fundamental safeguard, embedded in the National Building Code (NBC) Section A-4.2.4.1.(5), to protect structural integrity and the longevity of any asset built in our region.

Understanding Calgary’s Unique Soil Challenges

The city of Calgary sits atop geological formations that include glacial till, clay-rich soils, sand, silt, and shale. These subsoils, combined with a climate marked by freezing winters and rapid thaws, are a recipe for ground movement. Expansive clays-such as bentonite-can absorb water and swell, while frost-susceptible soils can heave dramatically during freeze-thaw cycles. Large areas of the city are also subject to fluctuating groundwater tables and unpredictable moisture migration. All these factors together make foundation movement a principal risk for homeowners, builders, and developers in this region.

What Is NBC A-4.2.4.1.(5)?

This critical section of the National Building Code clarifies that foundations must be designed to satisfy the serviceability limit state (SLS) as well as strength. In other words, the code mandates not only that a structure won’t collapse under load, but also that it stays usable and undamaged by everyday movements-be that settlement, soil heave, lateral shift, tilt, or rotation.

The specific intent of NBC A-4.2.4.1.(5) is to prevent excessive displacement of the building foundation that could result in:

  • Cracks in walls, floors, and finishes
  • Doors and windows becoming stuck or misaligned
  • Disruption to plumbing, mechanical, or electrical systems
  • Water ingress due to shifting slabs
  • Impaired use or enjoyment of the building

Fundamental Considerations in Foundation Design

1. Comprehensive Subsurface Investigation

Every successful foundation project in Calgary begins with a thorough subsurface investigation. Skipping or skimping here is a gamble with high stakes. These investigations involve:

  • Boreholes and Soil Sampling: Drilling to retrieve samples at critical depths, testing for water content, density, Atterberg limits, and grain size.
  • Assessing Expansive Soils: Laboratory analysis to reveal how much local clay will shrink or swell with moisture fluctuation.
  • Identifying Bearing Capacity: Evaluating how much load the soil can safely support.
  • Water Table Monitoring: Establishing seasonal high and low groundwater points to flag future risk of heave or settlement.
  • Mapping Fill Depths: Old fill can settle unpredictably; knowing what lies beneath guides foundation choices.

Without these insights, it is impossible to design a foundation that matches real-world subgrade performance.

2. Engaging Professional Engineers

Homeowners and developers alike benefit from early and ongoing involvement with qualified geotechnical and structural engineers. Their expertise bridges the gap between design theory and field realities. Engineers will:

  • Interpret geotechnical reports
  • Select or adapt foundation systems according to soil risk
  • Specify settlement tolerances and design criteria
  • Document all calculations and assumptions for regulatory review
  • Oversee inspections and certify compliance at key construction stages

Working with a professional is not just prudent-it is essential to code compliance and future resale value. Increasingly, lenders and insurers demand engineering sign-off on foundation work, especially for projects involving additions, liftings, or underpinning.

3. Design Parameters for Differential Movement

The serviceability of any foundation in Calgary hinges on key design parameters, calculated from local site data:

  • Total Settlement: All foundations settle, but total settlement (the overall downward movement) must remain within limits that the structure and finishes can accommodate.
  • Differential Settlement: Variation in settlement between different parts of the foundation is the chief cause of cracks, jamming doors, and structural misalignments. The code expects engineers to calculate and minimize these differences.
  • Foundation Type Selection: The classic shallow strip footing may not be viable on expansive clays or over deep fill. Options include grade beams, raft slabs, piles, caissons, helical piers, or deep footings extending to competent stratum.
  • Heave Potential Mitigation: Engineers may specify void forms or insulation to isolate the slab underside from frost and swelling soils.
  • Frost Protection: The freeze depth in Calgary can exceed 1.2 metres (4 feet). The footings must extend below this, or use insulation strategies, to protect against frost heave and ice lensing.

Practical Steps and Requirements

Permits: Building, Development, and Trades

Any foundation or substantial structural work in Calgary requires a cascade of permits as guided by local bylaws:

  • Building Permit: Non-negotiable for new construction or significant foundation alterations. The permit process ensures your plans comply with technical codes and are reviewed by municipal inspectors.
  • Development Permit: Required if your project alters the building footprint, height, site coverage, or has land use implications-such as adding a secondary suite or significant addition.
  • Trade Permits: Electrical, plumbing, gas, and HVAC systems often run through or below the foundation. Each requires its own permit, with separate inspections.

Every permit application must include stamped drawings by registered professionals, a copy of your geotechnical report, and proof of compliance with zoning and setback rules. Failing to secure proper permits can result in stop-work orders, fines, and costly retrofits or legal disputes down the line.

Permit Costs in Calgary

For budgeting purposes, permit fees are pivotal. As of 2024, city data and local industry sources estimate:

  • Building Permit Fees: Typically $2,800-$3,200 for a $150,000 addition. New home construction is similarly calculated based on overall project value.
  • Development Permit Fees: About $1,859 for a single detached dwelling in an established area, with adjustments for project complexity.
  • Professional Fees: Geotechnical and structural engineering services will add anywhere from $3,000 for simple home additions to $15,000 or more for complex multi-unit or deep foundation projects. While tempting to save here, skipping professional design almost always proves more expensive in the long run.

Additional costs, such as inspection fees, documentation, and third-party testing may apply based on your specific needs and project scope.

Timelines: What to Expect

Permit and construction timelines can impact your broader project schedule. Anticipate:

  • Building Permit Review: Around 21 working days under normal load.
  • Development Permit: 10-12 weeks, as these processes include review, neighbor notification (in redevelopment), and appeal periods. Start early and allow for questions and resubmissions.
  • Construction: Foundation work-from excavation to pouring and backfill-typically takes 2-4 weeks for average homes, longer for complex or winter work. Full basement developments may add 6-10 weeks post-permit approval.

Keep in mind: permit approval does not guarantee the absence of surprises in the ground. Built-in flexibility and open communication with your contractor and engineer is essential.

The Impact of Neglecting Differential Movement Design

Improperly designed or constructed foundations in Calgary can lead to some of the most expensive and disruptive problems a homeowner or developer might face:

  • Cracking and Distress: Significant cosmetic and structural cracks in foundation walls, slabs, and finishes often stem from differential settlement or heave. Not all cracks are dangerous, but wide, widening, or “step” cracks present real problems.
  • Tilt and Binding: As the foundation tilts or individual footings settle, doors and windows may bind, floors slope, and cabinetry detaches. This can escalate to safety hazards.
  • Disrupted Services: Shifting foundations can break or stress plumbing drain lines and mechanical runs, causing leaks or blockages. Electrical systems may also be exposed to risk.
  • Water Ingress: Settlement can create negative slope, directing water toward rather than away from the structure. Seepage into basements or crawlspaces is a common symptom.
  • Resale Difficulty: Foundations or structures with visible movement or a documented history of repairs can be hard to finance or insure, and often sell at a discount.

Investing in proper engineering and careful construction up front is always less costly than remediation, underpinning, or legal wrangling after the fact.

Best Practices for Effective Foundation Design in Calgary

1. Early and Thorough Geotechnical Analysis

Start with the right information. Arrange for qualified geotechnical consultants to take boreholes, examine site history, and generate a comprehensive soils report. At a minimum, this document should cover:

  • Soil strata and types by depth
  • Moisture content and plasticity (expansion/shrinkage potential)
  • Settlements: Immediate, consolidation, and long-term predictions
  • Recommendations for footing depths and types
  • Frost protection and heave mitigation strategies

For infill projects, it is especially important to verify the quality and compaction of existing fill, as undocumented backfill from previous structures can behave unpredictably.

2. Engineering-Driven Foundation Selection

Basing the foundation design purely on previous projects or what “most houses do” is a recipe for failure in variable ground. The foundation system must be tailored to your site’s unique geotechnical profile, exposure, and intended load.

Foundation types commonly used in Calgary include:

  • Shallow Footings: Works well only on competent, stable soils. The classic continuous strip footing or pad is the traditional choice for most homes, but unsuitable for high expansion or deep fill.
  • Grade Beams: Raised beams can span between piles and reduce the impact of differential settlement.
  • Pile Foundations: Concrete or helical steel piles transfer loads to deeper, more stable layers below problem soils. They are ideal for expansive clay or soft fill situations.
  • Caissons: Large-diameter drilled shafts, used on commercial or multi-family jobs where structural loads are high and soil conditions are variable.
  • Raft or Mat Slabs: Large heavily reinforced slabs that “float” the structure across variable soil and help distribute loads to minimize differential movement.
  • Void Forms and Isolation Strategies: Used to create gaps below slabs-on-grade, allowing for upward soil movement below the slab without stressing the structure above.

The key is selecting and customizing the system based on sound engineering, not habit or lowest bidder.

3. Detailed Foundation Design to NBC SLS Requirements

Meeting the intent of NBC A-4.2.4.1.(5) requires explicit consideration of each serviceability limit state:

  • Total Settlement-Usually permitted up to 25mm (1 inch) for residential structures, based on finishes and load type.
  • Differential Settlement-Generally restricted to less than 19mm (0.75 inch) across any 6 metre run, but must consider sensitive finishes and service runs.
  • Heave and Frost Action-Design foundations to extend below frost line or isolate from susceptible soil. Use insulation or voids as needed to prevent transfer of frost movement.
  • Lateral Displacement-Especially critical for retaining walls, walk-out basements, or sites with high slopes or slide history.
  • Tilt and Rotation-Allowable tilt is generally very small; large tilts render spaces unlivable or unserviceable.

These numbers are not arbitrary: they are based on what real structures and finishes can absorb before showing damage or loss of function. Calculating and documenting them protects designers, builders, and owners alike.

4. Construction Phase Quality Control

The best plans count for little if construction is sloppy or noncompliant. Key steps to ensure quality outcomes:

  • Pre-Pour Inspections: Foundation formwork and rebar placement must meet engineering drawings and often require sign-off by a professional engineer.
  • Verification of Foundation Depth: Confirming footings are set below frost line, on competent soil or engineered fill-not on loose topsoil or construction debris.
  • Slab and Void Placement: For slabs-on-grade, ensure void forms or insulation are placed as specified-these cannot be skipped or improvised.
  • Compaction Testing: If placing engineered fill, third-party density testing ensures you have a stable base and prevents excessive post-construction settlement.
  • As-Built Documentation: Keep precise records, photographs, and test results for future maintenance or resale value.

5. Ongoing Monitoring and Maintenance

Especially in new developments or areas with unpredictable soils, some differential movement may occur over time. Homeowners and property managers should:

  • Conduct seasonal visual inspections for new or widening cracks
  • Monitor for door/window operation problems
  • Check landscaping and drainage to ensure water continues to flow away from the structure’s perimeter
  • Engage an engineer promptly if significant movement is detected; early intervention is far cheaper than remediation

Case Study: Foundation Movement in a Calgary Addition

Consider this real-world example: A homeowner in Riverbend engaged an unqualified contractor to build a 500 sq.ft. addition on a 1980s home. No soils report was performed. Within two years, visible cracks appeared in the drywall, and the new floor sloped away from the existing house.

  • Diagnosis: An engineer determined that the addition was built over expanded fill and expansive clay, while the original house was on competent undisturbed soil. Frost had also lifted the new footings as they were not deep enough.
  • Remediation: Underpinning with piles and installation of a structural slab were required, at a cost more than double the original addition.
  • Lesson: A simple, inexpensive soils report and proper engineering at the outset would have identified the risk, saving tens of thousands in future repairs.

Meticulous compliance with NBC A-4.2.4.1.(5)-even if it slows the process or upfront budget-consistently pays lasting dividends.

Demystifying the Permit Process: A Step-By-Step Overview

  1. Project Definition: Outline your intended construction scope, location, and objectives. Will you build new, add on, underpin, or develop a basement?
  2. Engage Professionals: Retain a geotechnical engineer for soils investigation and a structural engineer or architectural technologist for code-compliant design.
  3. Generate Preliminary Design: Based on soils and engineering advice, select footing type, foundation depth, and protection strategies.
  4. Prepare Permit Drawings: Show all proposed work, including foundation plans, elevations, drainage/lot grading, and sections. All should be stamped and signed by the responsible professionals.
  5. Apply for Development Permit (if required): For changes to the building footprint, major additions, or infill development, submit application with plans, real property report, and neighbor notice forms.
  6. Apply for Building Permit: When development permit is approved or if not needed, assemble your stamped plans, site data, and application forms for City of Calgary submission.
  7. Pay Fees: Calculate permit costs based on your project value and remit payment with your application. Allow for consulting fees separately.
  8. Review and Questions: City reviewers may request clarifications or revisions. Expect several rounds for more complex applications.
  9. Receive Permits and Start Construction: Once all permits are granted, you can mobilize your demolition, excavation, and build crews.
  10. Inspections: Foundations must be inspected-sometimes at multiple stages (pre-pour, backfill, rough-in)-and final as-built documents provided.
  11. Final Approval and Documentation: Keep all permits, reports, and engineer certifications for your records; you will need them for insurance, future modifications, or resale.

Specific Foundation Problem Zones in Calgary

While proper design and execution are needed citywide, certain Calgary neighborhoods deserve special caution:

  • Elbow Park, Rideau, and Mission: High water table and soft soils make pile-supported foundations preferable for larger projects.
  • Riverbend, McKenzie Towne, and Mahogany: Expansive clays and history of fill use call for deep footings and rigorous geotechnical study.
  • Inglewood and Ramsay: Old infill sites may contain poorly compacted fill; differential settlement is common in newer construction on these lots.
  • West Springs and Aspen Woods: Presence of “gumbo” clays demands insulation, frost protection, and pile use where needed.

Ask your engineer about known subgrade issues in your specific neighborhood-the difference can be dramatic in just a few blocks.

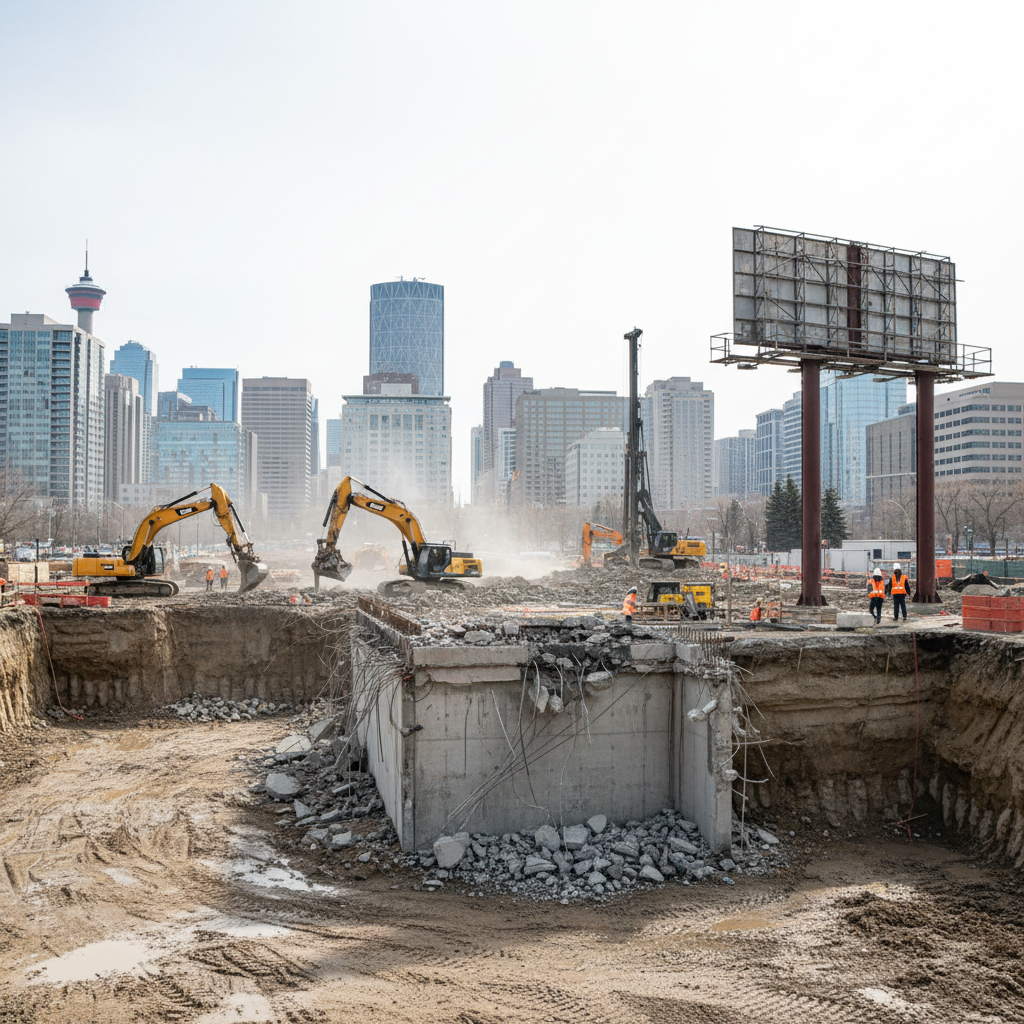

Coordinating Demolition and Excavation for New Foundations

Demolition and excavation are not mere “prep” stages-they are integral to proper foundation performance and code compliance in Calgary:

  • Demolition: Complete removal of the old foundation and associated debris is essential if ground conditions are to be properly assessed and engineered fill installed.
  • Excavation: Cuts must reach specified engineered depths, all loose or organic material removed, and temporary shoring or side slope protection employed for safety.
  • Onsite Testing: The exposed base should be verified by the geotechnical engineer before concrete or footing forms are placed. Surprise conditions (buried debris, unanticipated fill) must be documented and re-engineered on the fly.
  • Backfilling: Controlled and compacted backfill is crucial to prevent future settlement around new foundation walls or walk-out basements. Improper backfill is a leading cause of future cracking or movement in above-grade construction.

Protecting Your Investment: Tips for Homeowners and Developers

  • Document Everything: Retain soils reports, stamped plans, inspection records, and warranty documents. These will prove invaluable for resale or warranty claims.
  • Verify Professional Credentials: Ensure your engineer and contractor are licensed for work in Alberta, understand Calgary soil, and have experience in your construction type.
  • Budget for the Unexpected: Hidden fill, soft spots, or high water may add cost. Build a 10-15% contingency into your budget for unforeseen ground conditions.
  • Communicate Every Step: Share permit, soils, and drawing information with all team members-especially your demolition, excavation, and framing crews-to avoid disconnects or information gaps.
  • Insist on Compliance: Cutting corners on depth, frost protection, or engineered fill is false economy and risks future structural failure.
  • Seasonal Considerations: Winter excavation requires temporary heating and frost protection for both soil and poured concrete, adding complexity and cost-plan accordingly.

Emerging Innovations in Foundation Design for Calgary

Foundation engineering is not static-advances in material science, drainage, and monitoring are changing the options available. Some innovations now used in Calgary include:

  • Geofoam: Incoporating lightweight expanded polystyrene fill below slabs reduces loads on weak soils and can mitigate heave risk.
  • Advanced Insulation Strategies: High-R rigid insulation below slabs and around footings can dramatically reduce frost penetration and minimize seasonal heave.
  • Heated Slabs and Frost Protected Shallow Foundations (FPSF): For some lower-load structures, careful use of insulation and heat from the building can allow for shallower, less expensive foundations-even in challenging soils.
  • Remote Crack Monitoring: Electronic crack gauges or tilt sensors help property managers monitor movement over time, flagging problems early before they become severe.
  • Sump and Drainage Upgrades: Improved perimeter drainage, sump pump systems, and positive lot grading are essential complements to strong foundations in our climate.

Discuss available options with your engineering team and balance up-front cost against long-term resilience and maintenance.

Frequently Asked Questions

How do I know if my house is experiencing differential movement?

Common warning signs include uneven floors, sticking or misaligned doors, diagonal cracking in drywall above doors/windows, step cracks in brick or block, and separation at corners or between walls and ceilings. In severe cases, you may notice visible gaps between the foundation and soil or changes in grade and landscaping.

Can differential movement be “fixed” in an existing house?

In many cases, yes-through underpinning (foundation stabilization using piles or piers), re-leveling, and correcting drainage. However, the earlier movement is addressed, the less expensive and invasive the repairs typically are. Loss of serviceability or major tilting may require structural intervention.

How much does foundation engineering and permit compliance cost?

Budget at least $3,000 for engineering on small additions, $8,000+ for major work, plus $2,800-$3,200 for building permits and roughly $1,850 for development permits, subject to increases for complexity or scale. If demolition and excavation are needed, factor in additional costs and time.

Is it ever safe to build without a soils report?

Doing so is only realistic in developments where soils are well-known, fill is absent, and no history of movement exists-in downtown commercial towers with dozens of adjacent investigations, for example. For almost all houses or additions in Calgary, a soils report is both industry standard and prudent self-protection-and can be critical for insurance or resale down the road.

What if the City finds complications during inspection?

If municipal or third-party inspectors detect non-compliance with design documents, inconsistent depths, missing elements, or risky materials, they can require immediate correction, halt further work, or even revoke your permit until an engineer signs off on remedial action. Always respond promptly, document your responses, and involve your engineering team for solutions.

Summary: Building Strong Foundations for Calgary’s Future

Crafting a foundation that stands the test of Calgary's unique soils and climate is part science, part art, and all about foresight. The code requirements set out in NBC A-4.2.4.1.(5) are not bureaucratic red tape; they are the collected wisdom-sometimes learned at great cost-of what it takes to build resilient, healthy, and lasting homes in our region. By engaging in thorough site analysis, insisting on robust engineering, and following rigorous construction and inspection procedures, homeowners, builders, and developers can avoid the expense and heartache of differential settlement or heave. These efforts ensure not only code compliance but also peace of mind and enduring structural performance.
