Every year in Calgary, hundreds of basements experience water ingress, risking extensive, costly property damage. For many homes, especially those built in areas with high water tables or poor drainage, proper management of groundwater is not merely a recommendation-it is a necessity. At the core of a robust groundwater management system lies the sump pit, whose design and installation define how effectively water is kept away from foundations and basements. Correctly installed sump pits, compliant with the National Building Code (NBC) section 9.14.5.2, form the first line of defence against costly water damage, mold growth, radon infiltration, and structural issues.

This guide offers a thorough exploration of the requirements, processes, and practicalities involved in sump pit installations for Calgary homeowners, builders, and developers. It breaks down code-mandated standards, the Calgary permitting process, project timelines, and hands-on insights for ensuring these systems are built right-for code compliance, lasting performance, and peace of mind.

Understanding Calgary's Context: Groundwater and Basements

Calgary’s unique geology and climatic patterns mean that significant portions of the city sit above soils that hold or channel substantial water during certain seasons. Spring thaws, sudden downpours, and Chinook-induced freeze/thaw cycles all contribute to varying groundwater levels. Even properties that seem dry for most of the year may experience surges in soil moisture that lead to hydrostatic pressure against basement walls. Over time, this pressure can exploit even the smallest cracks or voids in foundation concrete, resulting in seepage or flooding.

For developers and custom home builders, planning for these environmental realities is not optional. Modern properties, whether residential or commercial, must integrate sump pit systems that are robust, code-compliant, and dependable over decades. Homeowners again bear the responsibility of ensuring that any upgrades or renovations involving below-grade habitable spaces include proper drainage strategies-anchored by a well-designed sump pit system.

Decoding NBC 9.14.5.2: The Bedrock of Sump Pit Requirements

The National Building Code (NBC) of Canada is the principal document that governs safe construction and renovation practices nationwide, and section 9.14.5.2 provides the specific requirements for sump pit design and installation. The code is enforced citywide and compliance is non-negotiable for permitting and legal occupancy.

Fundamental Technical Requirements

  • Minimum Depth: 750 mm (approximately 30 inches). This ensures that the pit can collect and accommodate a meaningful amount of water before requiring discharge, providing a buffer during peak inflow events.
  • Minimum Area: 0.25 m² (about 2.7 sq. ft.). This guarantees the pit has sufficient volume to prevent rapid cycling of the sump pump and reduce maintenance.
  • Pit Cover: Child-resistant and airtight. The lid must be designed to prevent unauthorized access (especially by children) and must also prevent air leakage. The airtight seal is critical not only for energy and air quality concerns, but to control radon gas that may otherwise migrate up from under the slab.

If the property is unable to rely on gravity drainage-often the case in new subdivisions or where municipal infrastructure is higher than the sump location-an automatic sump pump is mandatory. This pump must be capable of discharging the collected water to an approved location such as a storm sewer, drainage ditch, or dry well, depending on municipal regulations and site considerations.

Summary of Purpose

These NBC requirements, though seemingly straightforward, are the product of decades of field research and failure analysis. Insufficient sump size, depth, or a poor-quality lid can all lead to chronic system failures, dangerous radon infiltration, and costly rework. For this reason, the City of Calgary enforces these standards through its permitting and inspection process-demanding not only correct dimensions, but overall integration with the property’s drainage plan.

Beyond Sizing: Critical Design Considerations for Calgary Sump Pits

While code sets the minimums, practical experience and local conditions call for careful design choices that go beyond the bare requirements:

1. Pit Construction Material

Most pits in Calgary are built using high-density polyethylene (HDPE) or heavy-duty plastic for their superior water resistance, smooth surface (easier to clean), and resistance to root intrusion and cracking. Some older pits may use concrete rings-still effective, but more labor-intensive to install and seal.

2. Inlet Placement and Drainage Strategy

The perimeter drainage system (commonly called “weeping tile”) must be sloped and directed to the sump pit, with inflow pipes entering just below slab level. Properly located inlets minimize splashing, noise, and maintenance, and ensure all groundwater drains efficiently to the pit.

3. Outflow and Pump Sizing

The selected pump should not only meet code minimums, but be chosen for site volume, head pressure, and reliability. Redundant (backup) pumps or alarms are highly recommended in flood-prone neighborhoods. Power backup (such as battery backup or a connection for a portable generator) can be essential for properties with basements finished or used for critical living space, minimizing risk during outages.

4. Airtight, Radon-Resistant Cover

Given Calgary's known radon risks, sump covers must form an effective air seal. Many code-compliant lids now come with bolts, gaskets, and view ports for inspection. A tight fit not only satisfies code but also protects air quality by blocking soil gases.

5. Accessibility for Maintenance

Design must allow safe, tool-free removal of the lid for periodic inspection, cleaning, and pump replacement. Constricted or hard-to-reach pits can compromise ongoing maintenance and lead to failures when water inflow is highest.

Layout Planning: Sump Pit Placement and Integration

Planning the physical location of the sump pit is a balancing act. The pit must be located:

  • At the lowest point of the slab-where water will naturally collect.
  • Accessible for maintenance, with clearance for removing the lid, pump, and float mechanism.
  • On an electrical circuit properly rated for the sump pump, ideally with a GFCI protected outlet.
  • Away from finished living space, where possible, to minimize noise and disruption in case of servicing.

Advanced planning is especially critical for new builds, where other mechanical systems, slab penetrations, and future finishes must be coordinated with the sump pit location. Improper placement can result in awkward access, restricted drain connections, and even code violations.

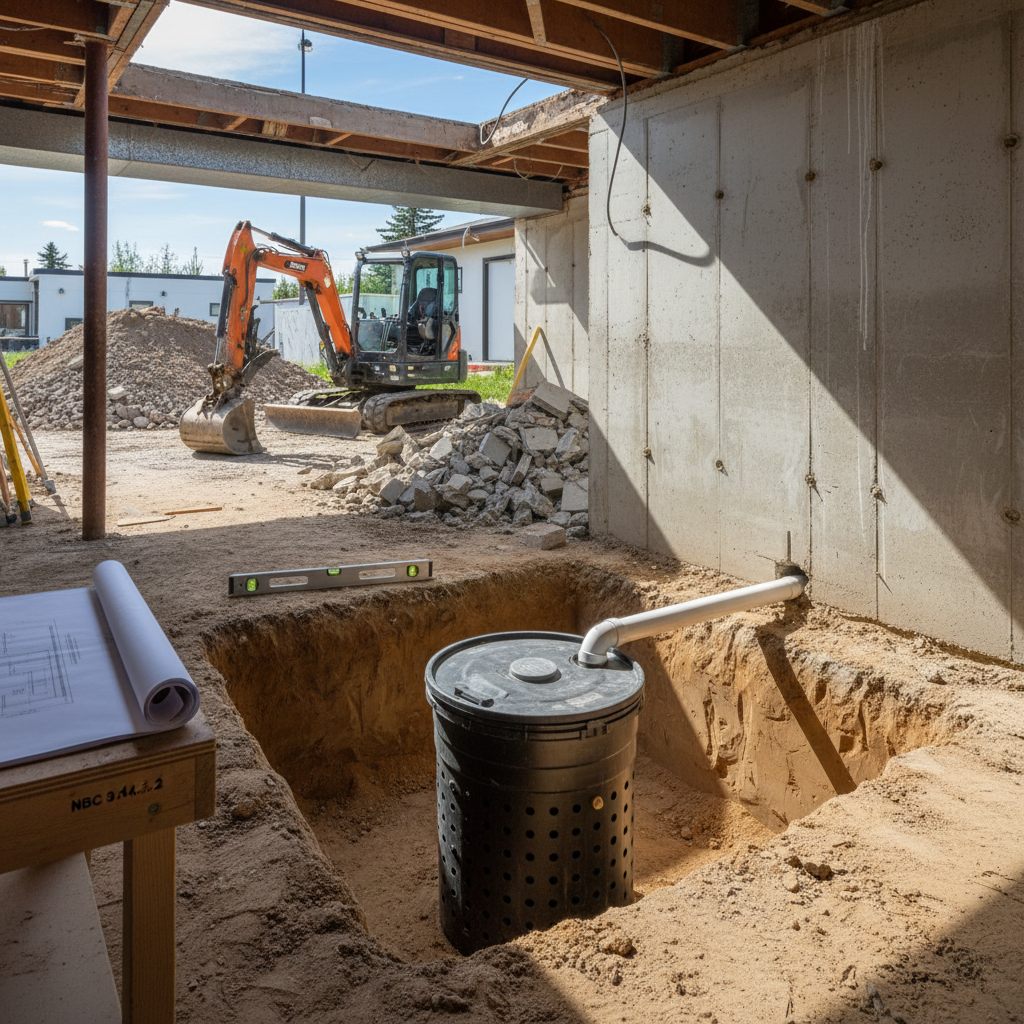

Excavation and Pit Installation: Best Practices

For both new foundations and retrofits, the excavation and physical installation of the sump pit must be done with care and expertise.

Step-by-Step Installation Walkthrough

  1. Excavation: Mark and excavate a hole larger than the planned pit dimensions (typically 18-24 inches across, 36 inches deep for most residential systems). Remove loose soil from the base for a level bottom.
  2. Base Preparation: Add and compact a minimum 6-inch layer of clean gravel or washed stone at the bottom of the pit. This bed helps level the pit, facilitates drainage, and minimizes sediment entry into the sump chamber.
  3. Pit Placement: Lower the sump basin into position, ensuring the top edge sits flush with or slightly below the finished slab level. Rotate the pit to line up sidewall inlets with the external weeping tile or drainage pipes.
  4. Backfill: Carefully pack gravel or pea stone around the sides of the pit to hold it in place and encourage water flow from the perimeter. Avoid soil, which can erode and clog pipes.
  5. Piping Connections: Cut and fit drainage pipes into the pit sidewall, using waterproof gaskets or sealant as specified by the manufacturer. Any gaps must be sealed to prevent soil gas ingress and air leaks.
  6. Pump Installation: Set the pump on a concrete paver or stand inside the pit to reduce sediment contact, attach the discharge piping, and connect the float switch per manufacturer recommendations.
  7. Electrical Hookup: All wiring must be completed in accordance with local and national electrical codes by a licensed electrician (or homeowner with an approved permit). The pump should be tested for proper operation and head pressure.
  8. Lid Installation: The child-resistant, airtight cover is installed, gaskets checked, and bolts or clamps tightened down.

Professional installation not only ensures all steps are completed properly, but also reduces the chance of future maintenance headaches. Errors in setting base depth, backfilling, or connecting piping often show up years later as costly repairs.

Permits for Sump Pit Installation in Calgary: A Code Requirement

All sump pit installations-whether part of new home construction or major basement renovation-are considered regulated work under the Alberta Safety Codes Act. This means projects must secure the proper permits, and follow steps as laid out by the City of Calgary.

1. Building Permits

  • New Construction: The builder or developer must submit detailed plans specifying sump location, pit and slab details, and all drainage elements. Permit reviewers will ensure the design complies with NBC 9.14.5.2 and relevant local standards.
  • Renovations/Retrofits: Homeowners or contractors proposing to add a sump system (or significant upgrade/replacement of an existing system) must also file for a building permit, providing a scope of work and supporting documents.

2. Trade Permits

  • Plumbing Permit: Required for all work connecting or modifying drainage pipes to the sump pit-including weeping tile, outflow, and any tie-ins to sewers or stormwater management.
  • Electrical Permit: Necessary if any electrical work (new pump installation, wiring, or upgrades) is performed. Homeowners doing their own electrical or plumbing work can apply for these permits if-and only if-they own and reside in the property; otherwise, licensed trades are mandatory.

Permit Fee Schedule (As of 2024)

  • Building Permit: $198 plus 4% Safety Codes Council fee ($7.92), totaling $205.92.
  • Electrical Permit: $112 plus 4% ($4.50), totaling $116.50 for homeowners.
  • Plumbing Permit: $112 plus 4% ($4.50), totaling $116.50 for homeowners.

Developers or contractors may pay slightly different rates based on scope and volume. Always check with the City for current rates before budget planning.

Application and Documentation Process

  • Drawings and Diagrams: Submit clear, to-scale floorplans with the exact location of sump pit, drainage runs, electrical outlets, and any plumbing connections labeled. Ambiguous submissions may be returned, delaying approval.
  • Scope of Work Statement: For renovations, a written summary describing intended work-what is being installed, replaced, or modified-is required.
  • Product Information: Provide cut sheets or manufacturer’s specs for the planned sump basin, pump, and lid, to confirm compliance with NBC and local rules.

Incomplete or unclear permit applications are a primary source of project delays. If unsure, consult with a professional who has experience with Calgary’s permitting requirements.

Who Can Apply?

  • Homeowners: You may apply for your own building, electrical, and plumbing permits if you live in and own the property, and will personally perform the work. If you hire any part of the work out, the contractor(s) must be licensed to work in Calgary and apply for trade permits directly.
  • Contractors/Builders: Licensed trades, developers, or general contractors regularly perform the application, inspection, and sign-off processes. This is strongly advised for anyone unfamiliar with code requirements or who lacks technical skills.

Permit Timelines: How Long Will Approval Take?

The permit approval process varies significantly with the project scope, documentation quality, and time of year.

  • Building Permit (Residential): Typically reviewed and approved within seven (7) business days, presuming application is complete and no clarifications are needed. Delays can occur if plans are unclear or missing details.
  • Development Permit (When Required): Not all sump pit installations will trigger a development permit, but if your work affects the building footprint, exterior drainage plan, or other zoning matters, expect a process of 10-12 weeks (including a 60-day decision period and a 21-day appeal/advertising window).
  • Trade Permits: Electrical and plumbing permits are usually issued almost immediately for straightforward projects, with same-day or next-day approval.

Note: During peak construction and renovation seasons (spring-summer), demand for permits and inspections increases, occasionally causing delays. Prepare your documentation in advance, and plan for contingencies in your project timeline.

Inspection and Compliance: When and What to Expect

Obtaining a permit is only the first step. The City of Calgary schedules multiple inspections to verify ongoing compliance with NBC 9.14.5.2 and other safety codes. Typical inspection points include:

  • Pre-Pour/Pre-Backfill: Inspectors may want to see the pit placement, base preparation, and initial weeping tile connections before the slab is poured or area is backfilled.
  • Plumbing Inspection: For weeping tile, sump discharge, and any piping tied into the municipal system. Testing for leaks, proper air gap, correct flow, and code-compliant discharge are primary concerns.
  • Electrical Inspection: Ensures the pump is wired safely according to code, is on a dedicated circuit (where required), and that GFCI protection is in place. Verifies operation of float switches or alarms.
  • Final Inspection: Verification that the installation conforms in all respects: pit depth and area, child/airtight cover, security of piping and wiring, and effective radon sealing.

Be prepared to provide access at each stage, and keep all official documents or drawings available on-site. Issues at inspection must be corrected before the project can be finalized and occupied.

Failure to Comply: Risks and Penalties

Installing a sump pit without required permits or inspection can have severe consequences. These include:

  • Red Tagging and Stop Work Orders: The city may order all work halted until code violations are corrected and proper permits obtained, potentially adding weeks or months to your timeline.
  • Insurance Claim Denial: Insurers frequently check compliance; work not performed to code may void coverage for basement flooding or water damage.
  • Resale and Legal Issues: Unpermitted or non-compliant work is a red flag for future buyers and can reduce property value, trigger costly rework, or even result in legal action in certain cases.
  • Safety Hazards: Incorrectly-installed systems may fail under pressure, allow radon ingress, or cause electrical shocks, especially during high inflow or power outage scenarios.

Cost Planning: What Should Homeowners and Builders Budget?

Understanding the full cost of sump pit installation, beyond just permits, is essential for realistic project budgeting. Expenses will vary by property size, groundwater conditions, finishing requirements, and the level of automation or backup desired. Key components include:

  • Sump Basin: Quality plastic or HDPE basins for a standard home typically cost $200-$500, depending on brand, capacity, and features such as gasketed lids.
  • Submersible Pump: A basic 1/3 HP sump pump averages $200-$300; more powerful or backup (battery) systems range up to $1,000.
  • Excavation and Installation: Professional labor may range from $1,000 (simple new build) to $3,500+ (retrofit in finished basements or challenging sites).
  • Piping, Fittings, and Discharge Line: $200-$600, depending on run length, discharge location/difficulty, and backwater valve needs.
  • Permits and Inspections: Budget $400-$450 for all required permits, as detailed above.
  • Optional Features: Radon vent integration, high-water alarm, remote monitoring, or decorative covers can add $50-$300.

For a fully code-compliant, professional installation in a typical Calgary home, expect the complete project to cost anywhere from $2,500 to $6,000, with additional costs likely for complex retrofits, deep excavations, or integration with advanced radon mitigation systems.

Always get detailed quotes from licensed, reputable contractors with proven track records in groundwater management. Ask about warranty, post-installation service, and references for similar projects in your neighborhood, especially if your area is known for high water tables or past flooding events.

Practical Tips for Homeowners: Maintaining Your Sump Pit System

Even the best-designed sump pit and pump system can fail if neglected. Proper care and periodic maintenance are essential to ensure reliable long-term operation:

  • Inspect Annually: Check the pit and pump at least once per year, ideally in early spring before snow melt. Remove the lid, clear debris and sediment from the basin, and confirm free movement of the float and pump mechanism.
  • Test Operation: Pour water into the pit until the float activates; confirm that the pump starts promptly and discharges water at the appropriate rate. Listen for unusual noises or slow drainage.
  • Check Discharge Line: Inspect the exterior termination of the discharge, ensuring it directs water well away from the home. In winter, guard against freezing or clogging by ice or debris.
  • Seal and Lock the Lid: Each time you replace the lid, make sure the gasket or seal is tight, bolts are secure, and the child-resistant features are engaged.
  • Monitor for Radon: In known risk areas, periodic testing for radon near the sump pit (and in the home generally) is advised-even with a code-compliant airtight cover.
  • Power Backup: Consider installing a battery backup or secondary pump if the basement is finished or if you have experienced power outages during rain events.

Retrofit Projects: Special Challenges and Proven Solutions

Retrofitting a sump pit into an existing Calgary home presents specific challenges not faced during new construction. Finished basements, established landscaping, and older plumbing/electrical systems all demand careful assessment.

1. Locating the Pit

The lowest point in the slab (often at the farthest corner of the basement) must be identified. This may require removing finished flooring, baseboards, or even limited demolition of slab concrete. Service location scans must rule out hidden gas lines, plumbing, or electrical runs before breaking concrete.

2. Managing Dust and Debris

Demolition and excavation in occupied homes is messy. Invest in effective dust barriers, protective coverings for finished surfaces, and plan for direct removal of excavated material. Respiratory and safety protection is non-negotiable for workers in confined basement areas.

3. Integrating with Existing Drainage

Older homes may lack weeping tile or have ineffective drainage. Temporary dewatering or perimeter trenching is sometimes needed to tie the new pit efficiently into the old system. In some cases, exterior excavation may be necessary to upgrade the drainage path to the new sump location.

4. Meeting Code With Limited Space

Basement layouts may restrict pit placement-especially where rooms are cramped or mechanicals occupy prime real estate. Advanced planning with a qualified contractor can help design custom-fit sump pits or pump systems when full-sized basins are impractical.

5. Upgrading Electrical and Plumbing

Outdated wiring, limited panel capacity, or illegal plumbing modifications from previous owners can all derail a retrofit project. Factor in extra time and budget to bring all systems up to current code before final inspection.

Best Practices for Builders and Developers: Embedding Quality and Compliance

For new builds and multi-unit developments, the scale and pace of construction demand systematic integration of sump pit systems. Embed best practices to minimize costly rework or code violations:

  • Pre-Design Coordination: Work with civil engineers or basement design specialists to sequence all drainage, pit, and mechanical layouts in tandem with the overall foundation plan. Confirm clear zones for pit installation and future maintenance access.
  • Standardized Details: Use repeatable, code-approved sump pit designs for similar unit types, and provide detail sheets to crews on-site. This minimizes guesswork and ensures every install meets NBC 9.14.5.2 the first time.
  • Trade Sequencing: Schedule plumbers, electricians, and slab finishers to minimize cross-trade delays. Check permit status for each trade before backfilling or covering critical connections to the pit.
  • Inspection Readiness: Keep all required documentation and as-built sketches on-site. Assign a qualified foreman or superintendent to meet with inspectors and address concerns in real time.
  • Client Handover: Provide new homeowners with written instructions for maintenance, warranty documentation, and troubleshooting guidance for the pit and pump system.

Radon, Mold, and Air Quality: Sump Pits as an Indoor Air Barrier

While the primary purpose of a sump pit is groundwater management, the airtight lid requirement under NBC 9.14.5.2 serves a crucial secondary function in the battle against indoor air contaminants-especially radon, a radioactive soil gas strongly linked to lung cancer risk, and mold, which thrives in wet environments.

Radon Mitigation and Sump Systems

Calgary’s geology makes radon a known risk in residential basements, and any path from sub-slab soil to living areas must be tightly sealed. Sump pits with poor-quality or ill-fitting covers act as a primary entry point for radon infiltration. Modern lids must include gaskets, bolt-down hardware, and even built-in ports for sub-slab depressurization if radon mitigation is needed. Homeowners are advised to test radon levels after any renovation that modifies basement systems, sump included.

Mold Growth and Sump Maintenance

Standing water, sediment build-up, and poor airflow around the sump pit can foster mold. A well-sealed cover coupled with regular inspection and cleaning reduces this risk. In flood-prone areas, anti-microbial sump liners or regular disinfection may be warranted-especially if the sump pit ever handles greywater as part of an older design (not typical in modern Calgary homes).

Discharge Options: Where the Water Should Go

The final stage of a sump pit system is the discharge line. CBC and Calgary bylaw require that all pumped water be discharged in a manner that:

  • Does not return water toward the foundation or neighboring properties.
  • Does not discharge onto public sidewalks, roadways, or create icing hazards.
  • Connects to storm sewers only where explicitly permitted; sanitary sewer discharge is prohibited in almost all new installations.
  • Directs water safely to a drainage ditch, dry well, or approved splash pad at least two meters from the dwelling.

Builders planning multi-lot developments must coordinate site-wide grading and drainage plans to avoid cross-property disputes and meet all municipal requirements. Homeowners retrofitting can be fined if discharge causes nuisance flooding or ice build-up on public land.

Real-World Scenarios: Lessons from Calgary Installations

Experienced contractors in Calgary relate common pitfalls and lessons learned from hundreds of sump pit installations:

  • Sizing the pit too small, leading to frequent pump cycling and early burnout.
  • Omitting airtight covers, resulting in visible condensation, musty air, or failed radon inspections.
  • Underestimating maintenance needs-ten-year-old pumps often fail with no warning if never inspected.
  • Poor planning for backup systems, leaving finished basements vulnerable during power outages or extreme events.
  • Improper discharge routing, causing surface pooling or complaints from neighbors and the City.

The best advice: don’t treat the sump pit as an afterthought. Invest in quality design, materials, and professional workmanship from the outset to avoid recurring issues.

Resources and Further Guidance

Conclusion: A Foundation for Long-Term Protection

For homeowners, builders, and developers in Calgary, ensuring lawful and effective sump pit design and installation is a critical step in safeguarding basement living space, maintaining air quality, and upholding local building standards. By understanding the requirements under NBC 9.14.5.2 and the City of Calgary’s permitting and inspection processes, all stakeholders can navigate the system with confidence-achieving lasting, worry-free protection against water damage and regulatory headaches. The path to a dry, healthy basement begins with a well-planned, code-compliant sump pit system maintained for years to come.
