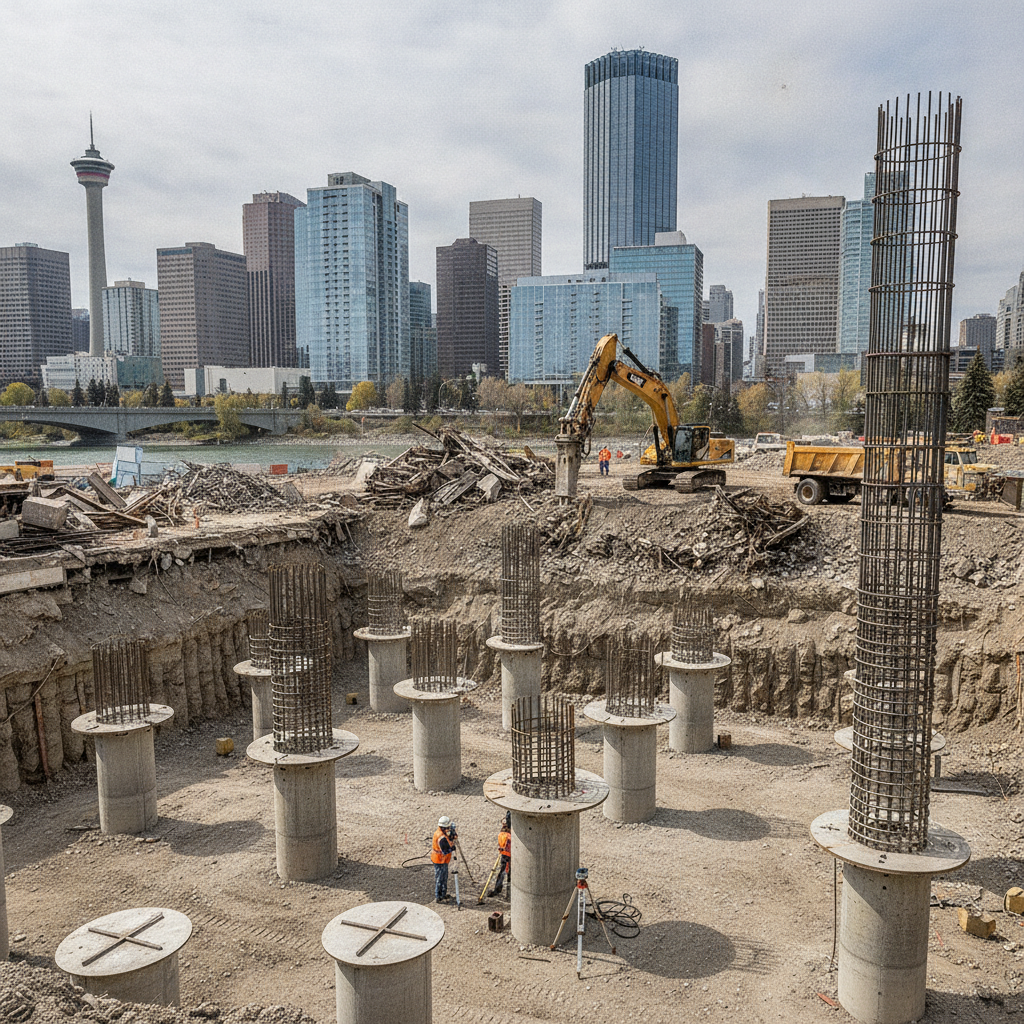

Every year in Calgary, property owners, developers, and builders embark on projects that redefine the city's urban landscape. Behind the visible progress lie countless technical considerations, and among them, the proper design and alignment of deep foundations-such as piles, caissons, and drilled shafts-stands as a fundamental safeguard for structural integrity. Local geology, climate, and stringent regulatory requirements coalesce, making tolerance in the alignment and location of deep foundation elements not only a technical necessity but a legal mandate as per Section 4.2.7.3 of the National Building Code (NBC).

Failures or misalignments at the foundational level can jeopardize entire structures, lead to costly repair work, and in extreme cases, threaten public safety. Thus, correct implementation of tolerances specified in the NBC is not just a procedural step, but a foundational imperative for those investing in Calgary’s built environment.

The Importance of Tolerance in Deep Foundation Design

Deep foundations transfer structural loads to soil layers or rock far below the ground surface-a necessity in many Calgary districts where near-surface soils are not competent for supporting heavy structures. The precise placement and vertical alignment of these deep foundation elements determine how efficiently and safely these loads are transferred to subsoil strata.

Tolerance refers to the maximum permissible deviation from the designed alignment or location of foundation elements. Even small misalignments can cause:

  • Uneven load distribution
  • Excessive settlement or tilting
  • Compromised structural connections (e.g., pile caps, grade beams)
  • Difficulty integrating with above-ground architectural or structural components
  • Material stresses beyond design values, risking cracking or failure

Recognizing these risks, regulatory authorities require tolerances to be established based on meticulous design analysis and for any permitted deviations to be documented explicitly on construction drawings.

Demystifying NBC 4.2.7.3: What Calgary Builders Must Know

Article 4.2.7.3 in the National Building Code outlines the specific approach to setting and managing tolerances for deep foundation placement. The NBC states:

“Except as provided elsewhere in this Section, the permissible deviation from the design alignment and location at the top of each deep foundation unit, shall be established by the designer based on analysis and shall be indicated on the construction documents.”

This clause assigns engineers the responsibility of:

  • Calculating what deviations can be tolerated by the structure without causing adverse performance or safety impacts
  • Stating these values clearly in drawings and specifications, so that they guide every stage of construction and inspection
  • Ensuring that field teams and quality inspectors have a concrete benchmark for verifying work during and after installation

Crucially, the NBC does not impose “one-size-fits-all” numbers; it expects engineers to base their tolerances on the structure’s needs, local geotechnical data, and risk factors. This flexibility allows adaptation to Calgary’s unique ground conditions-ranging from glacial tills and clayey soils, to bedrock and backfilled lots-but also increases the responsibility borne by project teams.

Calgary’s Geotechnical Landscape: The Subsurface Context

Prior to designing any deep foundation system, a detailed geotechnical investigation is indispensable. Calgary sits within the Western Canadian Sedimentary Basin, presenting significant variability in soil types and bearing capacities-even between adjacent neighborhoods.

Common Soil Conditions in Calgary:

  • Glacial Till: Common beneath much of the metropolitan area, offers high bearing strength but may pose challenges during pile driving due to variable composition and cobbles.
  • Clay and Silt Layers: Subject to consolidation and settlement; require careful load transfer design.
  • Sandy Soils: Prone to shifting and potential issues with water ingress; require tailored solutions for helical piles and deep caissons.
  • Bedrock: Typically shallow in the west and northwest; provides excellent bearing but is demanding to drill.
  • Backfilled Land: Compacted fill over former excavations; variable load capacity and often unpredictable subsidence behavior.

The composition and properties of these soils affect not only the type and size of deep foundations, but also the reasonable allowances for alignment, location, and potential deviation during installation.

Establishing Tolerances: Engineer’s Analytical Approach

Determining the permissible tolerance for each deep foundation element means balancing the theoretical ideal against the realities of site conditions and construction technology. Here’s how experienced Calgary structural engineers approach the task:

1. Risk Assessment Based on Structure Type

  • Residential projects: May allow slightly more generous tolerances due to lighter loads and structural redundancy.
  • Commercial/highrise projects: Demand tighter control, given higher loads, multi-storey transfer systems, and stricter serviceability requirements.
  • Infrastructure (e.g., bridges, utilities): Often engineered for extremely tight tolerances owing to public safety mandates.

2. Analysis of Load Paths

Engineers simulate how loads transfer from the superstructure, through the pile cap or mat, into each foundation element, and from there, into the soil. Misalignments can introduce unintended bending, additional moments, or uneven load sharing-all of which must be factored into the tolerance setting.

3. Consultation of Past Project Data and Standards

Local construction history provides valuable benchmarking for what has been successfully executed in similar soils and structural types. Where necessary, references such as the Canadian Foundation Engineering Manual, local city bylaws, and CSA standards are consulted.

4. Safety Margins

Allowable tolerances are often set more conservatively when soil conditions are unpredictable, site access is restricted, or when construction technology might impose greater variation (e.g., driven versus bored piles).

5. Documentation

All assumptions, calculations, and final tolerance values must be meticulously recorded on design documents. The NBC requires these tolerances to be visible and enforceable, not buried in appendix notes.

Example Tolerances (for Conceptual Context Only):

While every project must establish its own numbers, structural engineering practice in cities like Calgary may set physical location tolerances such as:

  • Axial misplacement at pile top: ±75 mm (±3 inches)
  • Vertical deviation from plumb: 1:100 (i.e., 1 cm per meter of pile length)

These are for illustrative purposes only and must always be validated by an engineer with Calgary-specific experience.

The Role of Geotechnical Investigation

All subsequent foundation design depends entirely upon the accuracy and thoroughness of the preliminary geotechnical report. In Calgary, licensed geotechnical consultants perform drilling, sampling, and in-situ testing to reveal:

  • Soil stratification
  • Depth to competent strata
  • Groundwater conditions
  • Poorly compacted fill or debris layers
  • Potential contamination (former industrial or landfill sites)

Any of these findings can directly affect tolerance decisions. For example, soils susceptible to shifting may require tighter controls, while strong, homogeneous layers could warrant slightly greater flexibility in pile position or inclination.

Reporting Requirements

Calgary standards demand that geotechnical reports are stamped by a licensed P.Eng (Professional Engineer) and incorporated into all design submissions for permit application. These reports must align with NBC provisions and form the empirical basis for the tolerances decided by the structural engineer.

From Blueprint to Reality: Quality Control During Installation

The best-designed tolerance plan will fail without robust quality control on site. Deep foundation installation involves numerous uncertainties, including:

  • Instrument drift during pile driving or drilling
  • Unexpected obstructions below ground
  • Settling or “walking” of piles during installation (especially in water-logged or unstable soils)
  • Difficulty in maintaining verticality of long or slender elements

It is therefore vital to have clear, enforceable inspection and verification protocols:

Pre-Construction Coordination

  • Set out pile locations using high-precision survey equipment (total stations or GPS-guided tools)
  • Mark datum points and reference benchmarks for ongoing checking
  • Brief field crews on allowable tolerances and immediate reporting requirements if deviations arise

During Construction

  • Continuously monitor pile positioning and verticality during installation
  • Record as-built locations and inclination of each foundation member in logbooks or digital systems
  • Employ third-party inspection (when required) for quality assurance

Post-Installation

  • Final survey of pile positions and vertical alignment before accepting work as complete
  • Compare results against tolerances set in the construction documents
  • Document any deviations and follow up with structural engineers to determine if remediation or design adjustment is required

Contractors who do not adhere to these protocols risk abandonment of work, costly re-dos, or failure to obtain a final building permit. Modern digital tools-such as BIM-linked GPS survey data and cloud-based inspection logs-can streamline compliance and provide a clear audit trail for municipal review or future reference.

Calgary Permit Requirements for Deep Foundation Work

Every new build or significant renovation in Calgary necessitates a rigorous permitting process to ensure conformance to safety and planning standards. The two core permits applicable to deep foundation works are the Development Permit (DP) and the Building Permit (BP).

Development Permit (DP)

A DP evaluates whether the proposed development aligns with land use bylaws-covering zoning, uses, setbacks, massing, and community impact. Without DP approval, foundation construction cannot legally begin.

  • Who Needs One? All new buildings, additions resulting in new floorspace, or significant site changes.
  • What It Covers: Site plan, building mass, parking, landscaping, grading, and interfaces with city infrastructure.
  • Key Submission Requirements:
    • Site survey and drawings
    • Geotechnical report (if deep foundations are involved)
    • Legal land title and cadastral maps

Building Permit (BP)

An approved BP confirms that detailed construction plans-including all structural, geotechnical, and MEP (mechanical/electrical/plumbing) aspects-meet the NBC and Alberta Building Code. For deep foundations, particular scrutiny is placed on the foundation design, tolerances indicated on drawings, and supporting soil data.

  • Who Needs One? Any new structure, addition, or major renovation touching structural elements.
  • What It Covers:
    • All technical plans, stamped by appropriate professionals
    • Detailed construction sequencing and safety plans (for deep foundation activities)

Permit Timelines and Process

  • Development Permit Review: ~60 days for review, plus a 21-day advertisement period (for appeals from adjacent property owners)
  • Total DP Turnaround: 10 to 12 weeks typical from application to full approval
  • Building Permit Review: ~21 days, conditional on the completeness and accuracy of the submission

Permit processing times can extend significantly if supporting documents (notably geotechnical reports or foundation design drawings) lack clarity, omit required tolerances, or do not align with the National Building Code.

Permit Fee Structures

  • Development Permit:
    • Application Fee: $365
    • Mandatory Public Advertising: $30
    • Completion Inspection Fee: $155
    • Total Typical Cost: $550
  • Building Permit:
    • Varies by project size and complexity; commercial and high-rise developments accrue higher fees

The City of Calgary maintains up-to-date calculators on its website for accurate budgeting.

Full Project Lifecycle: From Concept to Foundation Completion

To help builders, developers, and homeowners navigate the complex interplay of design tolerances, geotechnical realities, and regulatory requirements, this lifecycle overview outlines the sequential steps to compliance and success in Calgary:

1. Conceptual Planning

  • Initial site assessment by architects and developers
  • Feasibility study, including a preliminary review of NBC sections relevant to deep foundations
  • Engagement of structural and geotechnical engineers

2. Geotechnical Investigation

  • Fieldwork: Borehole drilling, sampling, standard penetration tests
  • Laboratory analysis of soil and groundwater samples
  • Preparation of stamped geotechnical report, including recommendations for allowable pile types and depths

3. Design Development

  • Selection of the appropriate deep foundation system (driven piles, drilled shafts, caissons, etc.)
  • Analysis of load transfer, soil-structure interaction, seasonal ground movement potential
  • Calculation and documentation of permissible tolerances in both horizontal alignment and verticality as per NBC 4.2.7.3
  • Preparation of detailed construction drawings with clear, bold notation of all tolerance values

4. Regulatory Approvals

  • Submission of DP and BP applications, accompanied by all design, survey, and geotechnical documentation
  • Response to any requests for clarification or supplementary data from city reviewers
  • Securing permit issuance before commencing site mobilization or excavation

5. Construction Preparation

  • Site staking and layout using fixed benchmarks and total station survey tools
  • Pre-construction safety meetings, review of tolerance requirements, allocation of roles for inspection and quality assurance
  • Equipment mobilization and procurement of materials

6. Deep Foundation Installation

  • Active monitoring of pile locations, inclinations, and depths during installation
  • Real-time recording of deviations and immediate corrective action if approaching tolerance limits
  • Third-party inspection when mandated by contract or city licence requirements

7. As-Built Survey and Documentation

  • Final survey of all deep foundation elements, documented precisely for city inspection and future maintenance traceability
  • Compilation of a QC (quality control) binder, including inspection reports and photographic records
  • Issuance of construction completion certificates by structural and geotechnical engineers

8. Site Handover and Commissioning

  • Submission of all as-built data and QC documentation to municipal authorities for permit sign-off
  • Transition to superstructure construction once final approval is secured

This chain of events emphasizes why early planning, professional engagement, and continuous record-keeping remain essential to successful deep foundation works in Calgary.

Common Pitfalls and How to Avoid Them

Veterans of Calgary’s construction scene know that even the best-designed projects can suffer setbacks if practical realities or regulatory nuances are neglected. The following pitfalls have derailed projects in the past:

1. Insufficient Geotechnical Investigation

  • Cutting corners on boreholes or test pits often leads to missed soil anomalies, which later result in unexpected pile refusal, excessive settlement, or bearing failures.

2. Ambiguous Tolerance Documentation

  • If construction drawings do not state clear, project-specific tolerances for alignment and location, site teams have no defensible benchmark for their work, exposing owners to risk and delays in passing city inspections.

3. Poor Survey Practices

  • Inaccurate or outdated survey data at the layout stage can propagate compounding errors throughout deep foundation installation, even if tolerances are managed during subsequent work.

4. Neglecting Real-Time Quality Assurance

  • Delaying corrective action until all piles or caissons are in place, rather than addressing deviations pile-by-pile, can lead to cumulative errors exceeding permissible limits.

5. Incomplete Permit Documentation

  • Missing stamps from authorized engineers, incomplete geotechnical reports, or lack of as-built data can stall city permitting at any stage, costing both time and money.

6. Assumptions Regarding NBC "Wiggle Room"

  • Believing that municipal inspectors will overlook minor deviations or accept industry-standard tolerances without documentation is a costly mistake. The NBC requires project-specific, design-based tolerances to be respected and verified.

Practical Recommendations for Calgary Homeowners, Developers, and Builders

Whether you are a homeowner planning a major addition, a developer plotting a new commercial tower, or a general contractor overseeing multiple trades, the following best practices apply in ensuring success with deep foundation tolerances:

  • Engage Professional Expertise Early: Never rely on generic design templates or past project tolerances; always retain Calgary-experienced, licensed geotechnical and structural engineers from the outset.
  • Prioritize Clarity in Design Documentation: Every foundation drawing should feature explicit, easily referenced tolerances (in both metric and imperial, where useful).
  • Insist on Quality Assurance at Each Project Stage: From initial survey through to final as-built certification, build a culture of accountability where deviations are caught-and fixed-immediately.
  • Maintain Open Communication with City Officials: Compliance is a collaborative process; engage with permitting staff well before submitting applications to clarify requirements and streamline approvals.
  • Keep Thorough Records: Every analysis, inspection, and remedial action should be entered into a project log. Not only does this satisfy city review but offers lasting protection in the event of future claims or resale.
  • Educate Field Crews: Make sure your tradespeople understand why tolerances matter and how even minor deviations can translate into structural, legal, or safety risks.

The Cost of Non-Compliance: A Calgary Perspective

When deep foundations are installed outside of the permitted tolerances, consequences unfold that far exceed the initial cost savings of skipping steps or taking shortcuts. These can include:

  • Post-Construction Structural Failure: In rare but catastrophic scenarios, building elements may shift, crack, or even partially collapse due to uneven settlement or overloaded support points.
  • Enforcement and Legal Action: Calgary’s municipal inspectors may order stop-work notices or require costly remedial work if as-built surveys fail to align with permitted tolerances.
  • Extended Delays and Lost Revenue: Commercial projects, in particular, risk missed tenant possession deadlines, penalty clauses, and reputational harm due to foundation issues.
  • Future Resale or Insurance Challenges: Undocumented or non-compliant foundations loom large in title searches, potentially scuttling real estate deals or insurance claims years after construction concludes.

Changing Technologies: Tools for Modern Foundation Tolerance Management

Calgary’s construction sector is increasingly embracing digital innovations to improve the design, layout, and verification processes for deep foundations. Technologies now in regular use include:

  • GPS-Guided Layout: High-accuracy GNSS surveying enables field crews to position pile locations with centimeter-level precision, even over large or irregular sites.
  • 3D BIM Integration: Linking BIM models to field positioning systems allows for real-time deviation detection and clash checking with above-grade structures.
  • Digital Inspection Apps: Field data is uploaded instantly to cloud-based platforms where civil engineers, city inspectors, and QA staff can review and sign off on compliance at any hour.
  • Automated Machine Control: Drill rigs and pile drivers with integrated lasers and GPS can self-correct for minor alignment deviations during installation, reducing human error.

Owners and developers investing in these technologies often recoup costs through reduced rework, faster inspections, and higher confidence in passing permit milestones at every stage.

Frequently Asked Questions: Deep Foundation Tolerances and Permit Compliance in Calgary

Q: Who determines the actual tolerance limits for my project?

A: Your licensed structural engineer, guided by project-specific analysis, geotechnical data, and NBC 4.2.7.3. All limits must be documented on construction drawings and referenced in permit applications.

Q: Does the City of Calgary inspect foundation alignment during or after installation?

A: Yes. Inspections at critical stages (often before pouring concrete or after pile installation) are mandatory. City reviewers check as-built data against the tolerances noted on your permit documents.

Q: What happens if an installed pile or caisson exceeds the permitted tolerance?

A: Typically, your structural engineer must analyze the impact of the deviation on the building's safety. If unacceptable, corrective measures-ranging from demolition and replacement, to engineered reinforcement-are required before further construction proceeds.

Q: Are there ways to expedite permit processing for challenging foundation projects?

A: Advance submission of comprehensive, professional documentation with clear tolerances, engagement of city staff prior to application, and use of digital as-built tracking all increase the chances of smooth, timely approval.

Q: How important is comprehensive record-keeping?

A: It is crucial. Incomplete records mean no foundation for compliance verification-opening the door to costly legal, safety, and resale issues.

Case Study: Navigating Tolerances in a Calgary Multi-Storey Commercial Project

Consider a mid-rise mixed-use development in downtown Calgary. The developer’s engineers, using local geotechnical data, selected a combination of driven steel H-piles and drilled caissons to manage high axial and lateral loads. Tolerances were set at ±50 mm for pile head location and a verticality limit of 1:150. During installation, a groundwater pocket forced several caissons slightly out of true. Field crews immediately reported the deviation, and the as-built survey flagged three caissons as exceeding the inclination threshold.

The engineering team was engaged to perform a revised load analysis with the as-built as a reference. Two caissons were deemed safe within minor design adjustments, but one required replacement. Quality control data, clear communication, and up-front documentation of tolerance values made it possible to quickly decide, avoid delay, and maintain both permit compliance and project schedule.

Looking to the Future: Evolving Codes and Best Practices

The National Building Code and City of Calgary regulations are continually updated to respond to advances in material science, construction technology, and risk understanding. Builders and designers should monitor future changes to NBC Section 4.2, expecting further emphasis on digitized documentation, real-time QA/QC standards, and possibly even tighter tolerance controls for high-occupancy structures.

Calgary’s rapid urbanization also increases scale and complexity: The interplay of new transit corridors, high-rise residential towers, and mixed-use facilities means more rigorous geotechnical reporting, more engagement with city planners, and a premium placed on proven best practices for foundation tolerances.

Summary: Key Steps for Successful Deep Foundation Tolerance Management

  • Start geotechnical and structural design early with licensed professionals.
  • Insist on explicit, analyzed tolerances on all construction drawings as mandated by NBC 4.2.7.3.
  • Coordinate with city authorities and submit full, professionally stamped documentation for both Development and Building Permits.
  • Survey, stake out, and monitor foundation work rigorously, embracing new technologies where possible.
  • Record every inspection and remedial step, preparing clear as-built documentation for final handoff.
  • Address all deviations in real-time, consulting with engineers for corrective actions and keeping municipal inspectors informed.

This thorough approach, tailored to both statutory requirements and Calgary’s unique ground conditions, gives homeowners, builders, and developers confidence that their structures will be safe, durable, and in full regulatory compliance from the very first shovel in the ground.

About Kingsway Demolition & Excavation

Kingsway Demolition & Excavation brings decades of Calgary-based experience to every site, specializing in foundation works that start your project on solid ground.
