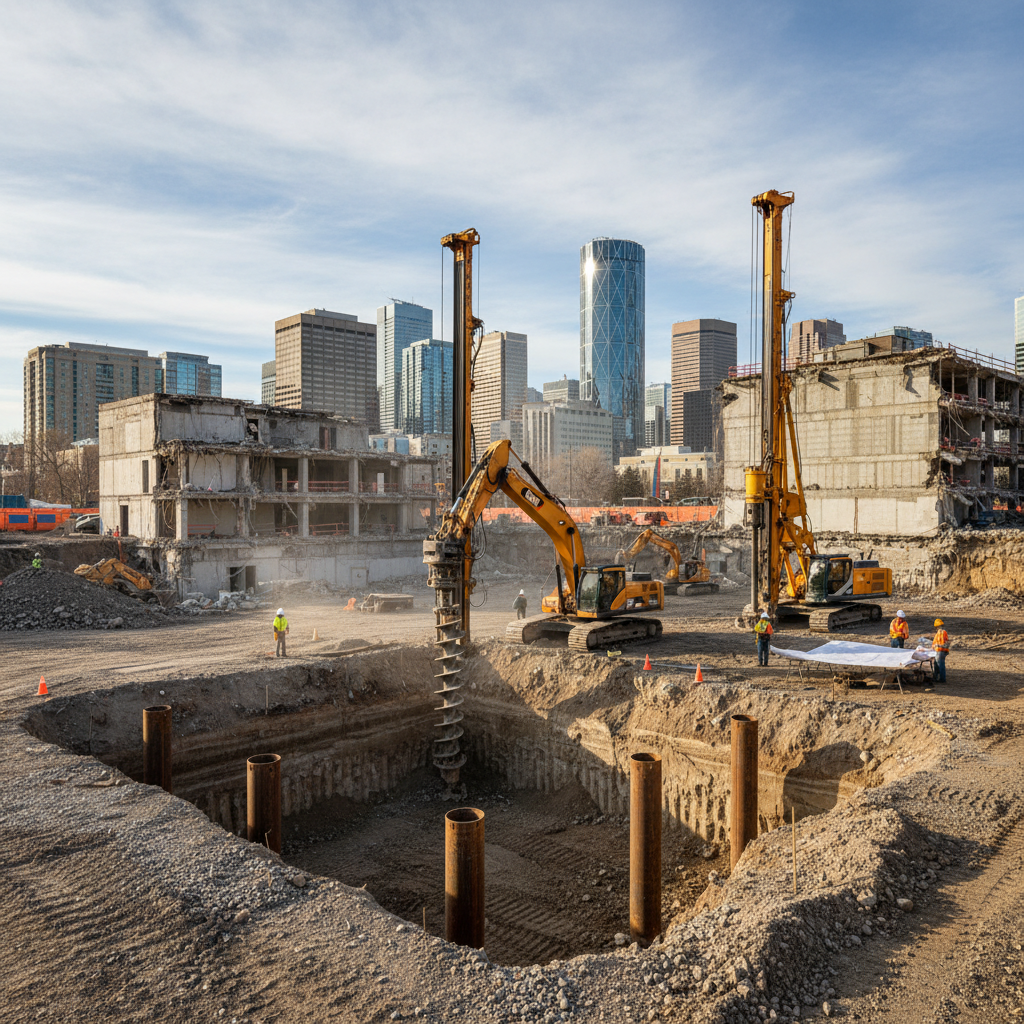

Every year, construction projects across Calgary rely on deep foundations to support a wide range of structures-from single-family homes to multi-storey towers and industrial facilities. Calgary’s clay-rich soils, varied depths to bedrock, and the region’s freeze-thaw cycles pose unique challenges for builders and developers aiming for both safety and regulatory compliance. Ensuring the proper design and execution of deep foundations is not just a matter of engineering best practice; it is required by law under the National Building Code (NBC), in particular Section 4.2.7.2 for deep foundations. Understanding this regulatory landscape is crucial for anyone excavating, building, or developing in Calgary.

What Are Deep Foundations?

Deep foundations are structural elements designed to transfer building loads past weak or highly compressible soils near the surface to stronger, more stable strata at depth. Common deep foundation systems include piles (driven or drilled), caissons, piers, and helical screw piles. These elements work either by bearing on competent soil or bedrock or by friction between the surface of the foundation and the surrounding soil.

In Calgary, where differential settlement, expansive clays, and unpredictable soil profiles can be significant factors, the correct design and implementation of deep foundations are often mission-critical. Mistakes or cost-saving shortcuts can have far-reaching implications-structural instability, costly remediation, legal liability, and safety risks.

Navigating the National Building Code: Section 4.2.7.2

The National Building Code of Canada (NBC) is the primary authority for construction standards across the country. Section 4.2.7.2 of the NBC provides the specific requirements for the design of deep foundations, referencing both general and project-specific criteria that must be observed:

  • All deep foundations must be designed according to Subsection 4.2.4 (General Design Requirements) and the particular provisions of Subsection 4.2.7 (Foundations on or in Materials Other Than Soil or Rock).
  • Critical aspects outlined include the installation method, the level of inspection required (including engineer supervision), the spacing of foundation units, and where relevant, the group effects (how neighboring piles interact under load).
  • Deep foundations must be load-tested by or under the direct supervision of a qualified professional engineer with specialized skills and training in this field.
  • Subsurface soil conditions must be characterized through a geotechnical investigation, and appropriate engineering judgment is needed to select pile type, dimensions, and installation technique.

Non-compliance with these stipulations is not an option: failing to adhere to the code puts safety, property, and financial investments at risk.

The Interplay Between National and Provincial Codes in Alberta

Alberta adopts the NBC but modifies its requirements through updates to the Alberta Building Code. For Calgary builders and developers, the strictest applicable standard always prevails. Additional local bylaws and permitting protocols further refine (and sometimes enhance) the NBC’s broad framework with Calgary-specific rules-especially concerning site conditions, utilities, and neighborhood development plans.

Why Deep Foundations Are Essential in Calgary’s Geology

Calgary’s subsoil conditions present engineering challenges that are more complex than those found in many other Canadian cities. The region’s archetype includes:

  • Variable Depth to Bedrock: Some areas reach competent bedrock within a few meters of the surface, while others encounter thick deposits of alluvial silts and clays.
  • Expansive Clays: The presence of bentonite and similar clays can cause significant seasonal heave and shrinkage, endangering foundations placed too close to the surface.
  • Fill Materials: Urban infill and redevelopment often encounter old fill soils of unknown composition and compaction, which are unsuitable for shallow foundations.
  • Water Table Issues: High water tables can further complicate the behavior of soils both during and after construction.
  • Frost Depth: Deep frost penetration (often exceeding 1.2 m) requires foundations to be placed below the zone of seasonal freeze-thaw to prevent frost jacking and undue movement.

Against this backdrop, simply digging a shallow footing and pouring concrete is often insufficient, unsafe, and code non-compliant.

Types of Deep Foundations Commonly Used in Calgary

Depending on site-specific geotechnical findings, intended structure, and construction constraints, several deep foundation techniques are commonly used in Calgary construction:

  • Driven Piles: Steel, concrete, or timber piles hammered into the ground to refusal or a specified bearing stratum. Typically used in high-load applications, including bridges and multi-storey buildings.
  • Drilled Shafts (Caissons or Bored Piles): Large-diameter holes are drilled, reinforced, and filled with concrete. Drilled caissons are a frequent choice for commercial, industrial, and high-end residential construction where vibration from driving piles is undesirable.
  • Helical Piles: Steel shafts with helical plates are screwed into the ground with hydraulic equipment. These are highly effective in fill areas with uncertain soils, or when minimizing disturbance is critical.
  • Micropiles: Small-diameter piles installed by drilling, often grouted after insertion. Used in tight access sites, retrofits, and where high loads must be transferred to deep, competent soils.

The ultimate design always stems from the recommendations of a qualified geotechnical engineer-and must reflect both code requirements and the project’s specific loading and performance criteria.

Dissecting NBC 4.2.7.2: Critical Elements for Calgary Projects

1. Installation Method

The installation method-driven, drilled, augered, or screwed-affects both the load capacity and how the soil around the pile behaves. For example, driven piles displace the soil, increasing lateral support, while drilled shafts can create looser zones around the pile unless properly managed.

The NBC mandates that the chosen method must suit prevailing subsurface conditions and be executed using equipment that ensures both integrity and alignment. This decision must be rooted in geotechnical findings-exploratory drilling, laboratory testing, and soil analysis-as opposed to rules-of-thumb or commercial precedent.

2. Degree of Inspection

The NBC calls for the direct involvement of qualified professional engineers throughout deep foundation installation. This includes:

  • Pre-installation verification: Reviewing and signing off preliminary calculations, plans, and equipment choices before the start of work.
  • On-site supervision: Engineers must oversee critical aspects of installation, especially during load testing, concrete placement, and pile integrity tests.
  • Logging installation data: Keeping detailed records of pile depths, driving resistance (for driven piles), or drilling logs (for caissons) and concrete volumes poured. These serve as both a record for code compliance and a valuable QA/QC tool.
  • Load testing and validation: Executing static or dynamic load tests on test piles or a representative number across the project, as described below.

Calgary Building Services and external code enforcement may ask to review these records-often as a condition of permit closure or occupancy approval.

3. Spacing and Group Effects

Modern projects often require groupings (or "arrays") of piles beneath columns, walls, or equipment pads. The NBC specifies minimum pile spacing and prescribes how group effects (i.e., the interaction of overlapping pressure zones between piles) are to be accounted for in the design. Too-close spacing can reduce the foundation’s effective capacity, induce excessive settlement, or create unpredictable load sharing.

Engineering judgment, validated by recognized design codes (CSA S6 for bridges, or AASHTO and Eurocode in some cases), is used to determine proper pile layouts. In Calgary, sophisticated 3D models and finite element analysis are sometimes brought in for unusual designs or heavy loading.

4. Load Testing Requirements

Not all piles can be tested for full structural load in practice, but the NBC requires that representative test piles-often called proof or sacrificial piles-be physically loaded (statistically or dynamically) to demonstrate their performance. Testing must be observed and interpreted by a qualified professional engineer with specialized experience in soils and foundations. Key methods include:

  • Static Load Test: Applying a slowly increasing vertical load and recording settlement or failure. Confirms theoretical load/rate-of-settlement predictions.
  • Dynamic Load Test: Impulse or vibration methods paired with pile driving records and computer analysis, especially effective with driven piles.
  • Integrity Testing: Sonic or ultrasonic pulse echo tests, crosshole sonic logging, or thermal integrity profiling for drilled caissons to check for defects or discontinuities in reinforcement/concrete.

Results feed back into the final approval of the foundation and can require adjustments or remedial works if underperformance is detected.

5. Detailed Geotechnical and Structural Documentation

For every deep foundation system in Calgary, a full dossier of geotechnical and structural engineering documentation is required as part of the permit application. This typically includes:

  • Site Investigations: Borehole logs, laboratory test reports, soil stratification diagrams, soil/water tables, and recommendations.
  • Foundation Drawings: Detailed layouts, rebar schedules, pile lengths, head details, and all associated engineering notes.
  • Construction Sequence: Method statements detailing how the foundation will be installed, inspected, and tested.
  • QA/QC Records: Logs of actual installation, observed anomalies, test results, and signed-off inspection reports from engineers.

Calgary Permit Requirements for Deep Foundations

City of Calgary bylaw and process overlays additional requirements atop NBC 4.2.7.2 for any new building or addition that leverages deep foundations.

Development Permit (DP)

A Development Permit addresses land use, density, building form, location, setbacks, and community interface. All new builds (residential, commercial, or mixed-use) and major additions require DP approval, usually before applying for a Building Permit. The process involves:

  • Submission of a complete DP application with site plans, usage rationales, surface drainage plans, and geotechnical findings if required.
  • Review for conformity with land use bylaws, area redevelopment plans, and current zoning regulations.
  • If variances (“relaxations”) or significant zoning departures are requested, public notice periods and opportunities for resident or stakeholder review.
  • Coordination with City’s Planning Services Centre and potentially the Calgary Planning Commission for large or complex projects.

Development Permits can take from a few weeks in straightforward cases to several months where public input or area plan compliance is contested.

Building Permit (BP)

A Building Permit covers technical compliance with the Alberta Building Code, the NBC, and other relevant codes (mechanical, electrical, energy efficiency, etc.). For deep foundations, obtaining a BP requires:

  • Engineer-stamped drawings indicating the deep foundation design, pile layouts, and supporting calculations.
  • Geotechnical report, with specific reference to pile/caisson type, length, diameter, and design loads.
  • Evidence of engineer endorsement for load testing and all critical design steps per NBC 4.2.7.2.
  • Additional documentation if local ground conditions or site history demand, such as environmental site assessments or utility location reports.

Building Permits, once received, authorize the start of construction. The City will often impose inspection milestones for deep foundation works, and a final occupancy certificate is contingent on completing all required documentation and inspections.

Fees and Timelines

Permit fees in Calgary are proportional to construction value and scope. For deep foundations, the engineering and investigation component can be a significant part of upfront costs. The City provides online calculators for fee estimation.

  • Basic Building Permit review periods (for applications with complete documentation) generally run 7-10 days. Incomplete, ambiguous, or insufficient submissions are the leading cause of delay.
  • Development Permit timelines are more variable, running from a few weeks to months for large-scale or controversial projects.
  • Plan reviews often require additional clarifications or resubmissions when deep foundation systems are involved due to their complexity and the potential impacts on neighboring properties or city infrastructure.

Builders should plan for multiple review cycles and maintain flexibility in project scheduling to accommodate both municipal feedback and the discovery of any site issues during initial excavation or drilling.

Subsurface Investigations: The Keystone of Deep Foundation Design

A properly executed geotechnical investigation is non-negotiable for every deep foundation project-regardless of project size or location. In Calgary, city officials and code enforcement will not accept foundation designs based on generalized soil maps or "neighboring lot" data. Each building site is unique and can exhibit dramatic differences over short distances.

Boreholes, Test Pits, and Laboratory Testing

The geotechnical investigation typically comprises:

  • Advancement of boreholes or test pits to a depth exceeding the planned foundation base, recording soil types, moisture, and any fill or organics.
  • Standard Penetration Tests (SPT) or Cone Penetration Tests (CPT) to quantify soil strength and density.
  • Laboratory testing of soil samples for grain size analysis, Atterberg limits, shear strength, and compressibility.
  • Monitoring groundwater levels, both at the time of drilling and ongoing if perched water tables or artesian conditions are encountered.

A full geotechnical report assesses risks like heaving or settling, makes direct recommendations for pile or caisson type and depth, and can flag environmental or construction hazards (e.g., buried utilities, old tanks, contamination).

Site-Specific Design Recommendations

The geotechnical engineer’s recommendations are tailored to:

  • Building height and weight: More massive structures require either more or deeper piles and closer spacing; dynamic loads (seismic, wind) are also considered.
  • Anticipated settlements: Codes limit both total and differential settlements; design targets must be supported by site test data and calculations.
  • Risks of collapse or caving: Drilled shaft construction in soft, saturated, or loose soils may require casing, slurry stabilization, or staged pours.
  • Frost heave and permafrost: Special measures are needed on sloped sites, or sites that will be unheated for extended periods.

Failure to base the design on rigorous field and lab data is one of the primary causes of costly mid-project changes, failed inspections, and litigation.

Structural Engineering and Deep Foundation Design

Structural engineers take the geotechnical data as the basis for designing the foundation elements themselves. Beyond determining load capacity, other factors include:

  • Buckling and Lateral Loads: Piles subject to lateral loads (wind, earthquakes, impact from vehicles) may require increased cross-section, greater embedment depth, or bracing.
  • Corrosion and Durability: Steel piles or reinforcements exposed to groundwater or aggressive soils may need coatings, cathodic protection, or specification of higher-grade materials.
  • Concrete Mix Design: For caissons and drilled piers, the concrete mix must be designed to achieve specified strength and flowability, often with admixtures for cold weather, permeability, or rapid curing.
  • Constructability: Access, vibration, noise, and timing must also be factored in, especially on urban infill or redevelopment sites with close neighbors.

All deep foundation plans submitted to the City must be sealed (“stamped”) by a professional engineer licensed to practice in Alberta, confirming compliance with both NBC 4.2.7.2 and applicable standards.

Execution: From Plan to Practice on Calgary Sites

The gap between “plan as drawn” and “foundation as built” is where most problems-technical or regulatory-arise. Deep foundation installation in Calgary should always follow best practices and be responsive to conditions discovered during initial excavation or pile advancement.

Key Steps in Deep Foundation Construction

  • Mobilization and Site Prep: Site boundaries are marked, underground utilities are located (Alberta One Call), temporary fencing erected, and access for heavy equipment ensured.
  • Initial Excavation: Where pile caps or grade beams are needed, topsoil and loose fill are stripped.
  • Surveying: Exact pile points are staked using total stations, with offsets marked for future reference.
  • Drilling/Driving: Piles, caissons, or helical piers are installed by specialized crews using large rigs; installation logs are kept for depth, soil conditions, and refusal layers.
  • Load Testing: As required by the engineer and code, piles are tested and monitored for settlement or deformation. Data is signed off by the engineer and archived.
  • Concrete Placement: For caissons, concrete is often placed via tremie pipes or pumped to avoid segregation or water contamination. Reinforcing cages are installed as per the engineer’s schedule.
  • Head Finishing: Pile tops are trimmed, tested, and foundation caps/grade beams are constructed to link piles into the structure.
  • Inspection and Signoff: City inspectors and private engineers confirm that every step meets or exceeds minimum standards.

Clear, detailed documentation at each step is your strongest defense against construction delays, disputes, or post-occupancy claims.

Common Deep Foundation Pitfalls in Calgary-And How to Avoid Them

1. Inadequate Subsurface Exploration

Attempting to “save money” by reducing the number of boreholes or depth of investigation may yield surprise ground conditions, foundation failures, or costly change orders. Each structure, even within the same block, can face dramatically different soil profiles.

2. Insufficient Engineering Review

Builders sometimes rely on “design-build” deep foundation contractors without an independent geotechnical or structural engineer’s oversight. While some contractors offer bundled services, only a licensed Alberta engineer can sign off the required code documents-and is held accountable for any errors.

3. Improper Pile Spacing or Layout

Packing piles too close together (to “save space” or reduce cost) can result in group failure modes, load shedding, or excessive settlement. Always follow minimum spacing recommendations from the code and the engineer’s report.

4. Skipping Load Testing

Load testing is a code requirement for a reason: errors in design assumptions, soil anomalies, or improper installation can only be revealed through physical testing. Neglecting this leads to rejected inspections and project delays.

5. Poor Record-Keeping and Inspection

Without detailed installation logs, proof of inspection, and test results, it may be impossible to demonstrate compliance at occupancy signoff or if a dispute later arises. Strong record-keeping is both a quality and a legal imperative.

6. Overlooking Calgary-Specific Regulations

Local policies regarding neighborhoods, stormwater, or utilities sometimes impose stricter requirements than the NBC. Always consult the City early and integrate their feedback into your project plan-especially in infill or overlay districts.

Cost Factors in Deep Foundation Projects

Deep foundations, by their nature, represent a significant portion of total project costs-often between 10% and 20% of a building’s construction budget, depending on the structure’s weight, footprint, and geotechnical circumstances. Major cost elements include:

  • Geotechnical Investigation: Varies by site size and anticipated complexity. In 2024, a basic two-borehole residential investigation may cost $5,000-$10,000. Large commercial projects with multiple deep boreholes, extensive lab tests, and groundwater monitoring can exceed $50,000.
  • Engineering Design: Includes both geotechnical and structural engineering fees, usually cited as a percentage of overall construction costs but potentially higher for small or unusual sites.
  • Piling Materials and Installation: Driven piles tend to be cheapest per linear meter but may not work on tight sites; drilled caissons are slower but more site-flexible; helical piers can be premium-priced due to special equipment needs.
  • Testing and Inspection: Mandatory load testing, pile integrity testing, and third-party checking.
  • Permits and Plan Reviews: As per City schedules; delays mean more holding costs and lost productivity.
  • Contingency for Site Surprises: Unanticipated groundwater, buried obstacles, or bad weather events can demand expensive mitigation.

Accurate budgeting requires a realistic approach to both field challenges and administrative needs. Engage professionals early for reliable cost control.

Timelines and Scheduling Considerations

Working deep foundation activities into a project’s calendar means accommodating:

  • Permit review and approval timelines, which can be quick for small jobs or lengthy for complex projects.
  • Preconstruction investigations and engineering (4-8 weeks for full geotechnical and structural design review on typical developments).
  • Mobilization of piling rigs and specialty contractors (days to weeks depending on equipment needs and market demand).
  • Construction time for foundation installation (single-family homes = days; commercial/multi-family = several weeks or months).
  • Inspections and testing, which may require waiting periods for concrete curing or test results.
  • Weather-related delays, especially in winter or wet months, when ground conditions complicate drilling or concrete placement.

Anticipate these critical path activities upfront and inform stakeholders and financiers that deep foundations often define the project’s “start-to-finish” window.

Collaboration: The Key to Success with Deep Foundations

Deep foundation projects are most likely to succeed when all participants-owner, builder, developer, engineer, city officials, and specialty contractors-are aligned from the start. Constructability reviews, preconstruction meetings, and clear chain-of-command for decision-making should be established before shovels hit the ground.

  • Set up kickoff meetings to synchronize design intents, site findings, and construction logic.
  • Ensure all engineering consultants have the latest site data (borehole logs, lab tests, hydrogeology).
  • Identify critical milestones: load testing, concrete pour windows, inspection signoffs.
  • Develop a contingency plan for site surprises-alternate pile type, casing requirements, or dewatering strategies can save valuable time and budget if unanticipated obstacles emerge.

Communication with the City of Calgary

Many issues that derail permit approvals or site inspections stem from miscommunication or incomplete submissions. Developers and builders should:

  • Contact the Planning Services Centre early and keep them apprised of site changes or conceptual shifts.
  • Submit all plans and reports digitally, double-checking for signatures, stamps (“seals”), and required addenda.
  • Anticipate and promptly respond to requests for information or revisions from plan reviewers or inspectors.
  • Schedule City inspections with sufficient notice, especially for key milestones like pile installation and concrete placement, since inspectors may have crowded calendars.

Establishing a single point of contact between the construction team and the City can reduce delays, confusion, and lost paperwork.

Case Studies: Lessons from Real Calgary Projects

Case 1: Infill Development Gone Awry

A builder undertook a residential infill on a subdivided inner-city lot. Assuming soils were “the same as next door,” they proceeded with shallow strip footings. Early-stage settlement and floor deflection were detected before completion, prompting emergency review. Geotechnical investigation revealed soft fill and buried organic layers. The project was halted, deep helical piles retrofitted, and occupancy delayed by months-at considerable expense.

Lesson: Never rely on assumptions, and always insist on site-specific geotechnical data-even for apparent “cookie-cutter” projects.

Case 2: Successful Collaboration on a Commercial Midrise

A midrise office tower beside the LRT line was designed from the start with deep driven steel piles, in close partnership between the owner, architect, geotechnical, structural, and City inspectors. Thorough site investigation identified a buried utility corridor, influencing pile location. Test piles were load-tested with engineers and inspectors present. The foundation met all code and was delivered ahead of schedule.

Lesson: Early, comprehensive investigation and communication with all stakeholders, including the City, is the surest route to a trouble-free project.

Emerging Trends in Calgary Deep Foundation Design

As Calgary’s skyline grows and urban densification accelerates, deep foundation practice is evolving. Modern trends include:

  • Use of Helical Piles: Increasingly popular for both new homes and retrofits due to ease, minimal disturbance, and high reliability in unpredictable soils.
  • Data-Driven Design: Enhanced use of computer modeling, pile monitoring sensors, and real-time data logging to optimize installation and confirm performance.
  • Hybrid Foundation Systems: Some structures merge driven piles with raft slabs or mat foundations to distribute loads and mitigate differential settlement.
  • Sustainability Goals: Selection of piles that minimize embodied carbon, improved site dewatering/recycling, and reuse of foundation materials on redevelopments.

Staying current with best practice-and confirming via City and code that innovations remain compliant-is advised for forward-looking builders and developers.

Tips for Homeowners, Developers, and Builders Starting a Deep Foundation Project in Calgary

  • Consult Early: Bring in a geotechnical engineer and structural engineer before finalizing building plans or bidding construction; critical design choices must be grounded in real site data.
  • Budget Adequately: Prepare for both hard costs (engineering, materials, installation) and soft costs (permits, inspections, contingencies).
  • Document Thoroughly: Maintain detailed logs, reports, test results, and inspection confirmations; this is your protection for City review, lenders, and eventual resale.
  • Respect City Protocol: Comply fully with Calgary’s permit process-missing or late submissions, or attempts to bypass review, always backfire in the long run.
  • Choose Qualified Partners: Work with engineers, contractors, and consultants with proven experience in Calgary’s soils and who understand local regulatory nuances.
  • Plan for Change: Even the most exhaustive site investigation cannot uncover every subsurface anomaly; leave contingency in both schedule and budget.
  • Coordinate for Success: Timely, honest communication between owners, builders, engineers, and the City leads to safer, smoother, and more successful foundation projects.

Conclusion: Building Strong Foundations in Calgary

Ensuring the proper design and execution of deep foundations in Calgary is a multi-layered process involving national and municipal codes, site-specific engineering, and methodical execution. NBC 4.2.7.2 is more than just a regulatory hurdle; it is a structured system designed to deliver safety, durability, and value to every construction project-protecting both property owners and the public.

By navigating this landscape with care, leveraging the full expertise of geotechnical and structural engineers, and collaborating openly with authorities, developers and builders work not only toward code compliance but toward assured project success and legacy structures that endure.

For demolition, excavation, and foundation projects in Calgary, Kingsway Demolition & Excavation stands ready to support your next development with experience, engineering know-how, and a commitment to safety and quality.
