Construction activity in Calgary that involves excavations-whether for new homes, buildings, or infrastructure-carries inherent risks that must be carefully managed to protect both the workers and the future structure. In Canada, the National Building Code (NBC) strictly regulates excavation processes to ensure that safety is maintained from the moment shovels break ground. Section 4.2.5.7 of the NBC, in particular, mandates that all sides of excavations are preserved against deterioration from construction activity, weather, and environmental hazards. Ensuring adherence to these standards is not simply best practice; it's a legal requirement in Calgary, with significant consequences for non-compliance.

Understanding Excavation Deterioration: The Risks at Stake

Excavation is the process of removing earth to create a cavity needed for foundations, utilities, or other structural work. The sides of these excavations can be vulnerable-especially in Calgary’s challenging climate, where freeze-thaw cycles, heavy rains, and chinooks subject exposed soil to cycles of expansion and contraction.

When excavations are not properly protected during construction, several serious risks can arise:

  • Collapse or Cave-in: Soil instability may result in sudden wall collapse, endangering workers and equipment and potentially damaging adjacent structures.
  • Water Ingress: Infiltration from rain, melting snow, or inadequate drainage can saturate and erode excavation walls, destabilizing the worksite and undermining future foundations.
  • Erosion: Wind and precipitation can cause ongoing erosion of exposed excavation faces, leading to slumping, undermining, and loss of excavated shape.
  • Frost Damage: In Calgary, freeze-thaw cycles can expand and contract exposed soil, weakening it and increasing the likelihood of collapse or heaving.
  • Permit Violations: Failure to implement required protections can lead to stop-work orders, significant fines, and even legal liability if an accident occurs.

The implications of improper excavation protection are not limited to structural risks; they also pose severe safety liability and can significantly impact project timelines, budgets, and approvals. In extreme cases, poor site management can even lead to delays in securing occupancy permits or insurance coverage.

NBC 4.2.5.7: Calgary's Gold Standard for Excavation Protection

Section 4.2.5.7 of the National Building Code is the definitive guideline governing the protection of excavation sides in Calgary. It clarifies a vital truth: protection is not a one-time consideration but a continuous duty throughout the duration of construction activity.

The section reads essentially:

  • All sides of excavations, supported or unsupported, must be maintained and protected at all times against deterioration resulting from construction activities or the effects of frost, rain, and wind.

This means that the responsibility for excavation protection rests on both the builder and the property owner from permit to project completion. It also means that decisions made during excavation planning-such as the sequence of work, the choice of shoring or bracing systems, and the schedule for backfilling-can directly affect overall compliance and site safety.

Continuous Maintenance: What the NBC Requires

Continuous maintenance, as outlined in NBC 4.2.5.7, involves routine inspection, assessment, and adjustment of protection measures. The goal is to promptly identify and mitigate any risk factors that could lead to deterioration or collapse.

  • Inspect excavation sides at least daily during active work and after any significant weather event, including rain, thaw, freeze, or strong winds.
  • Any signs of sloughing, cracks, bulges, or water seepage must be immediately addressed by reinforcing supports, adjusting bracing, or improving drainage.
  • If deterioration is discovered, all work must stop until the site is made safe and compliant.

Recordkeeping is also a crucial part of continuous maintenance. Inspection logs, photographic evidence, and records of remedial action provide proof of diligence, which may be needed in the event of a dispute, inspection, or incident.

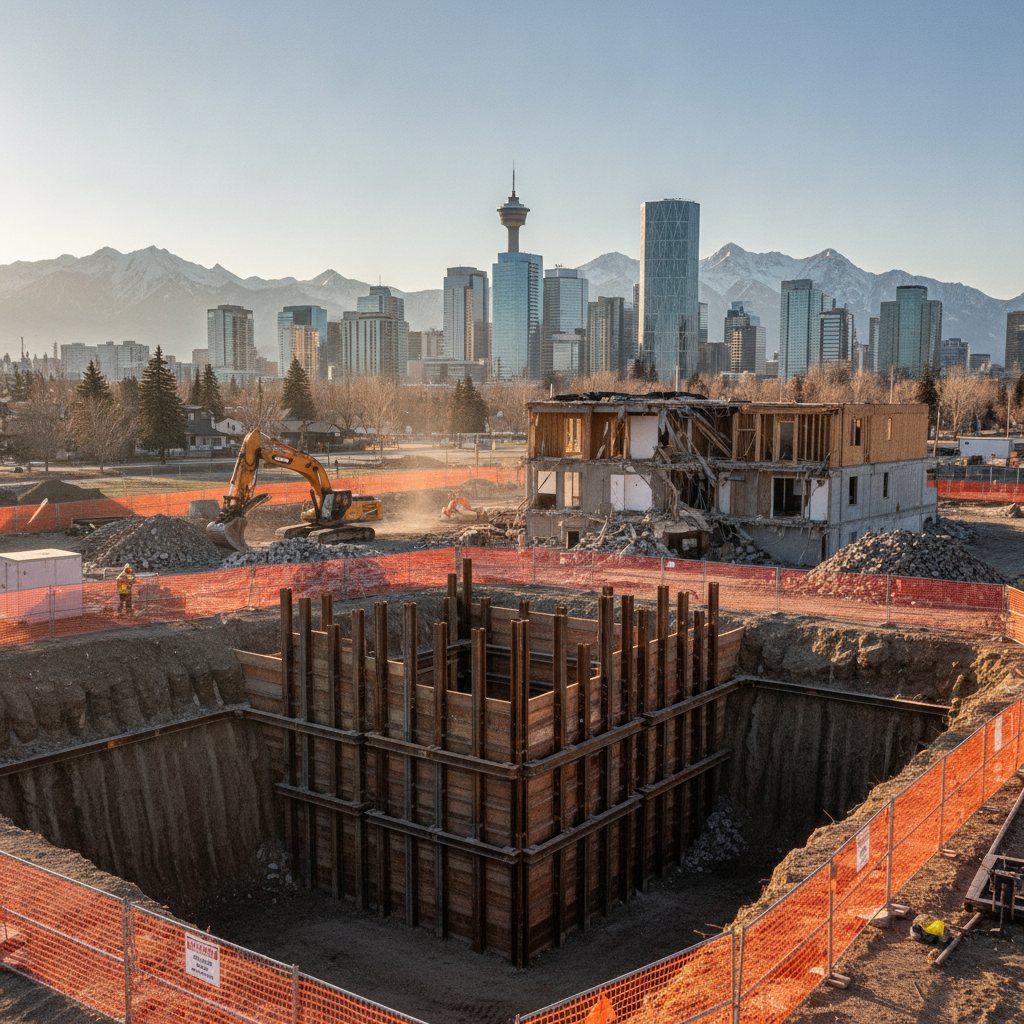

Protection Measures: From Shoring to Weatherproofing

Various methods are available to protect excavation sides, and the appropriate choice depends on site-specific factors such as soil type, depth, water table, expected weather, and proximity to existing structures or infrastructure.

  • Shoring Systems: Required in most deep or otherwise unstable excavations, shoring includes engineered bracing made from timber, steel, or proprietary systems to prevent lateral movement of soil.
  • Bracing: Bracing (horizontal supports between shoring) may be essential in wider excavations or where the risk of collapse is elevated.
  • Weatherproofing and Coverings: Tarps, plastic sheeting, or other weather barriers should be applied over exposed soils during rain or snow events to prevent water infiltration and erosion.
  • Temporary Retaining Walls: For deep or long-term excavations, modular retaining systems may be needed to ensure lasting stability.
  • Drainage Management: Surface water must be actively directed away from the excavation using berms, sumps, and pumps as needed. Surface run-off must not be permitted to accumulate against excavation faces.

Builders in Calgary must be ready to adapt their protection strategy as conditions change. For instance, a sudden thaw after a winter freeze may dramatically increase ground moisture and movement, necessitating reinforcement or drainage upgrades.

Practical Steps for NBC 4.2.5.7 Compliance in Calgary

Moving from code to practical action is essential. Understanding NBC 4.2.5.7 is one thing; implementing it on an active Calgary construction site is another. Here’s a step-by-step guide for homeowners, builders, and developers looking to ensure compliance and best practice:

1. Assessing Soil and Site Conditions

Before breaking ground, conduct a geotechnical analysis of your site. Understanding soil type, compaction, moisture content, and stability allows you to anticipate what protection measures will be required. In Calgary, where soils can range from glacial till to expansive clays, site-specific assessment is essential.

  • Shallow Excavations: May sometimes be safely constructed without supports-but only if soils are self-supporting and weather conditions are favorable.
  • Deep, Sandy, or Wet Sites: Require extensive support and drainage solutions from the outset.

For projects involving structures or utilities, geotechnical reports are often a permit requirement.

2. Choosing and Installing Shoring or Bracing

If site conditions indicate any risk of cave-in or lateral soil movement, shoring and bracing are non-negotiable. Choices include timber lagging, steel sheet piling, hydraulic trench shields, or engineered modular shoring systems. All must be installed per manufacturer instructions and code requirements.

  • Engineer’s Involvement: For large or complex excavations, City of Calgary permit reviews may require stamped engineering drawings for shoring and bracing plans.

3. Weatherproofing Excavation Walls

During Calgary’s unpredictable springs or snow-heavy winters, exposed excavation faces are at risk from both water infiltration and frost heave. Applying tarps or heavy-gauge plastic sheeting when precipitation threatens is essential.

  • Ensure materials are anchored to prevent wind lift and that water is directed to drain away from the site, not into the excavation.
  • Temporary berms or sandbagging may be necessary to direct water flow during heavy rain.

Contractors and owners should budget for these weatherproofing measures-a relatively small investment that can prevent very expensive repairs or delays.

4. Managing Site Drainage

Excavation protection is impossible without robust drainage. In Calgary, surface run-off occurs quickly during rain and thaw events, with potentially devastating results if not controlled.

  • Install temporary drains, sumps, or pumps to evacuate accumulating water within or near the excavation.
  • Assess the surrounding grade and reroute surface water with berms or grading adjustments if necessary.
  • Inspect pumps and drainage solutions frequently and prepare for power outages or mechanical failures.

5. Conducting and Documenting Regular Inspections

Continuous oversight is a clear requirement under NBC 4.2.5.7. Many builders establish formal inspection routines:

  • Daily: All active excavations should be checked at the start of each shift for wall integrity, water ingress, and shoring condition.
  • After Weather Events: Inspections should take place immediately after rain, snow, thaw, freeze, or high wind events.
  • Documentation: Keep a log of inspection dates, findings, and corrective actions. Photographic evidence is ideal.

These logs will not only help in demonstrating regulatory compliance but are invaluable if questions ever arise about site conditions or incident response.

6. Sequencing and Timing Construction Activities

Proper scheduling is a powerful tool in managing excavation risk. The longer soil remains exposed, the higher the risk of deterioration. Plan construction sequences so that foundations, utilities, or related structures can be installed and backfilled as quickly as possible. Avoid over-excavating or opening large areas of soil unless all necessary protections are ready to go.

7. Training Staff and Subcontractors

A chain is only as strong as its weakest link. All workers and subcontractors must understand the importance of excavation protection, including proper handling of shoring, weatherproofing materials, and early warning signs of soil movement or collapse. Training and toolbox talks should be regular, with clear escalation procedures for reporting hazards.

Calgary’s Permit Requirements for Excavation: Navigating the Process

Before any excavation begins within the City of Calgary, obtaining the proper permits is a non-negotiable legal responsibility. The city has a straightforward yet carefully regulated process, designed not only to monitor safety and code compliance, but also to coordinate the timing of excavation with city services, utility companies, and road users.

Permits are especially critical for any excavation work on, or adjacent to, public right-of-ways-like roads, sidewalks, or utility corridors. Even private excavations may require permitting if they impact city infrastructure, trees, or utilities.

Types of Permits

  • Excavation Permit: Required for any excavation that breaks or disturbs the surface of a city road, sidewalk, or boulevard. This includes curb cuts, utility connections, and street-side demolitions.
  • Utility Alignment Permit: May be required for work affecting buried utilities-ensure all necessary numbers and drawings are included in your application.

Applying for an Excavation Permit: Step-by-Step

  1. Register for myID Business Account: All permit applications are processed online through the City of Calgary’s portal, which requires a business login.
  2. Prepare Required Information:
    • Company and project coordinator details
    • Exact location of the excavation (address, coordinates, or map references)
    • Scope of work: Detailed description, duration, dimensions, and the type of excavation
    • Any relevant permit numbers (such as Utility Alignment Permits, if applicable)
    • Supporting documents: Site maps, construction drawings, or traffic accommodation plans
  3. Submit Application: Apply online, ideally two weeks before planned start date to allow for necessary reviews.
  4. Respond to Reviews or Questions: The City may request clarifications or additional information-especially for complex or high-traffic sites or those near newly resurfaced roads.
  5. Permit Approval and Payment: Once approved, confirm permitted dates, pay required fees, and review any site-specific conditions set by the City.
  6. Schedule Inspection: Before any restoration works are completed or invoices issued, arrange the mandatory quality assurance inspection with the City.

Permit Processing Timelines

  • Standard applications (not impacting newly resurfaced pavement) are typically processed in two business days.
  • If excavation affects pavement laid within the last two years, expect a review window of up to 10 business days as additional pavement protection or restoration may be required.
  • Permits are generally valid for two weeks from approval; work must be completed (including site restoration) within this window unless an extension is granted.
  • Extension requests should be submitted before your permit expires, along with clear justification for the delay.

Understanding Permit Fees in Calgary

Several distinct fees apply to excavation permits, and budgeting for these costs is essential to avoid surprises as the project advances. The current fee schedule, published on the City of Calgary website, includes:

  • Administration Fee: Non-refundable charge for accepting and processing your permit application.
  • Works Inspection Fee: Required for all permits, covering the cost of City inspection for compliance with municipal codes and restoration standards.
  • Asphalt Rehabilitation Fee: Applies when City services are required to repair, patch, or resurface asphalt after excavation. Coordination with the Permit Paving group may be necessary.
  • Pavement Degradation Fee: All asphalt cuts trigger this fee, which compensates for the inevitable reduction in the road’s lifespan following an excavation.
  • Top Lift Paving Fee: Required when excavations are performed on high-quality roads (Visual Condition Index of 7 or greater), necessitating additional restoration steps such as milling and rolling new asphalt layers.

These fees vary depending on the size, location, duration, and type of excavation, so always consult the latest City fee schedule or engage with a professional demolition and excavation company for guidance.

Scheduling Inspections and Complying with Restoration Requirements

Once excavation work is complete, the City mandates a final inspection to ensure that all permit conditions, especially those around site restoration and cleanup, are met before the job is officially closed and invoiced. Ensure that any damaged asphalt, sidewalks, or landscaping are restored to City standards-or better-as part of your final project checklist.

Failure to complete the site restoration per permit conditions can delay completion sign-off, trigger additional fees, or even result in forfeiture of permit privileges for repeat violations.

Additional Regulatory and Safety Considerations

Compliance with NBC 4.2.5.7 and Calgary’s excavation permit regulations is only part of the equation. Several additional legal and safety factors must also be addressed before a project can commence:

Utility Disconnections: A Crucial First Step

Before any shovel hits the ground, confirm that all utilities-water, gas, sewer, and electrical-have been properly disconnected, capped, or rerouted as required. Utility disconnections are a prerequisite for both demolition and new construction excavation permits, and the process can take several weeks, depending on the complexity of the site and the availability of utility crews.

  • Coordinate with all utility providers as early as possible.
  • Ensure written confirmation of successful disconnection or rerouting-these may be required as part of your permit review file.

Asbestos Assessment and Abatement

In any structure built prior to 1990, asbestos-containing materials may be present in insulation, tile, siding, or other components. Demolition crews and excavation contractors must arrange for an asbestos survey and, if materials are present, proper abatement by licensed specialists before demolition can proceed.

Failure to conduct an asbestos survey and remove hazardous materials is a serious environmental and health violation that can result in site shutdowns, legal liability, and hefty remediation costs.

Public Tree Protection and Urban Forestry Permits

If your excavation site is within six metres of any public tree (boulevard or park), City bylaws require a separate tree protection permit. Additional measures may include tree fencing, soil protection zones, and hand-excavation near sensitive roots. Unauthorized excavation within protected zones can result in large fines and mandatory tree replacement costs.

Traffic and Pedestrian Safety

For any excavation abutting or encroaching on public rights-of-way, traffic accommodation plans, barriers, and signage may be required to protect both workers and the public. Early coordination with the City’s Roads or Transportation departments is advised for large or complex jobs.

The Consequences of Non-Compliance: What Happens If You Ignore NBC 4.2.5.7 or City Regulations?

Non-compliance with excavation protection and permitting regulations is a serious matter in Calgary. Risks and liabilities include not only financial penalties, but also significant legal, insurance, and reputational consequences.

  • Stop-Work Orders: The City or provincial safety officers can issue immediate stop-work orders, shutting down your site until deficiencies are corrected and compliance is demonstrated. This delays project timelines, strains budgets, and may result in added labor or equipment rental costs.
  • Fines and Penalties: Monetary fines can be substantial for breaches of the National Building Code, local bylaws, or permit terms. Repeat offenders may face increased penalties or disqualification from future permits.
  • Legal Liability: If a collapse, injury, or environmental spill occurs due to inadequate excavation protection, homeowners and builders can be held personally liable-resulting in litigation, insurance denial, or demands for costly remediation.
  • Post-Construction Risk: Failure to protect excavations correctly may lead to foundation settlement, water leaks, or structural failure later-which, if traced to code violations, are not covered by most home or builder warranties.
  • Insurance Complications: Non-compliance can void builder’s risk, property insurance, and liability policies, increasing your financial exposure if an accident occurs.

Ultimately, the added cost and time associated with full compliance-including shoring, inspections, and permit fees-are negligible compared to those incurred by avoidable disasters, injuries, or legal setbacks.

Best Practices: Setting Up for Success in Calgary’s Construction Environment

Successful excavation projects do not happen by accident; they are the result of careful planning, diligent execution, and ongoing vigilance. Whether you are a homeowner building a custom infill, a general contractor managing multiple trades, or a developer orchestrating a large subdivision, the following best practices-rooted in the requirements of NBC 4.2.5.7-will help ensure your project remains safe, legal, and on track:

Develop Comprehensive Site Safety and Inspection Plans

  • Assign a qualified safety officer or supervisor to oversee excavation work and maintain detailed inspection records.
  • Use checklists and photographic logs to document condition, protection measures, and remedial actions.
  • Incorporate weather monitoring into daily project briefings to anticipate and respond to changing site conditions.

Invest in Professional Shoring and Engineering Solutions

  • Budget for professional shoring design and installation rather than improvising with unapproved solutions.
  • Consult with geotechnical engineers for deep or complex excavations to design site-specific protection systems.
  • Where permitted, use modular or reusable shoring systems to control costs and maintain flexibility.

Schedule Protection Measures Before and During Excavation Work

  • Do not wait for signs of deterioration before implementing protection; shoring, coverings, and drainage must be established before soils are exposed.
  • Have all protection materials onsite before work begins to enable an immediate response to weather changes or unanticipated soil movement.

Review All Regulatory Requirements Ahead of Time

  • Consult the latest City of Calgary permit and fee guidelines.
  • Coordinate utility disconnection, asbestos surveys, tree permits, and any required traffic management approvals before scheduling excavation crews.

Empower Your Team Through Training and Communication

  • Provide workers, subcontractors, and site visitors with clear instructions on excavation protection, site hazards, and emergency procedures.
  • Post NBC 4.2.5.7 and key permit conditions onsite as daily reminders.
  • Foster a culture of safety: encourage workers to report hazards or deterioration, and guarantee swift corrective action.

Partner with a Reputable Demolition and Excavation Contractor

  • Choose experienced, licensed companies familiar with Calgary’s codes, climate, and permit processes.
  • Engage your contractor early in planning to assist with soil analysis, protection design, permitting, and coordination with City inspectors.

While DIY and “cost-saving” approaches can be tempting, proper excavation protection is not an arena for shortcuts; the cost of error is simply too high.

Frequently Asked Questions: Excavation Protection and Permitting in Calgary

Why is continuous excavation protection necessary in Calgary’s climate?

Calgary’s weather is notable for rapid changes, with heavy rains, snow, chinooks, and deep freezes sometimes appearing within a single week. With these frequent weather swings, exposed soil faces are particularly vulnerable to quick degradation. Proper and continuous protection minimizes the risk of collapse, erosion, or water damage, ensuring both immediate site safety and long-term structural stability.

What kinds of issues should I look for during daily inspections?

Inspect for cracks, bulges, or slumping in the excavation walls, pooling or seeping water, evidence of erosion, shoring or bracing movement, and signs of frost heave. Any visible change in soil consistency, color, or moisture should prompt immediate review and possible corrective action.

How long should an excavation remain open/unprotected?

Ideally, the time between excavation and backfilling should be minimized to reduce exposure. Any open excavation, regardless of duration, must be continuously protected per NBC 4.2.5.7-there is no “safe” period for leaving an unprotected wall. Delays due to weather, inspections, or material delivery must all be planned for within your protection strategy.

What penalties exist for non-compliance with excavation protection or permitting?

Penalties in Calgary can include stop-work orders, significant fines, and increased scrutiny on future permits. In cases of injury or structural failure, legal liability, insurance denials, and even criminal charges can result. Under standard contracts, non-compliant builders may be liable for replacement, repair, or legal damages.

Do all excavations require engineered shoring?

Not all sites require engineered shoring, but many do-especially those with deep, sandy, or saturated soils, or any excavation within close proximity to other structures. If uncertain, consult with a geotechnical engineer or experienced professional to determine the correct approach for your project.

How does the City of Calgary define “exact location” for permit applications?

Applications must include a legal address, GPS coordinates, or site-specific reference maps showing the specific area affected. Include utility tie-ins, property lines, and any impacted roads or boulevards. The more detailed your information, the smoother the review and approval process.

If my excavation permit expires, what should I do?

Submit a request for extension as soon as possible-preferably before expiry. Unpermitted work exposes you to liability and enforcement actions, so do not proceed until your permit status is clearly resolved with the City.

Summary Checklist: Ensuring Compliance and Safety

Whether you are a first-time homeowner, an experienced builder, or a large-scale developer, ensuring the proper protection of excavation sides in Calgary requires careful coordination of codes, permits, and on-the-ground best practice. Use the following checklist as your guide:

  • Conduct thorough soil and geotechnical analysis prior to excavation.
  • Obtain all required permits from the City of Calgary before commencing any excavation work-including road, utility, and tree protection permits as needed.
  • Install necessary shoring, bracing, and weatherproofing before and during all excavation activity.
  • Plan for active water and drainage management on-site at all times.
  • Schedule daily and event-driven inspections of all excavation sides, keeping detailed records and evidence.
  • Ensure utility disconnects and asbestos abatement are completed ahead of schedule.
  • Restore all disturbed surfaces (asphalt, sidewalks, landscaping) to City standards before closing permits.
  • Maintain clear communication and ongoing safety training for all personnel involved in excavation activities.
  • Engage with an experienced demolition and excavation contractor for expert guidance and execution.

Conclusion: Building Safely and Legally in Calgary

Excavation is one of the most important and legally fraught phases of any construction project. In Calgary, the requirements of NBC 4.2.5.7, coupled with the City’s detailed permitting and inspection standards, create a robust framework designed to protect lives, adjacent property, and future structures. Compliance is more than a regulatory hurdle-it's your assurance of a safe site, a sound investment, and a project that can proceed on schedule and budget.

Stay proactive. Begin with a professional site assessment and a clear understanding of your legal and practical responsibilities. Protect excavation sides relentlessly from the moment soil is disturbed until backfilling is complete. Document every step, leverage the expertise of trusted contractors, and treat city officials as partners in your project’s success-not obstacles to be circumvented.

When handled meticulously, excavation sets the foundation for everything that follows. Whether for a new home, commercial build, or redevelopment, adherence to NBC 4.2.5.7 protects your workers, your timeline, and your future structure. In Calgary’s dynamic environment, thorough planning, proper permitting, and a strict commitment to safety and protection are not optional-they are essential.
