Excavations are the backbone of any construction project, serving as the foundation for homes, commercial buildings, infrastructure, and more. In Calgary’s diverse and often challenging climate, protecting these excavations-not just from collapse but from any form of deterioration brought about by construction activity and environmental exposure-is essential for safeguarding people, property, and investment. The National Building Code of Canada (NBC) Section 4.2.5.7 provides a critical framework that governs this aspect of construction and site safety for builders, homeowners, and developers across the city.

Understanding the Importance of Excavation Protection in Calgary

In Canada’s urban centers, including Calgary, rapid development meets unique geological and meteorological challenges. The soil types (ranging from soft clays to hard glacial till), fluctuating water tables, and the harsh Alberta climate introduce risks that can cause excavations to deteriorate. Frost heave, torrential rainfalls, and Chinook winds are all prominent features that can threaten the stability of an open pit or trench, leading to soil erosion, wall collapse, compromised foundations, or even catastrophic project failures.

Indeed, such deterioration poses immediate threats to construction workers and property, but it also often triggers longer-term problems such as settlement of structures, water infiltration, mould, and insurance claims. The regulatory framework provided by the NBC, specifically Section 4.2.5.7, addresses these concerns directly, stipulating the measures necessary to maintain excavation integrity during the building process.

NBC 4.2.5.7: The Regulatory Backbone

Section 4.2.5.7 of the National Building Code of Canada (NBC) lays out clear guidelines for the protection of excavations, ensuring safe and stable progress for every phase of construction. Key requirements include:

  • Continuous Maintenance and Protection: All sides of an excavation must be maintained and protected against deterioration at all times during construction.
  • Environmental Considerations: Builders must take adequate steps to address and mitigate the risks presented by environmental factors such as frost, precipitation, and wind-which can erode, destabilize, or weaken excavation walls.

Compliance with these rules is not simply a bureaucratic hurdle. It is a core aspect of safe, effective, and lasting construction practices that protect lives and preserve investments.

Recognizing the Threats: How Do Excavations Deteriorate?

Soil Erosion and Structural Instability

Excavations, particularly those with unsupported or steep sides, are constantly subject to gravity and lateral earth pressures. If the soil around an excavation is destabilized by vibration, weather, or water infiltration, it may erode-leaving excavation walls weakened or even leading to sudden collapse.

  • Wind: In open sites, strong wind gusts can dry out soils, leading to surface cracking or blowing fine materials away, leading to perimeter instability.
  • Rain: Heavy rain or snowmelt can saturate soil, increasing its weight and decreasing its cohesion.
  • Frost: Freeze-thaw cycles common in Alberta can result in frost heave or ice lens formation, pushing soils inward or upward and driving potentially damaging shifts around excavation walls.

Construction-Induced Threats

Excavations are also at the mercy of nearby construction activities:

  • Equipment Vibration: Movement from vehicles, pile driving, or demolition can impart vibrations that destabilize the ground around excavations.
  • Stockpiling Materials: Piling heavy materials close to excavation edges adds vertical loads, increasing the risk of sidewall failure.
  • Mechanical Impact: Accidental strikes from equipment or falling debris can seriously damage unsupported sides.

Practical Measures: Real-World Steps to Ensure Compliance and Safety

To follow NBC 4.2.5.7 and achieve robust excavation protection, homeowners, builders, and developers must implement a mix of standard engineering practices tailored to each site's specific risks. Below are the most critical practical measures.

1. Shoring and Bracing Systems

One of the most effective strategies for lateral support is engineered shoring. Shoring refers to a system of supports used to stabilize the sides of an excavation and prevent cave-ins or slumping.

  • Trench Boxes: Modular steel or aluminum boxes placed inside a trench provide robust, adjustable support. These are especially valuable in deeper, narrow excavations common for utility lines or basement walls.
  • Hydraulic Shoring: Lightweight, hydraulic-pressurized support frames can be quickly installed and adjusted, delivering critical resistance to soil collapse.
  • Timber or Steel Sheeting: Driven vertically along the excavation’s perimeter, sheeting provides a contiguous barrier to soil movement.
  • Cross Bracing: Bracing installed transversely helps support the sheeting or trench box, especially in wide or irregularly-shaped excavations.

While trench boxes and hydraulic shores are essential for construction crews’ safety, they also help keep the soil stable against slow deterioration caused by the elements.

2. Slope Stabilization: Benching and Sloping

When feasible-typically in open areas with space to spare-benching or sloping excavation sides reduces the risk of sidewall failure. The angle or width required depends on soil type and anticipated weather conditions.

  • Benching: Excavation sides are cut into a series of horizontal steps (benches). This method distributes weight more evenly and provides transient stability.
  • Sloping: Sides are angled away from the excavation base to a safe gradient, which varies with soil cohesion (for example, a 1:1 slope in stable soils versus much shallower angles in loose or saturated ground).

It's important to verify the optimal design with a geotechnical engineer, as Calgary’s subsurface stratigraphy can rapidly shift from one neighbourhood to the next.

3. Water Control and Dewatering

Managing water is fundamental. Not only does water accelerate soil erosion and affect compaction, but it can also transport contaminants or fill up an excavation faster than it can be emptied, leading to work stoppages and structural risks.

  • Sump Pumps: Placing electric or gas-powered pumps at the lowest point of the excavation to remove accumulated groundwater or runoff is a standard approach, especially after a storm or thawing event.
  • Well Points and Deep Wells: These systems lower the water table around the excavation, providing dry and stable working conditions for deeper projects and eliminating hydraulic pressure that might otherwise force soil into the dig space.
  • Trench Drains and Diversion Ditches: Surface water should always be redirected away from excavation sites with drains or properly graded ditches, minimizing ingress from rainfall or melting snow.

4. Weather Protection: Tarps, Enclosures, and More

While engineering controls stabilize soil and manage water, active weather protection is just as important for both safety and compliance.

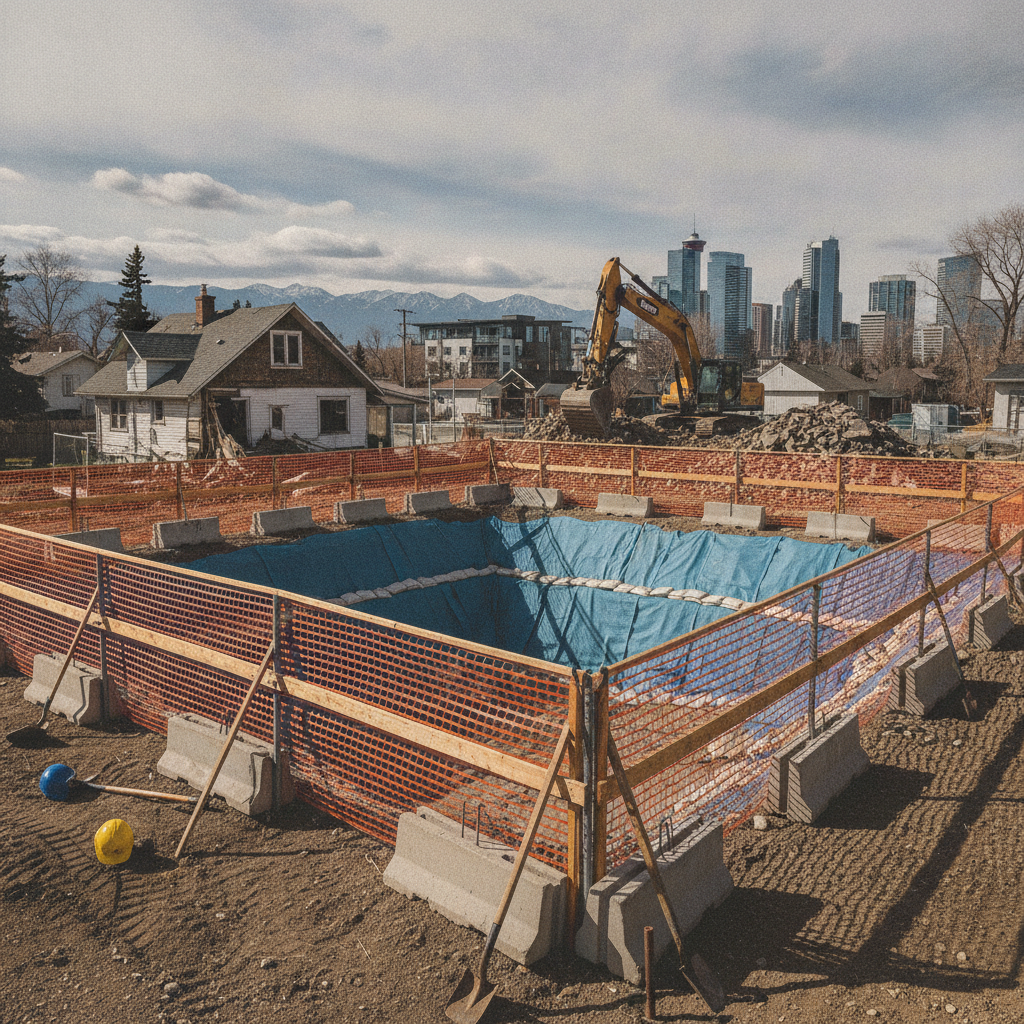

  • Tarps and Geotextiles: Large, durable tarps or geotextile fabric can cover open excavations and exposed sidewalls during rainfall or overnight, providing a layer of insulation during cold snaps or heavy precipitation events.
  • Temporary Enclosures/Tenting: In winter construction or when a project will remain exposed for days or weeks, framing up a temporary enclosure (using scaffolding, shrink wrap, or insulated blankets) around a pit keeps snow and wind at bay and prevents frost from penetrative action in the soil mass.
  • Wind Barriers: Temporary plywood or fabric fencing can help to shield exposed trenches from Calgary’s characteristic gusting winds, minimizing soil drying and movement at the lip.

Combining these environmental controls with sound engineering practices fosters a safe, stable excavation, as mandated by the NBC.

Calgary’s Permit Framework: Starting Off Right

Protecting excavations requires both technical expertise and regulatory compliance. Before shovels hit the dirt, property owners and contractors must obtain the required permits from the City of Calgary. Understanding this process ensures your work is legal, safe, and protected from fines or forced delays.

Key Permit Types

  • Building Permit: Required for all new construction that involves excavation-such as new home builds, additions with a basement, garages with pits, or major accessory buildings requiring foundations or below-slab utilities. This is the core approval for excavation and associated works.
  • Development Permit: Required if the proposed project deviates from the Land Use Bylaw (for example, building closer to property lines or higher than zoning permits) or if the project site is located within a developed area where city planning oversight is stricter.
  • Trade Permits: Plumbing, electrical, gas, or mechanical trade permits are necessary for any work connecting excavations to underground utilities or services (e.g., sewer hookups, radon mitigation systems, sump installation, below-grade hydronics, etc.).

More information and the latest application guidelines can be accessed via the City of Calgary website.

Permit Fees and Application Timelines

  • Building Permit Fees: Calculated based on a base rate plus an additional fee tied to the total value of construction. For instance, a new single-family house will incur a flat fee, with additional charges depending on the assessed cost of the build.
  • Development Permit Fees: Vary with project scale, location, and degree of bylaw deviation or neighbourhood impact.
  • Timeline: A standard building permit typically takes several weeks to process-but delays can occur if documentation is incomplete, if designs are complex, or if additional reviews (heritage, environmental, engineering) are required. It is wise to budget 4-8 weeks for full review and approval, especially during the busy summer season.

Inspections and Professional Involvement

After permit issuance, construction does not proceed unchecked. Regular inspections, scheduled at key milestones, are mandatory:

  • Excavation Inspection: Conducted before foundation forms are placed or concrete is poured, to verify depth, set-backs, and adequacy of protection measures for compliance with NBC 4.2.5.7.
  • Foundation and Drainage System Inspection: Once waterproofing, damp-proofing, weeping tile, or sump installations are in place.
  • Backfill Inspection: Ensuring the excavation is properly filled and compacted to engineering specifications, safeguarding the structure long-term.

Engaging a qualified engineer-especially a geotechnical specialist or structural engineer-is not just advisable; for many projects, it is a permit requirement. Their expertise ensures that soil reports, shoring designs, and site-specific strategies account for Calgary’s variable conditions and meet the highest safety standards.

The Homeowner Perspective: Risks, Responsibilities, and Best Practices

Whether building a new home, expanding an existing one, or addressing a failing foundation, homeowners are ultimately responsible for their project’s safety and compliance. This means hiring reputable builders and demolition companies, carefully supervising contractors, and confirming all permits and reports are in order before commencing work.

Common Pitfalls for Homeowners

  • Commencing Work without Permits: Starting excavation before formal approvals is illegal. Fines, stop-work orders, or forced reconstructions are common consequences, and insurance may be void if permits are lacking.
  • Overlooking Soil Conditions: Sometimes, past landscaping or fill dirt disguises problematic soils. Previous flood events or construction in older neighbourhoods (such as Calgary’s inner city) can mask buried debris or unstable material, leading to surprise collapses or unexpected movement.
  • Weather Exposure: Even overnight, unprotected pits can collapse after unexpected rainfall or a sudden frost. Proper covering and scheduling are imperative.
  • Inadequate Contractor Supervision: Homeowners must insist that builders or subtrades install and maintain shoring, dewatering, and protection systems as per the engineered plan, and not “cheat” as a cost-saver; risking life and property.

Smart Steps for Homeowners

  • Insist on Geotechnical Reports: Require a recognized geotechnical engineering report as part of your builder’s proposal. This report should identify risks and provide recommendations for excavation protection based on your specific site.
  • Request Detailed Schedules: Builders should provide a schedule showing when protective systems will be installed, inspected, and maintained. Delays or gaps can be costly.
  • Monitor Site Practices: Make unscheduled visits, check that sidewalls are shored to the plan, tarps are deployed in bad weather, and that no construction material or heavy machines are located close to the excavation edge.
  • Document and Communicate: Take photos of excavation protection and daily work progress. Should a concern arise, early documentation helps resolve disputes with builders or insurance.

The Builder and Developer’s Role: Professional Diligence and Compliance

For professional builders and developers, the NBC requirements form the basis of operational best practices. Project managers must integrate excavation protection into both preconstruction planning and real-time site management, ensuring that every phase is engineered, documented, and executed with precision.

Pre-Construction Planning

  • Site Investigation: Commissioning a geotechnical survey to identify soil profile, water table depth, and recommendations for safe slopes or shoring.
  • Shoring and Dewatering Design: Developing, in conjunction with structural engineers, a site-specific support plan for all excavations exceeding 1.2 meters deep or adjacent to structures.
  • Scheduling: Sequence work to minimize the time excavations are open and vulnerable-ensuring trades are scheduled ahead so foundations, utilities, and backfilling are timely.
  • Weather Contingency Plans: Preparing for sudden storms, snow, or freezes with supplies and systems ready for rapid deployment (tarps, pumps, heaters).

Onsite Management and Quality Assurance

  • Inspection Protocols: Supervisors must inspect excavation protection daily-especially after severe weather or heavy vibration events-to check for sloughing, water accumulation, or equipment impacts.
  • Ongoing Maintenance: Replace or repair tarps, geotextiles, and shoring elements as needed throughout the project to maintain protection, not just at project start.
  • Documentation: Maintain logs of inspections, repairs, and major weather events, ideally with photographs and incident reports, to prove compliance for the city’s inspectors or insurers.
  • Worker Training: All crew members should be trained to recognize early signs of deterioration or instability (such as cracks, bulging, or water ponding) and to respond rapidly.

Key Questions Developers Must Answer

  • Is there a competent person (as defined by OHS regulations) onsite to assess and maintain excavation protection daily?
  • Has all equipment used for dewatering, shoring, and slope stabilization been properly maintained and tested?
  • Does the site have clear exclusion zones or fencing to prevent unintentional entry and risk to workers or the public?
  • Is the site prepared for rapid response in the event of a collapse or flooding?

Case Study: Excavation Protection During a Calgary Home Build

Consider a recent residential infill in Calgary’s Mount Pleasant neighbourhood-constructed during a particularly wet and cold spring. The property sloped toward the street, requiring a four-foot foundation dig at the rear and a much deeper seven-foot pit up front where the basement would sit below grade.

  • After initial excavation, the contractor installed steel trench boxes along the deep end and sloping benches along shallower edges.
  • Sump pumps ran continuously due to groundwater seepage, while tarps covered the entire excavation overnight and during off-days.
  • Three sudden rainstorms hit during the build, each time causing localized flooding. Because protection was preplanned, pumps controlled water levels and tarps limited saturation along the pit wall-minimizing delays and averting collapse.
  • City inspectors, satisfied with the measures, allowed foundation work to proceed, and the build completed on-time-proving the value of compliance with NBC 4.2.5.7 and diligent protection protocols.

Additional Considerations for Urban and Infill Projects

Most infills and urban redevelopments face unique site constraints-narrow lots, proximity to utilities, and existing buildings nearby. These jobs pose extra risks for excavation protection:

  • Adjacent Structures: Excavations within 5 meters of existing foundations (neighbouring homes, garages, utility poles) must be carefully assessed for induced settlement or collapse risk, often requiring additional shoring or underpinning.
  • Utilities: Shallow gas, water, or power lines may pass directly through the footprint or along excavation edges. Pre-locate with utility companies and include extra protective measures as needed.
  • Public Safety: Urban excavations should always be fenced and signed to prevent accidental falls or entry by children or pets.

Green Building and Environmental Sustainability in Excavation Protection

Modern Calgary builds increasingly prioritize “green” construction. Protecting excavations from deterioration contributes to sustainability by:

  • Reducing Waste: Stable excavations minimize soil loss and eroded material entering the waste stream, as well as reduce the need for imported fill.
  • Minimizing Disturbance: Proper water control prevents sediment-laden runoff from entering storm sewers or local waterways.
  • Facilitating Wetland or Prairie Restoration: For suburban developments, maintaining as much undisturbed soil as possible reduces ecological footprint and supports subsequent planting or restoration efforts.

Using geotextiles, biodegradable erosion blankets, or sustainable shoring materials integrates environmental responsibility with NBC compliance.

Innovations in Excavation Protection: What’s New?

The construction industry is always evolving. Recent technological advances make excavation protection safer and more efficient:

  • Remote Monitoring Sensors: Some builders now install soil moisture, vibration, or displacement sensors on large excavation sites. These provide real-time alerts of sidewall movement or water ingress so that rapid response can prevent collapse or erosion.
  • Spray-On Soil Stabilizers: Applied to exposed excavation faces, these biodegradable polymers can rapidly harden the top layer, resisting wind, water, and frost impacts for days or weeks.
  • Modular Temporary Buildings: Temporary shelters for large excavations can be quickly deployed, protecting workers and soil alike during high-risk periods (such as spring thaw or freeze-up).

Legal and Insurance Implications

Compliance with NBC 4.2.5.7 is not simply a construction best practice-it is a legal obligation. Ignoring excavation protection requirements can trigger:

  • Fines and Stop-Work Orders: The City may issue fines or halt all work pending remediation, significantly increasing cost and delaying completion.
  • Insurance Denials: Should an insured loss occur (such as a collapse damaging foundations or neighbouring structures), insurers may deny coverage if it is found that required protections were not in place.
  • Personal Liability: For homeowners acting as general contractor, or builders managing multiple sites, legal action may be brought if lapses in protection harm persons or property.

Mitigating Legal Risk

  • Keep All Records: Store permits, site photos, inspection logs, and engineering reports for at least several years after project completion.
  • Require Written Confirmation: Have contractors confirm in writing that all NBC-prescribed protection measures are in place and maintained.
  • Insist on Professional Certification: Any engineered shoring or dewatering system should be stamped by a professional engineer and included in permit submissions.

Summary: Protecting Your Project and the Calgary Community

All construction in Calgary that involves excavation-no matter the scale-must include robust, continuous protection measures that anticipate both environmental and construction-specific threats. From the initial geotechnical investigation through to final backfill, adherence to NBC 4.2.5.7 and local permit requirements is non-negotiable for safety, durability, and legal compliance.

Homeowners should understand their responsibilities, insist on best practices from contractors, and participate in site inspections. Builders and developers must integrate protection into their standard protocols, employing qualified professionals and maintaining detailed records throughout the project. With proper planning, vigilance, and partnership with reputable excavation and demolition experts, Calgary’s buildings and infrastructure will remain safe, sustainable, and resilient for generations to come.
