Every winter in Calgary, the ground can freeze to depths of 1.2 to 1.8 meters, posing a serious risk to excavations and construction projects if not properly protected. Whether building a home, starting a new development, or renovating an existing structure, ignoring the threat of frost can result in foundation damage, project delays, and costly repairs.

Section 4.2.5.7 of the National Building Code of Canada (NBC) mandates that all excavation sides, supported or unsupported, must be protected from deterioration caused by environmental factors like frost, rain, and wind. For homeowners, builders, and developers alike, understanding and complying with this code is paramount for project integrity and legal compliance in Calgary’s unique climate. Below, we dive deep into why frost is such a threat, what the NBC requires, and how you can ensure your excavation project stands strong against Calgary’s notorious winter conditions.

Understanding Frost Penetration and Its Impact in Calgary

Calgary’s continental climate features long, cold winters where subzero temperatures can persist for months. This prolonged cold allows the ground to freeze deeply, and water within soil pores expands as it freezes-a process known as frost heave.

Frost heave can:

  • Exert upward pressure on shallow foundations and footings.
  • Cause ground movement that leads to uneven settling, cracks, or structural instability.
  • Undermine temporary shoring systems or open trenches, increasing the risk of collapse.
  • Destabilize site conditions, complicate construction schedules, and compromise worker safety.

Protecting excavations against frost is therefore not just a technicality, but a crucial aspect of risk management for Calgary builds.

Summary of NBC 4.2.5.7: Protecting Excavations from Frost and the Elements

Section 4.2.5.7 of the National Building Code requires:

  • All excavation sides-supported or unsupported-must be continuously maintained and protected from deterioration.
  • Protection must guard against environmental threats, including but not limited to frost, rain, and wind.
  • Excavation integrity must be preserved throughout the construction process-not only to protect workers but to uphold foundation stability for the entire structure.

While code language can be legalistic, the intent is clear: any condition or event that could weaken, erode, collapse, or otherwise endanger the excavation must be actively managed, and measures must be in place from the very start of digging through to backfilling and completion of permanent structural elements.

What Happens If You Ignore Frost Protection?

Failure to properly safeguard excavations against frost and other environmental factors can have severe consequences:

  • Foundation Failure: Shifting or cracked foundations due to frost heave may threaten the safety and function of the finished building.
  • Soil Collapse: Freeze/thaw cycles can destabilize soil, causing trench walls to cave in suddenly.
  • Permit Violations: Non-compliant sites can be shut down by the City of Calgary or may face legal and insurance challenges.
  • Increased Costs: Delays, redesigns, rework, and even full replacement of failed components can far exceed the price of preventative measures.

Given these risks, meticulous adherence to NBC 4.2.5.7 is not just smart-it's indispensable.

Key Protective Measures for Excavations in Calgary

1. Correct Excavation Depth and Foundation Placement

The most basic form of frost protection is ensuring that footings and foundations extend below the frost line. In Calgary, this generally means a minimum depth of 1.2 to 1.8 meters (about 4 to 6 feet) below grade. This standard ensures that the foundation is anchored in soil that will not freeze and move during the winter.

  • Why It Matters: Soil above the frost line will expand and contract with freeze/thaw cycles, but soil below it remains stable, preventing upward heaving forces from affecting your structure.
  • Best Practices: Confirm frost-line depths with local geotechnical data or City of Calgary guidelines; adjust for microclimates or construction site elevation as needed.
  • For Renovations: If you’re underpinning or renovating in older neighborhoods, check that any old footings are deep enough; shallow legacy footings may need reinforcement or replacement.

2. Frost-Protected Shallow Foundations (FPSF)

FPSF techniques use strategically placed insulation to stop frost from penetrating below foundations, potentially allowing for shallower footings while still protecting against frost heave. This method is popular when deeper excavation isn’t practical or cost-effective, but it comes with design requirements:

  • High-performance rigid insulation is installed around and sometimes under footings.
  • Foundation design must be completed by a qualified engineer familiar with FPSF and approved by City of Calgary inspectors.
  • Proper drainage must be ensured to prevent water accumulation near insulation.
  • Only certain soil types are suitable; high water tables may make FPSF inadvisable.

For projects using alternative or advanced techniques like FPSF, always secure engineering review and code authority approval before breaking ground.

3. Soil Management and Drainage

Proper soil preparation greatly influences how frost impacts excavations:

  • Compacting Soil: Helps prevent uneven settlement and reduces the volume of water pockets that could expand when frozen.
  • Grading: Ensures water flows away from the excavation instead of pooling and increasing frost susceptibility.
  • Avoiding Loose Fill: Backfilling with well-graded, properly compacted material decreases water infiltration and frost action.

Integrating geotechnical reports and site-specific assessments provides the best foundation for proper soil management.

4. Temporary Heating and Ground Covers

When construction activity occurs during the winter or in periods of unexpected cold weather, two tools can be invaluable:

  • Ground Heaters: Use glycol-heated hoses or electric heating blankets to maintain soil temperature above freezing within and near the excavation.

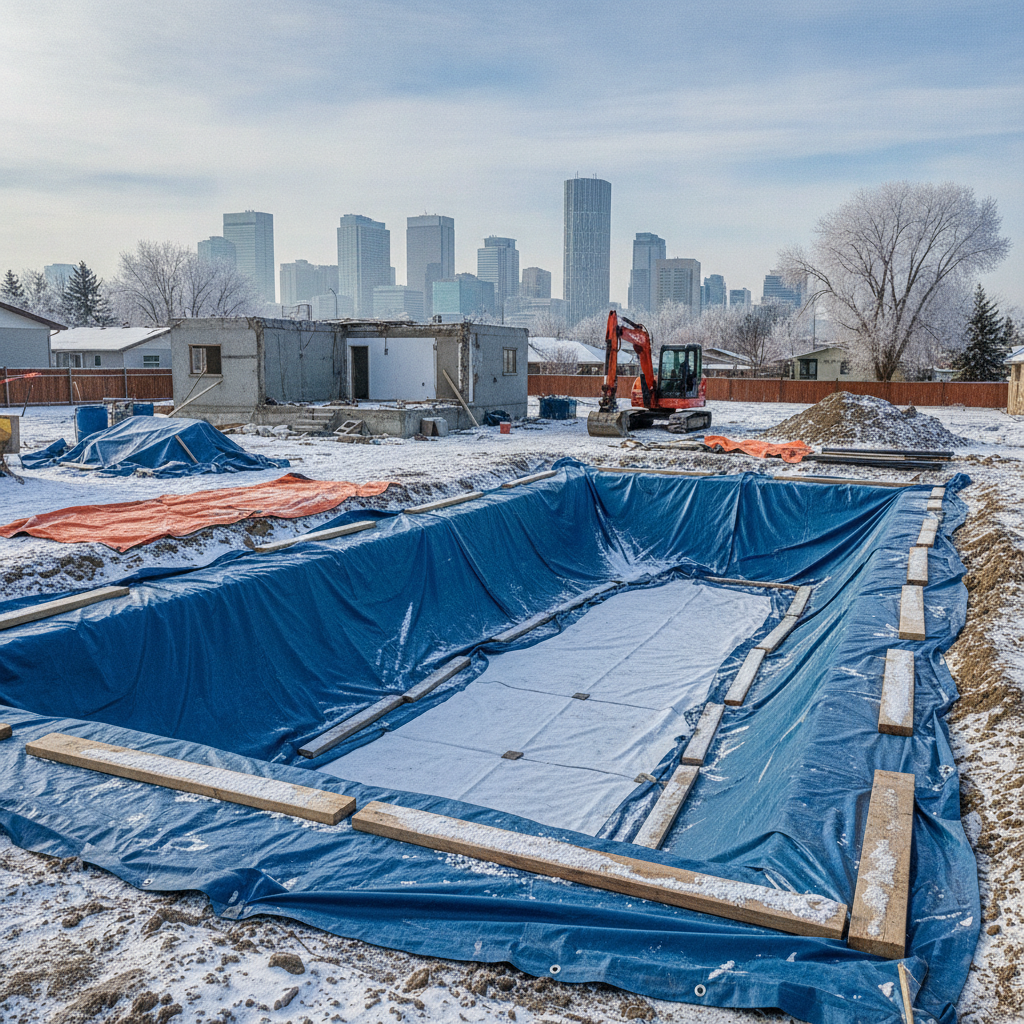

  • Insulated Tarps: Cover open ground, exposed footings, or piled soil to hold in ground heat and repel snow/ice.

Timely use of these methods can prevent rapid ground freezing and allow work to continue when the mercury drops.

5. Shoring, Bracing, and Safe Sloping

Frost can weaken unprotected excavation walls, increasing the risk of sudden collapse. To comply with safety and NBC code mandates:

  • Install engineered shoring, such as trench boxes or lagged soldier piles, where excavation sides are steep or unsupported.
  • Use stepped or benched excavations when possible, providing both frost resistance and safer working access.
  • Monitor shoring through regular inspection, especially after freeze/thaw events.

Not only does this protect workers and equipment, but it also maintains excavation geometry for accurate foundation placement.

6. Rapid Construction and Backfilling

One of the best defenses against frost is minimizing the time soil remains exposed:

  • Sequence construction activities to install permanent foundation elements and backfill as soon as possible after excavation is completed.
  • If delays are unavoidable, use temporary protection (e.g., ground heaters, insulated blankets) until backfilling and structure completion.
  • Backfill in layers, compacting each to maximize density and minimize voids susceptible to frost penetration.

Permit Requirements for Excavation in Calgary: Step-by-Step Guidance

Understanding Calgary’s Permit System

To legally excavate in Calgary, contractors must comply with municipal permitting, in addition to NBC code. Operating without proper permits can result in stop-work orders, fines, or long delays.

Excavation Permit: When and Why It’s Needed

The principal permit for any excavation work affecting a City of Calgary road right-of-way (city street, alley, boulevard, etc.) is the Excavation Permit:

  • Grants permission to break, dig, or disturb City surfaces.
  • Protects underground utilities by triggering locate requests and reviews.
  • Allows City inspectors to enforce safety and environmental standards, including NBC frost requirements.

Who Can Apply?

  • Only registered contractors and utility providers with a valid right to work in Calgary may apply for excavation permits.
  • Applicants need an active myID business account with the City.

Application Requirements

Applicants must submit:

  • Full company contact information and responsible project coordinator details.
  • Accurate excavation site address and project description.
  • Reference numbers for related permits (e.g., Utility Alignment Permit) if relevant.

Processing Times

  • Standard review: Most applications processed in 2 business days.
  • If the work affects roads repaved in the last two years, a more extensive engineering review may be required, taking up to 10 business days.

Cost Structure for Permits

The City of Calgary fee schedule (2024 rates):

  • Application Fee: $75 (per application)
  • Works Inspection Fee: $120.75 (per permit)
  • Pavement Degradation Fees:
    • Arterial Roads: $61.15/m2
    • Collector Roads: $54.90/m2
    • Local Roads: $49.95/m2
  • Top Lift Paving: For roads with a Visual Condition Index of 7+, a final layer of asphalt is required at $62.41/m2.

For larger developments or phased projects, these fees can add up quickly. Calgary also offers the Permission to Permit Program to help builders manage and pre-pay some charges up front, providing budget certainty.

The Permission to Permit (PTP) Program

This innovative City program allows developers to pay pavement degradation and top lift paving fees at a flat pre-determined rate for projects no larger than 250 m2 in total excavated area:

  • Simplifies financial planning for small-to-medium projects.
  • Prevents “surprise” post-construction costs tied to multi-phase or protracted work.
  • Details and eligibility are available via the City of Calgary website.

Practical Sequencing: From Permit to Completion

Planning and Consultation

The best projects begin with rigorous up-front planning. Here’s how homeowners, builders, and developers can protect excavations and streamline workflow:

  • Site Assessment: Engage a geotechnical engineer to sample and assess soil conditions. Confirm frost line, bearing capacity, and groundwater situation.
  • Engage Professionals: Work only with qualified contractors who have local experience and a strong safety record.
  • Design Review: Have engineered drawings and designs reviewed for code compliance, including NBC 4.2.5.7 frost protection details.
  • Permitting: Start your excavation permit application well ahead of digging, especially during peak construction season.
  • Schedule Inspections: Most projects require several rounds of City inspection: pre-excavation, pre-backfill, and final grading.

Excavation and Foundation Stages

  • Site Preparation:
    • Remove topsoil and loose debris.
    • Set up perimeter fencing and signage in accordance with City safety standards.
    • Divert surface water and manage run-off.
    • Install tree protection or Erosion & Sediment Controls where required.
  • Excavation:
    • Excavate to engineered depths below the frost line.
    • Check for unexpected soil conditions as work progresses.
    • Keep spoil piles away from trench edges (at least 1 meter back).
    • Apply temporary protection (tarps, heating, etc.) if winter freeze is imminent.
  • Footings and Foundation Install:
    • Pour footings and walls immediately after excavation where possible.
    • Install insulation for FPSF as per engineering and manufacturer guidelines.
    • Waterproof exterior walls and apply drainage boards if required.
  • Backfilling and Compaction:
    • Backfill with selected fill in compacted lifts.
    • Grade to promote positive drainage away from the structure.

For basement developments in Calgary, expect the total process-from permit approval to completed backfill-to take 8 to 16 weeks depending on weather and complexity.

Special Considerations: Soil Types, Water, and Site Hazards

Before work starts, builders must assess several site-specific factors that affect both excavation risk and frost protection strategy:

  • Soil Type: Clay soils are highly susceptible to frost heave due to their higher water content, while gravel and well-draining sands are less affected but may require more shoring.
  • High Water Tables: Sites with groundwater close to surface require drainage and possibly sump pumps to keep excavations dry and manageable.
  • Existing Utilities: Older neighborhoods have legacy utility lines at variable depths; always order locates before digging.
  • Adjacent Structures: Proximity to other buildings can dictate allowed slope angles or necessitate engineered support/shoring.
  • Sloping Sites: Steeper grades may need terracing, stepping, or complex support to ensure frost doesn’t accelerate soil slumping or slide risk.

Best Practices: Ensuring Compliance and Long-Term Durability

Professional Consultation

Engaging the right expertise early makes a measurable difference in safety and outcome:

  • Hire contractors with demonstrable experience in Calgary’s climatic conditions and soil geology. Ask for references on similar projects.
  • Insist on licensed, insured service providers-uninspected or non-specialist work can lead to permit problems or costly remediation.
  • Meet with a geotechnical or structural engineer during design and after excavation for quality assurance.

Soil Testing and Documentation

Soil bore testing (geotechnical survey) provides:

  • Accurate frost line depth based on real site data, not just City averages.
  • Soil-bearing capacity to size foundations appropriately.
  • Moisture content ratings pointing to most effective drainage and frost protection methods.
  • Documentation required for City permit and inspection files.

Permitting and Inspection Sequence

The City of Calgary performs regular checks at each critical project phase:

  • Pre-excavation: Inspection of safety fencing, signage, traffic/utility management.
  • During excavation: Inspection of shoring, soil management, drainage inlets, and temporary frost protection if cold weather is expected.
  • Pre-backfill: Inspection of footing/wall placement, waterproofing membranes, insulation for FPSF, and drainage.
  • Final: Post-backfill, grading, and restoration of City surfaces (roads, sidewalks, boulevards).

Failure at any stage can stall work until issues are corrected; diligent scheduling and experienced contractors can help avoid costly hold-ups.

Frequently Asked Questions: Frost and Excavation in Calgary

What’s the frost line in Calgary and why does it matter?

It’s the depth where the ground freezes during the winter; typically 1.2-1.8 meters below grade in Calgary. Placing foundations below this line prevents frost heave from lifting or shifting structures.

Can I use shallow footings if I insulate them?

Yes, with a design called a frost-protected shallow foundation (FPSF). However, engineering review and City approval are mandatory; not all sites are suitable due to soil or drainage conditions.

How do I know if my contractor is following NBC 4.2.5.7?

Ask for their process on frost protection, review their safety plans, and verify regular inspection reports. City inspectors will also check during required stages.

What happens if unexpected freezing occurs before backfilling?

Temporary ground heat (using hydronic heaters or heated tarps) should be applied. Delays should be reported to the contractor and City inspector, and no further construction should proceed until safe, compliant conditions are restored.

Does soil type affect my excavation plan?

Absolutely. Clay is most sensitive to frost, sands and gravels are easiest to drain, and silt may need reinforcement. A geotechnical investigation should always be step one.

Are there other City of Calgary permits I might need?

If your project impacts traffic, trees, utilities, or causes major surface changes, separate or supplementary permits may apply. Consult the City or a specialist permit consultant early in the planning process.

Case Studies: Frost Protection in Calgary Excavation Projects

1. New Subdivision Development

  • Engineered geotech survey identified mixed clay and silt loam to a depth of 2m.
  • All footings designed for minimum 1.8m embedment, exceeding frost line.
  • Trenches covered with insulated tarps on all cold nights during winter excavation.
  • Experienced no frost heave or wall collapses over six months of construction.

2. Infill Home on a Tight Urban Lot

  • Narrow site with old utility lines and adjacent aged housing required both shoring and close-depth excavation.
  • Temporary trench boxes installed with warmers beneath footings to prevent overnight freeze.
  • FPSF design used with EPS insulation, approved after geotechnical and City plan review.
  • Post-project inspection showed no evidence of frost damage and all permits cleared.

3. Commercial Building Retrofit

  • Existing slab replaced in area with shallow legacy foundations vulnerable to frost heave.
  • Excavated footings extended to 2m and soil replaced with compacted granular material to promote drainage.
  • During a rapid cold snap, ground heaters and insulated covers kept soil temperatures above zero between sequential pours.

Each of these projects benefited from careful planning, expert contracting, and a focus on both code compliance and long-term durability.

Common Mistakes and How to Avoid Them

  • Underestimating the Frost Line: Base designs on up-to-date, site-specific geotechnical data-not averages.
  • Poor Soil Compaction: Backfill in lifts and use a vibratory compactor to avoid later settlement or heave.
  • Neglecting Drainage: Never let water pool or run into open excavations; install temporary and permanent drains.
  • Ineffective Temporary Protection: Insulated tarps and heaters only work if used correctly; monitor for cold spots and keep covers tight.
  • Delaying Permits: Unpermitted excavation puts your investment at risk; start permit process as early as possible.
  • Failing to Schedule Inspections: Missed or rushed inspections can lead to fines, shutdowns, or expensive rework.

Summary Checklist for Homeowners, Builders, and Developers

  • Obtain a geotechnical assessment to determine specific site frost line and soil behavior.
  • Design all footings/foundations below frost line or use code-approved FPSF methods.
  • Apply for and secure all relevant City of Calgary permits well in advance.
  • Use experienced demolition, excavation, and foundation contractors with Calgary expertise.
  • Maintain temporary protection (ground heaters, tarps, shoring) as needed during cold weather construction.
  • Follow all NBC 4.2.5.7 requirements for continuous protection of excavation sides throughout construction.
  • Coordinate inspections at each project stage, keeping thorough documentation.
  • Backfill promptly with proper compaction and grading, restoring positive drainage on completion.

Conclusion: Protecting Your Investment from Frost in Calgary

In Calgary’s challenging climate, frost is an inevitable and powerful force. Section 4.2.5.7 of the National Building Code is designed to protect both buildings and the people who construct them-by mandating continuous, adaptable defenses against frost and other environmental hazards. For anyone planning, overseeing, or investing in excavation-related work in Calgary, there is no substitute for diligent planning, professional consultation, and rigorous compliance.

By following best practices-thorough soil assessment, proper permit acquisition, expert contracting, and legitimate frost protection strategies-your project will not only withstand Calgary’s winters, but also provide safe, lasting, and compliant construction for years to come.

For more guidance, expert support, or a consultation regarding site-specific frost protection and code compliance, contact the team at Kingsway Demolition & Excavation-Calgary’s trusted partner for safe, code-compliant demolition and excavation solutions.
