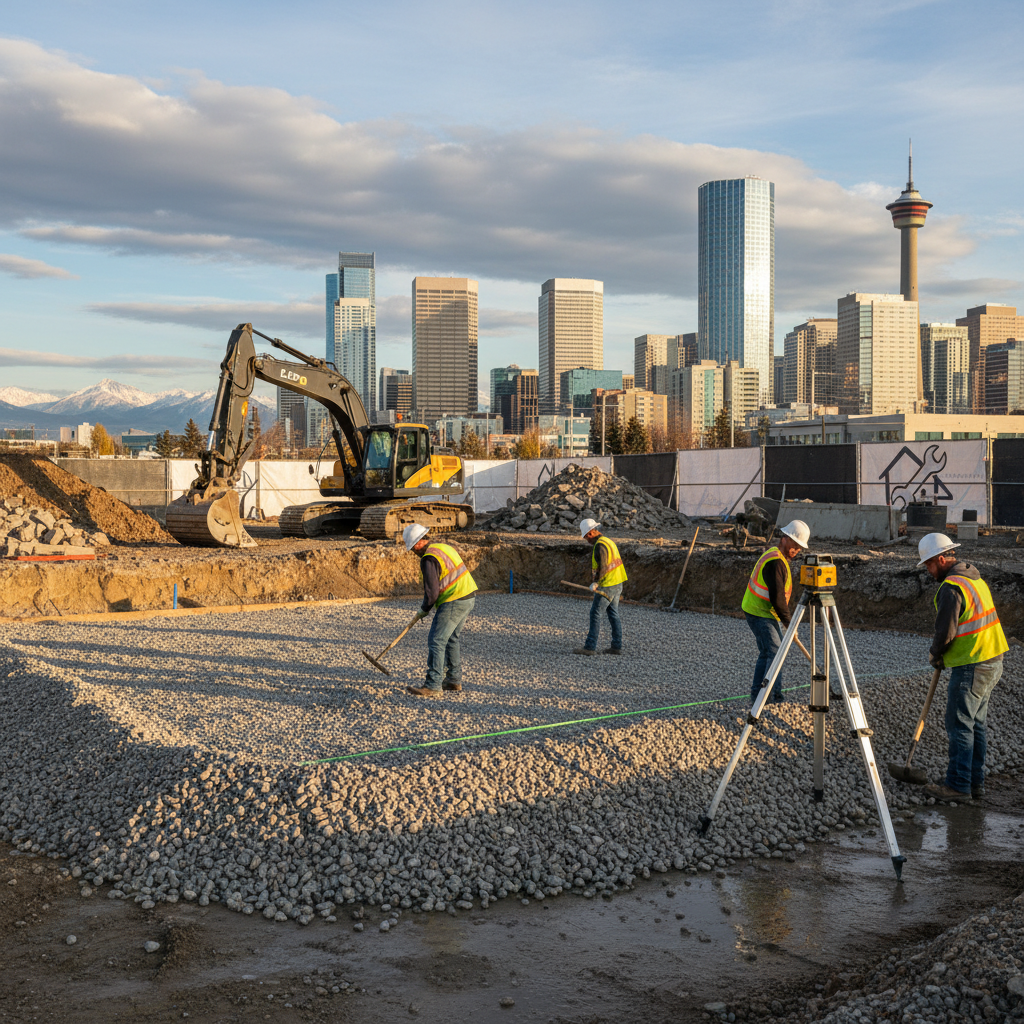

Why Granular Drainage Layers Matter in Calgary Construction

Calgary’s geography presents specific risks to residential foundations. High clay content in the native soils, strongly fluctuating groundwater levels, and repeated freeze-thaw cycles throughout the year all contribute to potential water intrusion and foundation instability. The granular drainage layer, installed beneath and around foundation footings, operates as the first line of defense against these issues.

Without a properly designed and installed granular drainage layer, water can collect around or beneath foundations, causing increased hydrostatic pressure, swelling soils, frost heave, and even the undermining of structural integrity. Mold growth, basement leaks, and premature deterioration of concrete are frequent consequences. For homeowners and builders, meeting code is more than just a checkbox-it protects against liability, preserves property value, and ensures long-term satisfaction for all occupants.

Breaking Down NBC 9.14.4.2: The National Building Code Foundation Drainage Standard

The National Building Code (NBC) Section 9.14.4.2 sets the standard for granular drainage material and its proper installation beneath residential footings. The rule applies nationwide but holds special significance in high-risk areas like Calgary. According to NBC 9.14.4.2, builders must ensure:

• Material Composition: The drainage bed must be made from crushed stone or another course, clean granular material. No more than 10% of the material’s mass can pass through a 4 mm sieve, limiting the presence of fines or clay, which would impede water flow.
• Minimum Depth: The drainage layer must be installed at a depth of at least 125 mm (5 inches) directly beneath the footing, either on naturally undisturbed soil or well-compacted fill.
• Extension Beyond Footings: The drainage layer has to extend at least 300 mm (about 12 inches) horizontally beyond the outside edge of the footings, creating a “blanket” for effective water movement.

These requirements help ensure that water can freely drain away from the foundation, minimizing the risk of water pressure buildup and protecting the structure above. Ensuring that the materials are clean and coarse prevents clogging and preserves the system's effectiveness for decades to come.

How Soil and Climate Drive Code Requirements in Calgary

The NBC’s mandates are shaped by real-world engineering knowledge. In Calgary, the soil is often rich in clay-meaning it swells on contact with water, becoming both unstable and a poor drainage medium. During wet seasons or spring thaws, the water table can rise substantially, creating saturated conditions around home foundations.

Without a granular drainage system that conforms to code, trapped water may freeze and expand during winter, lifting or cracking concrete and footings (frost heave). Over time, repeated exposure to moisture and movement can compromise foundations, leading to settlement, bowing walls, and basement leaks. The result is a structure susceptible to both immediate and long-term damage-issues that could have been prevented with the right granular material and proper installation.

Choosing the Right Granular Material

Not all “gravel” is created equal. Compliance with NBC 9.14.4.2 means choosing the correct type of granular fill for maximum drainage efficiency and structural support.

Key Characteristics of NBC-Compliant Granular Drainage Material

• Coarse and Clean: The material must be substantially free of silt, clay, and organic matter. This is essential to avoid clogging and water trapping.
• Crushed Stone Preferred: Sharp, angular particles are superior as they create “voids” for water to readily drain through, rather than round gravel stones that can lock tightly and impede flow.
• Sieve Requirement: No more than 10% by mass can pass through a 4 mm sieve. Any more, and the drainage performance drops dramatically.

Common local choices in Calgary include:

• 19mm (3/4”) crushed rock - The top-standard material for drainage beds, widely available and highly effective.
• Washed gravel - Must be verified for compliance, often containing more fines.
• Granular “A” material - Suitable if sourced to correct specification, but watch for excess fines content.

Consult with your excavation contractor to confirm the selected material passes the sieve test and is locally approved for drainage layer installation. Substandard materials may result in failed inspections and ineffective drainage.

Installation Guidelines: Laying Granular Drainage Layers According to NBC 9.14.4.2

1. Site Preparation and Assessment

Baseline soil characteristics and site constraints must be understood before material is ordered or work begins. Engage a professional site engineer or contractor to:

• Evaluate soil permeability, moisture content, and bearing strength.
• Map surface water flow and elevation changes.
• Identify if dewatering is necessary for high water tables.

2. Excavation

The excavation for footings must extend below the planned floor line, allowing for the required 125 mm of drainage layer under all foundation elements. The base must be level, stable, and either unaltered native soil or properly compacted engineered fill.

3. Material Placement

• Spread the drainage stone evenly over the excavation base, ensuring minimum 125 mm depth throughout.
• Check that the layer extends at least 300 mm past the outer edge of each footing.
• Compact the material lightly with a plate compactor if specified, while preserving the stone’s voids for water flow.

4. Quality Control

• Use grade stakes to verify depth and coverage.
• Sample materials for fines content, especially if sourced from a new supplier.
• Document installation with photographs and depth measurements for permit inspections.

5. Drainage Integration

In addition to the granular drainage bed, perimeter drains (weeping tile) and sump systems may be required. These are embedded within or just outside the granular layer to efficiently direct water away from the foundation, complying with both NBC and City of Calgary requirements.

Cost Breakdown: Budgeting for Granular Drainage Layer Installation in Calgary (2026)

Inclusion of a granular drainage layer is not just about code-it's about cost control and value protection. Understanding the expenses involved helps homeowners and builders make informed choices about material selection, contractor hiring, and project planning.

Material Costs

• Crushed stone (grading to code): $50 - $100 per cubic meter in Calgary, depending on supply, size, and transport distance.
• Volume Estimates: A standard single-family home's foundation typically requires between 15 and 25 cubic meters of granular material.
• Total material cost for average homes: $750 - $2,500.

Labor Costs

• Calgary excavation/construction labor rates: $25 - $40 per hour (as of 2026).
• Time estimate: 2-4 workers can complete installation within 8-24 hours (1-3 days, depending on square footage and site factors).
• Labor total for average homes: $750 - $1,500.

Total Typical Cost

For most single-family projects in Calgary, total granular drainage layer installation (including material and labor) ranges from $1,500 to $3,000. Complex, larger or premium projects may exceed this, while smaller jobs with easy access may land on the lower end of the scale. Unusual site constraints, thick slab/foundation designs, or premium materials may further impact total cost.

Permit Requirements and Compliance in Calgary

Before shovels hit the ground, Calgary mandates proper permits for excavation and foundation construction. The granular drainage layer, as part of your foundation system, is included within these permit scopes.

Excavation Permit

• Required for any project involving excavation of public or private land, including removal of soil for foundation placement.
• The City of Calgary offers a “Permission to Permit” program: pre-pay fees based on the size of the disturbed area. This ties directly to required pavement repair or top-lift work post-construction.
• Fee schedule (as of 2026):
  • 1 - 100 m²: $2,371.00
  • 101 - 150 m²: $3,598.80
  • 151 - 200 m²: $4,790.70
  • 201 - 250 m²: $5,982.70
• Application process is online via the City of Calgary’s permitting portal. Applicants should allow extra time for reviewing complex excavation plans or unusual site access routes.

Building Permit

• Mandatory for any foundation, structural, or drainage system installation.
• Fees are based on project value. Minimum fee is $231 for projects under $5,000 in value.
• Building permit applications require submission of engineered drawings that show all foundation and drainage details, including notes on granular drainage layers conforming to NBC 9.14.4.2.

Important: Inspections will be scheduled after drainage installation but before concrete pour. Failing to document proper granular material or depth may mean delays and costly remediation.

Timelines: From Permit Approvals to Finished Drainage Layer

Managing project speed is crucial for both builders and homeowners. Understanding realistic permit and construction timelines helps ensure your basement build stays on schedule.

• Excavation Permit Approval: Typically 2 business days for standard residential projects, provided applications are complete and accurate.
• Building Permit Approval: Allow 10 to 15 business days. Large or non-standard foundations may require additional review time, especially if alternate design methods or soil remediation strategies are involved.
• Construction: Once permits are secured, installation of the granular drainage layer can be completed in 1 to 3 days under normal weather and site conditions.
• Inspection: Book inspections in advance immediately after drainage material installation to avoid delays in proceeding with footing and wall pours.

Delays most commonly occur due to missing or insufficient documentation, incompatible material selection, or incomplete compaction of soil beneath the drainage layer. Work with experienced contractors to avoid these pitfalls.

Step-by-Step Granular Drainage Installation: A Practical Guide for Calgary Sites

For homeowners or builders managing their own teams-or simply interested in understanding the construction sequence-here is a practical, stepwise approach to proper drainage layer installation:

1. Excavation
   • Dig foundation footings according to engineered plans.
   • Remove loose, organic, or unsuitable material from base of the footing trench.
2. Base Preparation
   • Confirm soil is undisturbed or properly compacted.
   • Address soft spots with additional compaction or approved fill.
3. Material Delivery
   • Order code-conforming granular material ahead of time-verify sieve analysis if unsure.
   • Stage material to minimize double-handling and contamination.
4. Layer Placement
   • Evenly spread the drainage layer to a consistent 125 mm minimum depth beneath all footings.
   • Extend material 300 mm beyond footing edges in every direction.
5. Drainage Integration
   • If required by engineer or code, place perforated drain tile (weeping tile) within or immediately adjacent to the granular layer.
   • Ensure positive slope to daylight or an approved sump location.
6. Inspection Readiness
   • Check depths with survey stakes or laser level.
   • Photograph the ready installation and obtain material supplier documentation if needed.
7. City Inspection
   • Notify city inspector for review before proceeding with concrete pours or backfilling.
   • Correct deficiencies immediately to avoid reinspection delays.

Common Pitfalls (& How to Avoid Them): Lessons from Calgary’s Foundation Failures

Even experienced builders occasionally miss critical details that compromise drainage effectiveness and code compliance. Awareness of these common hazards can help homeowners and site managers avoid expensive mistakes.

Pitfall #1: Using Substandard Material (“Dirty” Gravel)

Materials with too much silt, sand, or clay content become quickly clogged, halting water movement and creating a “bathtub” under the house. Always specify crushed stone from known suppliers and request a sieve analysis if in doubt.

Pitfall #2: Inconsistent Depth or Coverage

It’s easy for a drainage layer to end up too thin in some areas or fail to extend far enough beyond footings, especially on irregular dig sites. Careful depth checks and taking time on edges/corners are essential. Set up periodic survey points throughout installation.

Pitfall #3: Poor Preparation of Subgrade

Laying granular stone on loose, saturated, or un-compacted soil results in uneven support. This can lead to settlement, loss of drainage properties, and eventual structural movement. Always stabilize subgrade before placement.

Pitfall #4: Installing Before Inspection or Permitting

If the drainage layer is buried before inspection, city officials may require it to be uncovered-resulting in delays, cost overruns, and even fines. Schedule inspections promptly, leave clear photographic evidence, and keep good records.

Pitfall #5: Ignoring the Perimeter Drain Connection

Failing to integrate weeping tile and sump connections with the granular layer negates much of the system’s benefit. Correct slopes, pipe perforation, and filter fabric wrapping are essential for joint performance.

Advanced Strategies: Designing Drainage for Difficult Sites

While the NBC standard applies to most typical home builds, some Calgary lots present exceptional challenges that require ingenuity from designers and contractors. Here are tactics for difficult conditions:

• High Water Table: Extend granular bed even further laterally, increase depth if engineer recommends, and install dual perimeter drains with backup sump systems.
• Expansive Clay: Consider thicker granular beds and use of geo-fabrics or drain boards to further isolate moisture from foundation elements.
• Sloping Sites: Construct check dams in granular material to slow rapid runoff; reinforce granular areas against scouring in high-volume flows.
• Heavy Loads or Large Structures: Use granular material with higher compaction strength; coordinate closely with geo-technical engineer for layered system (granular + structural fill + drainage).

Inspecting and Maintaining Your Granular Drainage Layer Post-Construction

Once installed and buried, drainage layers are hard to access directly, but their performance can be inferred by regular inspection of drainage system outfalls, sump basins, and surrounding landscaping. Homeowners should:

• Periodically check sump pit inflow during wet weather-steady, clear water inflow is a good sign of healthy drainage.
• Inspect basement for early signs of water infiltration (dampness, cracks, efflorescence).
• Keep surrounding land sloped away from the foundation and avoid landscaping that can compact or block drainage paths, such as heavy clay soil backfill or impermeable paving adjacent to house walls.
• If remodeling or extensions are planned, verify original foundation drainage with original plans or exploratory test holes before disturbing foundation areas.

Who Should Install Foundation Drainage Layers?

As tempting as it may be for homeowners to DIY portions of foundation work, granular drainage layers are best handled by professional, licensed contractors specializing in excavation and drainage systems. Benefits include:

• Knowledge of code and best practices for Calgary’s unique soils and climate.
• Access to material suppliers with proven code-compliant stock.
• Precision grading and placement, critical for correct depth and coverage.
• Guarantees, documentation, and insurance coverage required for municipal inspection and future real-estate transactions.

Always review contract language carefully and verify the contractor’s experience before work begins. Reputable firms will have references for recent drainage installations passing inspections on time and within budget.

The Connection Between Drainage, Waterproofing, and Healthy Homes

A high-quality granular drainage layer is only part of a comprehensive foundation moisture management system. Other components that work hand-in-hand with your granular layer include:

• Perimeter Drains (Weeping Tile): Pipe systems that collect and remove water channeled by the granular bed.
• Foundation Waterproofing Membranes: Liquid-applied or sheet products that shield concrete walls from water infiltration.
• Proper Backfill: Using free-draining soil or sand instead of heavy clays against basement walls to ensure water makes it to the drainage bed, and doesn’t stall next to the structure.
• Site Grading: Maintaining a visible, consistent slope away from the home, directing rainwater and snowmelt to drains, swales, or municipal systems.

The synergy of these methods, starting from a code-compliant granular drainage layer, is what ensures Calgary homes remain dry, comfortable, and protected from Calgary’s unpredictable precipitation events.

Calgary Permit Processes: Keys to Smooth Project Flow

The concrete, gravel, and labor investment won’t pay off unless your project is legally permitted and schedule risks are managed. Avoid common pitfalls and keep your build on track by following these tips:

• Start the excavation and building permit process well ahead of planned construction dates-backlogs and missing documents are frequent causes of delay.
• Engage an engineer or skilled contractor to produce clear, code-note annotated foundation and drainage plans for the permit package and for use onsite by installation crews.
• Retain receipts, material spec sheets, and photographic evidence throughout the construction timeline; these may be required for city inspections or warranty purposes.
• Book inspections early-especially in peak building seasons, inspectors' schedules can fill quickly.
• Correct any issues flagged during city inspections immediately and rebook, minimizing downtime on your jobsite and preventing costly waiting charges from trades or material deliveries.
• After completion, obtain final sign-off and archive the permit approvals as part of your property records for future resale, insurance, or dispute resolution.

FAQs: Homeowners’ and Builders’ Most-Asked Granular Drainage Questions

• Q: Can I use locally quarried gravel instead of crushed stone?
  A: Only if it meets NBC 9.14.4.2's requirement (no more than 10% passing a 4 mm sieve). Many natural gravels in Calgary region exceed this fines level, so always double-check with the supplier.
• Q: What if my drainage layer fails inspection?
  A: The inspector will require remediation-this could mean replacing or supplementing the granular layer. It’s far cheaper (and easier) to get it right the first time.
• Q: My lot is wet and boggy. Can I just add extra gravel?
  A: Not always. Very high water table sites may require subdrains, sump pumps, or engineered fill. Consult specialists early.
• Q: Is filter fabric necessary?
  A: While not strictly mandated under NBC 9.14.4.2, many Calgary engineers specify filter (geotextile) fabric to wrap the granular layer or drain pipes to limit silt infiltration.
• Q: How long will my drainage layer last?
  A: A properly installed NBC-compliant layer can last the lifetime of the building. Failures generally result from substandard material, inadequate coverage, or unmanaged groundwater from outside sources.

Planning for the Future: Retrofitting and Waterproofing Older Calgary Foundations

Many Calgary homes predate modern drainage codes, leaving their basements vulnerable to leaks or flooding. For older foundations:

• Evaluate the possibility of adding a granular drainage retrofit when excavating for basement lowering or waterproofing projects.
• Install new weeping tile and a modern sump system where none exists.
• Add waterproof membrane outside walls at the same time for maximal benefit.
• Apply for appropriate excavation and construction permits, specifying all modern upgrades.
• Work with a specialist to minimize disturbance to total property and ensure municipal code compliance during and after work.

Summary: Key Takeaways for Granular Drainage Layer Success

• Know the code: NBC 9.14.4.2 sets non-negotiable requirements for drainage material and installation depth/extension. Calgary inspectors will not approve deviations.
• Use only approved, clean, coarse aggregate-preferably 19 mm crushed rock confirmed by sieve analysis.
• Prepare the subgrade: Ensure all soil beneath the layer is undisturbed or properly compacted to support both stone and foundation loads.
• Install to correct thickness and width-check at multiple locations and document with photos and measurements.
• Integrate with broader water management systems including perimeter drains and site grading.
• Secure and follow City of Calgary permits: from excavation to inspection, every stage must be scheduled and recorded.
• Professional installation is strongly advised: insured, accountable contractors with local experience prevent headaches and ensure passable inspections.
• Maintain your system post-build with regular checks of sump, drains, and exterior grading. Small issues caught early prevent major structural headaches.

Conclusion: The Value of Doing It Right

Proper granular drainage layer installation, backed by the standards in NBC 9.14.4.2 and careful adherence to Calgary’s permitting process, shields homes from one of the most costly and distressing forms of building failure-foundation and water damage. Whether you’re a homeowner building your dream house or a developer managing multiple sites, investing in experienced professionals, the right materials, and meticulous processes is always a fraction of the cost of repairs down the line.
