Water accumulation beneath foundations is the leading cause of long-term structural deterioration and moisture-related problems in residential and commercial buildings across Calgary. Effective foundation drainage systems, underpinned by meticulously installed granular drainage layers, can dramatically mitigate these risks. The National Building Code (NBC) Section 9.14.4.3 outlines strict requirements for the grading and construction of such drainage layers-stipulations that affect homeowners, builders, and developers in Calgary with profound implications for project success and future building durability.

The Critical Importance of Foundation Drainage in Calgary’s Climate

Calgary’s unique combination of clay-heavy soils, sporadic heavy rainfall, dramatic freeze-thaw cycles, and rapid snowmelt events creates a challenging environment for building foundations. Without proper drainage, water seeps down, collects around or beneath footings, and threatens the building envelope through hydrostatic pressure, frost heave, and basement moisture intrusion.

Every year, Calgary’s homeowners and property managers face basement flooding, foundation cracks, heaved slabs, and ruined finishes-often the result of overlooked or inadequately constructed granular drainage layers. In new construction, the consequences of missing these requirements can range from failed inspections to expensive remediation or legal disputes. That’s why adhering to NBC 9.14.4.3, and understanding local Calgary requirements, is not a peripheral concern but a central step in every responsible excavation or foundation project.

Understanding NBC Section 9.14.4.3: The Foundation for Proper Drainage

The National Building Code of Canada (NBC) provides a robust framework for safe and durable building practices, with Section 9.14.4.3 focusing specifically on drainage provisions where granular layers are used. Proper interpretation and execution of this section are key for both code compliance and structural longevity. Let’s break down the essential requirements and their practical implications for projects in Calgary.

Main Provisions of NBC 9.14.4.3

  • Grading the Excavation Base:
    • The bottom of any excavation drained by a granular layer must be graded so that the entire area beneath the footing slopes toward a designated sump location.
    • This ensures that any water entering the granular layer is actively directed away from the foundation, preventing pooling or accumulation beneath the building.
  • Granular Material Specification:
    • The required granular border must consist of crushed stone or other coarse, free-draining, clean granular material.
    • No more than 10% (by weight) of the material can be composed of particles small enough to pass through a 4 mm sieve.
    • Material must be free from pyritic inclusions, which can oxidize and expand, destabilizing the foundation as pyrite swells.
  • Installation Depth and Extent:
    • The granular layer must be installed to a minimum vertical thickness of 125 mm (5 inches) directly beneath all footings.
    • The layer must extend laterally at least 300 mm (one foot) beyond the outer edge of each footing in every direction, ensuring surface water cannot bypass the drainage system by traveling along the footing’s edge.
    • The granular material must be placed either on undisturbed native soil or on thoroughly compacted fill to prevent settlement or voids post-construction.

These stipulations are not simply regulatory hurdles but crucial engineering controls that directly affect the function and resilience of foundation drainage systems.

Granular Drainage Layer Design Principles: Science Meets Code

A properly designed granular drainage layer intercepts water that infiltrates the soil around a foundation, collects it, and directs it safely toward a sump or drain tile system. To achieve this, strict attention to base grading, material selection, and installation technique is required at every step.

Why Slope Matters: Directing Water Away from the Foundation

Even a tiny depression or level area beneath a footing can result in water pooling directly under high-load structural supports. Over time, such pooling can soften clays, cause heaving in frost-prone soils, or foster conditions for mold and mildew growth. By insisting that all points beneath the footing slope toward a sump pit, NBC 9.14.4.3 eliminates these risks by leveraging gravity as a passive, fail-safe drainage mechanism.

For builders, achieving this slope may involve over-excavating, careful surveying, and the use of laser-guided or string-level systems to create the correct grade. The typical recommended slope is at least 2% (2 cm drop per meter), but local engineers may specify more or less depending on soil permeability and water table levels.

The Role of Proper Granular Material

The granular layer acts as both a physical barrier and a water conduit. Coarse, uniformly graded crushed stone:

  • Prevents the migration of fine soil particles into perimeter drains, which can eventually clog pipes and reduce flow rates.
  • Maintains high void ratios, allowing water to move quickly through the layer without becoming trapped or absorbed.
  • Is resistant to frost jacking and settlement when installed over well-compacted or undisturbed subgrade.
Calgary’s abundant glacial till offers a wide variety of aggregate options, but not all meet NBC’s strict criteria. Material must be tested to ensure less than 10% fines (particles <4 mm) and zero pyrite or expansive minerals.

Granular Layer Depth and Breadth: More is Often Better

While NBC mandates a minimum of 125 mm beneath and 300 mm beyond each footing, builders sometimes install thicker or wider layers to address specific site challenges:

  • High water table zones may require greater depth or multiple tiers of granular material.
  • Problematic soils, such as expansive clays, might benefit from a wider expanse to control lateral water migration.
  • Larger commercial footings or mat slabs demand special attention to uniform granular thickness under heavy load points.
Erring on the side of excess-provided it is structurally justified and cost-effective-is rarely regretted when future moisture issues are considered.

Impacts of Poor Granular Drainage Layer Grading: Real-World Consequences

Failing to comply with NBC 9.14.4.3, or simply cutting corners during grading and installation, can create problems that haunt property owners and developers for decades:

  • Basement Dampness and Flooding: Inadequate or flat granular layers leave water with nowhere to go, saturating concrete and increasing the likelihood of leaks and standing water.
  • Frost Heave and Settlement: Water trapped beneath footings expands dramatically during freeze-thaw cycles, lifting and cracking foundations.
  • Foundation Wall and Slab Cracking: Hydrostatic pressure caused by poor drainage can fracture concrete, displace rebar, and result in costly structural repairs.
  • Mold and Mildew: Chronic dampness under slab-on-grade or finished basements provides a perfect environment for biological growth, creating health hazards and ruining finishes.
  • Drainage System Failure: Clogged or overwhelmed perf-pipe and sump pumps cannot compensate for basic flaws in the subsurface drainage design.

Repairing poor drainage is often invasive and vastly more costly than building it right the first time. Remediation may involve underpinning foundations, replacing compromised fill with proper granular material, or even legal battles if code violation contributed to structural failure.

Granular Layer Grading: Step-by-Step Excavation and Construction Best Practices in Calgary

Successful granular drainage layer installation involves precise steps, from initial excavation to final inspection. Builders, developers, and ambitious homeowners should never assume “the dirt guy knows best”-as code compliance is a shared responsibility. Here is a breakdown of best practices tailored for Calgary’s construction landscape:

Step 1: Site Assessment and Soil Testing

  • Conduct a compaction and particle size analysis on site soils and fill materials to determine suitability for subgrade (beneath granular layer) and to select appropriate granular aggregate.
  • Identify any presence of pyrite or expansive clay minerals by laboratory testing, as required by NBC and Alberta Building Code amendments.
  • Survey for the location of the lowest drainage point-where the future sump will be located-and confirm it is at the correct elevation and distance from the building footprint for gravity drainage.

Step 2: Excavation and Base Preparation

  • Excavate to the full required depth below the lowest point of all planned footings. Extra excavation may be needed to accommodate granular material and prevent “thin spots.” Ensure all soil below the granular layer is undisturbed or compacted to at least 98% Standard Proctor Density (SPD) as verified by a qualified technician.
  • Use laser levels or transit levels to set grade pegs marking the necessary slope toward the future sump location.
  • Check and recheck the slope and elevations, since heavy equipment and shoveling can quickly disrupt delicate base grading. In Calgary, typical best practice involves aiming for a 2-5% slope, exceeding the minimum where possible, especially on large or irregularly shaped foundations.

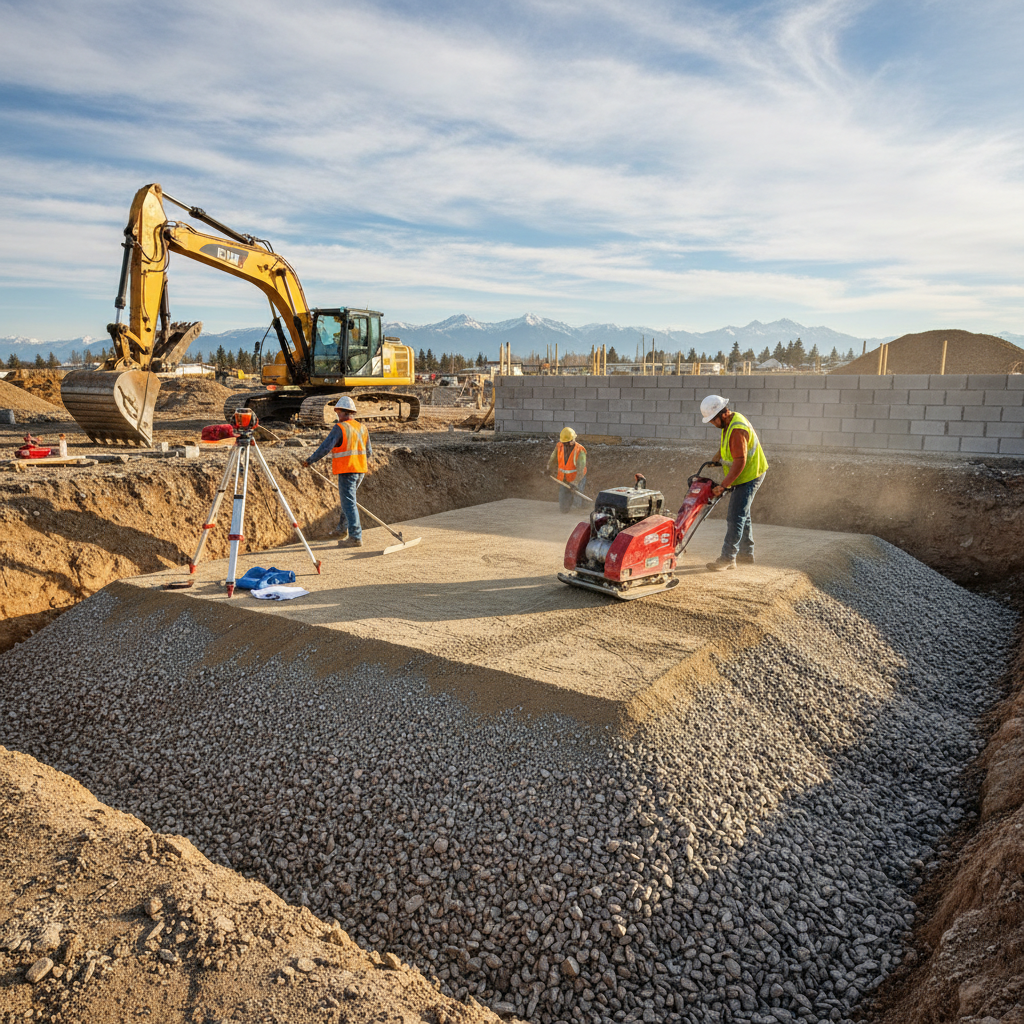

Step 3: Placing and Compacting Granular Material

  • Transport clean, code-compliant crushed stone or granular fill directly to the site. Verify the particle gradation either through supplier certification or on-site sieve analysis.
  • Spread the material in loose lifts of no more than 150 mm (6 inches) and compact each lift with a vibratory plate tamper or heavy roller.
  • Maintain an even thickness-minimum 125 mm-under the entire area of all footings. Extend the compacted granular pad a minimum of 300 mm outwards beyond the footing edges in every direction. Thorough compaction avoids future settling and creates uniform support for concrete footings and walls.
  • Check the finished granular surface with a long straightedge or laser to confirm unbroken slope toward the sump pit, making corrections as needed.

Step 4: Drain Installation and Protection

  • Install perforated perimeter drain pipes (weeping tile), encasing them fully in additional crushed stone above and around the level of the foundational granular layer.
  • Connect all drainage pipes to the sump pit in the lowest corner of the excavation, and confirm slope throughout the pipe runs. Consider adding a cleanout or inspection ports for maintenance.
  • Protect the granular layer during concrete placement-use geotextile separator fabric if necessary to prevent contamination by cement paste or soil clods.

Step 5: Verification and Inspection

  • Before pouring footings or slab, schedule statutory municipal or third-party inspections as required by the City of Calgary and any lender or warranty providers.
  • Inspectors will check the material, depth, extent, slope, and drainage installations to ensure full compliance with NBC 9.14.4.3 and local amendments. Field failures require immediate correction-a delay that can affect entire project timelines.
  • Retain detailed photographs, survey data, and supplier material certifications for your records, to expedite later permit close-outs or support warranty claims.

Material Selection: Avoiding Pitfalls and Ensuring Code Compliance

Not all aggregate is created equal. Choosing the wrong granular material can negate even the most careful grading and lead to drainage failure.

Characteristics of NBC-Compliant Granular Material

  • Particle Size Distribution: The granular material must consist of predominantly coarse, clean crushed stone or gravel, with no more than 10% of the bulk by weight passing through a 4 mm sieve. Too many fines (<4 mm) reduce permeability, clog pipes, and invite settlement.
  • No Pyritic Material: Pyrite (“fool’s gold”) can be a hidden hazard. In contact with moisture, pyritic material oxidizes, producing acidic byproducts and expanding, breaking the concrete above. All aggregate must be certified free of pyrite, using supplier documentation or on-site mineralogical testing where in doubt.
  • Cleanliness: Material must be free of soils, silt, debris, or organic matter. Only clean, angular, hard particles ensure long-term drainage and structural support.

Testing and Documentation

Contractors or self-builders should request supplier gradation test results or arrange for laboratory sieve analysis themselves. If reusing on-site gravel or recycling concrete, always test for particle size and chemical contaminants-never trust visual inspection alone.

Keep all receipts, lab reports, and supplier certifications in the project file. Municipal inspectors and new-home warranty providers may request this documentation at any stage, and lacking it can delay approval or occupancy permits.

Sloping and Layout: Achieving and Verifying Proper Drainage

The geometric layout of the site, foundation footprint, and surrounding landscape influences the complexity of drainage layer grading. Even on simple rectangular sites, access constraints or nearby structures can make proper grading a challenge.

Typical Slope Requirements and Measurement

  • Minimum Slope: NBC requires a slope sufficient to direct water toward the sump, typically quantified as at least 2% (2 cm per 1 meter, or about 1/4 inch per foot). Flat, wide sites or large commercial slabs may benefit from slightly steeper grades.
  • Avoid Ponding: Survey the entire excavation base-any low spot or hollow invites water pooling and must be corrected before granular placement.
  • Sump Location: The sump pit should be positioned at the lowest point of the excavation. Its elevation determines the finished grade of the granular layer and thus the remainder of the foundation’s position relative to shallow or deep utilities.

Laser levels, builder’s transits, and digital inclinometers are invaluable in large projects. For smaller residential foundations, careful use of hand levels, long-straight edges, and string lines still produces excellent results when combined with attention to detail and multiple cross-checks.

Local Regulatory and Permit Landscape: Navigating Calgary’s System

The National Building Code sets the baseline, but Calgary overlays its own requirements, inspections, permit processes, and best practices. Homeowners and builders must account for both in every project:

Key Required Permits

  • Excavation Permit:
    • Required for any work breaking or digging into City of Calgary road rights-of-way, including curb crossings for driveways, utility trenching, and foundation soil removal adjacent to public property.
    • Apply online via the Calgary ePermits portal. Application requires drawings, safety plans, traffic accommodation strategy, and detailed scope of work descriptions.
  • Building Permit:
    • Mandatory for construction or alteration of any building’s foundation or structural footprint.
    • Covers compliance with Alberta Building Code, NBC, and local bylaws, including energy efficiency ordinances, stormwater management systems, and property line restrictions.
    • Application must include stamped engineering drawings, site survey, drainage plan, and full construction details for all foundation elements-including granular layer grading, sump pits, and drainage accessories.

Permit Fees and Timelines

  • Excavation Permit Fees:
    • As of 2026, standard fee is $53.20 per application, with a works inspection fee of $105.80 per permit. Additional charges may be incurred for complex right-of-way work, proximity to fresh pavement, or traffic-related disruptions.
    • Fee structure is subject to change-always reference the current rate sheet before making project financial commitments.
  • Building Permit Fees:
    • Calculated based on project type and valuation. New residential secondary suites, for example, pay $388 in permit fees plus a $15.52 Safety Codes Council fee-a total of $403.52 as of 2026.
    • Major subdivision, multifamily, or commercial projects scale up accordingly-review the latest fee schedules on the City of Calgary’s Planning and Development portal.
  • Timelines:
    • Excavation permit review typically takes up to 2 business days for most standard projects; up to 10 business days if newly paved roadway is affected or if additional engineering review is needed.
    • Building permits can take from a few days for simple renovations to several weeks for new construction, depending on backlog and project complexity.

Innovative Programs: Permission to Permit

Calgary offers the Permission to Permit program, allowing contractors to pre-pay future pavement degradation costs and “top lift” paving fees at a discounted, flat rate. This simplifies budgeting for projects that require cutting into paved streets and offers cost predictability.

Inspections: Gatekeeper for Code Compliance

  • Both excavation and building permit recipients must schedule mandatory inspections prior to backfilling or pouring concrete. Passing these checks validates that granular drainage layer grading, material, and drainage system placement meet or exceed NBC/Calgary requirements.
  • Failed inspections result in immediate stop-work orders with explicit written correction directives. Failing twice can incur re-inspection fees or in extreme cases, the requirement to remove and replace non-compliant work.
  • Records of successful inspections are needed before site occupancy or future home sales-don’t skip final sign-off.

Local Code Amendments and Best Practices Specific to Calgary

While the NBC applies across Canada, Calgary Building Regulations (and those of the Province of Alberta) often introduce local amendments. Key Calgary considerations related to granular drainage layer grading include:

  • Enhanced drainage standards in high water table neighborhoods, including deeper or wider granular layers and dual sump systems.
  • Additional documentation and soil testing in areas with known pyrite or sulfate mineral inclusions (mineral belt regions bordering Fish Creek and the Bow River).
  • Stricter enforcement of granular content testing for recycled materials, especially in large multifamily developments.
  • Frequent site monitoring in new subdivisions to prevent poor fill compaction or grading errors during rapid construction schedules.

Professional geotechnical engineering is highly recommended (and often required for warranty purposes) when dealing with non-standard soils, unusual slopes, or shared drainage easements.

Protecting Against Pyrite: A Special Challenge in Alberta

Pyrite expansion-long studied in Quebec and eastern Ontario-has caused foundation damage wherever it occurs under slabs or drainage layers. In Calgary, areas with shaley glacial till may harbor pyritic seams not initially visible during visual or basic aggregate inspection.

  • Always confirm, via lab testing or signed supplier certification, that aggregate is pyrite-free if there’s any doubt. The stakes are high-expanding pyrite can break even high-strength concrete and cause wall and slab displacement.
  • Never accept “as dug” gravel or discounted recycled fill without documented mineralogical screening.
  • If pyritic material is discovered after initial construction, addressing the issue may necessitate full slab or footing replacement-costs vastly exceeding proactive material testing.

Granular Drainage Layers in Major Calgary Construction: Commercial and Industrial Applications

For builders and developers working on large-scale projects-commercial plazas, warehouses, or slab-on-grade industrial buildings-the stakes of granular drainage layer design are even higher. Increased building footprint, bigger load concentrations, and more stringent code inspection mean meticulous documentation and execution are required.

  • Granular drainage systems are often engineered and reviewed by certified Geotechnical and Civil Engineers. Design documents include cross-sections, detailed grading plans, and location of sumps or drainage swales.
  • Large project sites may require two-stage granularity-coarse granular to form the drainage bed, with additional fine filter layers above or beneath to prevent migration of smaller particles and protect against clogging.
  • Complex projects often include additional stormwater management infrastructure-below-slab storage reservoirs, high-flow sump pumps, or trench drains integrated with municipal storm sewers.

Builders should maintain tight relationships with lab services, code officials, and documentation specialists to stay ahead of compliance and inspection requirements.

Special Considerations for Existing Homes: Renovation, Underpinning, and Remediation

Homeowners looking to repair or upgrade a home’s foundation drainage face unique challenges. Many Calgary homes built before the 1980s lack granular drainage layers entirely or have only token attempts at under-footing stone. Retrofit and remediation projects must still meet modern standards wherever possible, and often entail additional permits:

  • Excavation around existing foundations may require shoring, under-pinning, or temporary support if structural loads will be affected.
  • When repairing or adding new weeping tile systems, take the opportunity to upgrade the granular layer to NBC standards-removing old, silted stone and replacing it with clean, code-compliant material extended fully beneath and beyond footing lines.
  • Check with the City of Calgary’s building department about any special requirements for historic buildings, infill properties, or properties situated near protected utility corridors.
  • Permits and inspections remain mandatory even for “repair” work-never assume that aged homes are “grandfathered” from current code on work subject to modern inspection.

Specialty Calgary contractors experienced in remediation can be invaluable, especially when soft soils, high water tables, or shaley gravels are present.

Builder & Developer Obligations: Warranties and Disclosure

In Alberta, new home warranty legislation places firm obligations on builders to meet or exceed building code minimums, including granular drainage layer grading. Properties that fail later home inspection due to poor sub-footing drainage or material non-compliance can become the subject of “warranty call-backs” or legal action within the seven-year warranty window.

  • All project documentation (soil testing, granular certification, inspection sign-off) should be kept on file for at least a decade for legal, resale, and warranty verification.
  • Where upgrades are performed on older homes, full disclosure to buyers (and municipal inspectors) of the work performed-including before, during, and after photos-is strongly advised to limit liability.

DIY or Professional? Making the Right Call for Your Calgary Project

With the widespread availability of compacting equipment, laser levels, and aggregate suppliers, some homeowners and self-builders may feel tempted to tackle granular drainage layer installation themselves. While this is technically allowed by permit (subject to inspection), it is not recommended for most:

  • Professional contractors come equipped with specialized grading equipment, compaction machinery, and years of experience avoiding “rookie mistakes” during excavation and granular placement.
  • Inspection failures due to improper slope, non-compliant material, or missing documentation can result in expensive backcharges and schedule delays far outweighing any savings from the DIY approach.
  • In cases where property slopes are complex, soil conditions are atypical, or code requirements seem ambiguous, hiring a geotechnical engineer, professional excavator, or both can save substantial time and heartache.

Even seasoned builders often consult with registered engineering firms, especially when constructing in areas with known drainage or soil movement challenges. The peace of mind from knowing your drainage layer is “by the book” is difficult to overstate.

Communication and Coordination: Builders, Homeowners, Engineers, and Inspectors

As with all complex construction, achieving proper granular drainage layer grading in Calgary requires careful coordination among all project stakeholders:

  • Regular on-site meetings between excavation crews, foundation engineers, and general contractors ensure that field conditions match design intent and code specifications.
  • Homeowners or project managers should insist on seeing the granular layer before concrete is poured; photographs and survey measurements should be logged for reference and sign-off.
  • Inspections must be scheduled in advance-municipal inspectors may require up to 48 hours’ notice, and missed or failed inspections can disrupt even tightly managed construction calendars.

Open communication, clear documentation, and a shared commitment to code compliance are the best guarantees of a successful, durable foundation in Calgary’s unpredictable subsoil conditions.

Summary: Protecting Investment and Building Value with Proper Granular Drainage Layer Grading

A correctly graded granular drainage layer, extended and installed according to NBC 9.14.4.3 and Calgary-specific amendments, is the bedrock of a dry, durable, and problem-free foundation-whether for a single family home, multi-unit development, or commercial facility.

  • The right aggregate, correct grading, adequate layer thickness, and seamless tie-in with perimeter drainage and sump systems are indispensable. These steps cannot be skipped, minimized, or retroactively “fixed” without high cost and structural risk.
  • Permits, inspections, and meticulous documentation remain central to smooth project completion, verification of code compliance, and the avoidance of future legal or financial exposure.
  • Whether you are a homeowner, builder, or major developer, refusing to cut corners on drainage layer installation is a powerful bulwark against the worst that Calgary’s climate has to offer.

Do it once, do it right-and enjoy the peace of mind for decades.
