Each year, countless construction projects across Calgary require excavations, ranging from small-scale residential basements to large commercial developments. The safety, longevity, and legal compliance of these projects often depend on meticulous planning and the proper design of supported excavations. Supported excavations are engineered solutions-often involving shoring, bracing, or retaining systems-that hold back soil to prevent collapse during construction.

In the absence of well-designed support systems, excavation failures can result in costly structural damage, injuries, regulatory penalties, and project delays. Workers, nearby property, and public infrastructure all hinge on the integrity of these temporary but vital systems. Calgary’s adoption of the National Building Code (NBC) provisions, particularly sections OS2.6 and OP4.1, forms the backbone of the regulatory and engineering requirements for excavation work. For homeowners, builders, and developers, successfully navigating these rules is more than a formality-it is a critical ingredient in due diligence and project success.

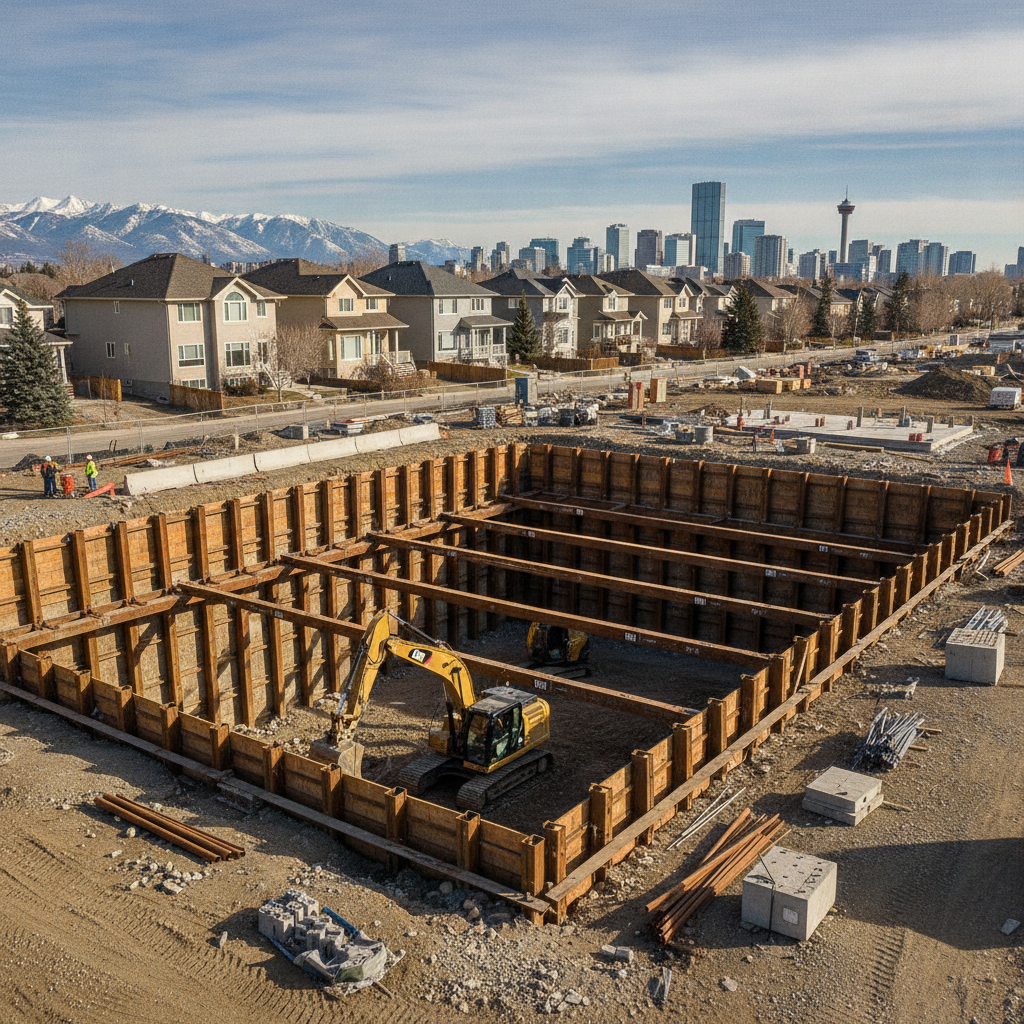

Supported Excavations: Why Design and Compliance Matter

Supporting an excavation-whether for a new home, a deep basement, or municipal infrastructure-does far more than merely comply with building regulations. It safeguards life and property, ensures uninterrupted project progress, and helps contain costs by reducing risks associated with soil movement, cave-ins, and adjacent property damage. In rapidly growing cities like Calgary, where new developments are often wedged between existing structures, the stability of every dig site is under particularly close scrutiny.

Excavations deeper than 1.2 meters (approximately 4 feet) are especially hazardous and are governed by strict codes. Even shallow excavations can be perilous if soil is unstable or groundwater is present, making the role of professional assessment and engineered solutions paramount in all cases. By combining strong engineering principles with clear regulatory understanding, stakeholders can proceed confidently, minimize hazards, and keep neighbors, workers, and investments safe.

Understanding NBC OS2.6 and OP4.1: The Foundation of Excavation Safety

At the heart of excavation safety in Calgary lies the National Building Code of Canada (NBC). The City of Calgary requires compliance with the Alberta Building Code, which is based on the NBC and tailored for local conditions. Two sections-OS2.6 and OP4.1-carry special significance for supported excavation design:

OS2.6: Safety of Workers and the Public in Excavation Activities

Section OS2.6 addresses the core safety requirements for excavation work. Key points include:

  • Stability: Excavations must be constructed and maintained to prevent accidental collapse throughout all stages of the project-right up until permanent foundation elements are installed or backfilled.
  • Access and Egress: Safe means of entry and exit must be provided at every excavation, safeguarding workers from falls or impediments in emergencies.
  • Public Protection: Hoarding, barriers, or other structures must be in place to keep unauthorized personnel-especially the public-away from hazardous areas.
  • Site-Specific Risk: The design must account for local soil conditions, groundwater, weather, and nearby structures, which could all exacerbate risks of collapse or movement.
Meeting these requirements typically means engaging geotechnical and structural engineering expertise to evaluate site conditions, identify hazards, and develop a robust excavation support system tailored to the unique conditions of every site.

OP4.1: Performance Standards for Excavation Support Systems

Section OP4.1 outlines the criteria for the performance of excavation support systems. These standards ensure that whatever system is employed-be it shoring, soldier piles with lagging, timber, sheet piling, or engineered slopes-it must:

  • Withstand All Imposed Loads: This includes both the weight of the soil and surcharge loads from adjacent structures, roads, or storage areas.
  • Prevent Downslope Movement: Any lateral soil movement that could endanger foundations or paved surfaces must be controlled.
  • Remain Stable in all Environmental Conditions: From heavy rain to freeze-thaw cycles, supports must perform as designed under all reasonable circumstances.
  • Meet or Exceed Specified Factor of Safety: Enforcement of reliable engineering safety margins is mandatory to minimize risk of failure.

Ultimately, these sections of the NBC enshrine the expectation that supported excavations are more than just temporary construction nuisances-they are engineered systems that protect long-term investments and public well-being. For property owners and builders, meeting OS2.6 and OP4.1 is not merely about passing inspections, but demonstrating respect for legal responsibilities and ethical construction standards.

Who Needs Supported Excavation Design Services?

In practice, supported excavation design is not only for large commercial developers. Homeowners planning walkout basements, builders adding new foundations, or developers embarking on multi-phase residential projects are all subject to the same fundamental safety requirements. The scenarios requiring engineered support include:

  • Deep residential basements (especially in dense neighborhoods where soil removal could impact adjacent foundations)
  • Excavations near roads, sidewalks, or utilities
  • Infills and tight-lot construction (common in Calgary’s established communities)
  • Any excavation with unstable or high-water-table soils
  • Major commercial or institutional buildings requiring multi-storey underground parking or equipment vaults

Regardless of project scale, clients must engage qualified professionals and recognize that these systems are subject to detailed review by the City and, in some cases, independent geotechnical oversight.

The Permit Process: Overview and Step-by-Step Guide

Calgary’s permitting process for supported excavations involves several steps, with requirements adapting to the scope and location of each project. Effectively, three main permits may be required:

  1. Excavation Permit: Required for any excavation in the City’s road right-of-way, typically where the dig site impacts public thoroughfares, sidewalks, or municipal lands. It covers both the safety of the immediate excavation and the restoration of public property after work is complete.
  2. Building Permit: Mandatory for excavation as part of lawful construction or home renovation projects, including new homes, major foundations, or additions. This ensures the entire building project, including the excavation component, meets Alberta Building Code standards.
  3. Development Permit: Necessary for projects that change land use or significantly alter building exteriors. It is often required for infill developments or when adjusting a building’s footprint, particularly when zoning or community standards are involved.

Step 1: Understanding Scope and Requirements

Before applying, project owners should define the project scope and engage preliminary professional input. Early involvement of geotechnical and structural engineers ensures the proposed excavation strategy will fit the site, meet NBC and municipal requirements, and flag any conditions which may affect design, scheduling, or costs (e.g., poor soils, proximity to utilities, or adjacency to sensitive structures).

Step 2: Preparing an Engineered Excavation Support Design

Engineered drawings and reports are required to document how the excavation will be executed without endangering workers, the public, city infrastructure, or neighboring properties. Drawings typically include:

  • Site plans showing existing conditions, property boundaries, and nearby structures or utilities
  • Cross-sections detailing excavation depth, width, and support system design (e.g., types of shoring, lagging, tiebacks, bracing)
  • Soil and groundwater assessments (conducted by a qualified geotechnical engineer)
  • Sequence of work and any monitoring/inspection protocols (who inspects, how often, who maintains safety logs)
  • Contingency plans for rapid response in case of water ingress or unexpected soil movement

These engineering packages must satisfy the requirements of both NBC OS2.6 and OP4.1, and are typically included in the documents submitted with your permit applications.

Step 3: Submitting Permit Applications

Properly completing the City of Calgary’s digital or paper applications (usually through the City portal) accelerates the review process. Be sure to include:

  • Complete engineering drawings and geotechnical reports
  • Demonstration of adequate safety protocols and risk mitigation
  • Confirmation of adjacent structure and utility locations (Alberta One-Call clearance tickets)
  • Proof of insurance and, if required, bonding
  • Payment of the applicable fees (discussed below)
If the project is especially complex-say, it exceeds standard maximum excavation depth or is abutting critical infrastructure-expect additional review and potential requests for clarifications or supplementary documentation.

Step 4: Permit Review and Issuance

City reviewers, including planning, transportation, and utilities staff, evaluate applications for compliance with NBC provisions, municipal standards, and safety regulations. Typical timelines are:

  • Excavation Permit: Standard review in 2 business days. Up to 10 business days if excavating on newer pavement (last two years).
  • Building Permit: About 21 days for new dwellings (single/semi-detached/duplex), with longer timelines for complex projects or incomplete applications.
  • Development Permit: Eight to twelve weeks depending on project complexity, zoning, and whether it’s a contextual dwelling.
While waiting, address any City correspondence promptly to prevent unnecessary delays.

Step 5: Executing and Documenting Excavation

Upon receipt of the appropriate permits, construction can begin. Keep all City-issued documentation on-site and post appropriate notices/barriers for worker and public safety. Inspections by City staff or third-party engineers may occur at stages critical to excavation stability, such as after initial shoring installation or before backfilling.

Financial Planning: Fees, Costs, and Managing Risks

Excavation support systems and their associated permitting costs can represent a significant fraction of the total project budget-particularly on challenging or high-liability sites. Being familiar with Calgary’s standard fees, as well as the variables that influence pricing, allows for accurate budgeting and optimal risk management.

Standard Calgary Permit Fees

  • Application Fee: $75 per excavation permit application (non-refundable processing cost).
  • Works Inspection Fee: $120.75 per permit for the City’s post-excavation review and confirmation that municipal standards are restored.
  • Pavement Degradation Fees: Assessed on projects impacting City roads or sidewalks and based on the class of roadway and extent of surface disturbed.
    • Arterial roads: $61.15/m2
    • Collector roads: $54.90/m2
    • Local roads: $49.95/m2
  • Top Lift Paving Fees: $62.41/m2 if working on roads with a Visual Condition Index (VCI) of 7+

All fees are subject to annual adjustment, so confirm with the current City schedule when applying.

Bulk Permitting Options: Permission to Permit Program

For developers or builders with projects encompassing multiple or recurring excavations, Calgary’s “Permission to Permit” program enables fee pre-payment at a flat rate determined by the total anticipated area and classification of roads disturbed. This offers cost certainty and simplifies administration for large or phased projects. More details can be found here.

Engineering and Construction Costs

Beyond permit fees, the actual construction and design of supported excavation systems is highly variable and dependent on several factors:

  • Soil Type: Loose fill or saturated clays increase design complexity and reinforcement requirements compared to stable, dry gravels.
  • Excavation Depth and Size: Deeper, longer, or irregularly shaped excavations tend to be more costly and require more robust support systems.
  • Adjacent Structures and Utilities: Working close to neighboring foundations, watermains, or gas lines increases engineering fees and may require unique, higher-cost solutions to control settlement and vibration.
  • Groundwater Management: Dewatering, if required, adds material and mechanical costs, as well as further permitting complexity.
  • Access Constraints: Urban infill sites often necessitate bespoke solutions due to tight working spaces and limits on staging or equipment setup.
Budgets for residential-scale supported excavation typically range from several thousand to tens of thousands of dollars, with large commercial projects exceeding six figures, depending on risk and complexity.

Managing Financial Risks with Insurance, Bonding, and Contingency Funds

Calgary requires contractors to carry appropriate insurance for excavations impacting public lands, and bonding may be required for substantial projects. Homeowners and builders should also budget for potential unexpected costs-soil irregularities, groundwater encountering, adverse inspection findings, or required design changes. Establishing a contingency fund (typically 5-15% of estimated excavation costs) is a prudent practice to manage unforeseeable conditions and mitigate project disruption.

Timeline Management: Navigating Scheduling and Delays

Scheduling excavation support work is a delicate dance. Delays in permit reviews, engineering approvals, or adverse site discoveries can ripple through an entire project schedule. Homeowners and builders who internalize each phase’s time requirements are better positioned to avoid costly standstills and contract disputes.

Permit Processing Times

  • Excavation Permits: Normal reviews are fast-two business days. However, work involving recently laid pavement may take up to 10 business days as City inspectors review long-term impacts.
  • Building Permits: For typical residential builds, expect up to 21 days; complex infill projects or incomplete applications may take longer.
  • Development Permits: These often have the longest lead time, running from 8 to 12 weeks, particularly if public engagement or zoning variances are involved.

Submit permit applications early, and engage all necessary professionals as soon as project intent is clear. Allow ample buffer between anticipated permit issuance and construction start, especially during busy building seasons (spring and early summer).

Construction Phase Scheduling

Once permits are approved, supported excavation work usually proceeds quickly but must never be rushed. Fieldwork should only begin once all permits are in hand and all subsurface utility locates are complete (see below for guidance). The sequencing typically follows:

  • Mobilization of shoring/excavation equipment and safety barriers
  • Implementation of monitoring/inspection plan (often daily or by phase milestone)
  • Staged excavation with progressive installation of support system (e.g., shoring, tiebacks, bracing)
  • Frequent check-ins and adjustments by geotechnical engineer
  • Completion of primary excavation and start of foundation construction
  • Backfilling and site restoration (including public right-of-way if required)

Unscheduled delays can and do arise. Common causes include severe weather, previously unidentified fill or boulders, high groundwater, utility conflicts, or inspection findings requiring redesign. Daily records, open communication among all parties, and flexibility in work planning are essential safeguards.

Practical Considerations: Steps to a Successful and Safe Supported Excavation

Legal compliance and sound engineering are at the heart of supported excavation, but practical, on-the-ground management is equally important. Calgary’s regulatory framework is comprehensive-but so is its emphasis on operational safety and best practice. Here are several key considerations for any excavation project:

1. Engage Qualified Professionals Early

Start every excavation project-no matter how small-by involving experienced geotechnical and structural engineers. These professionals perform site assessments, design effective support systems, and provide recommendations for worker safety in line with NBC requirements. Their input not only streamlines permitting but can dramatically reduce risk and optimize costs.

2. Conduct Mandated Utility Locates

Cutting into Calgary’s ground without a utility locate spells disaster-not only risking costly damage to buried cables and pipes but also endangering life and property. The City mandates that Alberta One-Call (1-800-242-3447) and Shaw Cable (1-866-344-7429) be contacted prior to any excavation. These services mark the location of all known underground utilities, and clearance documentation must be provided before permits are approved or work begins.

Never rely on memory, previous as-built drawings, or off-site locates; every excavation is unique and should be cleared afresh.

3. Maintain Compliance with City Standards

All excavation work impacting public right-of-way or adjacent municipal infrastructure must meet Calgary’s Standard Specifications for Road Construction. These include protocols for:

  • Backfill materials and compaction
  • Surface and sub-surface restoration
  • Temporary and permanent pavement patching
  • Stormwater management and sediment control
  • Daily and long-term safety signage/barriers
Full terms and conditions can be found in the City’s excavation permit agreement.

4. Implement Proven Safety Measures

At a minimum, supported excavations require:

  • Shoring, trench boxes, or engineered sloping per design
  • Full perimeter fencing and appropriate public hazard signage
  • Designated access and egress ladders or ramps at regular intervals
  • Non-slip and secure working platforms
  • Continuous monitoring for soil movement or water ingress
If unsafe conditions are detected, work must stop immediately until rectified. The contractor or engineer of record is responsible for certifying proper installation and maintenance of all support systems.

5. Keep Comprehensive Documentation and Inspection Records

Maintain dated records of:

  • All permit applications and approvals
  • Utility locate tickets and clearance
  • Pre-start, routine, and event-based safety inspections
  • Any geotechnical or structural engineer signoffs
  • Incident reports and corrective actions (if applicable)
These documents aid compliance, speed up inspections, and protect the project owner in case of disputes or claims.

6. Control Environmental and Weather Risks

In Calgary’s variable climate, managing environmental risks is vital. Heavy rains, freeze-thaw cycles, or wind can rapidly destabilize soils. Where groundwater is likely, a dewatering plan (engineered and permitted) may be required. All excavation support designs should accommodate realistic weather scenarios, and protection should be considered for sudden cold snaps or downpours.

7. Communicate Proactively With All Stakeholders

Clear and early communication with neighbors, the City, utilities, and the construction workforce fosters cooperation and minimizes complaints or objections. Especially on infill or high-traffic sites, giving advance notice of noisy or disruptive work, and providing contact details for concerns, helps maintain good community relations.

Special Topics in Supported Excavation: Beyond the Basics

Urban Infill Excavations and Proximity to Existing Foundations

Calgary’s push for densification means more projects are taking place on small lots surrounded closely by existing homes and infrastructure. For builders and developers, this raises two major challenges:

  • Monitoring adjacent building movement: Even small soil shifts can affect older or unreinforced foundations. Pre- and post-excavation surveys by licensed surveyors, along with the use of crack monitors or settlement points, are recommended whenever new digs are within three meters of existing buildings.
  • Dispute prevention: Thorough documentation and regular communication with neighbors, as well as prompt response to any movement notifications, can stave off costly legal or insurance claims.
In many urban scenarios, engineered underpinning or specialty shoring may be necessary to protect neighboring properties.

Excavations Near Utilities, Roads, and Public Spaces

Supported excavation design becomes even more critical when projects are adjacent to busy roadways, public sidewalks, or buried utilities (water, sewer, power). The NBC and Calgary’s regulations demand:

  • Frequent engineering review of support system integrity and utility protection
  • Pre-installation of vibration or movement monitoring equipment if required
  • Special protocols for hand dig or vacuum excavation near sensitive lines
  • Strict coordination with Calgary Roads, Water Services, and ENMAX (power)

Professional geotechnical and construction teams must understand not only the soil mechanics but the unique risks associated with adjacent municipal services.

Trench Excavations and Worker Entry

Trench excavations for utilities, drainage systems, or footings under 1.2 meters deep may not require formal shoring, but all worker entry into trenches deeper than this-or where soil conditions are poor-must comply with NBC and OHS (Occupational Health and Safety) guidelines. This includes daily inspections, trench box use, controlled access, and emergency response planning. Never permit unprotected entry into unsupported soil, regardless of perceived stability.

Shoring System Types and Selection

Among the many shoring and support system technologies available, the most common in Calgary projects include:

  • Timber Shoring: Used primarily for small, shallow excavations in stable soils.
  • Steel Soldier Piles with Wood Lagging: Ideal for deeper excavations in urban areas where space is limited and fast installation is required.
  • Sheet Piling: Steel sheets driven into the earth to form continuous barriers, often used in high water table or soft soil areas.
  • Soil Nail Walls: Reinforcement rods drilled and anchored into soil, sprayed with shotcrete facing, suitable for steep excavations.
  • Secant or Tangent Pile Walls: Overlapping concrete piles creating near-impermeable boundaries for deep or high-risk excavations, frequently used downtown or when minimizing dewatering is critical.
  • Sloped Excavations: In non-urban, low-risk areas, engineered “cutbacks” at safe angles can sometimes be used to replace formal supports, but only if site conditions allow and codes are met.
The selected system must be informed by geotechnical analysis, site restrictions, and engineering judgment, then signed-off by licensed professionals.

Common Pitfalls and How to Avoid Them

Despite robust regulations and ample guidance, supported excavation failures still occur-often due to avoidable errors or omissions. Recognizing common pitfalls and understanding how to sidestep them can save homeowners, builders, and developers immense hassle and expense.

1. Inadequate Site Assessment

Rushing into excavation without complete soil or groundwater investigation increases the risk of support system failure, schedule delays, and spiraling costs. Always insist on a detailed site assessment by a geotechnical professional, including sufficient boreholes, lab testing, and groundwater monitoring where appropriate.

2. Poor Communication Between Design and Construction Teams

Engineering plans must be clearly understood by frontline field staff, not just office-bound designers. Misinterpretation or “cutting corners” with support installation can lead to catastrophic cave-ins or legal liability. Regular meetings and field presence of design engineers during critical stages are essential.

3. Underestimating the Impact of Adjacent Loads

Failure to model the loads from nearby roads, parked vehicles, or existing buildings can lead to total system failure even if excavation “looks” stable. All significant surface or structural loads within the potential “zone of influence” must be incorporated into the support design.

4. Delays in Permit Application or Incomplete Documentation

Incomplete applications-or missing engineering, insurance, or utility clearance-create time-consuming review extensions and possible project stoppage. Review checklists provided by the City and confirm all attachments well ahead of submission.

5. Inadequate Safety Monitoring During Work

Even the best-designed supports can fail if not erected and maintained as planned. Daily visual inspections (logged), regular monitoring of wall and ground movement, prompt response to rainfall, and written engineer certifications must be part of every supported excavation project.

Compliance, Liability, and the Homeowner’s Perspective

For many homeowners, the prospect of navigating NBC provisions and excavation permits is daunting. However, ignorance is no excuse in the eyes of the law-homeowners who act as their own general contractors or who select builders without rigorous safety protocols remain legally responsible for compliance. Key obligations include:

  • Engaging and retaining engineering records for a minimum prescribed period
  • Promptly reporting incidents, near-misses, or unsafe conditions to City authorities
  • Ensuring only permitted and insured contractors perform the work
  • Verifying that City inspections are completed and signed off prior to backfilling or construction over any support system
Non-compliance carries serious risks, including stop-work orders, fines, civil liability to neighbors or City infrastructure, and, in severe cases, criminal responsibility for injury or death.

Insurance Considerations

Homeowners, builders, and developers should verify that both project-specific and contractor insurance policies cover excavation-related incidents. This includes coverage for:

  • Damage to adjacent structures
  • Utility strikes
  • Personal injury (including to the public or contractors)
  • Environmental cleanup (contaminated soil, groundwater releases, spills)
Retain and review all certificates, and clarify coverage limits prior to starting work. In many cases, City permits mandate minimum coverage levels, and claims may be denied if projects are outside compliance.

Frequently Asked Questions on Supported Excavations in Calgary

Do I always need engineered shoring for my home project?

Not all excavations require engineered shoring, but any excavation deeper than 1.2m or those adjacent to sensitive infrastructure or buildings should be evaluated by an engineer. The Alberta Building Code and NBC provide some flexibility for shallow residential work, but if there is any doubt, err on the side of caution and consult a professional.

Can excavation permits be fast-tracked?

Standard Excavation Permits (outside of new pavements) are reviewed within two business days, among the fastest municipal turnarounds in Canada. However, more complex projects-particularly those requiring Development or Building Permits-are subject to longer timelines as detailed above. Incomplete applications are the most common delay factor.

What are the consequences of unauthorized or unsafe excavation?

At minimum, unauthorized excavation can result in stop-work orders and fines. In cases where excavation failures cause property damage, injury, or disruption of utilities, the legal consequences can escalate to civil lawsuits or, in extreme circumstances, criminal charges. Insurance claims may be denied for non-permitted work.

How can I estimate total excavation-related costs?

Total costs include:

  • Engineering/Design Fees: $2,000-$10,000 (residential) and up, depending on complexity
  • City Permit and Inspection Fees: Varies by scope, typically several hundred to several thousand dollars
  • Construction Costs: Shoring, dewatering, soil disposal, access, safety barriers
  • Contingency: 5-15% of direct costs for unexpected findings or changes
Obtain detailed quotes from reputable contractors and engineers, and confirm all permit and restoration requirements with the City at project outset.

Who is responsible for permit applications and ensuring compliance?

Ultimately, the property owner bears legal responsibility for compliance, even when hiring contractors or construction managers. Contractors often prepare and submit permit documentation as part of their role, but owners must ensure all requirements are met and documentation is properly retained.

Best Practices for Homeowners, Builders, and Developers

  • Start with a detailed geotechnical site investigation for every new or deep excavation.
  • Engage a qualified structural engineer with local Calgary experience for support design.
  • Include engineers in construction oversight and monitoring (not just initial design).
  • Coordinate early utility locates and confirm all clearances in writing.
  • Document every stage-especially before, during, and after major excavation work-to aid in dispute resolution and to support insurance claims if necessary.
  • Communicate proactively with neighbors and municipal authorities regarding schedules, anticipated disruptions, or site safety.
  • Budget realistically for all permitting, engineering, and construction support costs-plus contingency funding for the unexpected.
  • Comply meticulously with all City, provincial, and NBC requirements; if in doubt, seek expert guidance before acting.

Conclusion: Building Calgary’s Future on a Solid (and Safe) Foundation

The proper design and implementation of supported excavations is a central part of responsible construction in Calgary’s growing communities. By understanding and adhering to National Building Code requirements-especially OS2.6 and OP4.1-and aligning closely with the City’s robust permitting, safety, and engineering standards, homeowners, builders, and developers can protect their investments, meet community expectations, and keep workers and the public safe.

Timely engagement of qualified professionals, robust site assessment, meticulous documentation, and proactive communication form the pillars of a successful supported excavation undertaking. The cost and effort of proper compliance pales compared to the risks of shortcuts or neglect. With careful planning and execution, every foundation-literal and figurative-of Calgary’s homes and buildings can stand the test of time.

For expert assistance with demolition, excavation, and site preparation, Kingsway Demolition & Excavation offers trusted service for safe, code-compliant results in Calgary and area.
