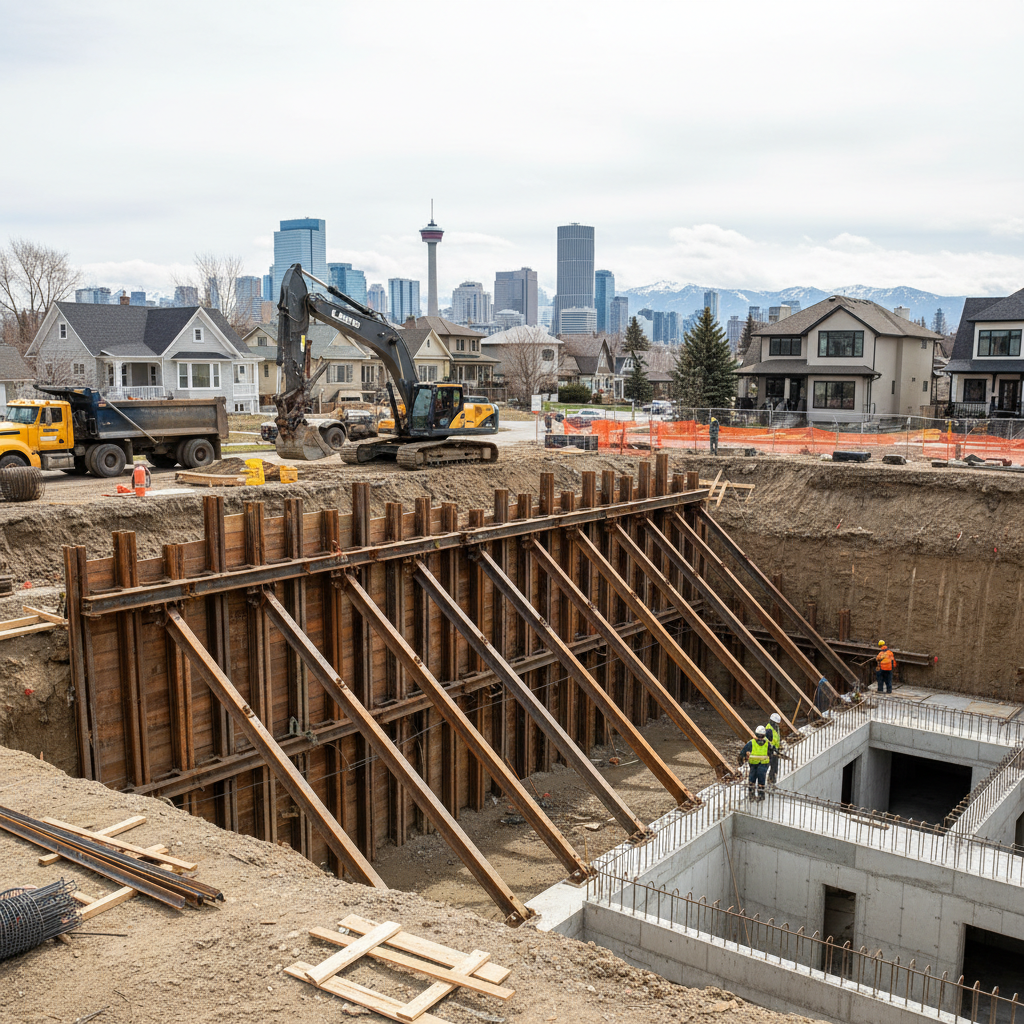

Every excavation project in Calgary-whether for a new single-family home, a major redevelopment, or a custom addition-relies on the integrity of its groundworks. According to recent figures, soil- and excavation-related incidents account for a significant portion of construction accidents across Canada, many of which are preventable through sound design and adherence to building code requirements. In Calgary, supported excavations are governed not only by industry best practices and engineering standards, but specifically by the National Building Code (NBC) Sections 4.2.5.3 and 9.12.1.1. Complying with these sections is not optional; it is a legal and safety imperative for homeowners, builders, and developers alike.

Why Proper Excavation Support Matters

Excavation is almost always the first physical step of a construction project. Whether digging a basement, installing utilities, or preparing for commercial foundations, the way an excavation is supported has ripple effects throughout the safety, cost, and schedule of the whole build. Poorly supported or improperly designed excavations can lead to unimaginable consequences-ranging from minor soil slippage to large-scale cave-ins, severe property damage, injury, or even loss of life. Supported excavation design is about far more than paperwork; it is about ensuring that workers can enter a site with confidence, that neighboring properties stay protected, and that municipal infrastructure remains undisturbed.

Real-World Risks

• Worker Safety: Unstable excavations create the risk of sudden collapse, potentially trapping or injuring anyone below grade.
• Property Damage: Soil movement can undermine nearby structures-cracked foundations, shifting driveways, and damage to roads are common results.
• Legal Liability: Failing to comply with code can delay projects, trigger inspections, void insurance, and even result in stop work orders or fines.

The importance of proper excavation support cannot be overstated. It is the foundation for a safe and successful project.

Understanding Supported Excavations: NBC Sections 4.2.5.3 and 9.12.1.1

The National Building Code of Canada (NBC) is the standard to which all construction in Calgary must adhere. Two key NBC sections specifically address excavation:

Section 4.2.5.3 - Supported Excavations

This section requires that the sides of every excavation in soil or rock be supported by a retaining structure. Only if an alternative, code-compliant design is prepared in accordance with Articles 4.2.5.1 and 4.2.5.2 can this requirement be varied. In effect, if ground is disturbed to create a vertical or near-vertical face, there must be engineered means in place to resist soil and water pressure and prevent collapse. The only exceptions are fully documented and engineered alternatives, and even these come with rigorous standards.

Section 9.12.1.1 - Excavation

This section emphasizes excavation done to ensure stability of both the new structure and adjacent properties. It requires excavations to be executed in a manner “that ensures stability of adjacent structures and safety of workers.” It also specifies that excavated materials be safely managed-for example, not piled too close to the edge or in a way that exerts excess pressure on the excavation face.

In Practice: What Calgary Homeowners and Builders Need to Know

• Retaining Structures: These may include shoring, soldier piles, lagging, or engineered retaining walls-anything designed to physically support the excavation profile against soil and water pressure.
• Engineered Alternatives: Only allowed if they meet or exceed the safety intent of the NBC. This might include sloping the excavation at a very shallow angle in dense, dry soil, but requires thorough documentation and, in most cases, engineering sign-off.
• Material Storage: Even properly shored excavations may fail if heavy equipment, soil spoil, or building materials are placed too close to the edge. NBC 9.12.1.1 mandates keeping loads at a safe distance.

These requirements create the blueprint for safe excavation-but only when combined with local permit processes, professional supervision, and on-site vigilance.

Calgary’s Permit Landscape: Navigating the Red Tape

Every construction or significant alteration project in Calgary requires navigating the municipal permit system. The goal is not just bureaucracy, but to ensure, for every project, that designs (including excavation plans) meet NBC standards and local bylaws.

Building Permits

Before excavation begins, a building permit is required for almost all types of new construction, additions, or major structural renovations. Calgary’s building permit process ensures that:

• Designs comply with the Alberta Building Code and local amendments.
• Structural and excavation elements are reviewed for code conformance (including Section 4.2.5.3 and 9.12.1.1).
• Required drawings (including stamped engineered plans for excavation support, if needed) have been submitted.

The typical building permit process for a new home in Calgary includes plan review, issuance, required inspections at key stages (including excavation), and final occupation approval.

Development Permits

If the project involves changes to the property’s use, site layout, or non-conformance with the existing Land Use Bylaw, a development permit is required. Unlike building permits (which focus on how something is built), the development permit process asks whether something may be built here. It covers:

• Impact on neighbors (setbacks, shadowing, soil movement, tree preservation).
• Site grading and stormwater management plans, often coupled with excavation support design.
• Community consultation and statutory advertising, giving neighbors the opportunity to appeal.

Both building and development permits may be needed for the same project, and both must typically be in place before heavy machinery arrives.

Trade Permits (Electrical, Plumbing, Mechanical)

These are also relevant during a typical residential or commercial build, and are required for electrical, plumbing, and HVAC work, among others. While they may not directly relate to excavation support, coordination and approval of all required permits is essential to stay on side with municipal and provincial inspectors.

Permit Fees in Calgary

Permit fees in Calgary are calculated based on project type, scope, and declared construction value:

• Building Permit Fees: For new homes, this fee includes a base rate plus a percentage of the construction value. For details, the City of Calgary’s fee calculator provides up-to-date costs.
• Development Permit Fees: For a new single, semi-detached, or duplex dwelling in established areas, expect approximately $1,124, with additional costs for lot grading, advertising, and inspections. The total can reach around $1,859.
• Trade Permits: Each major system (electrical, plumbing, etc.) requires a trade permit, with homeowner permits running approximately $116.50 each, including administrative fees.

Those planning major renovations or infills should also consider costs for demolition permits, tree removal permits (where relevant), and potential environmental assessments.

Permit Approval Timelines

Obtaining all permits-particularly for more complex projects-can be a lengthy process:

• Building Permits: Expect 21 days for new homes, assuming all documentation is in order.
• Development Permits: For single, semi-detached, or duplex dwellings in developed areas, approval typically takes 10 to 12 weeks. This includes the statutory review period and time for advertising and appeals.
• Concurrent Applications: To streamline, many applicants submit building and development permits together. However, full excavation work generally cannot begin until all necessary permits have cleared.

Designing Supported Excavations: Practical Considerations

Permits and codes form only part of the supported excavation equation. The rest comes down to the actual design, engineering, and construction methodologies that transform paper plans into real-world safety. Key considerations for Calgary projects include geology, weather, adjacent property risks, and the skill of engaged professionals.

1. Engage the Right Professionals

Whether a project is a new single-level infill, sprawling commercial development, or complex multi-family build, the expertise of professional engineers and architects is invaluable-and compulsory for most supported excavation designs. Their involvement covers:

• Soil and site investigation.
• Design of appropriate support systems (shoring, sheet piles, tiebacks, engineered slopes).
• Documentation for permit submission.
• On-site inspection during and after excavation support installation.
• Certification or inspection reports for municipal authorities.

Never start a supported excavation without signed and sealed drawings by a professional engineer, customized for your site’s soils, slope, water table, and surrounding infrastructure.

2. Site Assessment and Soil Testing

Calgary sits atop complex geology-glacial tills, clay, silt, gravels, and occasional high water table. Even two lots apart may differ substantially. Professional soil investigations help to:

• Determine soil bearing capacity and types-influences shoring method, depth, and safety factors.
• Detect presence of groundwater or perched water that could affect excavation stability.
• Identify pre-existing fill, potential for settlement, or contamination.
• Guide equipment selection and shoring type (hydraulic, timber, steel sheet piling, etc.).

Skipping-or undervaluing-this step can spell disaster mid-project.

3. Select the Proper Excavation Support Systems

Supported excavation in Calgary may be accomplished using several techniques, each suited to soil type, depth, and proximity to other structures. Common systems include:

• Timber Shoring: Works for shallow, narrow excavations, especially in dry, stable soils. Economical but limited for larger projects and unsuitable in saturated ground.
• Steel Soldier Piles and Lagging: Vertical steel piles are driven or drilled in, with timber, concrete, or steel lagging installed between them as excavation progresses. Widely used in urban infills where nearby foundations, utilities, and roadways require minimal movement.
• Sheet Piling: Interlocking steel (or sometimes vinyl/fiberglass) sheets vibrated or pushed into place-best for deep, water-prone, or highly variable soils.
• Soil Nailing and Shotcrete: For steep faces in cohesive soils; soil is reinforced with long rebar “nails” and sprayed concrete surface.
• Sloped (Benched) Excavations: For sites with lots of space and appropriate soils. The sides are sloped back at a safe angle (dictated by code, soil type, and depth), eliminating the need for high retention.

The best method is always one matched to the specific site, properly engineered, with clear instructions for installation, bracing, tiebacks, drainage, and inspection.

4. Ensure Safety Protocols and Site Supervision

Engineering drawings alone do not create a safe excavation. Rigorous on-site safety is critical:

• Pre-Excavation Planning: Locate and mark all site utilities (Gas, power, water, cable-using Alberta One Call).
• Constant Monitoring: Regular checks of shoring, bracing, and excavation walls for movement, distress, or signs of water infiltration.
• Worker Training: Ensure all site personnel are briefed on excavation hazards, shoring limitations, and emergency procedure.
• Access/Egress: Ladders, ramps, or stairs must be provided so workers can exit rapidly in an emergency.
• Material Storage: Stockpiled soil or building materials should be kept well back from the edge, reducing extra soil load on supports.
• Fencing/Signage: Secure the site to prevent unintentional entry-especially important in residential neighborhoods.
• Regular Inspections: Municipal building inspectors, engineers, and safety officers should review compliance at key project milestones (post-shoring, pre-pour, etc.).

These measures reduce the risk of collapse, injury, and costly project delays while keeping in line with NBC 9.12.1.1’s requirement for worker safety and protection of adjacent structures.

5. Maintain Code Compliance and Documentation

The City of Calgary, through its Planning Services Centre, provides comprehensive guidance for homeowners and builders. Staying informed means:

• Checking with city staff for the latest bylaw and code updates.
• Using only up-to-date, Calgary-specific permit applications and drawing guidelines.
• Keeping records of engineering reports, inspections, and any approved changes.

If in doubt, it is always better to consult than to risk non-compliance; municipal authorities view supported excavation as a high-risk activity requiring full oversight.

6. Budget and Schedule for the Unexpected

Excavation is an inherently uncertain process, as unseen conditions (boulders, unexpected groundwater, old foundations, or contamination) may delay work or require rapid engineering changes. Allocating extra contingency in both budget and schedule is a hallmark of successful projects:

• Budget 10-20% in contingency funds, especially if records on surrounding sites are limited.
• Work with contractors who are familiar with Calgary conditions-local experience matters.
• Factor in possible weather delays; Alberta’s spring and fall rains can quickly turn an excavation into a hazardous mess.
• Sequence permit applications as early as possible to avoid scheduling slip from permit turnaround delays.

Deep Dive: Excavation Design Elements under NBC 4.2.5.3 and 9.12.1.1

Moving beyond the basics, a robust supported excavation design addresses:

Soil and Water Pressure Calculations

Engineers rely on soil data and hydrogeological reports to calculate:

• Lateral earth pressures (active, passive, and at-rest).
• Potential surcharge loads from adjacent traffic, equipment, or stockpiles.
• Hydrostatic uplift or seepage forces if the excavation is below the water table.

Support systems are then designed to withstand the worst-case loading until permanent structures (basement walls, footings) are in place and backfilled.

Shoring and Bracing Details

Effective shoring includes:

• Member sizing (timber, steel angles, plates, tiebacks).
• Connection details-bolts, welding, supports, and bearing plates.
• Sequences of installation and removal (so work is done “top down” to minimize unsupported soil exposure).
• Drainage or weeping systems, to prevent build-up of water behind shoring.
• Provisions for monitoring-survey hubs, inclinometers, or crack gauges to spot soil movement early.

These design details must be communicated in clear construction drawings, stamped by a licensed Professional Engineer, and followed rigorously in the field.

Protection of Adjacent Structures

In urban Calgary, excavations often happen within meters-or even centimeters-of neighboring houses, garages, sidewalks, and buried utilities. Good excavation design considers:

• Pre-construction surveys of adjacent buildings (documenting any pre-existing cracks or signs of movement).
• Vibration limits (to prevent damage from heavy machinery).
• Temporary underpinning (if adjacent foundations are shallow or at risk).
• Emergency response plans if soil movement is detected during works.

This neighbor-friendly, risk-mitigated approach is not only ethical-it is required by law and good practice.

Temporary vs. Permanent Support

Excavation supports may be temporary (removed as basement walls or footings are completed) or incorporated as permanent retaining structures. Proper staging is critical:

• If supports are to be left in place, design must meet the same durability standards as other elements of the building.
• If to be removed, there must be a plan for safe, staged removal and for any required backfilling, compaction, and site restoration.

Permit Submission: What to Prepare

For most supported excavation projects, the City of Calgary will require:

• Engineering drawings and shoring details, sealed by a licensed Professional Engineer.
• Soil investigation report.
• Site survey demonstrating property boundaries and location of existing structures.
• Construction sequence plan and safety protocols.
• Proof of Workers’ Compensation and appropriate liability insurance.

Consult the Calgary Building Permit Guide for New Homes for the latest checklist. Thorough preparation reduces back-and-forth with plan examiners and streamlines project timelines.

Building Permit Inspections: Staying Compliant Mid-Project

Once permitted, the City does not step back-inspections are required at set stages:

• Post-excavation, Pre-pour: Inspections often occur when excavation supports are installed but before basement foundations or footings are poured.
• Shoring Removal (if temporary): A final review may be required to confirm site stability and compliance prior to removing supports.
• Ongoing Monitoring: Significant movement, unanticipated water, or issues affecting adjacent structures must be reported to both City inspectors and the project engineer.

Plan for these inspections in advance, as failing an inspection can halt progress until required fixes are implemented and re-inspected.

Calgary Case Studies: Supported Excavation in Action

Case Study One: Urban Infill Duplex in Hillhurst

Homeowners seeking to build a semi-detached dwelling in Calgary’s Hillhurst neighborhood faced excavation mere inches from neighboring homes. A preliminary geotechnical investigation revealed silty clay with moderate water content. The project engineer specified steel soldier piles and timber lagging, with hydraulic tiebacks at two elevations. Continuous engineering oversight ensured the shoring was installed properly, a survey of neighboring foundations provided a pre-construction baseline, and vibration monitoring protected against accidental damage. Municipal permit inspection cleared the shoring prior to foundation placement, and a final removal and inspection were done post-backfill-resulting in a crack-free, incident-free build.

Case Study Two: Basement Renovation in Mount Pleasant

A homeowner planned to underpin and deepen a 1950s bungalow basement. The project was subject to NBC Section 4.2.5.3, as the excavation was nearly 2 meters deep-well beyond what sloped benches could safely support. Timber shoring was initially considered, but a mid-excavation discovery of higher water table necessitated a switch to sheet piling, quickly approved by the project engineer and City inspectors. Extra water pumping and an emergency shoring review ensured compliance and a safe site. The cost of the engineering change order and delay was offset by preventing a potential collapse and legal complications.

Case Study Three: Commercial Development on Macleod Trail

A new commercial structure required a basement parking garage immediately adjacent to city sidewalks and storm sewer. Sheet pile walls, vibrated into stiff clay, provided lateral support. Trench boxes were used for utility tie-ins, with a site supervisor present for every soil excavation. The excavation plan was submitted alongside extensive geotechnical documentation. Because of nearby public infrastructure, extra oversight on drainage and backfill compaction was required. Regular City inspections and As-Built documentation formed part of the Certificate of Occupancy submission. The project finished ahead of schedule, without a single safety incident or reported surface settlement.

Excavation Support Failure: The Cost of Cutting Corners

While successful projects set the standard, failures serve as cautionary tales. Across Canada, the bulk of trench collapses and soil slides stem from:

• Poor or absent engineering design.
• Improper shoring installation.
• Water infiltration and loss of soil cohesion.
• Excessive surcharge loads too close to the excavation edge.
• Rushed or unsupervised work, especially near holidays or project deadlines.

The aftermath is costly: site remediation, lawsuit risk, increased insurance costs, and-more importantly-potential for injury or loss of life. In Calgary, the law is clear: supported excavations must be designed and executed to NBC standards without exception.

Frequently Asked Questions: Supported Excavations in Calgary

Can I handle my own supported excavation design as a DIY homeowner?

No. Any excavation deeper than 1.2 meters (4 feet) or closer than 1.2 meters to property lines, existing buildings, or public infrastructure must be designed and approved by a professional engineer, as required under the NBC and City of Calgary regulations. Even for shallower or smaller works, best practice is to consult qualified professionals to prevent risk and ensure code compliance.

What does an engineered excavation support design cost?

Engineering fees vary by size and complexity. For a standard infill home, budget $2,500-$5,000 for a complete site investigation and stamped shoring design, not including municipal permits. Large-scale or high-risk projects may run $10,000 or more, but this cost pales in comparison to litigation, remediation, or injury costs from inadequate design.

How do I speed the permit process?

Have clear, comprehensive drawings-especially for high-risk sites. Ensure engineering stamps are current and bet on a reputable local engineering firm who knows Calgary’s staff and permitting system. Prompt response to plan checker’s requests, early submission, and, when possible, concurrent permit applications are the keys to faster approvals.

What if I discover unexpected soil conditions mid-project?

Stop work in the affected area, inform both the supervising engineer and municipal inspector, and re-evaluate. Engineering adjustments or even a revised support design may be required. Safety always comes first; the cost and time of a brief pause is infinitely lower than the risk of proceeding unsafely.

Who is responsible for inspecting shoring before backfilling?

Both the professional engineer “of record” and Calgary Building Inspection staff may be involved. Always follow the inspection sequence outlined in the permit documents and engineer’s site observation schedule. Never remove shoring until it is certified as safe to do so by a Professional Engineer.

Summary: Planning for Success in Supported Excavations

Supported excavation is never just a checklist item or a box to tick. It forms the literal and figurative foundation of healthy, resilient, and safe homes and commercial structures in Calgary. Key elements that every homeowner, builder, and developer must prioritize include:

• Adherence to NBC Sections 4.2.5.3 and 9.12.1.1 as minimum requirements-never rely solely on “what worked last time.”
• Engagement of licensed professionals at every step-a well-credentialed engineer is essential for both permit and field review.
• Realistic permit and construction timelines-allowing for the intricacies of City review, engineering design, and potential site surprises.
• Robust budgeting-factoring all fees, engineering, contingencies, and remediation funds.
• Comprehensive safety culture-imbued from client to tradesperson to ensure every worker goes home safe, every day.
• Constant communication-city staff, engineers, contractors, and neighbors should all know what is happening and when.

By following these principles and maintaining rigorous attention to code and professional best practices, Calgary’s homeowners and builders can lay the groundwork for safe, efficient, and durable construction-every project, every time.
